Black Phoenix
Junior Member
Joined: Dec 2014
Posts: 89
Likes: 0
From: rockinham VT
Year: 1994
Model: Cherokee
Engine: stock I6
Nice build man! I just started on a 231/300 doubler myself and have been wondering where to get the adapter shaft. Thanks for showing photos of the mods you made to the case parts.
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0

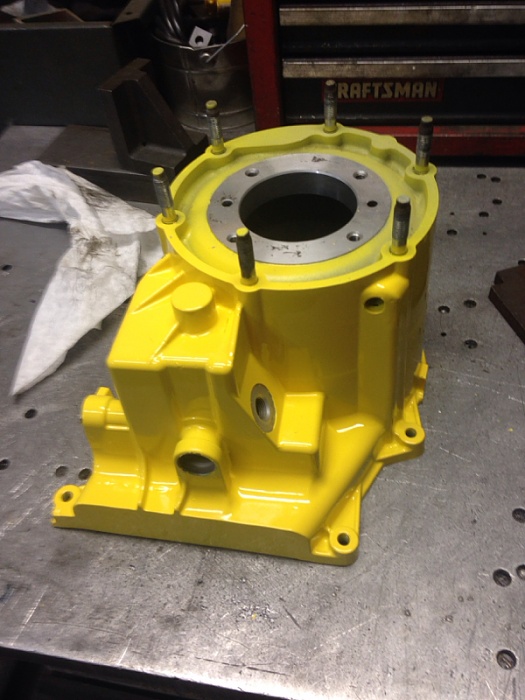

Painted the t case

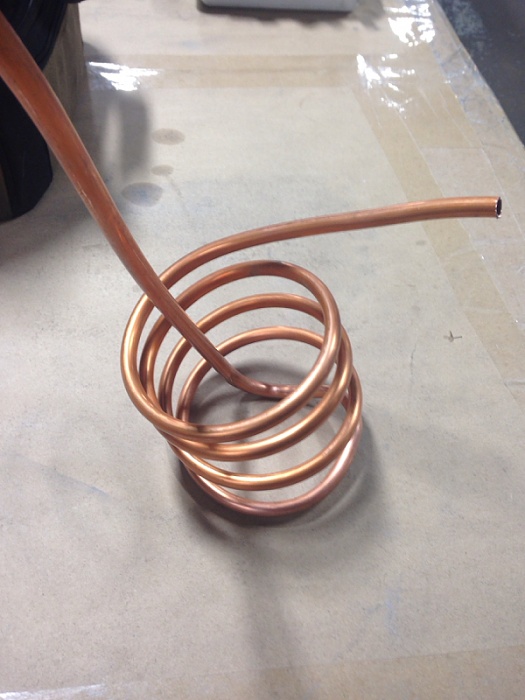

There's so many projects that I'm juggling right now. Setting up the OBA using the sanden compressor, the 231/300 doubler, and upcoming axle swap.

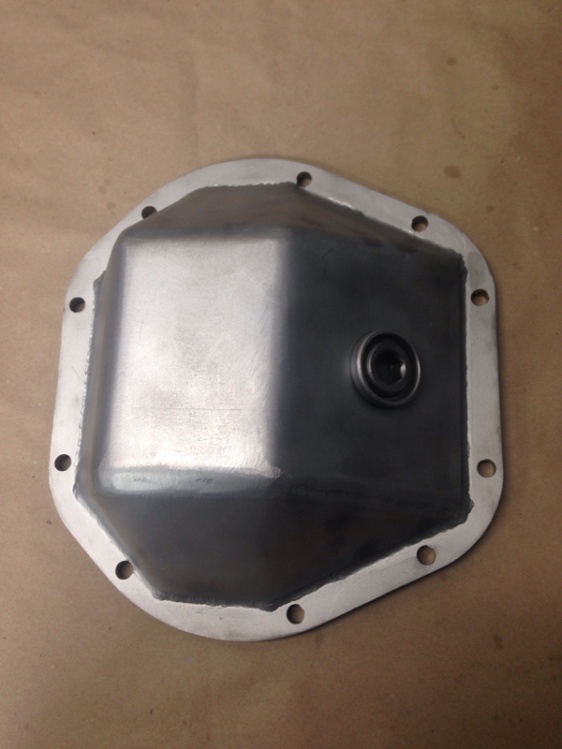

In case u are wondering what kind of axles..

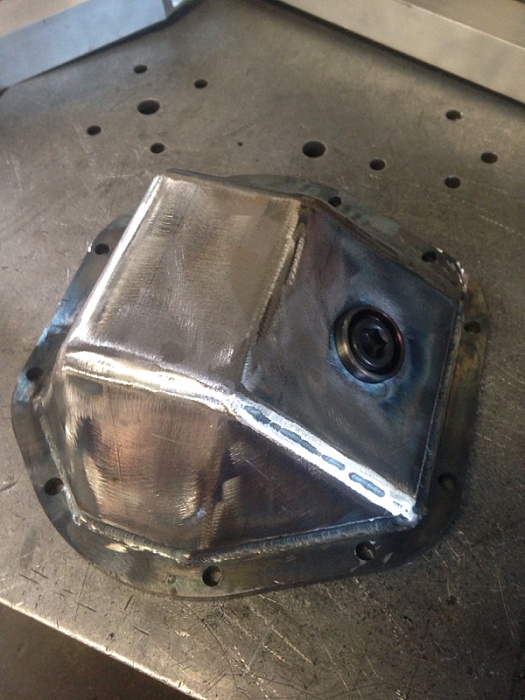

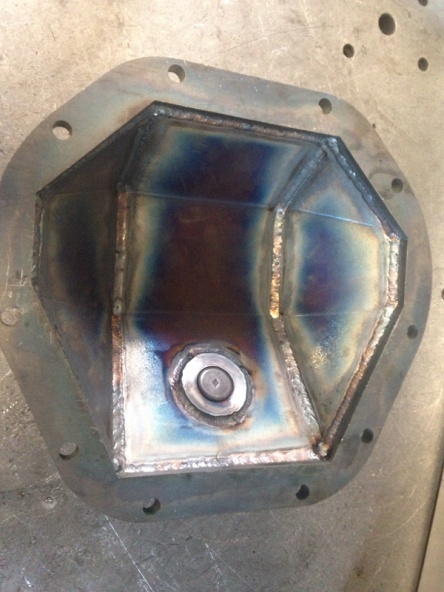

TIG welded the whole thing...
There's so many projects that I'm juggling right now. Setting up the OBA using the sanden compressor, the 231/300 doubler, and upcoming axle swap.
In case u are wondering what kind of axles..
TIG welded the whole thing...
Last edited by XJwonders; Feb 6, 2015 at 04:58 PM.
No, I don't lick fish.
Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Man... finally got around to checkin' your builds. Glad I did. Love the progress man. Very cool that you've saved some jeeps from the crusher. Kinda skimmed through the last few pages. Do you still have the silver XJ?
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Nope. Sold it and used the money to buy the 5 speed and had money left over to fix it up and buy a set of built waggy 44's for this jeep
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0

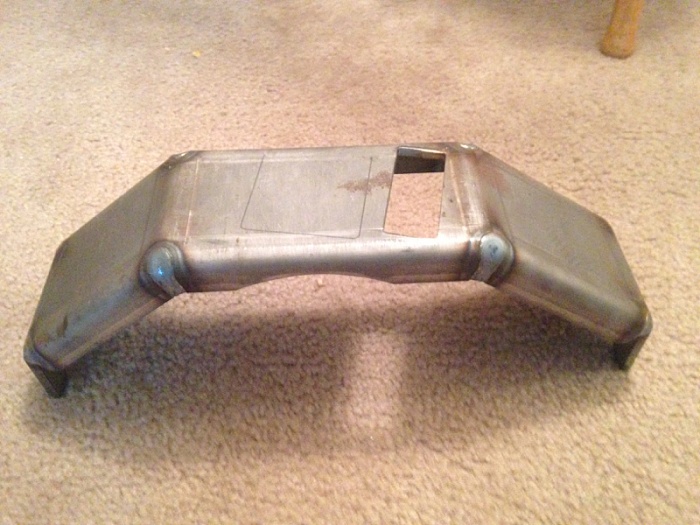

Yayy... The axle bridge arrived...
Now I gotta machine a chunk of steel and weld it over the bridge to accept the Rock Krawler spherical joint. And I'm golden
Now I gotta machine a chunk of steel and weld it over the bridge to accept the Rock Krawler spherical joint. And I'm golden
Last edited by XJwonders; Feb 9, 2015 at 06:36 PM.
No, I don't lick fish.
Joined: Mar 2011
Posts: 11,169
Likes: 26
From: Northern Kentucky
Year: 1999
Model: Cherokee (XJ)
Engine: 4.0
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0

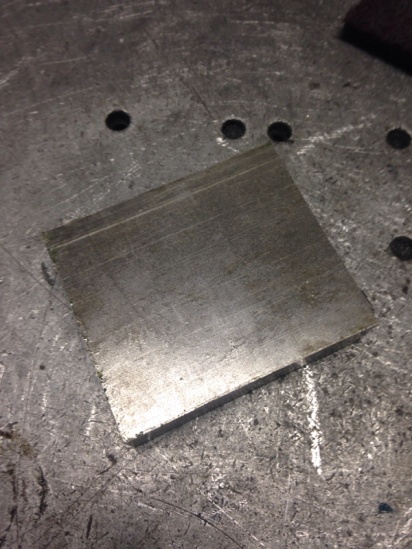

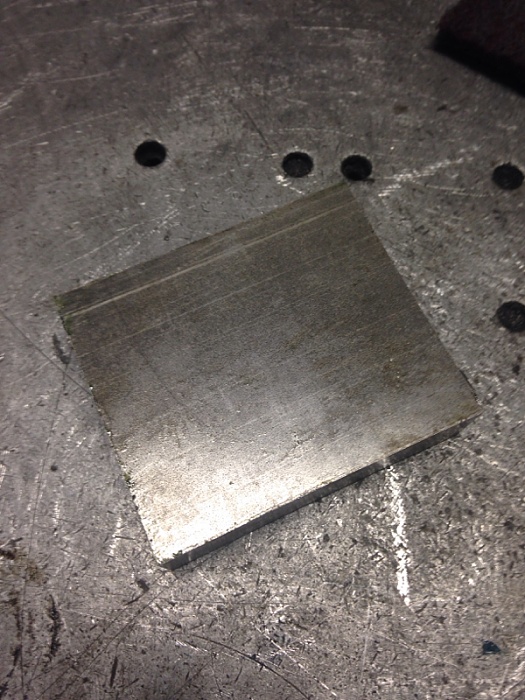

This chunk of steel will eventually become an upper mount that get welded to the bridge
Gotta wait for the lathe at work to open up so I can use it
Gotta wait for the lathe at work to open up so I can use it
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
Thread Starter
CF Veteran
Joined: Jan 2013
Posts: 19,219
Likes: 45
From: west chester, pa
Year: 1999
Engine: 4.0
My 3 link set up has the upper link on the drivers side and the waggy 44 doesn't have the cast mount on top of the pumpkin. So with the axle bridge and this piece, I'm able to retain my 3 link set up without any serious modification.

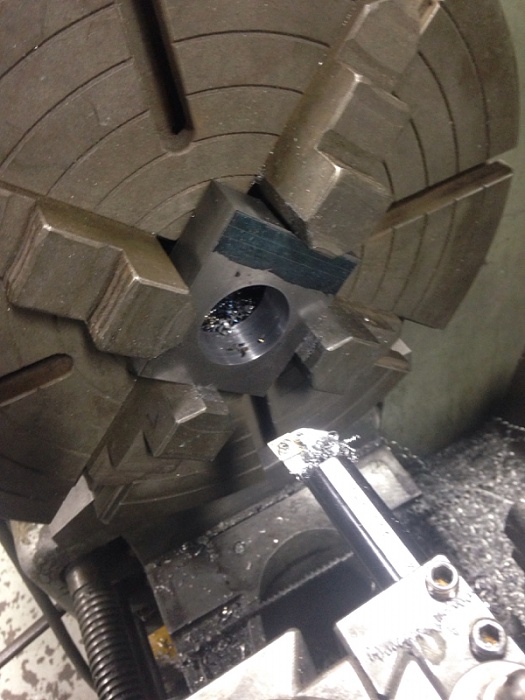

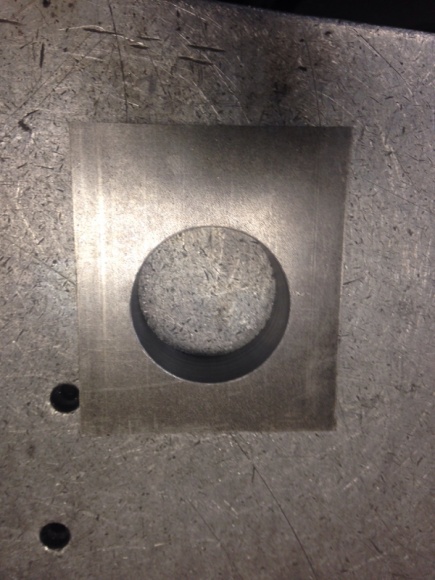

Drilled, then bored the hole out to 1.800
Gonna cut the corners and mill the bottom to fit in the slot on the bridge
Next thing is to drill and tap the hole on top for a grease zerk.
Drilled, then bored the hole out to 1.800
Gonna cut the corners and mill the bottom to fit in the slot on the bridge
Next thing is to drill and tap the hole on top for a grease zerk.
Last edited by XJwonders; Feb 12, 2015 at 06:42 AM.
