XJ Dash Lights Mod

Reply Subscribe

Thread Tools

Search this Thread

Feb 11, 2013 | 07:28 PM

#286

bobsxj

Member

Joined: Feb 2013

Posts: 238

Likes: 0

From: Quakertown, PA

Year: 1999

Model: Cherokee

Engine: 4.0 Inline 6

Thanks a lot I will do that I will post pics when done!

Feb 23, 2013 | 12:19 PM

#287

bobsxj

Member

Joined: Feb 2013

Posts: 238

Likes: 0

From: Quakertown, PA

Year: 1999

Model: Cherokee

Engine: 4.0 Inline 6

Just ordered!

Mar 4, 2013 | 08:27 AM

#288

bobsxj

Member

Joined: Feb 2013

Posts: 238

Likes: 0

From: Quakertown, PA

Year: 1999

Model: Cherokee

Engine: 4.0 Inline 6

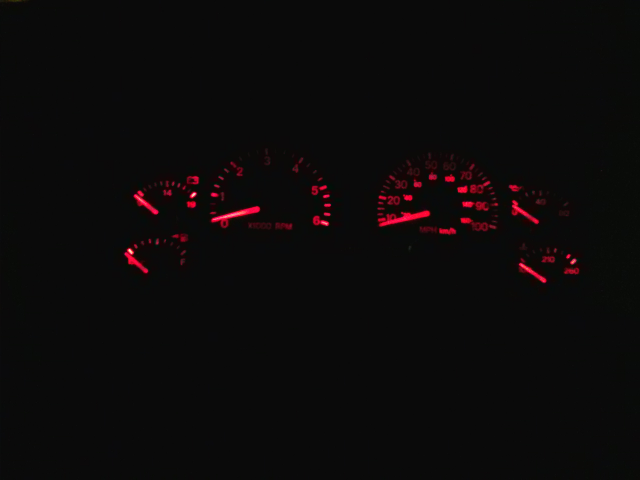

XJ Dash Lights Mod-forumrunner_20130304_092737.jpg

Mar 4, 2013 | 09:33 AM

#289

9294Forrest

CF Veteran

Joined: May 2012

Posts: 1,004

Likes: 0

Model: Cherokee

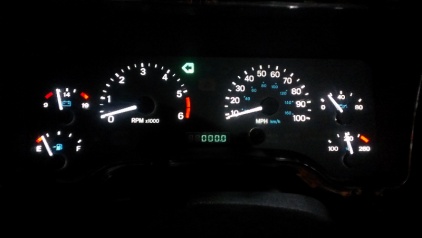

Highly recommend white

XJ Dash Lights Mod-forumrunner_20130304_073318.jpg

Mar 5, 2013 | 12:24 PM

#290

Shinigami

Junior Member

Joined: Dec 2012

Posts: 78

Likes: 0

From: Rio Rancho

Year: 1999

Model: Cherokee

Engine: 4.0L

Quote:

Originally Posted by 9294Forrest

Highly recommend white

Attachment 178810

Looks good in white and I bet would look just as good in amber.
Quick question, Does the tag light take one or two bulbs?

Mar 5, 2013 | 12:49 PM

#291

ThatPurpleXJ

CF Veteran

Joined: Sep 2012

Posts: 1,289

Likes: 0

From: Springfield Virginia

Year: 1998

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by Shinigami

Looks good in white and I bet would look just as good in amber.
Quick question, Does the tag light take one or two bulbs?

One 74 or 194 IIRC

Edit: they're 194s http://www.superbrightleds.com/morei...edge-base/206/

Remember to check with local laws but most likely they require them to be white

Last edited by ThatPurpleXJ; Mar 5, 2013 at 01:03 PM.

Mar 6, 2013 | 01:08 AM

#292

Shinigami

Junior Member

Joined: Dec 2012

Posts: 78

Likes: 0

From: Rio Rancho

Year: 1999

Model: Cherokee

Engine: 4.0L

Quote:

Originally Posted by ThatPurpleXJ

One 74 or 194 IIRC

Edit: they're 194s http://www.superbrightleds.com/morei...edge-base/206/

Remember to check with local laws but most likely they require them to be white

Thanks. Yea I'm putting a white bulb for the license plate and amber for the dash lights. I put amber LEDS on my 240sx and it looks really nice.

Mar 14, 2013 | 04:27 PM

#293

DieselD

CF Veteran

Joined: Apr 2011

Posts: 4,825

Likes: 2

From: Indianapolis

Year: '99 and '91

Model: Cherokee

Quote:

Originally Posted by rhettro

5- 74 leds in the dash and new stereo installed. its getting there.

pictures look a little odd, the blue is more even than it appears.

Just to confirm before i order its 5 - 74s (t5?) and what for the shift indicators? Hvac? Mines a 99.

Mar 14, 2013 | 04:41 PM

#294

ThatPurpleXJ

CF Veteran

Joined: Sep 2012

Posts: 1,289

Likes: 0

From: Springfield Virginia

Year: 1998

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by DieselD

Just to confirm before i order its 5 - 74s (t5?) and what for the shift indicators? Hvac? Mines a 99.

I prefer t5 instead of 74s for the cluster but yes, five of them. Hvac are two t4s, shifters are 194s with a diameter less then 10mm (vleds.com has them) and the defrost and rear wiper are t4s

Mar 14, 2013 | 05:45 PM

#295

DieselD

CF Veteran

Joined: Apr 2011

Posts: 4,825

Likes: 2

From: Indianapolis

Year: '99 and '91

Model: Cherokee

Ok. I seen another thread was saying I needed type-c neo wedges???? But that ended up being a 2000

Mar 14, 2013 | 06:09 PM

#296

ThatPurpleXJ

CF Veteran

Joined: Sep 2012

Posts: 1,289

Likes: 0

From: Springfield Virginia

Year: 1998

Model: Cherokee

Engine: 4.0

Quote:

Originally Posted by DieselD

Ok. I seen another thread was saying I needed type-c neo wedges???? But that ended up being a 2000

I'm pretty sure that's just another way of saying neowedge. The T5 LEDs are known as neowedge LEDs so type C is probably just the same. At least googling those didn't come up with anything different.

Mar 14, 2013 | 06:11 PM

#297

exjay1027

Senior Member

Joined: May 2012

Posts: 888

Likes: 1

From: Rockford, IL

Year: 1999

Model: Cherokee

Engine: 4.0

for anyone wondering what they need just go to superbrightleds.com and use the vehicle selector

for my 99

Mar 18, 2013 | 04:24 PM

#298

BluJay

Junior Member

Joined: Jan 2013

Posts: 48

Likes: 2

From: Phoenix / AZ

Year: 1998

Model: Cherokee

Engine: 4.0L I6 PTE

Quote:

Originally Posted by austinjoe13

Here's mine.

I started with Jtech 194 168 t10 combo type

I got them from Amazon
5pk-http://www.amazon.com/gp/product/B0091YVR58/ref=oh_details_o00_s00_i00

10pk- Amazon.com: Jtech 10x 194 168 2825 T10 5-SMD Red High Power LED Car Lights Bulb Super Bright: Automotive

Here's the rest!

About $20 overall. I can post more pics of the shifters too if anyone wants.

How did you get the front off? I have a 98 too and the bulbs come off the back.

I would love to open the front and mod the gauge faces.

Mar 31, 2013 | 07:35 PM

#299

VTEK1

Newbie

Joined: Aug 2009

Posts: 14

Likes: 0

Year: 1999

Model: Cherokee

Engine: 4.0

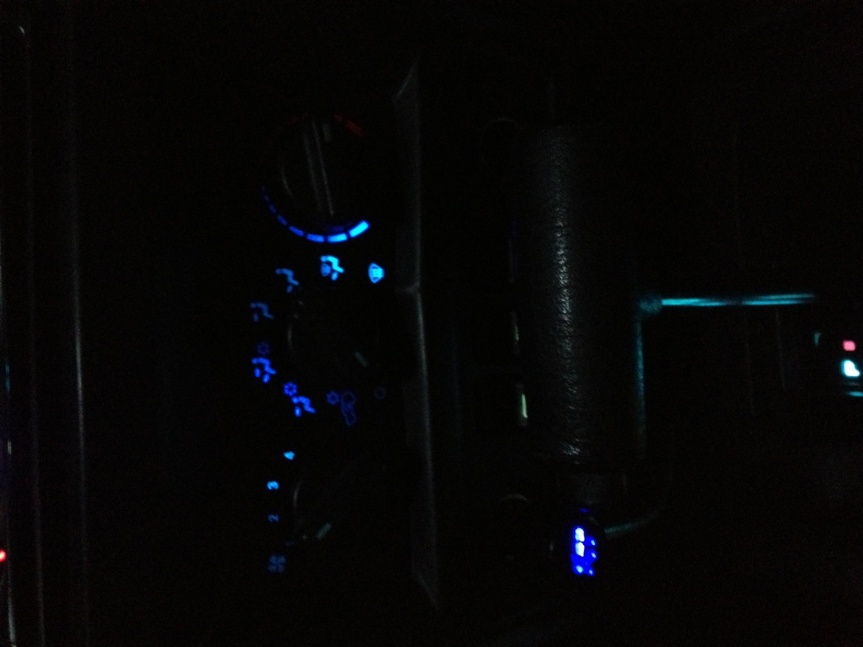

I don't know what happened here but I've tried moving them around and everything. They are both on but I don't have a clue why this is doing this.

Edit: sorry no idea why the pic is sideways.

Attached Thumbnails

Mar 31, 2013 | 11:09 PM

#300

austinjoe13

CF Veteran

Joined: Nov 2011

Posts: 2,433

Likes: 6

From: Northern MN

Year: 1990

Model: Cherokee (XJ)

Engine: Renix 4.0

Quote:

Originally Posted by BluJay

How did you get the front off? I have a 98 too and the bulbs come off the back.

I would love to open the front and mod the gauge faces.

I have an 89 sooo I'm not too sure! Lol
