XJ Ask the Question Thread
Senior Member
Joined: Jan 2011
Posts: 730
Likes: 2
From: Joliet, Il
Year: 1996
Model: Cherokee
Engine: HO4.0 I6

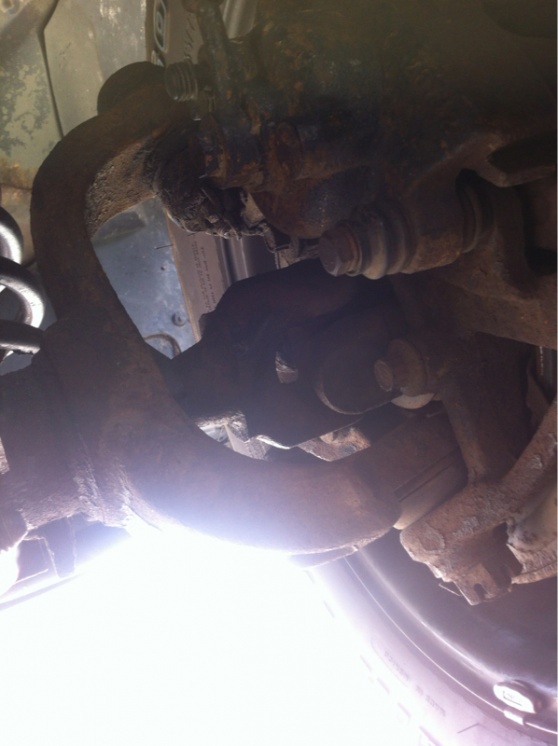

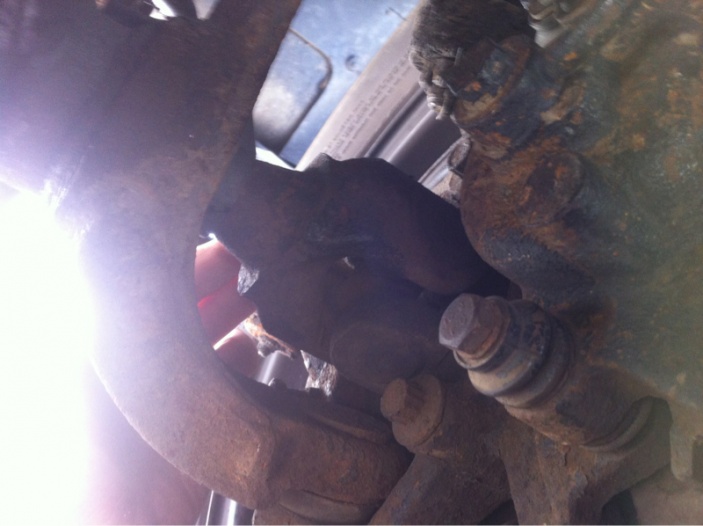

I have all the bolts off of my front drive shaft (after I snapped one of them because I forgot which way was left
) bot now I can't fully remove it to take it down. I have the tc end off but the side near the axle housing isn't budging. it isn't connected by any thing else is it? just the 4 bolts on each side?
) bot now I can't fully remove it to take it down. I have the tc end off but the side near the axle housing isn't budging. it isn't connected by any thing else is it? just the 4 bolts on each side?
Senior Member
Joined: Jan 2011
Posts: 730
Likes: 2
From: Joliet, Il
Year: 1996
Model: Cherokee
Engine: HO4.0 I6
Originally Posted by dukie564
yup - pull harder
http://www.jeep4x4center.com/jeep-un...herokee-xj.htm -Figured it is called the wheel joint. used this as my reference
Last edited by xj guy; Jun 29, 2012 at 02:31 PM.
Senior Member
Joined: Jan 2011
Posts: 730
Likes: 2
From: Joliet, Il
Year: 1996
Model: Cherokee
Engine: HO4.0 I6
https://www.cherokeeforum.com/f51/ho...ana-30-a-3689/
This seems like an all day project... Is it recommended to replace both at the same time? Or just replace the u-joint I'm having issues with?
This seems like an all day project... Is it recommended to replace both at the same time? Or just replace the u-joint I'm having issues with?
☠ CF Sheriff ☠

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
u-joint. And it's not that hard - few hours. You'll need to pull the wheel, take off the brakes, take off the hub nut, and take off the hub bearing. Then you can pull out the shaft and press out the old ujoint, and press in the new one. I just use a big bench vice and a hammer, however a ball joint c-clamp kit works well also.
I like the brute force joints from Advance Auto. Throw it in the freezer for a few hours before changing it - it helps to get it into the axle.
No need to replace both at the same time - just replace the blown one.
I like the brute force joints from Advance Auto. Throw it in the freezer for a few hours before changing it - it helps to get it into the axle.
No need to replace both at the same time - just replace the blown one.
Seasoned Member


Joined: Apr 2012
Posts: 494
Likes: 8
From: Glen Burnie Maryland
Year: 1987
Model: Cherokee
Engine: 4.0 6l
i have checked the u joints and there sold, i fear its the berrings but i really couldnt sya its a noise that is with the wheels, in time, and it is also is apperently on the same spot because it is regular, and this morning i turned all the way lefft then right and there was a jump, clank, or thud like the hole suspension re seated its sell or something, any one have any ideas?
i am installing a new oil pump i have it bolted up along with the strainer and i am having trouble working with the "re usable gasket" set up. any tricks to keeping anything in place while bolting up the pan?
CF Veteran
Joined: Nov 2010
Posts: 15,581
Likes: 8
From: some small town oregon
Year: 1989
Model: Cherokee
Engine: 4.0
Originally Posted by Kuro89
I am replacing my speedometer gear in my jeep, but quadratec or anyone else for that matter doesn't list an o-ring for renix era jeeps is it the same as the 91+ jeeps?
My wifes 2001 cherokee failed to start yesterday while shopping, this is her main vehicle, 110,000 miles and used every day. It cranks over like crazy, but does not fire, no sign of life. I switched fuel relay and checked fuses. Fuel pump makes noise when key is turned on. I sprayed starting fluid in manifold and engine fired and ran poorly for about 10 seconds. so I figured it must be a fuel problem. Gas squirted out of the valve on injector rail. I put gas into the intake manifold and nothing happened, no firing. I sprayed ether again and it fired for a second or two. Any ideas? I'm in my 60's with fairly extensive mechanical knowledge, really tired of multiple fuses and relays for a fuel pump. Thanks, I hope this ends up somewhere appropriate, I searched last night but couldn't find the right answers.
My wifes 2001 cherokee failed to start yesterday while shopping, this is her main vehicle, 110,000 miles and used every day. It cranks over like crazy, but does not fire, no sign of life. I switched fuel relay and checked fuses. Fuel pump makes noise when key is turned on. I sprayed starting fluid in manifold and engine fired and ran poorly for about 10 seconds. so I figured it must be a fuel problem. Gas squirted out of the valve on injector rail. I put gas into the intake manifold and nothing happened, no firing. I sprayed ether again and it fired for a second or two. Any ideas? I'm in my 60's with fairly extensive mechanical knowledge, really tired of multiple fuses and relays for a fuel pump. Thanks, I hope this ends up somewhere appropriate, I searched last night but couldn't find the right answers.
Throwing any codes? Sounds like if you got fuel in the rail may be an injector issue?? Is the rail Being pressurized or just leaking out?
Last edited by bheath; Jun 30, 2012 at 11:11 AM.
