Old Dec 14, 2011 | 08:09 PM
  #8521
Bassfishertim2015's Avatar
Senior Member

Joined: May 2011
Posts: 950
Likes: 0
From: Newman, Lake WA
Year: 1989
Model: Cherokee
Engine: 4.0 I6 cold air
Default

Originally Posted by Sideways99
so your sayin you already pulled your drums off and poked at it
When it broke last summer I replaced the hose right away. The problem that just happened I'm hoping its inside the drum. Easy fix. Wishful thinking aye
Old Dec 14, 2011 | 08:50 PM
  #8522
Moran.223's Avatar
Newbie

Joined: Dec 2011
Posts: 3
Likes: 0
From: Ohio
Year: 2000
Model: Cherokee
Engine: 4.0
Default Water on passenger floorboard.

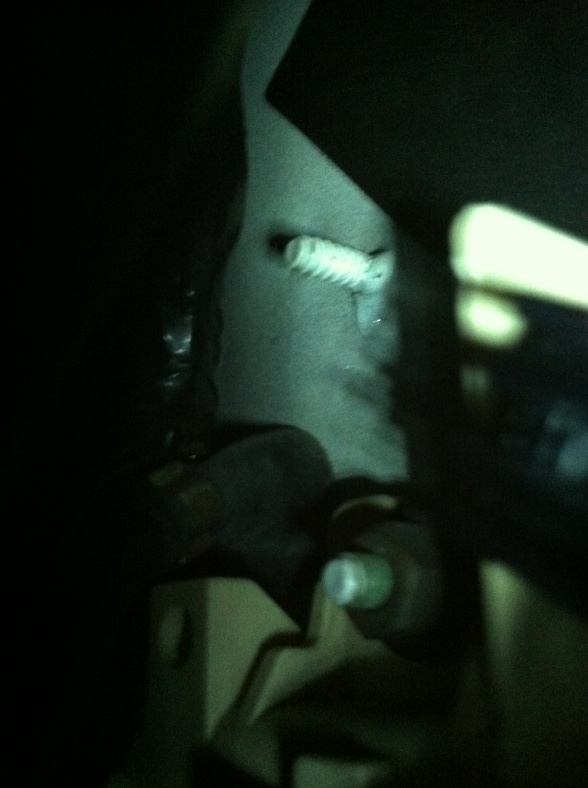

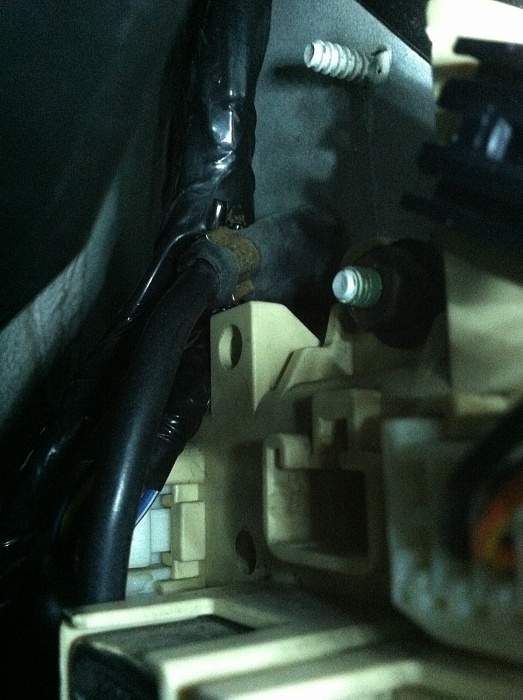

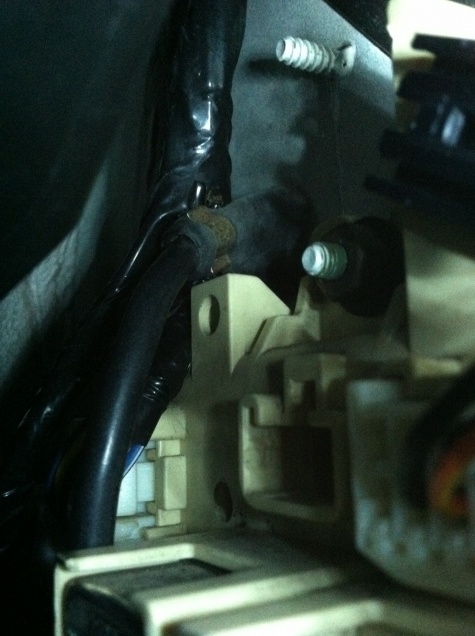

Not a question but another possible solution to those who dont have plugged drains, leaky windshields, bad blower motor seals, or blown heater cores. A stud that the body wiring harness attaches to may leak. (alot)
You first need to remove the main connector and two of the upper connectors and move the antenna wire out of the way to get a good view of it. It is directly above the fuse block.
Attached Thumbnails XJ Ask the Question Thread-photo.jpg   XJ Ask the Question Thread-photo2.jpg
Old Dec 14, 2011 | 09:33 PM
  #8523
onlyinajeep726's Avatar
CF Veteran

Joined: Apr 2011
Posts: 1,146
Likes: 0
From: Clayton, NC
Year: 1988
Model: Cherokee
Engine: 4.6L I6 Stroker with port matched +99 intake and 62mm TB
Default

Originally Posted by Moran.223
Not a question but another possible solution to those who dont have plugged drains, leaky windshields, bad blower motor seals, or blown heater cores. A stud that the body wiring harness attaches to may leak. (alot)
You first need to remove the main connector and two of the upper connectors and move the antenna wire out of the way to get a good view of it. It is directly above the fuse block.

Some more of that brilliant engineering over at Chrysler...
Old Dec 15, 2011 | 12:09 AM
  #8524
01cherokeelimited's Avatar
Junior Member

Joined: Jun 2011
Posts: 99
Likes: 0
From: Cary, NC
Year: 2001
Model: Cherokee
Engine: str 6
Default

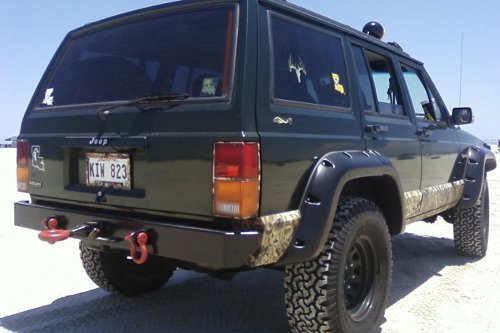

how would you go about doing a camo job like this? I found this pic and thought it looked pretty sweet...
Attached Images

Last edited by 01cherokeelimited; Dec 15, 2011 at 12:12 AM.
Old Dec 15, 2011 | 08:42 AM
  #8525
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by 01cherokeelimited
how would you go about doing a camo job like this? I found this pic and thought it looked pretty sweet...
I assume that's a vinyl graphic that they stuck on. I very much doubt that it's painted on.
Old Dec 15, 2011 | 10:24 AM
  #8526
bsmith97xj's Avatar
Member

Joined: Jul 2011
Posts: 185
Likes: 0
From: Hutchinson Ks
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by dukie564

I assume that's a vinyl graphic that they stuck on. I very much doubt that it's painted on.
Yep. Cabelas sells stuff like that.
Old Dec 15, 2011 | 10:29 AM
  #8527
Bassfishertim2015's Avatar
Senior Member

Joined: May 2011
Posts: 950
Likes: 0
From: Newman, Lake WA
Year: 1989
Model: Cherokee
Engine: 4.0 I6 cold air
Default

Buddy got the same stuff off cabelas wedsite. Found out I lost the self adjuster on my driver rear brake. And the cable in the drum isn't even there lol.
Old Dec 15, 2011 | 11:14 AM
  #8528
01cherokeelimited's Avatar
Junior Member

Joined: Jun 2011
Posts: 99
Likes: 0
From: Cary, NC
Year: 2001
Model: Cherokee
Engine: str 6
Default

Originally Posted by dukie564

I assume that's a vinyl graphic that they stuck on. I very much doubt that it's painted on.
Alright cool, thats what I thinking.. Thanks.
Old Dec 15, 2011 | 11:54 AM
  #8529
bruni86xj's Avatar
Senior Member

Joined: Nov 2011
Posts: 773
Likes: 0
From: Rockford illinois
Year: 1998
Model: Cherokee
Engine: h.o. 4.0
Default

are all rear leaf springs the same on xjs? i need a rear main leaf and need to know what my options are at the jy, they said they have an 87 but ide like to make sure some other years will work just in case there shot on the 87
Old Dec 15, 2011 | 03:15 PM
  #8530
HATTY333's Avatar
Junior Member

Joined: Dec 2011
Posts: 34
Likes: 0
From: Riverton, KS
Year: 1995
Model: Cherokee
Engine: 4.0 HO I6
Default

Hey guys i talk to you yesterday about putting a cps on my 95 xj and i put it on last night ( so far so good ). So now do i need to reset the computer or am i just good to go?
Old Dec 15, 2011 | 05:59 PM
  #8531
Bassfishertim2015's Avatar
Senior Member

Joined: May 2011
Posts: 950
Likes: 0
From: Newman, Lake WA
Year: 1989
Model: Cherokee
Engine: 4.0 I6 cold air
Default

Installed a new valve cover gasket and changed the oil and filter. Now she's making a god awful squeeking noise that won't go away. Any suggestions? Checked the belf and is pretty tight.
Old Dec 15, 2011 | 06:48 PM
  #8532
bsmith97xj's Avatar
Member

Joined: Jul 2011
Posts: 185
Likes: 0
From: Hutchinson Ks
Year: 1997
Model: Cherokee
Engine: 4.0
Default

My 97 rides like a tank in the rear. And my driver seat foam is beyond worn out. Makes my back hurt after driving it back and forth a couple miles a day to work. Need some direction here ....spend money on good suspension style seats or try and get the jeep riding softer? Also anyone know of a place to get NEW seat foam? 97 5.5 " lift. Bought this way. Appears to have aftermarket leaf shackles not sure bout springs. Fox emulsion2.0 shocks

Last edited by bsmith97xj; Dec 15, 2011 at 06:53 PM.
Old Dec 15, 2011 | 06:50 PM
  #8533
odgreen's Avatar
CF Veteran

Joined: Nov 2010
Posts: 15,581
Likes: 8
From: some small town oregon
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by bsmith97xj
My 97 rides like a tank in the rear. And my driver seat foam is beyond worn out. Makes my back hurt after driving it back and forth a couple miles a day to work. Need some direction here ....spend money on good suspension style seats or try and get the jeep riding softer? Also anyone know of a place to get NEW seat foam?
Just get a used seat in good shape.
Old Dec 15, 2011 | 07:20 PM
  #8534
hytek's Avatar
Member

Joined: Oct 2011
Posts: 121
Likes: 0
From: IL
Year: 1996
Model: Cherokee
Engine: 4.0
Default

After studying a few u-joint write ups I'm finally trying to get my front axel u-joint replaced. I can't for the life of me get the dang axel nut to break free. I don't have an impact wrench so I'm using a breaker bar on my socket wrench. I've pbb'd it like crazy. There's no way to do it with the wheel still on the ground due to the center cap not being big enough. Any advice?

I've read it can be replaced without removing the axel, but I can't get the c-clips to budge either. Should I let everything soak in pbb and try again in a day or so?
Old Dec 15, 2011 | 07:24 PM
  #8535
zombie jeep101's Avatar
CF Veteran

Joined: Oct 2011
Posts: 2,613
Likes: 0
From: Summerville, South Carolina
Year: 99
Model: Cherokee
Engine: 4.0
Default

Originally Posted by hytek
After studying a few u-joint write ups I'm finally trying to get my front axel u-joint replaced. I can't for the life of me get the dang axel nut to break free. I don't have an impact wrench so I'm using a breaker bar on my socket wrench. I've pbb'd it like crazy. There's no way to do it with the wheel still on the ground due to the center cap not being big enough. Any advice?

I've read it can be replaced without removing the axel, but I can't get the c-clips to budge either. Should I let everything soak in pbb and try again in a day or so?
Did this same thing. Soak good overnight, then the next day go soak it again, come back in 5mins and do it again. Do this one
More time and with a breaker bar and some elbow grease it WILL come loose!
