XJ Ask the Question Thread

Thread Tools

Search this Thread

Old Dec 3, 2011 | 04:50 PM
  #8326
Disoriented Hillbilly's Avatar
CF Veteran

Joined: Nov 2010
Posts: 2,139
Likes: 1
From: chillicothe, OH
Year: 1991
Model: Cherokee
Engine: 4.0
Default

Upgrading braking system in my '91 to '95 booster/mc/prop valve. I called dealer to find out how much one was just in case i couldnt find one in a jy local. He asked me if my brakes were 9" or 10". My question is this: Is there really a difference in these two prop valves or are they ACTUALLY one in the same with a different manufacturing # for tracking and record keeping purposes. Any help greatly appreciated!
Old Dec 3, 2011 | 05:49 PM
  #8327
zombie jeep101's Avatar
CF Veteran

Joined: Oct 2011
Posts: 2,613
Likes: 0
From: Summerville, South Carolina
Year: 99
Model: Cherokee
Engine: 4.0
Default

Know it's been covered before on this thread but dont want to look back through pages and pages of post to find it. So, just changed rear main seal and now need to refill with oil and get new oil filter. Want to get the best possible oil and filter for my jeep this time. What's the BEST oil and filter you guys would recommend? 89 limited----
Old Dec 3, 2011 | 06:30 PM
  #8328
spoons's Avatar
Newbie

Joined: Nov 2011
Posts: 9
Likes: 0
From: NW NY
Year: 1999
Model: Cherokee
Engine: 4.0 I6
Default

So my '99 I6 4.0L Cherokee died on the road a few weeks ago...just kind of sputtered out and wouldn't restart. It would crank and crank, just no turn over. I had a shop check it out and the diagnosis came back as a bum PCM--$1000 bucks! I got one programmed from a company on line for $200 and did the 4 minute install myself...still no luck. I think I have fuel (Schroeder valve on the rail spits, but I don't have an actual pressure gauge; also I can hear the fuel pump priming when I click the key to run). The shop that diagnosed the PCM claims to have tested the Ignition Coil and CPS with no problems, but those are the only other things that I can think of that will keep an engine from getting spark...

If anyone can think of something I'm missing, I'd be very grateful for a little insight/advice. I figure CPS/ignition coil are going to be the suggestions, but was just wondering if anyone had seen these probs and can help me out. Many thanks in advance!
Old Dec 3, 2011 | 09:23 PM
  #8329
bsmith97xj's Avatar
Member

Joined: Jul 2011
Posts: 185
Likes: 0
From: Hutchinson Ks
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by spoons
So my '99 I6 4.0L Cherokee died on the road a few weeks ago...just kind of sputtered out and wouldn't restart. It would crank and crank, just no turn over. I had a shop check it out and the diagnosis came back as a bum PCM--$1000 bucks! I got one programmed from a company on line for $200 and did the 4 minute install myself...still no luck. I think I have fuel (Schroeder valve on the rail spits, but I don't have an actual pressure gauge; also I can hear the fuel pump priming when I click the key to run). The shop that diagnosed the PCM claims to have tested the Ignition Coil and CPS with no problems, but those are the only other things that I can think of that will keep an engine from getting spark...

If anyone can think of something I'm missing, I'd be very grateful for a little insight/advice. I figure CPS/ignition coil are going to be the suggestions, but was just wondering if anyone had seen these probs and can help me out. Many thanks in advance!
First u need to verify good blue spark, and fuel pressure with a gauge. After u determine which one is the problem, Post that up.
Old Dec 3, 2011 | 11:30 PM
  #8330
jx2991's Avatar
Member

Joined: Feb 2011
Posts: 206
Likes: 0
From: Kuna, ID
Year: 1992
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by spoons
So my '99 I6 4.0L Cherokee died on the road a few weeks ago...just kind of sputtered out and wouldn't restart. It would crank and crank, just no turn over. I had a shop check it out and the diagnosis came back as a bum PCM--$1000 bucks! I got one programmed from a company on line for $200 and did the 4 minute install myself...still no luck. I think I have fuel (Schroeder valve on the rail spits, but I don't have an actual pressure gauge; also I can hear the fuel pump priming when I click the key to run). The shop that diagnosed the PCM claims to have tested the Ignition Coil and CPS with no problems, but those are the only other things that I can think of that will keep an engine from getting spark...

If anyone can think of something I'm missing, I'd be very grateful for a little insight/advice. I figure CPS/ignition coil are going to be the suggestions, but was just wondering if anyone had seen these probs and can help me out. Many thanks in advance!
I had a similar situation a month or so ago (minus the PCM fiasco). My coil was the culprit. I tested the ohms on the coil. It was only 2.something. My understanding is anything under 5 ohms means its junk. Swapped it with a new one and was back on the road. Hope this helps.
Old Dec 4, 2011 | 09:15 AM
  #8331
zombie jeep101's Avatar
CF Veteran

Joined: Oct 2011
Posts: 2,613
Likes: 0
From: Summerville, South Carolina
Year: 99
Model: Cherokee
Engine: 4.0
Default

Originally Posted by zombie jeep101
just changed rear main seal and now need to refill with oil and get new oil filter. Want to get the best possible oil and filter for my jeep this time. What's the BEST oil and filter you guys would recommend? 89 limited----
^^^^
Old Dec 4, 2011 | 09:25 AM
  #8332
sycoglitch's Avatar
CF Veteran

Joined: Sep 2010
Posts: 12,692
Likes: 6
From: Mercer County, NJ
Year: 2001
Model: Cherokee
Engine: 4.0L I6 HO
Default

Originally Posted by zombie jeep101

^^^^
Anything 5w-30 for the winter is perfect. I use Mobil full syntec, only recommend if your engine is young, and a high capacity
Mobil filter. I also prefer mopar filters. Oil is essentially oil. Change I often and you won't go wrong
Old Dec 4, 2011 | 09:29 AM
  #8333
wildspear's Avatar
CF Veteran

Joined: May 2010
Posts: 1,680
Likes: 5
From: Western Michigan
Year: 1993
Model: Grand Cherokee
Engine: 4.0l inline 6
Default

Im going to be replacing the control arm bushings in my wife's 2000 XJ. What is meant by "Pre-Load"? Do I Pre-Load (once I know what it is....lol) the control arms?
Old Dec 4, 2011 | 09:33 AM
  #8334
hytek's Avatar
Member

Joined: Oct 2011
Posts: 121
Likes: 0
From: IL
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by zombie jeep101

^^^^
Advance Auto Parts has some good oil change specials right now. I bought 6 quarts Shell Penzoil high mileage 5w30 with PureOne filter for $24.99 before $7 rebate. The Platinum full synth with K&N filter was a couple bucks more.
Old Dec 4, 2011 | 11:00 AM
  #8335
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by wildspear
Im going to be replacing the control arm bushings in my wife's 2000 XJ. What is meant by "Pre-Load"? Do I Pre-Load (once I know what it is....lol) the control arms?
are they rebuildible joints? "preload" means the joint is compressed prior to installation - Johnny Joints for example have to be compressed and a snap ring installed to they have a specific amount of pressure on the bushing. If it's a normal rubber bushing there is no preload - just press it in and bolt it up. Don't tighten it fully until the full weight of the truck is on the ground.
Old Dec 4, 2011 | 11:01 AM
  #8336
bsmith97xj's Avatar
Member

Joined: Jul 2011
Posts: 185
Likes: 0
From: Hutchinson Ks
Year: 1997
Model: Cherokee
Engine: 4.0
Default

Originally Posted by wildspear
Im going to be replacing the control arm bushings in my wife's 2000 XJ. What is meant by "Pre-Load"? Do I Pre-Load (once I know what it is....lol) the control arms?
It means torque fasteners w/ weight of jeep on ground. Not unloaded. JMHO
Old Dec 4, 2011 | 12:17 PM
  #8337
wildspear's Avatar
CF Veteran

Joined: May 2010
Posts: 1,680
Likes: 5
From: Western Michigan
Year: 1993
Model: Grand Cherokee
Engine: 4.0l inline 6
Default

Thanks guys, sorry for the simple question. The bushings are not rebuildable. Their the moog (I think) bushings, rubber.
Old Dec 4, 2011 | 01:33 PM
  #8338
hytek's Avatar
Member

Joined: Oct 2011
Posts: 121
Likes: 0
From: IL
Year: 1996
Model: Cherokee
Engine: 4.0
Default

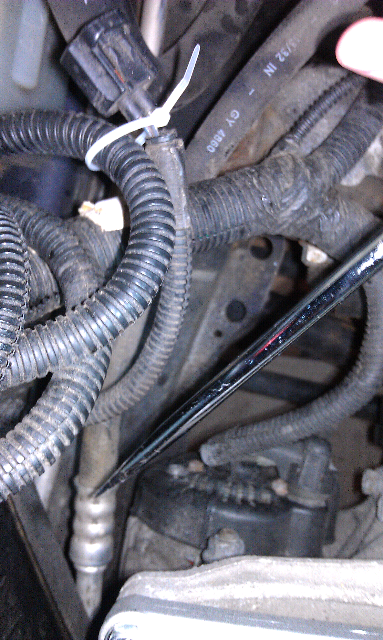

I've put my ac compressor bypass pulley on and now I'm not sure what to do with one of the ac hoses. (All the freon is discharged) The one I'm talking about is the one going to the condensor in front of the radiator. Should I just cut it?
Attached Thumbnails XJ Ask the Question Thread-forumrunner_20111204_133109.jpg
Old Dec 4, 2011 | 01:47 PM
  #8339
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

just remove the condenser

where did you get that bypass pulley btw?
Old Dec 4, 2011 | 01:59 PM
  #8340
hytek's Avatar
Member

Joined: Oct 2011
Posts: 121
Likes: 0
From: IL
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Ok thanks.

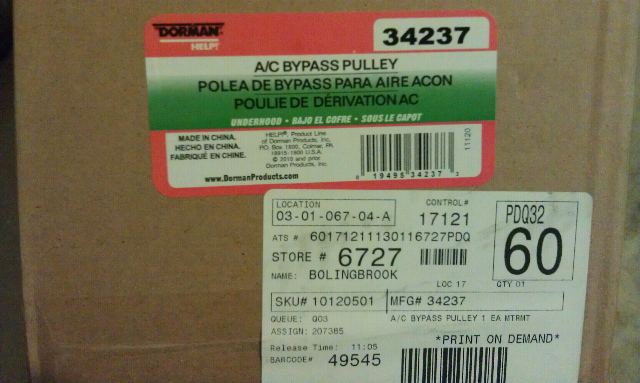

Advance Auto Parts part # Dorman 34237. $47 arrived next day.
Attached Thumbnails XJ Ask the Question Thread-forumrunner_20111204_135856.jpg
