Old Jun 20, 2014 | 11:13 PM
  #43696
stitch702's Avatar
Senior Member

Joined: Apr 2013
Posts: 673
Likes: 1
From: Sin City
Year: 1998
Model: Cherokee
Default

Originally Posted by LawDog9
Ok. All of a sudden my xj starts sputtering and I can smell gas. I'm no t losing fuel on the gauges and it's at half a tank. Fuel filter? Fuel pump? Injectors? Any thoughts?

Possible leak at one of your injectors? Where do you smell the gas mainly? Engine bay? Rear?
Old Jun 20, 2014 | 11:15 PM
  #43697
stitch702's Avatar
Senior Member

Joined: Apr 2013
Posts: 673
Likes: 1
From: Sin City
Year: 1998
Model: Cherokee
Default

Originally Posted by JerrytheJeep
Replacing the sending unit isnt tough, just wait till your tank is damn near empty to do it so it doesnt way 100 lbs

On mine it will be. Took me damn near 2 months to do my suspension and steering because every bolt was rusted and had to be cut...then again a lot of that 2 months was spent waiting on parts to come in....I'm pretty sure my straps that hold the tank will need replacing....****ing rust
Old Jun 20, 2014 | 11:17 PM
  #43698
DESERTXJ206's Avatar
CF Veteran

Joined: May 2011
Posts: 1,458
Likes: 2
From: Glendale,Az
Year: 1990
Model: Cherokee
Engine: 4.0l 6Cyl
Default

Originally Posted by LawDog9
Ok. All of a sudden my xj starts sputtering and I can smell gas. I'm no t losing fuel on the gauges and it's at half a tank. Fuel filter? Fuel pump? Injectors? Any thoughts?
Map Vaccum line disconnected? Everytime my map line comes off my throttle body I get the exact same symptons.
Old Jun 21, 2014 | 06:07 AM
  #43699
LawDog9's Avatar
Senior Member

Joined: Apr 2012
Posts: 638
Likes: 0
From: Huntsville, Tn
Year: Different Years (I have several XJ's)
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by stitch702
Possible leak at one of your injectors? Where do you smell the gas mainly? Engine bay? Rear?
Smell it at drivers seat mostly.
Old Jun 21, 2014 | 07:25 AM
  #43700
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,578
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by LawDog9
Smell it at drivers seat mostly.
Check where the flexible fuel hoses meet the injector rail/fuel pressure regulator.
Old Jun 21, 2014 | 11:37 AM
  #43701
hippydippy's Avatar
Junior Member

Joined: Mar 2013
Posts: 84
Likes: 0
From: Cape Cod
Year: 1992
Model: Cherokee
Engine: 4.0
Default

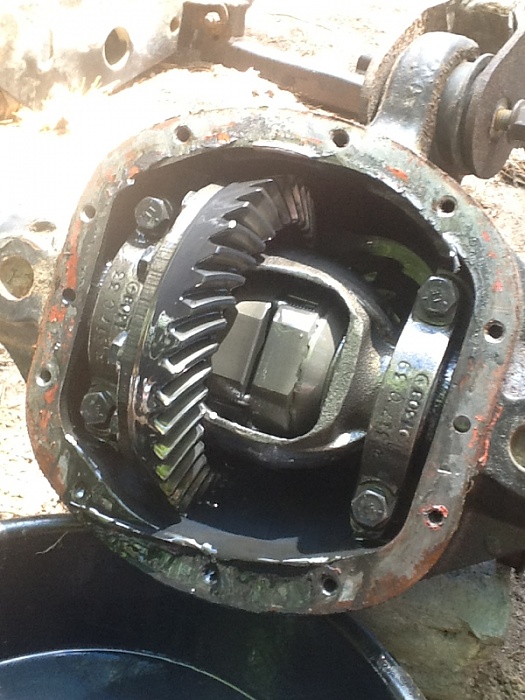

XJ Ask the Question Thread-image-4115145720.jpg
Old Jun 21, 2014 | 11:38 AM
  #43702
hippydippy's Avatar
Junior Member

Joined: Mar 2013
Posts: 84
Likes: 0
From: Cape Cod
Year: 1992
Model: Cherokee
Engine: 4.0
Default

That's an auto locker right? Anybody know what brand?^^
Old Jun 21, 2014 | 12:11 PM
  #43703
1991Jeep_Man's Avatar
CF Veteran

Joined: Oct 2009
Posts: 2,867
Likes: 16
From: Fauquier County, Virginia
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Default

Can one go about drilling a hole straight through a hatch strut ball-mounting joint so as to slide it over a stud and 'bolt' it down (loosely, to secure it)?

I'm tired of these struts giving way simply because the ball clip thing is worn out and then you have to pull a ninja move to catch the hatch or else you keep busting your tail-lights out. Especially since that often when the cup is worn out, the shock still works fine.
Old Jun 21, 2014 | 12:23 PM
  #43704
my89xj's Avatar
CF Veteran

Joined: Sep 2011
Posts: 10,447
Likes: 0
From: Frederick, MD
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Is there axle side track bar bolt the same size for 84-01 xj? I goofed up one that came out of a 99 so I put one from a 93 on there and tightened it like hell.

I'm going to tighten it some more. The jeep had no death wobble previously and that's the only thing I touched that could have caused it.

Just got some death wobble.

Yes they're different.

Last edited by my89xj; Jun 21, 2014 at 05:01 PM.
Old Jun 21, 2014 | 03:07 PM
  #43705
syrup's Avatar
Newbie

Joined: May 2014
Posts: 3
Likes: 0
Year: 1997
Model: Cherokee
Default Aux fan?

Okay, so I'm new to just about anything jeep related.

I'm fresh out of highschool, and through holding some jobs through the years I've saved enough to get myself a car.

So I went out, found myself a 97 cherokee 2WD (it's country, if that makes a difference). 1000$ not too bad. All the tires are bare though, but that's a problem for rainy day.

Needed a couple things, fixed everything up, but I've got some problems still.

The most important problem is..
It's missing one of the fans in the front, and without it when I'm just parked for an extended period of time, the car just shuts off, and then in 15 minutes it starts right up again. It's happened on the road a couple times, mostly when I have the ac on. I did some research, and I found out that I have the Auxiliary fan missing, but when I search auxiliary fan installation, all that really comes up is something about a switch for it, which I know nothing about.

so my question for anyone that wants to help a semi lost teenager is, what fan do I get for it, can i install it on my own? (not taking apart the radiator and everything; do i have to take it to a shop?)
Thanks
Old Jun 21, 2014 | 03:41 PM
  #43706
Greybeard's Avatar
Newbie

Joined: Jun 2014
Posts: 2
Likes: 0
Model: Cherokee
Default U Joint Fit Problem

I'm changing the right front ujoint on my 1997 Jeep Cherokee. The part that is closest to fitting is part No 371, but it's slightly too long. The c rings are too large. the yoke opening is 55 mm. Can't find a part at any of the part stores except the 371. Do I need to go to the dealership? Any suggestions? Thanks

The one i took out is a Spicer U65 F1

Last edited by Greybeard; Jun 21, 2014 at 03:55 PM. Reason: more info
Old Jun 21, 2014 | 03:58 PM
  #43707
salad's Avatar
Herp Derp Jerp
Premium Member

Joined: Nov 2011
Posts: 18,251
Likes: 17
From: Parham, ON
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Originally Posted by syrup
Okay, so I'm new to just about anything jeep related.

I'm fresh out of highschool, and through holding some jobs through the years I've saved enough to get myself a car.

So I went out, found myself a 97 cherokee 2WD (it's country, if that makes a difference). 1000$ not too bad. All the tires are bare though, but that's a problem for rainy day.

Needed a couple things, fixed everything up, but I've got some problems still.

The most important problem is..
It's missing one of the fans in the front, and without it when I'm just parked for an extended period of time, the car just shuts off, and then in 15 minutes it starts right up again. It's happened on the road a couple times, mostly when I have the ac on. I did some research, and I found out that I have the Auxiliary fan missing, but when I search auxiliary fan installation, all that really comes up is something about a switch for it, which I know nothing about.

so my question for anyone that wants to help a semi lost teenager is, what fan do I get for it, can i install it on my own? (not taking apart the radiator and everything; do i have to take it to a shop?)
Thanks
Aux fan for a '97 can come out of any model year XJ with the 4.0L engine (that has an aux fan). Try the regional forums, the classified section here, or a junkyard. Assuming the previous owner didn't go Butcher Pete on the wiring harness installation is just a matter of screwing the fan in and plugging it in.

Quite the mystery why it was removed and I'd be extremely cautious moving forward - there's no reason to remove it and you might find other messed up components or wiring.

Plain and simple do NOT run the A/C until this is fixed. That fan is very important with the air conditioner running and you are overheating your new Jeep to death.

Does it have the basic gauge cluster with idiot lights or is there a temperature gauge? (not to say it's accurate, but it's a start)

Originally Posted by Greybeard
I'm changing the right front ujoint on my 1997 Jeep Cherokee. The part that is closest to fitting is part No 371, but it's slightly too long. The c rings are too large. the yoke opening is 55 mm. Can't find a part at any of the part stores except the 371. Do I need to go to the dealership? Any suggestions? Thanks
Moog 371 is the correct U joint for that year. Do you have the old U joints still so you can measure the diameter of the bearing caps? Bearing cap diameter is the only variation on any XJ D30.

If the joints have never been done before it can be a little fun getting replacements in. It sounds like you may have bent your yoke ears.
Old Jun 21, 2014 | 04:07 PM
  #43708
ccooper1234's Avatar
CF Veteran

Joined: Oct 2011
Posts: 1,812
Likes: 0
From: South Mills, NC
Year: 1998
Model: Cherokee
Engine: Rebuilt 4.0L I6
Default

Just got my hesco water pump in the mail and the shaft seems tight. Should the shaft free-spin or should there be some resistance?
Old Jun 21, 2014 | 07:37 PM
  #43709
ITTs_Cole's Avatar
CF Veteran

Joined: Apr 2014
Posts: 1,028
Likes: 0
From: Hagerstown MD
Year: 93
Model: Cherokee
Engine: 4.0 I6 w/Flux Capacitor
Default

Ganna replace fuel filter, After its all swapped out and there's no more pressure in the fuel line, is there anything special i need to do the first time i start it again or should i be fine?
Old Jun 21, 2014 | 07:41 PM
  #43710
kgm's Avatar
kgm
CF Veteran

Joined: Oct 2013
Posts: 1,589
Likes: 2
From: Denver
Year: 99
Model: Cherokee
Engine: 4.0
Default

Does it matter if I connect the ground or the computer wire first on the alternator when replacing it? Battery is out but I am a dummy when it comes to electronics.
