Old Mar 15, 2011 | 10:36 PM
  #3736
taxidave's Avatar
Member

Joined: Jun 2010
Posts: 111
Likes: 1
From: Walnut Creek, CA
Year: 1991
Model: Cherokee
Engine: 4.0 liter
Default

Originally Posted by taxidave
The other day I was replacing my thermostat and the top bolt snapped flush with the head. I drilled a pilot hole and tried an EZ out but it snapped off. What are my options?? Is there a way to fix this or will I have to take the head to a machine shop? Thanks
Well... I got a right angle adapter for my Dremel and a pointed aluminum oxide grinder bit and ground the extractor away. I guess I'll slowly drill through the rest of the bolt and re-tap treads into it.
Old Mar 16, 2011 | 06:24 PM
  #3737
XJ JoeyD's Avatar
Seasoned Member

Joined: Sep 2010
Posts: 331
Likes: 0
From: Parma Ohio
Year: 1998
Model: Cherokee
Engine: 4.0
Default

On an ax15 is the fill plug on the drivers side and the drain plug on the passengers side? Thats what it kinda looked like to me but I wasn't quite sure..
Old Mar 16, 2011 | 08:53 PM
  #3738
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by XJ JoeyD
On an ax15 is the fill plug on the drivers side and the drain plug on the passengers side? Thats what it kinda looked like to me but I wasn't quite sure..
Correct. You can also look and see which plug is lower (drain is always lower)

remember to try and take the fill plug out first in case you can't get them off

also, i don't know if you know (i found out the hard way), but you need to use GL-4 gear lube in the ax-15, not GL-5 due to the brass syncros in the transmission.
I use AMSOIL MTL 75w-90 gear lube. Another popular option is Redline MT-90 lube.

Last edited by dukie564; Mar 16, 2011 at 08:56 PM.
Old Mar 16, 2011 | 09:27 PM
  #3739
jeepcherokee99's Avatar
Seasoned Member

Joined: Mar 2011
Posts: 275
Likes: 2
Year: 1999
Model: Grand Cherokee
Engine: 4.0
Default

I wana tune up my 99 grand Cherokee. I plan on upgrading to 784 fuel injectors n change my spark plugs. Jus checked my tranny oil it's good jus had diff serviced. Is there anything I'm missing that I Shuld do for preventitive maintaince n upgrading performance?
Old Mar 16, 2011 | 10:13 PM
  #3740
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

rotor and cap, plug wires, good seafoam application, oil + filter, coolant flush
Old Mar 17, 2011 | 07:27 AM
  #3741
jeepcherokee99's Avatar
Seasoned Member

Joined: Mar 2011
Posts: 275
Likes: 2
Year: 1999
Model: Grand Cherokee
Engine: 4.0
Default

Wat is rotor and cap?
Old Mar 17, 2011 | 08:02 AM
  #3742
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

distributor cap and rotor. It's what fires the spark plugs.
Old Mar 17, 2011 | 10:06 AM
  #3743
00skgsport's Avatar
Newbie

Joined: Jan 2011
Posts: 9
Likes: 0
Model: Cherokee
Default Rear brakes still locking up

Still need advice. 2000 XJ (cherokee sport w/ 9" rear drums, non abs system). I recently replaced front pads and rear wheel cylinders, rear brake hardware and rear shoes. Thanks to this site, everything is correctly installed, working, and rears were adjusted. Replaced brake fluid; bled everything. Rears are locking up if I make a hard stop, even from slow speeds. What is going on?

Some searching here did not yield results, and searching the net shows everything from the brake systems are poorly designed, to that's the way they work, to replace proportioning valve. It wasn't doing this before the brake job, but the old rear shoes were soaked in brake fluid from the leaking wheel cylinders, so probably weren't working well. One suggestion early was to make sure that the surfaces the front pad tabs ride on are clean and lubed. They are.

I got quite the look from the woman in front of me in traffic last night when I locked up in stop and go traffic. Please help.

Last edited by 00skgsport; Mar 17, 2011 at 10:39 AM.
Old Mar 17, 2011 | 10:07 AM
  #3744
00skgsport's Avatar
Newbie

Joined: Jan 2011
Posts: 9
Likes: 0
Model: Cherokee
Default Cowl Drain location

Originally Posted by 00skgsport
I took the cowl off, but don't see the drains. Where are they and how do you clear these? My 2000 XJ collects water on the passenger floor after rains, especially when parked with the nose uphill (I have a sloped driveway).
Anybody have advice/pictures to help me find these?
Old Mar 17, 2011 | 10:48 AM
  #3745
RegurgitatedGuts's Avatar
Newbie

Joined: Mar 2011
Posts: 1
Likes: 0
From: Texas
Year: 1993
Model: Cherokee
Engine: 6 Cyl.
Default Major battery drain.

Something keeps draining my battery. I put the drain sensor on the terminal and it shows that there is an amp drain. Took out the alternator thinking it was it, but it wasn't. Im thinking that it is the ignition switch or just old wiring gone bad. When I take out the fuse to power the stereo the sensor dims but still shows a power drain. It has to be something major because it is a brand new battery, autozone recharged it and I put it back in, only hours later the battery was dead again and a jump start worked only for about 10 minutes until it shut off again. Any suggestions?

Last edited by RegurgitatedGuts; Mar 17, 2011 at 10:52 AM.
Old Mar 17, 2011 | 10:57 AM
  #3746
Japawe's Avatar
Newbie

Joined: Mar 2011
Posts: 18
Likes: 0
Model: Cherokee
Default

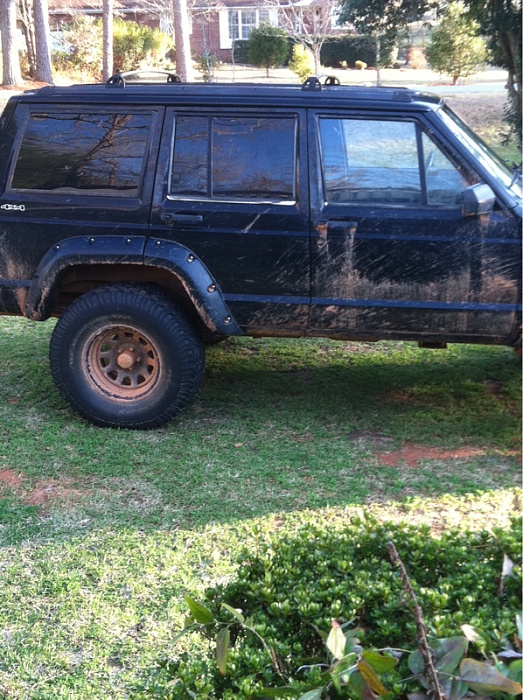

My 96 would like to do away with blocks and get a real lift. Maybe 4" any ideas?
Attached Thumbnails XJ Ask the Question Thread-image-1739149566.jpg
Old Mar 17, 2011 | 11:13 AM
  #3747
Sideways99's Avatar
CF Veteran

Joined: Dec 2010
Posts: 1,240
Likes: 0
From: Rocket Country MI
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Japawe
My 96 would like to do away with blocks and get a real lift. Maybe 4" any ideas?
rubicon express
its a little spendy but well worth it
research
Old Mar 17, 2011 | 11:15 AM
  #3748
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by RegurgitatedGuts
Something keeps draining my battery. I put the drain sensor on the terminal and it shows that there is an amp drain. Took out the alternator thinking it was it, but it wasn't. Im thinking that it is the ignition switch or just old wiring gone bad. When I take out the fuse to power the stereo the sensor dims but still shows a power drain. It has to be something major because it is a brand new battery, autozone recharged it and I put it back in, only hours later the battery was dead again and a jump start worked only for about 10 minutes until it shut off again. Any suggestions?
If it's draining with the car off, it has to be something that runs off "unswitched" power, meaning something you can turn on and off without the key being in the ignition (eg. headlights, radio clock, horn, taillights, emergency flashers, etc).

start pulling fuses until the drain disappears. That will pinpoint the culprit more definitively.
Old Mar 17, 2011 | 12:15 PM
  #3749
Uhrinator's Avatar
Member

Joined: Oct 2010
Posts: 212
Likes: 0
From: Spokane, WA
Year: 1989
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 89cher40
i need a little advice on a brake system on an 89 cher. is there anybody that point me in the rite direction. i read a couple of bad recall stories.what am i in for ? thanks , tommy fr baltimore
Do you have the abs? If so I'd just replace it with the wj booster and master. It takes a little fabrication, but if you have a grinder and a flare kit, it's easy.

Sent using CherokeeFM
Old Mar 17, 2011 | 12:17 PM
  #3750
mcflyXJ's Avatar
Newbie

Joined: Mar 2011
Posts: 4
Likes: 0
Model: Cherokee
Default

ok any opinions on styles of bumpers. and yes i will post pix soon.
