XJ Ask the Question Thread

Thread Tools

Search this Thread

Old Oct 7, 2010 | 01:30 PM
  #1606
stevec's Avatar
Newbie

Joined: May 2010
Posts: 2
Likes: 0
From: woodbine
Year: 1995
Model: Cherokee
Engine: 4.0
Default

So the tailpipe on my 95 cherokee has rusted out at the support after the muffler (The support is literally cutting through the tailpipe, its about halfway through it now). I have had this hole for a while, and it is under the jeep, yet ive never had any issues with exhaust leaking into the cab.
Money is low, so im wondering if there is any problem with taking the tailpipe off completely after the muffler, and just putting a small L shaped pipe on the muffler so it just throws exhaust to the side?
Thanks
Old Oct 7, 2010 | 01:42 PM
  #1607
Steph74's Avatar
Senior Member

Joined: Mar 2010
Posts: 500
Likes: 0
From: Logan, UT
Year: 1989
Model: Cherokee
Engine: 4.0L i6
Default

Originally Posted by Moparguy45
sorry i have a noob question that i have searched for an answer but cant seem to find an answer. What is a bastard pack?
You should be able to find better answers with google or even search function but basically it is making a new set of leaf springs with another vehicle leaf springs. For example if you use an S10 spring pack you should get about 3" lift. Obviously it is trials and errors and you can mix and match.
There are plenty of how to's and threads that are explaining better
Old Oct 7, 2010 | 09:48 PM
  #1608
ZachsXJ's Avatar
CF Veteran

Joined: Sep 2009
Posts: 4,145
Likes: 0
Default

Originally Posted by fantic238
There is a LOT of bull**** written in that thread.
Example:
the only thing wrong about that one part is the XJs of those years with the NP242 had non-disconnect D30s...to my knowledge, all other XJs of those years with the 231s had disco-D30s
Old Oct 8, 2010 | 12:47 AM
  #1609
#999's Avatar
Junior Member

Joined: Jun 2010
Posts: 41
Likes: 0
Year: 2000
Model: Cherokee
Engine: 4.0 Inline 6
Default

Originally Posted by ZachsXJ
you absolutely can do it.
I'll be the first person to raise my hand and say that I just plain don't get wiring, mechanical stuff comes naturally to me. IF I can do it YOU can do it.

Nugget of Advice: drop the cash for at least a decent multi-meter. Don't get some POS, you will regret it. Typically the way I test wires is I use the probes to just get through the insulation jacket into the copper core of a wire. The +12 wire to the cluster is going to be the one that provides power to the cluster, there will also be one ground wire, everything else are signal wires. If you have a short or bad connection in either the ground or "hot" wire, you'll have major gauge cluster issues. My bet would be on a problem with the ground wire which is probably grounded to the unibody inside the Jeep.

FYI: whenever you probe a wire, its good practice to use some brush or spray on electrical tape to reseal the insulation.
will be working on it next week as those are the next few days i have, sounds quite doable from what youre saying...say that one of the wires is bad....are they easy to replace?...thanks for the vote of confidince,and the advice
P
Old Oct 8, 2010 | 12:59 AM
  #1610
ZachsXJ's Avatar
CF Veteran

Joined: Sep 2009
Posts: 4,145
Likes: 0
Default

Originally Posted by fantic238
There is a LOT of bull**** written in that thread.
Example:

You should be better "bookmarking" this thread.
Originally Posted by #999
will be working on it next week as those are the next few days i have, sounds quite doable from what youre saying...say that one of the wires is bad....are they easy to replace?...thanks for the vote of confidince,and the advice
P
you wouldn't necessarily need to replace the whole wire, just the part thats damaged. or if its not getting a good contact where its bolted to the unibody for a ground, you clean up the connector and where its bolted to till they're shiny, bolt it back on and spray a thin coat of paint to protect it from messing up again. replacing an entire wire would be a royal pita. you'd have to take the jeep half way apart.l
Old Oct 8, 2010 | 01:25 AM
  #1611
mellowyellowXJ's Avatar
Newbie

Joined: Sep 2010
Posts: 8
Likes: 0
From: IDAHO
Year: 2001
Model: Cherokee
Engine: 4.0
Default

hey, i have a 2001 XJ w/ power windows. currently i can not roll down any of the 4 windows..... it seems like there is no power but i have checked the fuse......ideas? and since i have owned the jeep my front pass. window never rolled down i checked the wiring and nothing seemed to show.....????
Old Oct 8, 2010 | 02:36 AM
  #1612
bakerg's Avatar
Newbie

Joined: Oct 2010
Posts: 13
Likes: 0
From: Eastern Pa
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Quick update I replaced the drums and there is no more vibration. Brought up another question though. I replaced the brake shoes drums and e-brake cables. The brakes are adjusted properly and the adjuster is all the way in and the e-brake holds a little bit but no where near what it should, especially with the adjuster all the way out and handle all the way up. I just spent about 3 frusrating hours on the brake cables only to find the e brake a small bit better. Any help is much apreciated. Does anyone know if there are differant e brake cables for cherokee's. My thinking is that the 2 door might have a shorter cable then the 4 door. That sound right to anyone?

Last edited by bakerg; Oct 8, 2010 at 03:26 AM. Reason: idea
Old Oct 8, 2010 | 04:09 AM
  #1613
fantic238's Avatar
Thread Starter
CF Veteran

Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
Default

Originally Posted by ZachsXJ
the only thing wrong about that one part is the XJs of those years with the NP242 had non-disconnect D30s...to my knowledge, all other XJs of those years with the 231s had disco-D30s
there are at least another two errors in the whole writeup... gotta read it carefully.
Old Oct 8, 2010 | 04:12 AM
  #1614
fantic238's Avatar
Thread Starter
CF Veteran

Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
Default

Originally Posted by stevec
So the tailpipe on my 95 cherokee has rusted out at the support after the muffler (The support is literally cutting through the tailpipe, its about halfway through it now). I have had this hole for a while, and it is under the jeep, yet ive never had any issues with exhaust leaking into the cab.
Money is low, so im wondering if there is any problem with taking the tailpipe off completely after the muffler, and just putting a small L shaped pipe on the muffler so it just throws exhaust to the side?
Thanks
I've got a 45° L right after the muffler. No problems of exhaust leaking in the cab. You loose the throaty sound though, and it sounds more open.
Old Oct 8, 2010 | 04:15 AM
  #1615
fantic238's Avatar
Thread Starter
CF Veteran

Joined: Jun 2009
Posts: 5,383
Likes: 5
Year: 1988 limited
Model: Cherokee
Engine: 4.0 litre
Default

Originally Posted by bakerg
Quick update I replaced the drums and there is no more vibration. Brought up another question though. I replaced the brake shoes drums and e-brake cables. The brakes are adjusted properly and the adjuster is all the way in and the e-brake holds a little bit but no where near what it should, especially with the adjuster all the way out and handle all the way up. I just spent about 3 frusrating hours on the brake cables only to find the e brake a small bit better. Any help is much apreciated. Does anyone know if there are differant e brake cables for cherokee's. My thinking is that the 2 door might have a shorter cable then the 4 door. That sound right to anyone?
You have to adjust the shoes from the drum adjusters. Remove the drums and adjust the shoes so that they are really flush to the drum surface when you put the drums back on, but don't go too far or they will overheat. Then you adjust the cable.
Old Oct 8, 2010 | 08:50 AM
  #1616
USMCJeeper's Avatar
Member

Joined: Apr 2010
Posts: 134
Likes: 0
From: Greensboro, NC
Year: 1999
Model: Cherokee
Engine: 4.0L HO 242
Default

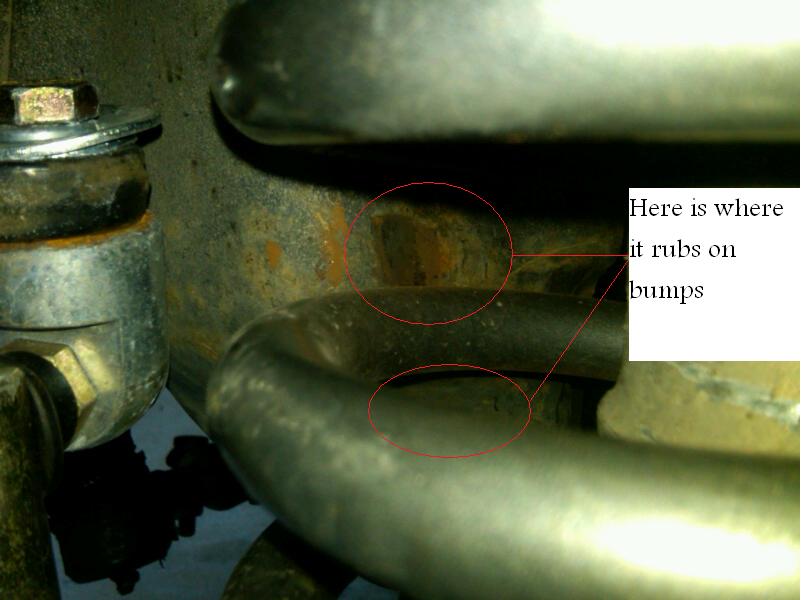

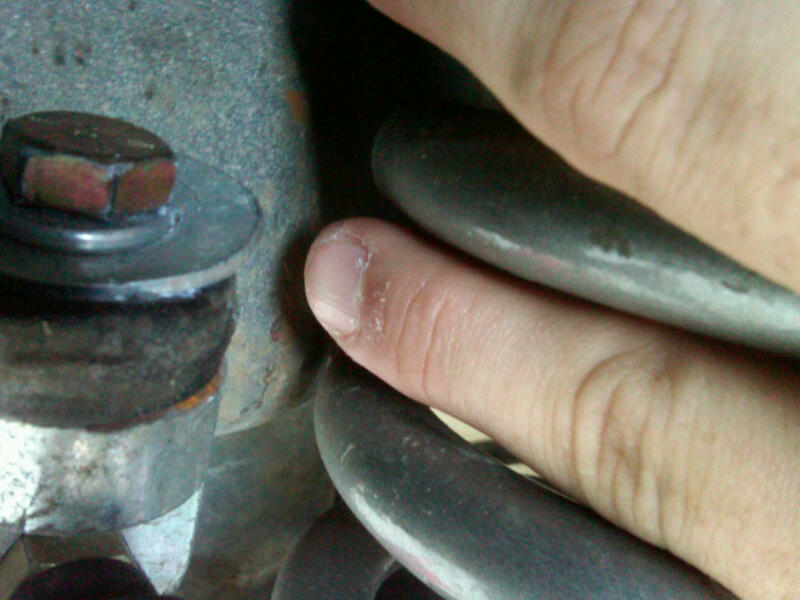

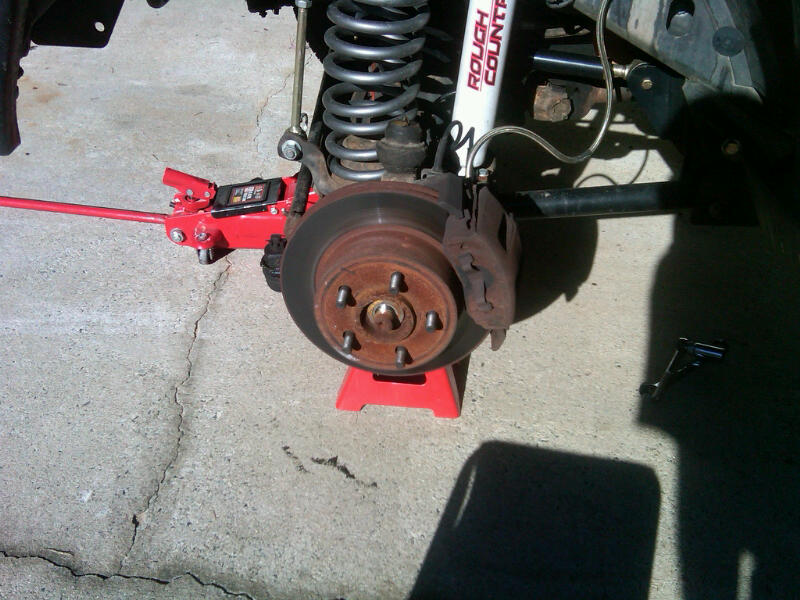

New Question here. I recently installed (<2 months ago) a rough country 4.5 lift with 4.5 coils in front. I have had some awful rubbing of the driver side coil against the track bar bracket and my left coil is all kinds of bent outta wack. I plan on contacting Rough Country about the issue, but wanted to get a feeler here first. I have uploaded a few pics to show the issues. I am pretty sure this isnt normal for the spacing to be so odd.
Attached Thumbnails XJ Ask the Question Thread-coil-spring-close.jpg   XJ Ask the Question Thread-brakes.jpg   XJ Ask the Question Thread-coil-spring-med.jpg   XJ Ask the Question Thread-tire-off.jpg   XJ Ask the Question Thread-rubbing-coil2.jpg

Old Oct 8, 2010 | 11:39 AM
  #1617
#999's Avatar
Junior Member

Joined: Jun 2010
Posts: 41
Likes: 0
Year: 2000
Model: Cherokee
Engine: 4.0 Inline 6
Default

Originally Posted by ZachsXJ
you wouldn't necessarily need to replace the whole wire, just the part thats damaged. or if its not getting a good contact where its bolted to the unibody for a ground, you clean up the connector and where its bolted to till they're shiny, bolt it back on and spray a thin coat of paint to protect it from messing up again. replacing an entire wire would be a royal pita. you'd have to take the jeep half way apart.l
cool like i said thanks for all the help....and im guessing these wires you speak of are located in the engine bay...towards the windshield...im pretty sure i know where they are....but a pic to be certain would be amazing......like where the ground wire youre talking about is etc...
bathed in mud!
P
Old Oct 8, 2010 | 11:50 AM
  #1618
dilljeepo's Avatar
Seasoned Member

Joined: Aug 2010
Posts: 320
Likes: 1
From: Calgary, Alberta
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0L
Default

I want to replace my leaf springs in the rear (they're bending backwards.... they're not even flat anymore) and I have been shopping around, I want to buy new ones... unless I can get as many miles out of a Junk-Yard one... but I doubt it. How much should new ones cost? I want a small lift kit with shackles but I shouldn't put that on fatigued springs right? Or can I? Anyways cheapest I've found so far is around 180 for a pair, then HD ones are more expensive, they have an extra leaf... is this worth the extra money to buy HD leafs? Because they might last longer? Any input?
Old Oct 8, 2010 | 03:33 PM
  #1619
bakerg's Avatar
Newbie

Joined: Oct 2010
Posts: 13
Likes: 0
From: Eastern Pa
Year: 1990
Model: Cherokee
Engine: 4.0
Default

Update. The drums are adjusted up right. Apearantly the cables for the 89 are about a quarter of an inch shorter then the ones on the 90 and my production date just so happens to be 1 of 90. Haha
Old Oct 8, 2010 | 08:41 PM
  #1620
pittman71's Avatar
Seasoned Member

Joined: Jul 2010
Posts: 337
Likes: 1
From: NE FL
Year: 1997
Model: Cherokee
Engine: 4.0
Default How do I access the blower motor?

I've been searching for a write up but havent found one. Do I need to go in under the glove box or is it under the hood and I need to take out the water tank thing by the firewall? Anyone have a link?

Thanks in advance.
