Transfer Cases Removal (NP242)
#1
Junior Member
Thread Starter
Join Date: Sep 2014
Location: San Francisco
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
Transfer Cases Removal (NP242)
I've removed my cross member, front and rear drive shafts, disconnected all electrical connectors and hoses and I'm getting ready to pull the case. A couple of the bolts that are holding on the transfer case look a little tough to get to so before I get down there and start at it, just wondering if anyone had any pointers or recommended (specialty) tools for the job?
It almost looked like the mid section of the exhaust might have to come out to get to one bolt on the passenger side due to lack of space down there. (I'll have to look closer.)
Thanks in advance for the advice.
It almost looked like the mid section of the exhaust might have to come out to get to one bolt on the passenger side due to lack of space down there. (I'll have to look closer.)
Thanks in advance for the advice.
#2
CF Veteran
Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
You don't have to take the exhaust out if you don't mind a hand cramp.
It's just a slower process cause you can't turn your wrench all the way.
A ratcheting box end wrench will air your life easier in this process
It's just a slower process cause you can't turn your wrench all the way.
A ratcheting box end wrench will air your life easier in this process
#3
Junior Member
Thread Starter
Join Date: Sep 2014
Location: San Francisco
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
That's actually the one wrench I don't have, so I'll probably stop and pick one up on the way home tonight. I'll give it a try and asses the exhaust situation while I'm down there with the new wrench.
Thanks for the reply.
Thanks for the reply.
#5
Junior Member
Thread Starter
Join Date: Sep 2014
Location: San Francisco
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L

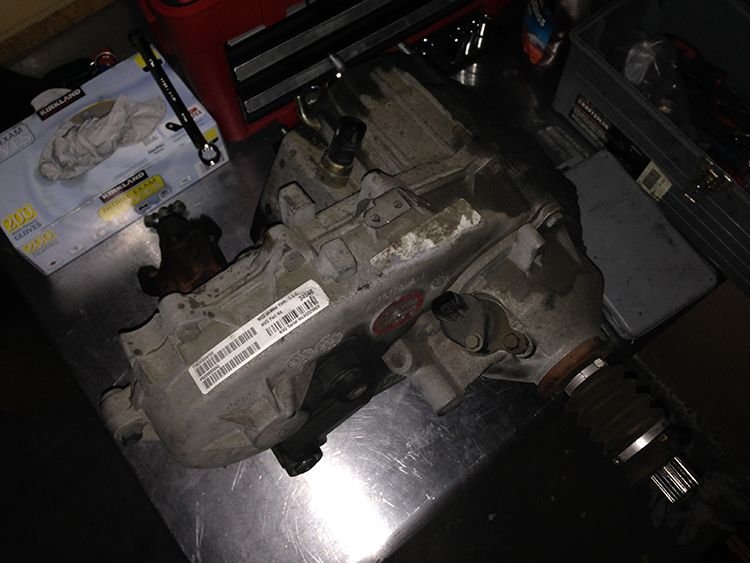

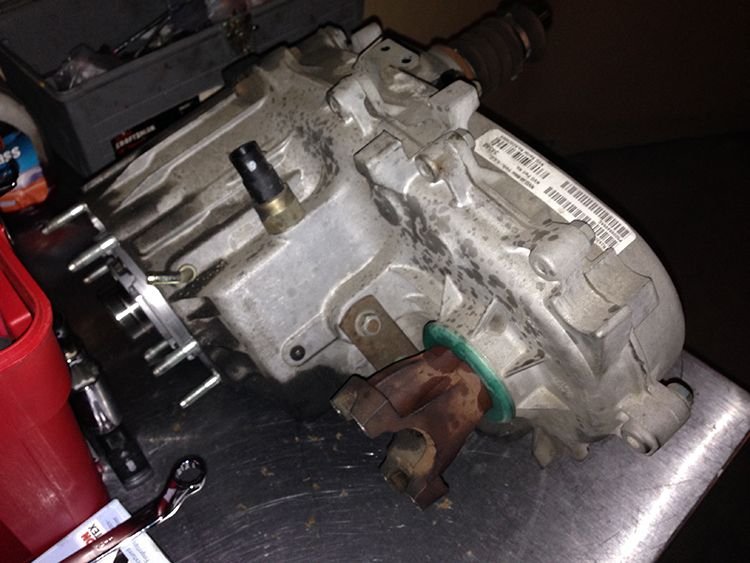

And the winner is... stubby. Made a quick run to Home Depot and picked up a 14mm stubby ratchet wrench and it worked like a charm. The case is out, and now the real fun begins.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Sep 2014
Location: San Francisco
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
I got a G2 overhaul kit, new chain, oil slinger and pump. I figured if it's apart why not do it all? When I emptied the case before pulling it the fluid was practically brown so that just makes me feel a little better about the decision to go all in, I'm pretty sure it's been a while since anyone has thought about the case. I'll take pics and post here when it's all done.
#9
CF Veteran
Join Date: Jan 2015
Location: Southern Maryland
Posts: 1,381
Likes: 0
Received 1 Like
on
1 Post
Year: 1991
Model: Cherokee
Engine: 1999 4.0L
good set of teardown and rebuild pics
good pics of parts and where they go
also the FSM has extensive instructions
good pics of parts and where they go
also the FSM has extensive instructions
#11
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
good set of teardown and rebuild pics
good pics of parts and where they go
video teardown, in 4 parts (1 and 2 are switched)
also the FSM has extensive instructions
good pics of parts and where they go
video teardown, in 4 parts (1 and 2 are switched)
also the FSM has extensive instructions
WTF! Was that dude making the vid on a ship? It made me seasick looking at it so I shut it off. LOL
