TONE rings for ABS on 8.25
02-10-2009, 07:25 AM
#2
::CF Administrator::
Join Date: May 2008
Location: Okc area
Posts: 10,039
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I6
tone ring will not fit.So your choice is either stick to the D35 or convert your jeep away from ABS. I can try and find that writeup on removing ABS later if you want it.
02-10-2009, 09:43 AM
#4
CF Veteran
Join Date: Apr 2008
Location: Burlington, NC
Posts: 2,340
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1994...mostly...
Model: Cherokee (XJ)
Engine: 4.0L I6 HO, Lot's of Bolt Ons
Didn't someone just post about this?? Anyway, can you not pull the backing plates off the 8.25 and then install the D35 Backing plate and drums if you bore out the center hole a little bit? Might need a custom spacer perhaps.
02-10-2009, 09:47 AM
#5
::CF Administrator::
Join Date: May 2008
Location: Okc area
Posts: 10,039
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I6
If memory serves their is a tone ring attached to the axles. The backing plates have a hole to mount a sensor but that tone ring must be there for it to work properly.
Last edited by okcjeeper; 02-10-2009 at 09:53 AM.
02-10-2009, 10:37 AM
#6
CF Veteran
Join Date: Apr 2008
Location: Burlington, NC
Posts: 2,340
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1994...mostly...
Model: Cherokee (XJ)
Engine: 4.0L I6 HO, Lot's of Bolt Ons
I know the Ford axles like the 8.8 have tone ring in the pinion. I belive that the jeeps were located in the drums them selves. My jeep has ABS and the only type of sensor thats out side I can see is the ABS lines running into the backing plates. While an 8.8 has a plug striaght into the diff for the tone ring.
02-10-2009, 10:48 AM
#7
::CF Administrator::
Join Date: May 2008
Location: Okc area
Posts: 10,039
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I6
I know the Ford axles like the 8.8 have tone ring in the pinion. I belive that the jeeps were located in the drums them selves. My jeep has ABS and the only type of sensor thats out side I can see is the ABS lines running into the backing plates. While an 8.8 has a plug striaght into the diff for the tone ring.
Trending Topics
02-10-2009, 11:05 AM
#8
::CF Administrator::
Join Date: May 2008
Location: Okc area
Posts: 10,039
Likes: 0
Received 15 Likes
on
11 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I6

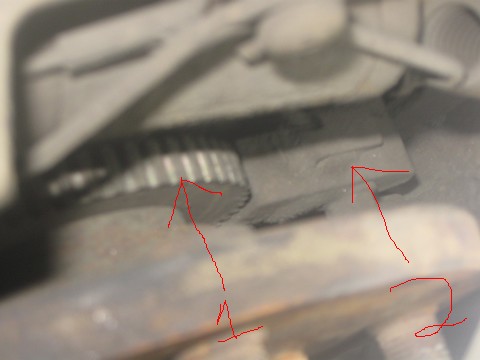

Ok here's a pic of the rear axle showing the ABS sensor and tone ring.
Excuse the chicken scratch..
1- Tone Ring - This is attached to the axle shaft..Wish I had taken a pic with the axle shaft off..
2- ABS sensor
Excuse the chicken scratch..
1- Tone Ring - This is attached to the axle shaft..Wish I had taken a pic with the axle shaft off..
2- ABS sensor
02-16-2009, 01:37 AM
#9
Newbie
Thread Starter
Join Date: Jan 2009
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
removing abs
thanks for the reply I will remove the abs but if its not to much trouble the write up would be helpfull regards Tiler 607
