advice needed for changing oil filter adapter o rings

Old 09-27-2015, 07:27 PM
  #1
Junior Member
Thread Starter

Join Date: Aug 2015
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default advice needed for changing oil filter adapter o rings

1999 jeep xj 4.0 auto 4wd

So I tried to change my oil filter adapter o rings today and couldn't get the adapter off, I bought the t60 socket and beat the t60 part out and used a 12mm wrench to try and turn bolt but it won't budge, any tips on how I can get this off?
Blackxj51 is offline
Old 09-27-2015, 07:30 PM
  #2
Member

Doogluus88's Avatar

Join Date: May 2013
Location: SC
Posts: 167
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: I6
Default

A friggin' long breaker bar. I had a 5 foot long piece of pipe on mine to break it free. Also, they say having a warm motor will help.

Once you get it off the repair is super easy
Doogluus88 is offline
Old 09-27-2015, 07:35 PM
  #3
CF Veteran

4WD4EVER's Avatar

Join Date: Sep 2012
Location: In a large sandbox
Posts: 1,619
Likes: 0
Received 0 Likes on 0 Posts
Year: 1998
Engine: 4.0
Default

^ +1. I just did mine last week. Fortunately I have access to a lift so I was able to use a long piece of pipe over the breaker bar for leverage.
4WD4EVER is offline
Old 09-27-2015, 08:34 PM
  #4
Member

Bocefus's Avatar

Join Date: Jul 2013
Posts: 137
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

I was able to find a pipe that fit over the wrench itself, and use the extra leverage to break mine loose. I had to do it from below.
Bocefus is offline
Old 09-27-2015, 11:21 PM
  #5
Senior Member

cliffy's Avatar

Join Date: Sep 2014
Location: A.A. Co. Maryland
Posts: 736
Likes: 0
Received 0 Likes on 0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 Inline
Default

I did mine with a buddy who has A 94, we put the 12mm box end on the t60 using some rtv and then used a half of a floor Jack handle on the open end from up top. If you have another set of hands skip the rtv and just hold it.
cliffy is offline
Old 09-28-2015, 06:36 AM
  #6
Junior Member
Thread Starter

Join Date: Aug 2015
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Originally Posted by Doogluus88 View Post
A friggin' long breaker bar. I had a 5 foot long piece of pipe on mine to break it free. Also, they say having a warm motor will help.

Once you get it off the repair is super easy
Yeah I tried warming up the motor also, I'll have to go get a price of pipe some where and try again, is it easier to come from the top or underneath with the pipe?
Blackxj51 is offline
Old 09-28-2015, 06:50 AM
  #7
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,111
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by Blackxj51 View Post
Yeah I tried warming up the motor also, I'll have to go get a price of pipe some where and try again, is it easier to come from the top or underneath with the pipe?
Do you have a hi-lift? The handle is a piece of pipe and can be used as a breaker bar.
SteveMongr is offline
Old 09-28-2015, 11:27 AM
  #8
Member

Doogluus88's Avatar

Join Date: May 2013
Location: SC
Posts: 167
Likes: 0
Received 0 Likes on 0 Posts
Year: 1994
Model: Cherokee
Engine: I6
Default

Originally Posted by Blackxj51 View Post
Yeah I tried warming up the motor also, I'll have to go get a price of pipe some where and try again, is it easier to come from the top or underneath with the pipe?
I came from the top. It's a huge PITA to get off, but trust me it will eventually break loose. I think I had to put a bend in my pipe to keep it from hitting the hood too... Good luck!
Doogluus88 is offline
Old 09-28-2015, 06:42 PM
  #9
Junior Member
Thread Starter

Join Date: Aug 2015
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Originally Posted by SteveMongr View Post
Do you have a hi-lift? The handle is a piece of pipe and can be used as a breaker bar.
I never thought of that, I'll have to try it next time i get a chance to work on it
Blackxj51 is offline
Old 09-29-2015, 06:01 AM
  #10
tarmac tiara

s346k's Avatar

Join Date: Feb 2012
Location: central IN
Posts: 2,246
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Engine: 4.0
Default

you can add a wrench to the end of the 12mm wrench, that's what I did.
s346k is offline
Old 09-29-2015, 06:36 AM
  #11
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,111
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by s346k View Post
you can add a wrench to the end of the 12mm wrench, that's what I did.
That is an excellent trick that I have used many times, especially on the smaller wrenches like 12mm.
Never have broken a wrench in doing it, but still wear eye protection.
SteveMongr is offline
Old 09-29-2015, 07:04 AM
  #12
Junior Member
Thread Starter

Join Date: Aug 2015
Posts: 69
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Originally Posted by s346k View Post
you can add a wrench to the end of the 12mm wrench, that's what I did.
How do you mean?
Blackxj51 is offline
Old 09-29-2015, 07:15 AM
  #13
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,111
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Originally Posted by Blackxj51 View Post
How do you mean?

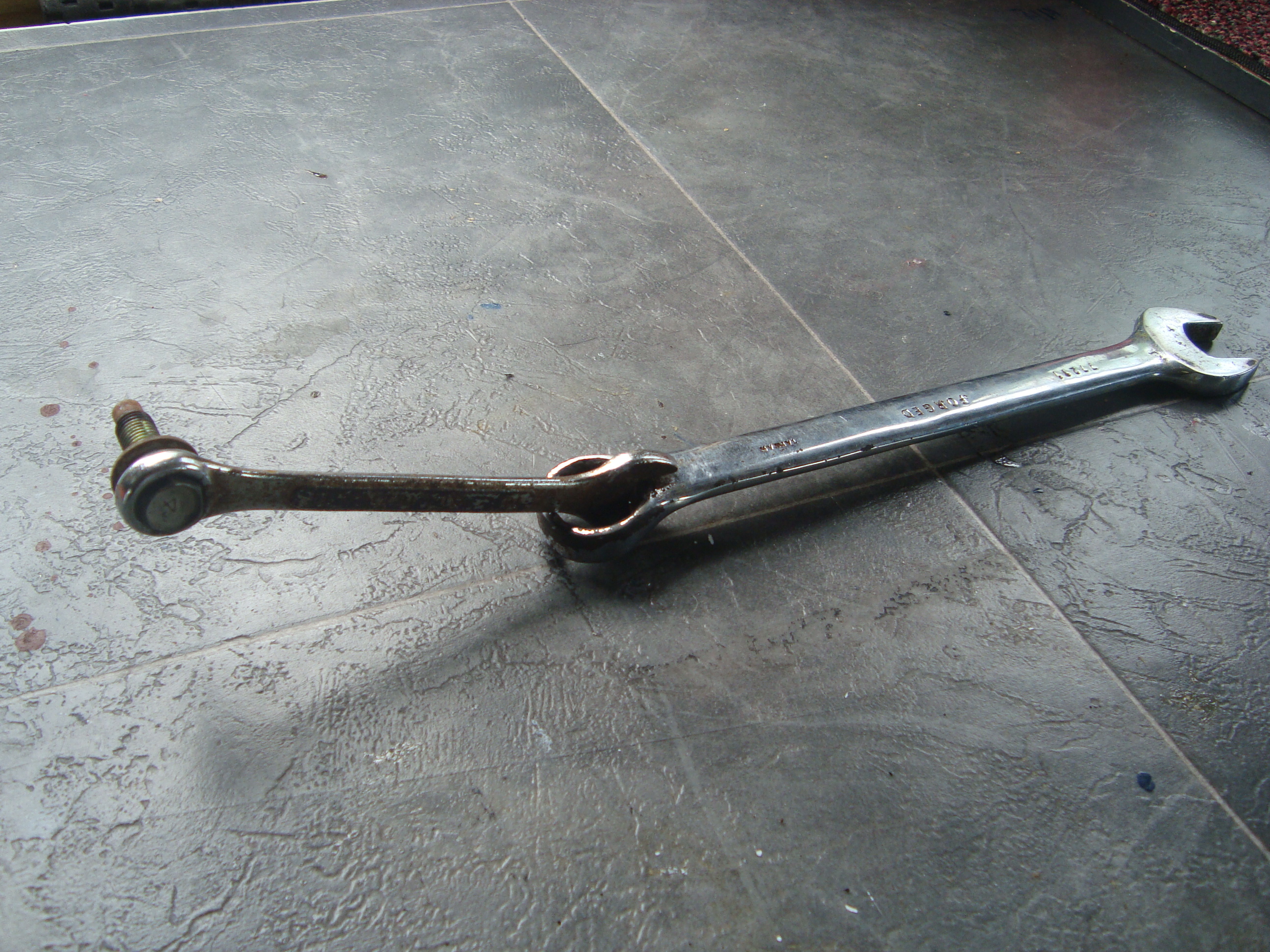

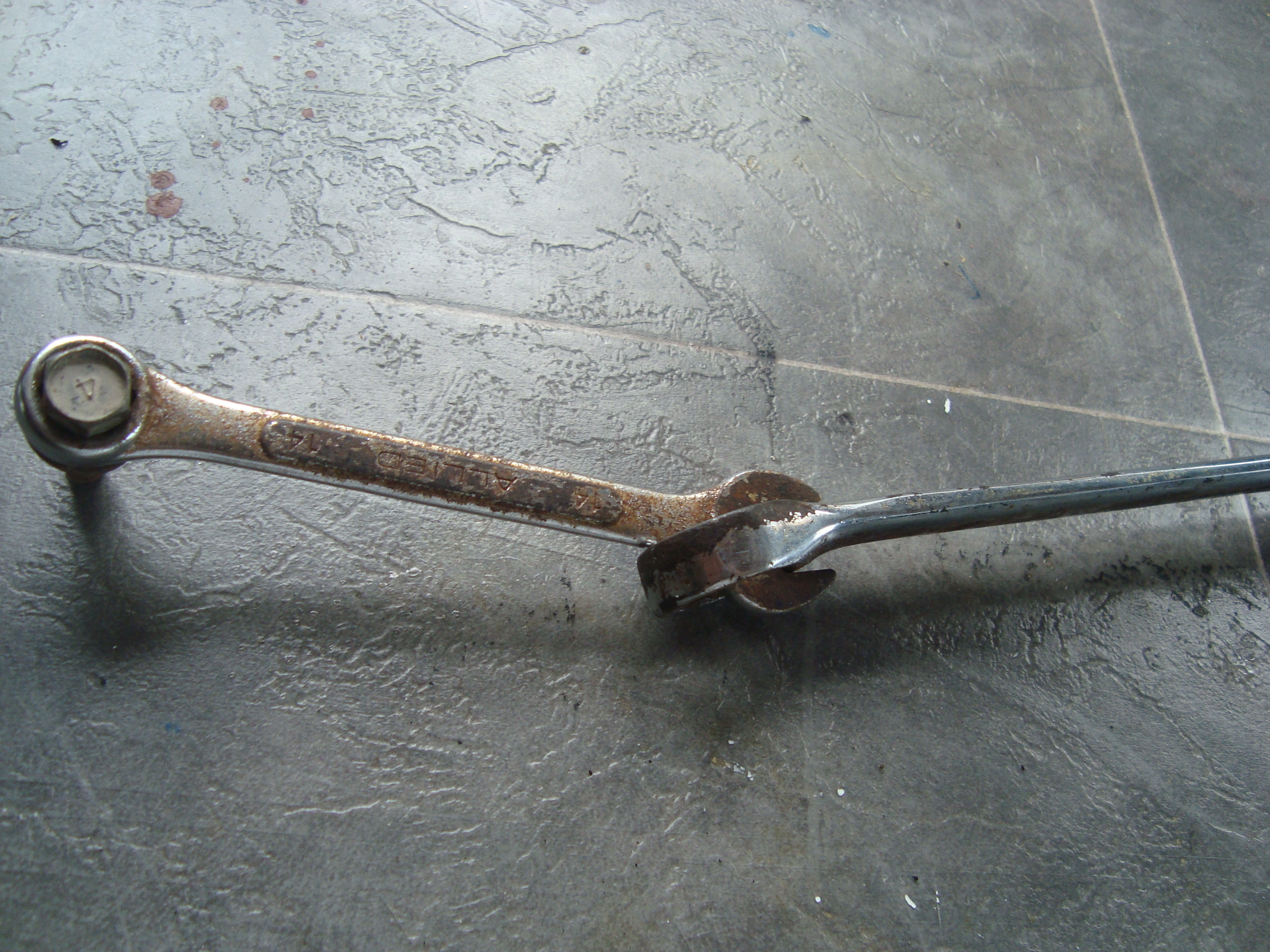

Like this;
Attached Thumbnails advice needed for changing oil filter adapter o rings-dsc04714.jpg   advice needed for changing oil filter adapter o rings-dsc04713.jpg
SteveMongr is offline
Old 09-29-2015, 12:14 PM
  #14
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

This with a pipe over it. Advance sell a set for like $10 ,and you'll need them cause jeep used a lot of torx bolts.
Attached Images

Last edited by HS00XJ; 09-29-2015 at 12:16 PM.
HS00XJ is offline
Old 09-29-2015, 06:37 PM
  #15
CF Veteran

Waynerd's Avatar

Join Date: Jan 2015
Location: North canaan Connecticut
Posts: 1,301
Likes: 0
Received 0 Likes on 0 Posts
Year: 01, 99, 98, 98,98
Model: Cherokee
Engine: 4.0
Default

I left the torx bit in the socket and used big pipe wrench on the socket.
Waynerd is offline
