Reinstalling 4.0
#1
Seasoned Member
Thread Starter
Join Date: Jun 2011
Location: Michigan
Posts: 535
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 HO
Reinstalling 4.0
I pulled motor cuz of knock to replace with another 4.0 and now that I'm reinstalling it, I can't get the locator pins to line up!? Tryed putting bolts thru get one started them won't push on.. Motor mounts are off not in the way!? And bout sick of messing with it! Was trying for 2 hrs earlier and can't get it! Torque converter is on tranny, I'm lost any help will be greatly appreciated!? Also maybe use longer locator bolts to he it aligned??? Any one no the size of them off hand ??
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,870
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Did you have the torque converter off at any time?
#3
Senior Member
Join Date: May 2011
Posts: 749
Likes: 0
Received 1 Like
on
1 Post
Year: 1997
Model: Cherokee
Engine: 4.0
either the angle of the engine is not correct or the torque converter is not fully seated on the transmission input shaft, one way to check to see if the torque converter is fully seated is to pull it off and the reinstall it listening for two clicks. use caution pulling it off as their is quite a bit of fluid in the torque converter and may come out. when i pulled my engine out i also pulled it with the transmission and t-case attached as i was changing all three. reinstalled it the same way with no problems.
#4
Seasoned Member
Thread Starter
Join Date: Jun 2011
Location: Michigan
Posts: 535
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 HO
We got it! Dk what was going on lol but now it makes a scrubbing noise from under neath like something rubbing like a knock but more scraping lol
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,870
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#6
Seasoned Member
Thread Starter
Join Date: Jun 2011
Location: Michigan
Posts: 535
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 HO

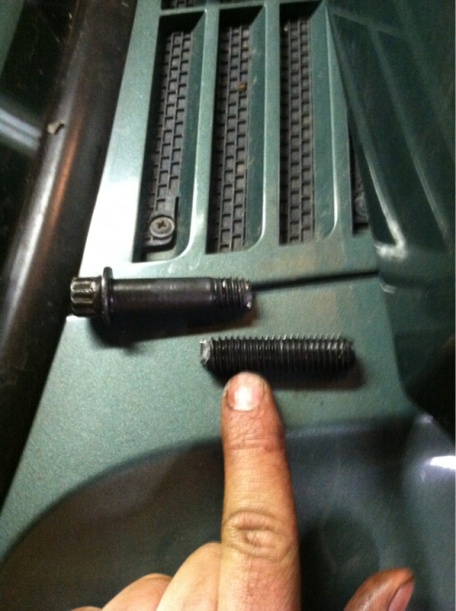

Yep we did! And know one will believe what happen torquing down the head bolts! We were on final torq... On the second to last bolt and it broke! We thought about drilling it then I was like ok we will drill it if it broke flat and it didn't so we put the too part of bolt back in the hole and twisted it to the left ( to back it out) and it came right out! Wth!? Lol so lucky!!!
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,870
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Check to see that the head bolt holes aren't crudded up, stopping the hedbolt before it gets tight.
Trending Topics
#8
Senior Member
Join Date: Nov 2011
Location: Manhattan, Kansas
Posts: 928
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Yep we did! And know one will believe what happen torquing down the head bolts! We were on final torq... On the second to last bolt and it broke! We thought about drilling it then I was like ok we will drill it if it broke flat and it didn't so we put the too part of bolt back in the hole and twisted it to the left ( to back it out) and it came right out! Wth!? Lol so lucky!!!
#9
Seasoned Member
Thread Starter
Join Date: Jun 2011
Location: Michigan
Posts: 535
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 HO
Lol.... No... Hahahaha I've changed several head allways replaced head bolts this time he didn't want to so I didn't cause they say u can reuse them... Learned my lesson!
#10
Senior Member
Join Date: Nov 2011
Location: Manhattan, Kansas
Posts: 928
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
