Oil leak
#1
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Oil leak
Hey guys,
So I recently did an oil change in my 2000 XJ, and I have developed a slight oil leak. I went ahead and double checked the filter and the drain bolt, along with a new valve cover and oil pressure sending unit. I still have the leak, and it looks like it is coming from the oil pan area, and dripping onto the flywheel (or so I think) behind it. Is it possible it could just be the oil pan gasket and not the rear main? I used the same oil I have for the past 4 oil changes (Royal Purple), and it decided to spring a leak. I have ordered both an oil pan gasket and rear main seal kit, but I am nervous about doing the rear main. It is lifted up 3 inches, so I don't think I should have too many problems with dropping the pan itself. I will post pictures when I get off work. Thanks!
So I recently did an oil change in my 2000 XJ, and I have developed a slight oil leak. I went ahead and double checked the filter and the drain bolt, along with a new valve cover and oil pressure sending unit. I still have the leak, and it looks like it is coming from the oil pan area, and dripping onto the flywheel (or so I think) behind it. Is it possible it could just be the oil pan gasket and not the rear main? I used the same oil I have for the past 4 oil changes (Royal Purple), and it decided to spring a leak. I have ordered both an oil pan gasket and rear main seal kit, but I am nervous about doing the rear main. It is lifted up 3 inches, so I don't think I should have too many problems with dropping the pan itself. I will post pictures when I get off work. Thanks!
#4
CF Veteran
sounds like a rear main seal.
mine leaks some too, but it is an 87 model with a 88 engine, and about 200k on that engine.
when it gets a qt low i add a qt of lucas and that stops it till its time to change it again.
Double check your valve cover, not as common with the steel covers, but my aluminum one use to get loose on its own.
if you have a 3"+ lift its not hard to pull the pan and change the rear main, its a two piece seal.
mine leaks some too, but it is an 87 model with a 88 engine, and about 200k on that engine.
when it gets a qt low i add a qt of lucas and that stops it till its time to change it again.
Double check your valve cover, not as common with the steel covers, but my aluminum one use to get loose on its own.
if you have a 3"+ lift its not hard to pull the pan and change the rear main, its a two piece seal.
#5
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0

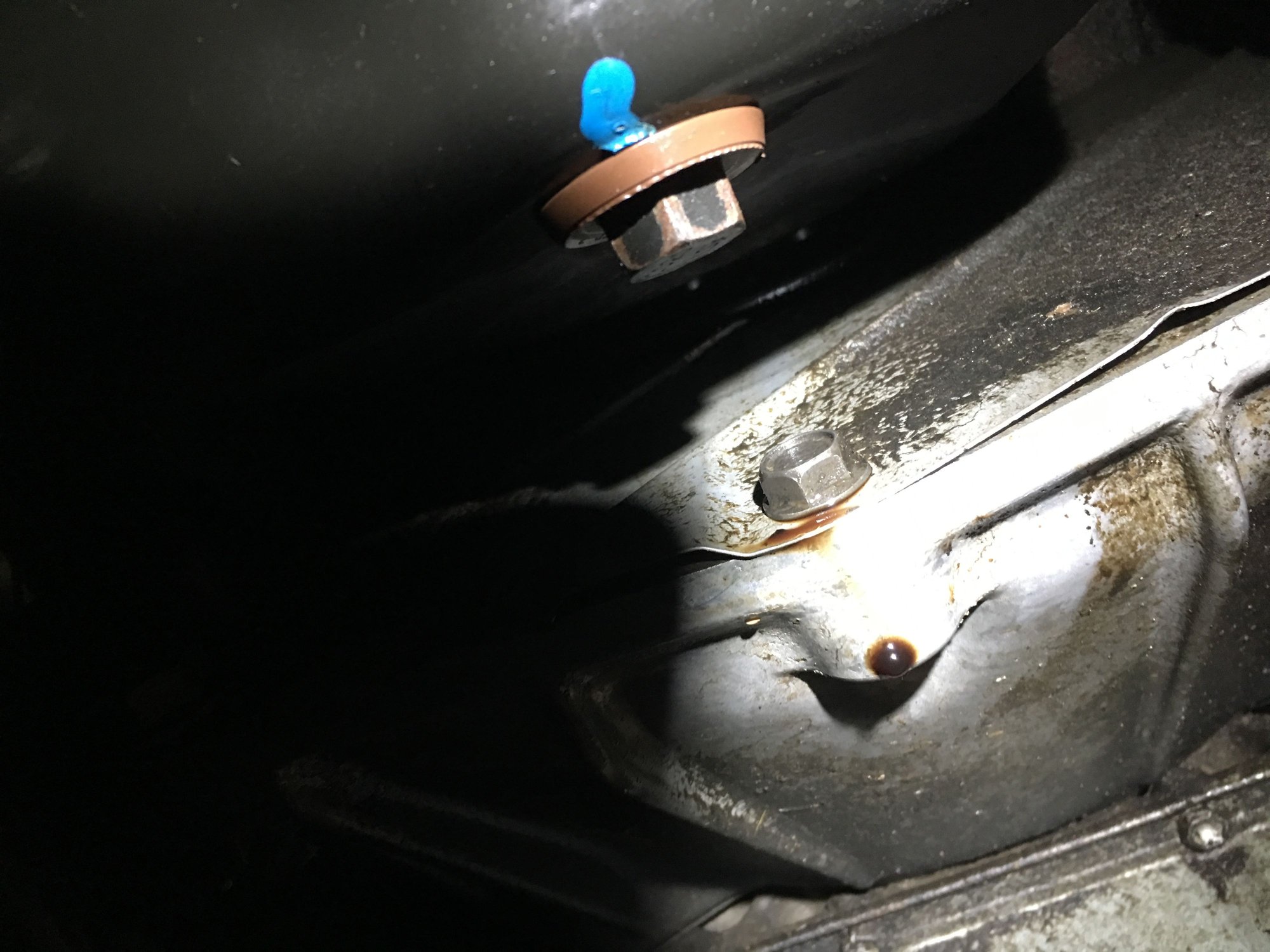

Hi guys, so I believe I do not have the oil filter adapter seal since mine is a 2000. If I remember right the ones that have it have a funky 90 degree bend to it, and mine screws straight in. I’ve given it a couple of wipe downs, along with using cardboard under it and I think I have it pin pointed. Here are some pictures for reference.
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,872
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Almost any oil leak on your 4.0 is gonna drip from the RMS area for two simple reasons:
First off, the engine sits nose-up and any oil will run back to the RMS area.
Secondly, the RMS area is also the lowest point on the engine. Simple physics and the old plumber’s adage apply here: “Crap flows downhill”.
First off, the engine sits nose-up and any oil will run back to the RMS area.
Secondly, the RMS area is also the lowest point on the engine. Simple physics and the old plumber’s adage apply here: “Crap flows downhill”.
Trending Topics
#9
Member
Thread Starter
Join Date: Feb 2017
Posts: 174
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
I do not have the one that requires the torx bit to remove I believe. I probably should have worded that better haha, as I do have an oil filter adapter
