Hello CF!
I recently found what looks to be a missing nut on the underside of my 96 XJ (manual).
The picture is located directly under the driver's side motor mount. I consulted my service manual
and could not find it. Is this the bracket that holds the motor mount bracket?
I've circled the missing nut in green on the picture. I have been to the hardware store a couple of times trying
to find a replacement. Maybe I'm getting the thread size wrong? (also the threads only start halfway up the bolt) can't seem to get one all the way on.
Jeez, I hope I didn't strip it. Also, I was scared to use a washer because there seems to be some metal (or hard plastic?) sticking out at the base where the bolt
is mounted in. Has anyone come across this or have any advice?
Many thanks,
Andy

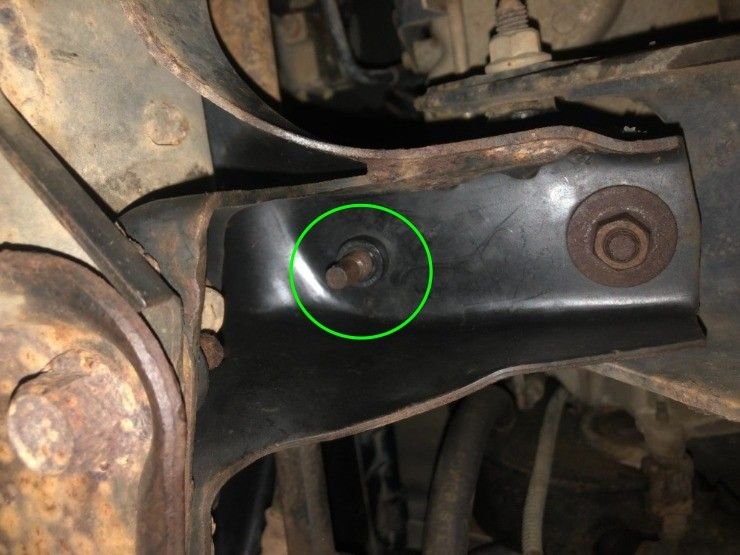

Missing nut. Is this the bracket that holds the bracket for the motor mount? 96XJ



That "ring" may be a welded nutplate that the bolt threads in to, so you dont need a nut there because it's already there. Check the other side see if its the same



Thanks BlueJeep, I remember looking and the other bracket is just a different setup. But tx for teaching me about welded nut plates!!



Which side is your picture



Hey Blue, it’s the drivers side
tx
Andy



Yep, that's what it is. The mount has a stud on one end and a bolt hole in the other.

If you can't find something locally, you can order the OEM bolts here.

https://teamcherokee.com/products/en...1991-1996.html



Wow, thank you Saudade! I might buy those bolts for some future need just because they look like they are becoming rare.
But, I could not tell from the description, ie.. the original question - am I missing a nut on one end or it simply installs into the
welded nut plate?

Many thanks to you both,
Andy



The nut for that "stud" is on top



Ha! Now I get it - many thanks Blue!
Thanks for helping me figure out that there's nothing wrong!


Andy
