hi! i have a problem with my 95 cherokee xj. i cant find the correct fit with the coolant temperature sender. i ordered 56026710, 56026712, 33004281 and they all do not fit. the old one has inscribed number of 7-052. hope somebody can point me to the right directions. thank you!



Where's Ralph77 when you need him????



im in the philippines, and hopefully someone can help with the part number, parts of jeeps need to be ordered and cant be easily checked by bring the sample of thebroken parts.



For the temperature gauge or dash lamp?



Spending time trying to figure this out. LOL. I am on it but don't have any good answers.

As Turbo X_J pointed out isn't there one for a actual gauge and one for the idiot light. Also I am under the impression that '96 and down ones have 2 temp sensors.
So here is a shot out of the '94 to '96 parts catalog.

So it looks like the 33004281 is the right one for an XJ. But again thought there was 2 different ones. One for a gauge and one for an idiot light. Only one listed.
Oh and to throw more crap in the game why does it look like there are different ones for RHD YJ's? And why would it matter?
Is your XJ RHD?
Crossing the 33004281 part number at Napa gets you here.

https://www.napaonline.com/en/p/MPET...?interchange=1

So I think we need detailed pics of the one in there now. Napa shows some different shots that might help.
I am wondering if the 33004281 that you ordered is packaged wrong. Work at an auto parts store and it would not
be the first time that ever happened. LOL.

And that 7-052 kinda looked like a Standard part number to me. But Google was not any help in that.
I also tried crossing it at the Napa, cause not only can you cross car makers part numbers but also
aftermarket ones sometimes, but that was of no help either.

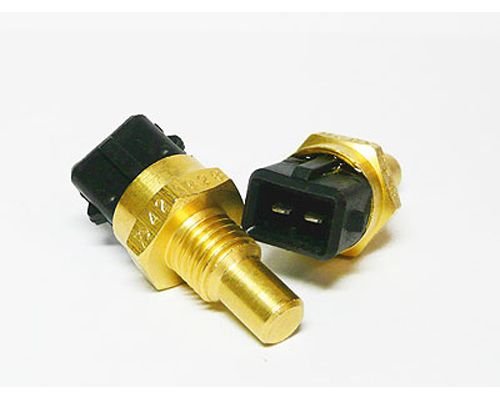

Those all appear to have rectangular connectors (late 96 and newer). On your 95, you should have oval connectors like the following:

Omix-Ada 17217.01 Temperature Sensor
by CSEOFFROAD
Learn more:



I have a '96. There are two sensors. The one at the back of the head is for info to the dash and it comes in two configurations. One for a gauge and one for a light. SORRY I have no part #'s.



Now that is what I thought too. The parts catalog is not clear.

And here is something weird. Under the 4.0 engine section showing parts for the head this is listed:

6035 687 1 PLUG, Temperature Sending Hole



So what won't fit?

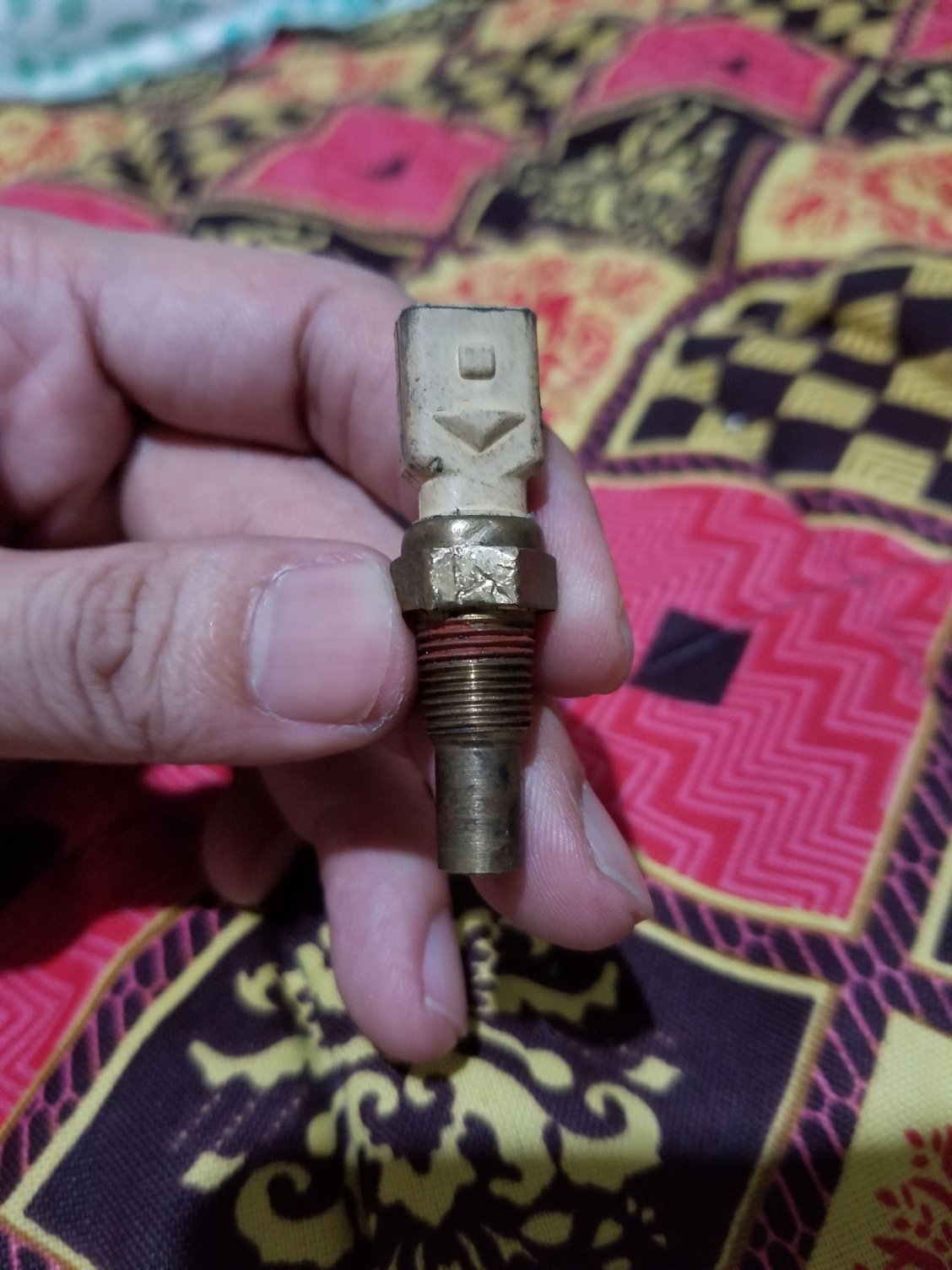

thanks guys for the effort. attached is the one that fits. all others looks the same but the butt cannot fit in the hole because it is too big by a few cm. it is lhd



So jordan96xj usually knows what he is talking about. But I don't see how the one for a '97 works. Does not look the same to me.

https://www.napaonline.com/en/p/MPET...earchIndex=App

Is this a diesel by any chance?
Cause in a '97 I found this listing.

SENSOR, Coolant Temperature
4686192 EN0 Diesel
Which led me to this pictrure.

Which leads me here:

https://avto.pro/part-4686192-CHRYSLER-332/



Any chance we are talking a Grand Cherokee? Cause I found this:

https://www.4wd.com/p/crown-automoti...-BKMN-56004815

Look under Fitment.



Wow this is bad. Now look here:

https://www.moparpartsgiant.com/part...~56004815.html

Click on View More



its an xj 4.0liter attached is a picture

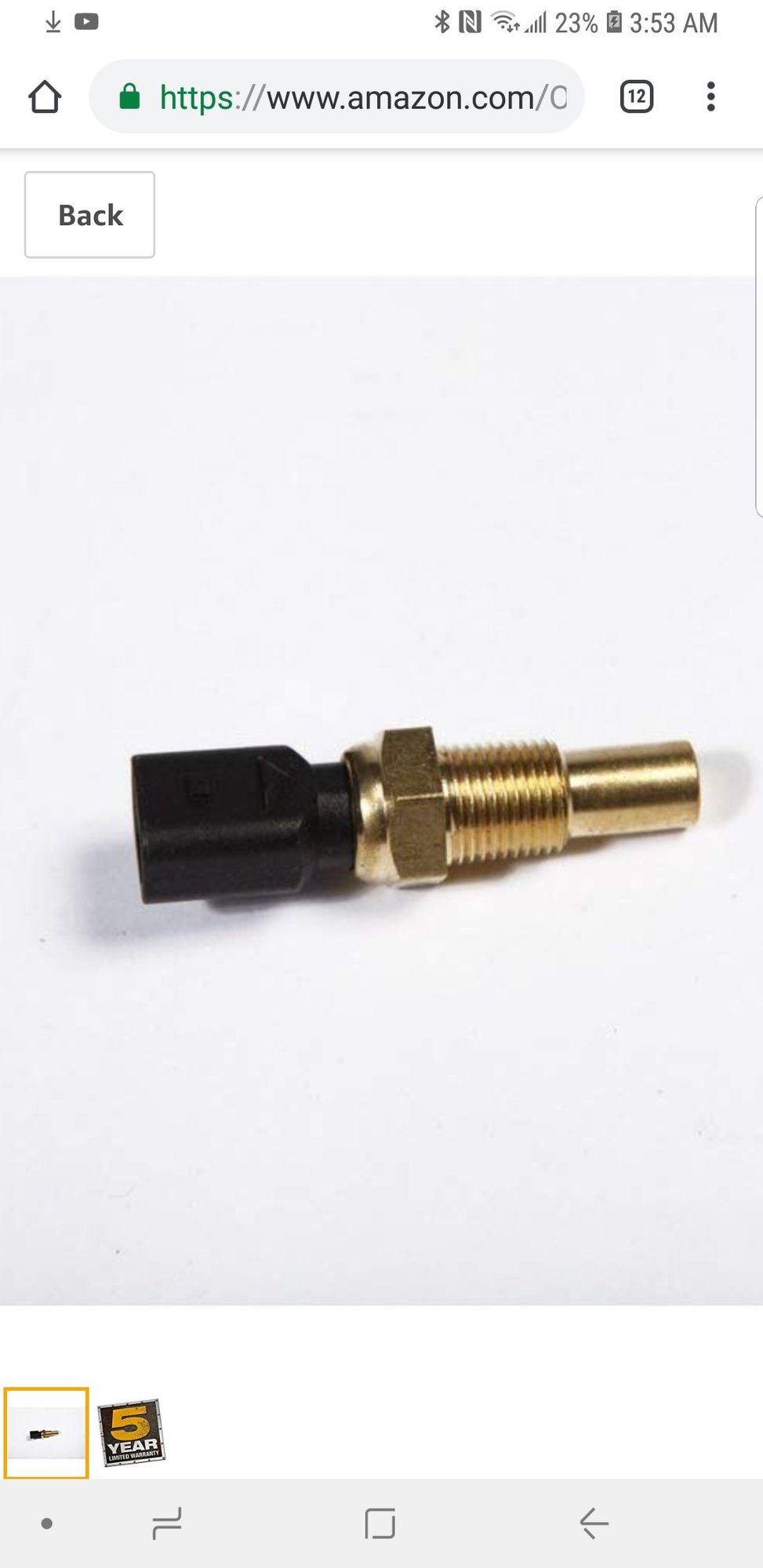

i think this is the part. omix-ada 17218.05 hope it is. just wondering how come the interchangeable part with crown did not fit in mine. cause i ordered crown before. attached is the pic of the old and the part that i think is the same part. i would like to thank you guys for the help especially to ralph77
