cluster swap help!
#1
CF Veteran
Thread Starter
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
cluster swap help!

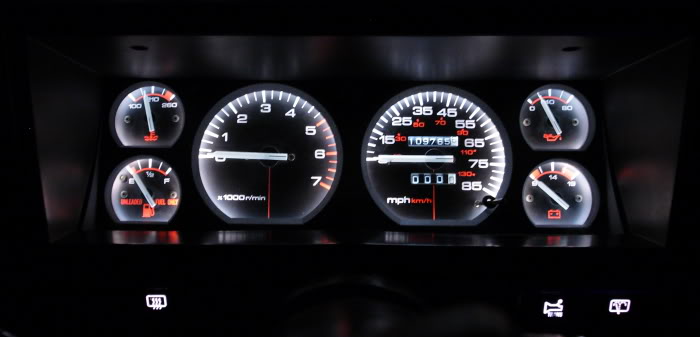

grabbed a cluster from a 92. it looks like he had done some swapping himself..
gas, speedo, tach, and battery all work. I need to know which sensors to install to make oil and temp work please
where can I get some? how can I get the right ones?
BUT!!
the oil numbers dont look correct
and neither does the temperature. pretty sure xj's run at like 220*
gas, speedo, tach, and battery all work. I need to know which sensors to install to make oil and temp work please
where can I get some? how can I get the right ones?
BUT!!
the oil numbers dont look correct
and neither does the temperature. pretty sure xj's run at like 220*
#2
Member
Join Date: Mar 2012
Location: Plaza, ND ..... Unfortunately
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 I6
i have had no experience with cluster swaps but cherokees should not run over 200 im lucky to have one of the few cherokees with no problems cooling wise, mine stays at 180 constantly and has never over heated
#3
CF Veteran
Thread Starter
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
really?? the one in my white xj went up to 260* and always stayed at 220* (the middle number)
I wonder how that happened... however! it should still go about 125. undoubtably
I wonder how that happened... however! it should still go about 125. undoubtably
#4
CF Veteran
Looks like you found yourself a metric cluster. It's not oil temp, it's oil pressure, in your case, measured in BAR, not PSI. Same with your temp sensor, that's ºcelsius, not ºfahrenheit, I believe.
Fortunately, I think the sending unit is the same... I'm using a cheap-o Duralast from ChinaZone (PN: PS133) but most will recommend the OEM from the dealer.
Fortunately, I think the sending unit is the same... I'm using a cheap-o Duralast from ChinaZone (PN: PS133) but most will recommend the OEM from the dealer.
#6
CF Veteran
Thread Starter
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
Looks like you found yourself a metric cluster. It's not oil temp, it's oil pressure, in your case, measured in BAR, not PSI. Same with your temp sensor, that's ºcelsius, not ºfahrenheit, I believe.
Fortunately, I think the sending unit is the same... I'm using a cheap-o Duralast from ChinaZone (PN: PS133) but most will recommend the OEM from the dealer.
Fortunately, I think the sending unit is the same... I'm using a cheap-o Duralast from ChinaZone (PN: PS133) but most will recommend the OEM from the dealer.
and thats a bummer. but as long as the needles are pointing straight up I guess it doesnt matter anyway. I'll swoop some gauge faces later
I'll order some OEM senders with my other purchases on monday thanks for the info
how do I describe them? just say senders for oil and temp on my model xj and they'll have the correct part #'s?
#7
CF Veteran
You need an oil pressure (and maybe water temperature?) sending unit for a '93 XJ.
There are also switches, those won't work, they're for the idiot lights.
There are also switches, those won't work, they're for the idiot lights.
Trending Topics
#8
Senior Member
Join Date: Feb 2011
Location: Bel Air, Maryland 21015
Posts: 719
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
You need to buy sending units for the model year that a re designed to be used WITH GAUGES.
When you go to order/buy there should be an option to select the sending units for gauges.
Oh and learn the METRIC SYSTEM ..... that cluster would confuse the devil out of me.
When you go to order/buy there should be an option to select the sending units for gauges.
Oh and learn the METRIC SYSTEM ..... that cluster would confuse the devil out of me.
#9
Senior Member
Join Date: Feb 2011
Location: Bel Air, Maryland 21015
Posts: 719
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
All gauges go to 260.
All three run somewhere around the middle ... 210 +/-
In fact I never knew the op temp of my 1996 until I did a cluster swap.
I was worried about the temp being high, but there are no signs of overheat so I figure it's 'normal' for that XJ ... or more likely the sending unit calibration is not exact.
#10
CF Veteran
Here's my special gauge decoder but don't tell anyone 'cuz it's a secret... This works for both metric and imperial measurements.
Red = bad
Middle = good (most times)
0 = bad (most times)
Again, secret, so shhhhh.
Red = bad
Middle = good (most times)
0 = bad (most times)
Again, secret, so shhhhh.
#11
CF Veteran
Thread Starter
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
just converted 125 to imperical. it equals 257*F
so I was right about the 220ish. I'll still probably order some gauge faces that are to my liking in the furture
#12
CF Veteran
Thread Starter
Join Date: Nov 2011
Location: City of Trees, CA
Posts: 7,387
Likes: 0
Received 10 Likes
on
9 Posts
Year: 93 2 door
Model: Cherokee
Engine: 4.0
might pull some OEM faces as soon as my JY has more than 1 xj. ha
or swoop these if I can put up with the white..
http://www.whitegauges.net/products/...ce-Gauges.html
#13
CF Veteran
Swapped mine out last weekend...
Oil Pressure = 0-40-80 (PSI)
Coolant Temp = 100 - 210 - 260
Fuel = Empty
So your conversion of 125º C to 257º F is accurate.
Oil Pressure = 0-40-80 (PSI)
Coolant Temp = 100 - 210 - 260
Fuel = Empty
So your conversion of 125º C to 257º F is accurate.
