4.0 Piston skirt replacement

Old 04-24-2013, 04:38 PM
  #1
Junior Member
Thread Starter

Join Date: Mar 2013
Location: North Vancouver
Posts: 46
Year: 1996
Model: Cherokee
Engine: 4.0 Litre HO
Default 4.0 Piston skirt replacement

Heard a pretty loud ticking noise coming from the rear of the engine, louder from underneath. Under further diagnosis after pulling the oil pan, I found pieces of the #5 piston skirt laying in the pan. So Pull the valve cover, pull the head and intake and push the piston up from underneath. Luckily the bore seems really good and the bearing seems decent. Take the old piston to get replaced and use the old rings. Another 5 hours and the cost of the piston and gaskets and she'll be back together... Hopefully haha
Attached Thumbnails 4.0 Piston skirt replacement-img_0561.jpg   4.0 Piston skirt replacement-img_0558.jpg   4.0 Piston skirt replacement-img_0569.jpg   4.0 Piston skirt replacement-img_0564.jpg
Cheebs is offline
Old 04-24-2013, 04:47 PM
  #2
Junior Member

BomberJeep's Avatar

Join Date: Jun 2012
Location: Virginia Beach
Posts: 70
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Your lucky your motor didnt take any more damage. How does the crank look? Any obvious dents in the oil pan?
BomberJeep is offline
Old 04-24-2013, 04:48 PM
  #3
Junior Member
Thread Starter

Join Date: Mar 2013
Location: North Vancouver
Posts: 46
Year: 1996
Model: Cherokee
Engine: 4.0 Litre HO
Default

all looks really decent considering. had no loss of power or oil pressure
Cheebs is offline
Old 04-25-2013, 07:54 AM
  #4
CF Veteran

ZINGGG's Avatar

Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six
Default

Please see quote in my sig
ZINGGG is offline
Old 04-25-2013, 10:14 AM
  #5
CF Veteran

CCKen's Avatar

Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Did you have to use a ridge reamer to get the piston out?

How many miles on the engine?

Where are you going to get a replacement piston, and what size piston do you need?

Did you use a cylinder bore gauge to determine what size piston you need?

Are you going to deglaze the cylinder wall with a hone?
CCKen is offline
Old 04-25-2013, 10:16 AM
  #6
CF Veteran

PocketsEmpty's Avatar

Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by 1996sportXJ View Post
Please see quote in my sig
That was the first thing I thought of when I saw this post title, haha.

Nice work...is it easier to pull the head with the intake and exhaust manifolds on?
PocketsEmpty is offline
Old 04-26-2013, 06:17 AM
  #7
CF Veteran

belvedere's Avatar

Join Date: Jul 2012
Location: SD
Posts: 1,395
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Keep us posted. I have a '98 with a broken kilt on #6, and I'm still not sure what I'm gonna do with it.
belvedere is offline
Old 04-26-2013, 06:27 AM
  #8
::CF Moderator::

cruiser54's Avatar

Join Date: Aug 2011
Location: Prescott, Az
Posts: 37,876
Year: 1990
Model: Comanche
Engine: 4.0
Default

Originally Posted by PocketsEmpty View Post
That was the first thing I thought of when I saw this post title, haha.

Nice work...is it easier to pull the head with the intake and exhaust manifolds on?
I thought the same thing!!

I was glad to see the OP didn't see the rod hanging there.

I think it's WAY easier to pull the head without the manifolds on.
cruiser54 is offline
Old 04-26-2013, 10:02 PM
  #9
Junior Member
Thread Starter

Join Date: Mar 2013
Location: North Vancouver
Posts: 46
Year: 1996
Model: Cherokee
Engine: 4.0 Litre HO
Default

Gonna take it to a buddy at Jeep Thrills. Was thinking of honing the bore but if I use the same rings I shouldn't have to. Didn't need a reamer at all as the top was nice and smooth. no ring at all.

Was super easy to leave the manifolds on. Just disconnect the exhaust and make sure you got a buddy to help lift it out cause its pretty heavy.

Soon as I get some cash together ill post more pics of the reassembly and what it cost to do it. Its a bandaid fix but ive seen those run for 200k+ km
Cheebs is offline
Old 05-26-2013, 06:20 PM
  #10
Junior Member
Thread Starter

Join Date: Mar 2013
Location: North Vancouver
Posts: 46
Year: 1996
Model: Cherokee
Engine: 4.0 Litre HO
Default

So piston went in without a hitch. Heads back on and she purrs like a kitten

Piston was about $100
Rings about $85
Gaskets about $150
Oil and misc tools about $100

I rehoned the bore, put a ring compressor on the piston and pushed her in. Re connected the bearing and torqued the bolts. Gaskets oil pan and head back in. I reused the same head bolts as I'm a broke *** but they army stretch bolts anyways. Rods back in their original slots and all rockers torqued back to specs. Connected spark plugs and fuel injector wiring. Throttle body and power steering. Serpentine belt. Filled it with oil and she started up on the 2nd time cranking over. Mass airflow sensor will need to be cleaned to sort out any rough idling but she sounds amazing. Would never know such a critical engine component disintegrated without destroying the engine.

Stoked on the result. I should've taken more pics during the rebuild but I forgot. If it happens to anyone out there my suggestion is to just do it. As long as you don't have engine damage. Under $500 and prob a weekend of wrench time. Just have a buddy to lift the head out cause its heavy and awkward.

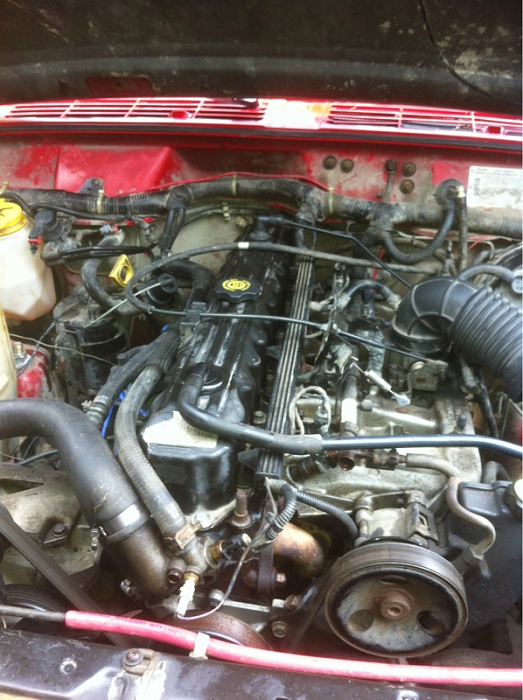

Attached Thumbnails 4.0 Piston skirt replacement-image-4015461136.jpg   4.0 Piston skirt replacement-image-2722408090.jpg   4.0 Piston skirt replacement-image-333322819.jpg
Cheebs is offline
Old 05-26-2013, 07:06 PM
  #11
Seasoned Member

Join Date: Feb 2013
Location: Northern Michigan
Posts: 330
Year: 2001
Model: Cherokee
Engine: 4.0 V6
Default

Nice work hope she lasts for ya. How many miles are on it?
MichiganCherokee is offline
Old 05-26-2013, 07:29 PM
  #12
CF Veteran

PocketsEmpty's Avatar

Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Year: 1998
Model: Cherokee
Engine: 4.0
Default

I have that same work light, lol. Wish it was a little brighter. That seems like a lot of expense for a DIY job. Fun times
PocketsEmpty is offline
Old 05-26-2013, 07:37 PM
  #13
CF Veteran

belvedere's Avatar

Join Date: Jul 2012
Location: SD
Posts: 1,395
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Thanks for sharing. I have a broken #6 and have to decide what to do with it, so I appreciated being able to read your story.
belvedere is offline
Old 05-26-2013, 08:02 PM
  #14
Junior Member
Thread Starter

Join Date: Mar 2013
Location: North Vancouver
Posts: 46
Year: 1996
Model: Cherokee
Engine: 4.0 Litre HO
Default

Speedo reads 282 but the engine prob has around 180 on it. Can't be sure tho. Pretty decent internally
Cheebs is offline
Old 05-26-2013, 09:23 PM
  #15
Senior Member

Join Date: May 2011
Posts: 749
Year: 1997
Model: Cherokee
Engine: 4.0
Default

only things i would have done different is replaced all the pistons, rings and rod bearings....

but i mglad you were able to get it going for cheap
jebmccall is offline
