engine temperature - Jeep Cherokee Forum

Modified Grand Cherokee Tech. All ZJ,WJ & WK aftermarket tech goes here All Modified, NON-OEM tech goes here. IE:Aftermarket Lifts, Shocks, Tires, Performance, etc..

engine temperature

Reply




Old 05-17-2018, 04:42 PM
  #1
Newbie
Thread Starter

Join Date: Sep 2017
Location: il
Posts: 9
Year: 1999
Model: Grand Cherokee
Engine: 4.7
Default engine temperature

99 Jeep Grand Cherokee Laredo 4.7 it runs at 222 to 230 I replaced water pump thermostat radiator cap flushed motor and flushed radiator and new clutch fan is that a normal running temperature

Last edited by Skull34; 05-17-2018 at 06:03 PM. Reason: Forgot to put in that I bought a new clutch fan too
Skull34 is offline
Reply With Quote
Old 05-18-2018, 12:08 AM
  #2
Senior Member

Join Date: Feb 2011
Location: NJ
Posts: 888
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

That's too warm. My 4.7 never goes over 210. I would test the temperature using a infrared thermometer. The gauge could be off.
rgr4475 is offline
Reply With Quote
Old 05-18-2018, 04:18 AM
  #3
CF Veteran

Join Date: Nov 2015
Location: syracuse ny
Posts: 1,377
Year: 1997
Model: Grand Cherokee
Engine: 4.0
Default

A good way to read engine temp is with a scan tool that has real time data, find them on ebay for under 50.
That will tell you the temp that the engine management system is seeing, via the coolant temperature sensor.
97grand4.0 is offline
Reply With Quote
Old 05-22-2018, 10:26 AM
  #4
CF Veteran

dave1123's Avatar

Join Date: Nov 2010
Location: Manlius, east of Syracuse, NY
Posts: 10,413
Year: 2000
Model: Grand Cherokee(WJ)
Engine: 4.0L
Default

On 99 and newer jeeps, the temp sensor sends data to the PCM which interprets it and sends a signal to the gauge for the readout. The sensor is NOT hooked directly to the gauge. Therefore a scan tool should agree with the gauge. Or should.

What I found amusing was with the engine at operating temp of 210* the IAT was showing 158* at idle with an outside air temp of 65*. Not exactly cool, if you know what I mean. I hope it's cooler at highway speed.

Last edited by dave1123; 05-22-2018 at 10:28 AM.
dave1123 is offline
Reply With Quote
Old 05-23-2018, 11:16 AM
  #5
Member

IStoleIt's Avatar

Join Date: Feb 2016
Location: Columbus Ohio
Posts: 222
Year: 1998
Model: Grand Cherokee
Engine: 5.9L 360 ci
Default

Originally Posted by dave1123 View Post
What I found amusing was with the engine at operating temp of 210* the IAT was showing 158* at idle with an outside air temp of 65*. Not exactly cool, if you know what I mean. I hope it's cooler at highway speed.
Heat soak is a fickle *****! Heat wrap the intake and exhaust components to lessen the soak. You can also vent the hood to promote more air flow higher speeds, but generally the manufacturers do a pretty good job of designing them properly.
IStoleIt is offline
Reply With Quote
Old 05-23-2018, 11:20 AM
  #6
Member

IStoleIt's Avatar

Join Date: Feb 2016
Location: Columbus Ohio
Posts: 222
Year: 1998
Model: Grand Cherokee
Engine: 5.9L 360 ci
Default

As others had said, there are many different ways to diagnose, and the first step is to verify your factory gauge is accurate with a know good gauge. Cheapest way would be to hack a cheap radiator hose in half, add an inline ANALOG temp gauge, and compare. With the gauge on the dash being PCM controlled there are many things that could cause a bad reading/signal to the gauge. Could be a bad Earth Ground under the dash, at the firewall, or the frame(unibody). Also could be corroded wires, and with corrosion the electrical resistance rises and could cause all sorts of odd signals. Good luck.
IStoleIt is offline
Reply With Quote
Old 05-23-2018, 01:44 PM
  #7
Newbie
Thread Starter

Join Date: Sep 2017
Location: il
Posts: 9
Year: 1999
Model: Grand Cherokee
Engine: 4.7
Default engine temperature

So far I've replaced everything but the radiator right now I'm running radiator cleaner through it for about 3 hours now and still running at 240 on the highway when I'm sitting at an idle the temperature starts dropping I just can't figure it out my radiator is clear I can see right through it there's no obstruction the temperature is 80 degrees today so it is running hot never tried it with the air conditioning on yet I think it would completely overheat
Skull34 is offline
Reply With Quote
Old 05-23-2018, 01:47 PM
  #8
Newbie
Thread Starter

Join Date: Sep 2017
Location: il
Posts: 9
Year: 1999
Model: Grand Cherokee
Engine: 4.7
Default engine temperature

I forgot to say the faster I go to the hotter it gets it don't make no sense
Skull34 is offline
Reply With Quote
Old 05-24-2018, 06:55 PM
  #9
CF Veteran

Join Date: Dec 2015
Location: PA
Posts: 1,631
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by Skull34 View Post
So far I've replaced everything but the radiator right now I'm running radiator cleaner through it for about 3 hours now and still running at 240 on the highway when I'm sitting at an idle the temperature starts dropping I just can't figure it out my radiator is clear I can see right through it there's no obstruction the temperature is 80 degrees today so it is running hot never tried it with the air conditioning on yet I think it would completely overheat
If the temp drops at idle id say the fans are doing thier job. Looking thru the radiator from the outside wont tell you if the internal passages are clear so the radiator is still a possibilty. When it is hot, whats the engine temp? Point an IR thermometer at it (wherever the temp sensor is for your year) to see what the temp actually is.

Originally Posted by Skull34 View Post
I forgot to say the faster I go to the hotter it gets it don't make no sense
The faster you go the hotter it gets? Makes perfect sense to me. The greater the rpm, the greater the friction. The greater the friction, the greater the temps. The cooling system can only do much. You say it still hits 240 on the highway. How hot does it get around town, at lower speeds?
fb97xj1 is offline
Reply With Quote
Old 05-26-2018, 07:38 AM
  #10
Member

IStoleIt's Avatar

Join Date: Feb 2016
Location: Columbus Ohio
Posts: 222
Year: 1998
Model: Grand Cherokee
Engine: 5.9L 360 ci
Default

I agree ^^ if the RAD is the only thing you havent swapped, just do it. I spent an extra $40 over the OEM quality and got a 3 row welded end-tank aluminum RAD and havent even hit 210F yet.(AMAZON-like 2 years ago.)

As a short term helper(NOT A REMEDY) you could get some Water Wetter from the parts store. It is pretty good about lowering the coolant temps 10-20degree. But I would never call this a fix, It's a chemical change that has nothing to do with your existing cooling issues.
IStoleIt is offline
Reply With Quote
Old 05-26-2018, 10:50 AM
  #11
Senior Member

Join Date: Feb 2011
Location: NJ
Posts: 888
Year: 2004 WJ, 1998 XJ
Model: Grand Cherokee(WJ)
Engine: 4.7 HO
Default

Did you burp it correctly using the screw on the top of the rad?
rgr4475 is offline
Reply With Quote
Old 05-28-2018, 12:52 PM
  #12
Junior Member

Join Date: Apr 2015
Location: God's Country, The Confederacy
Posts: 34
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default

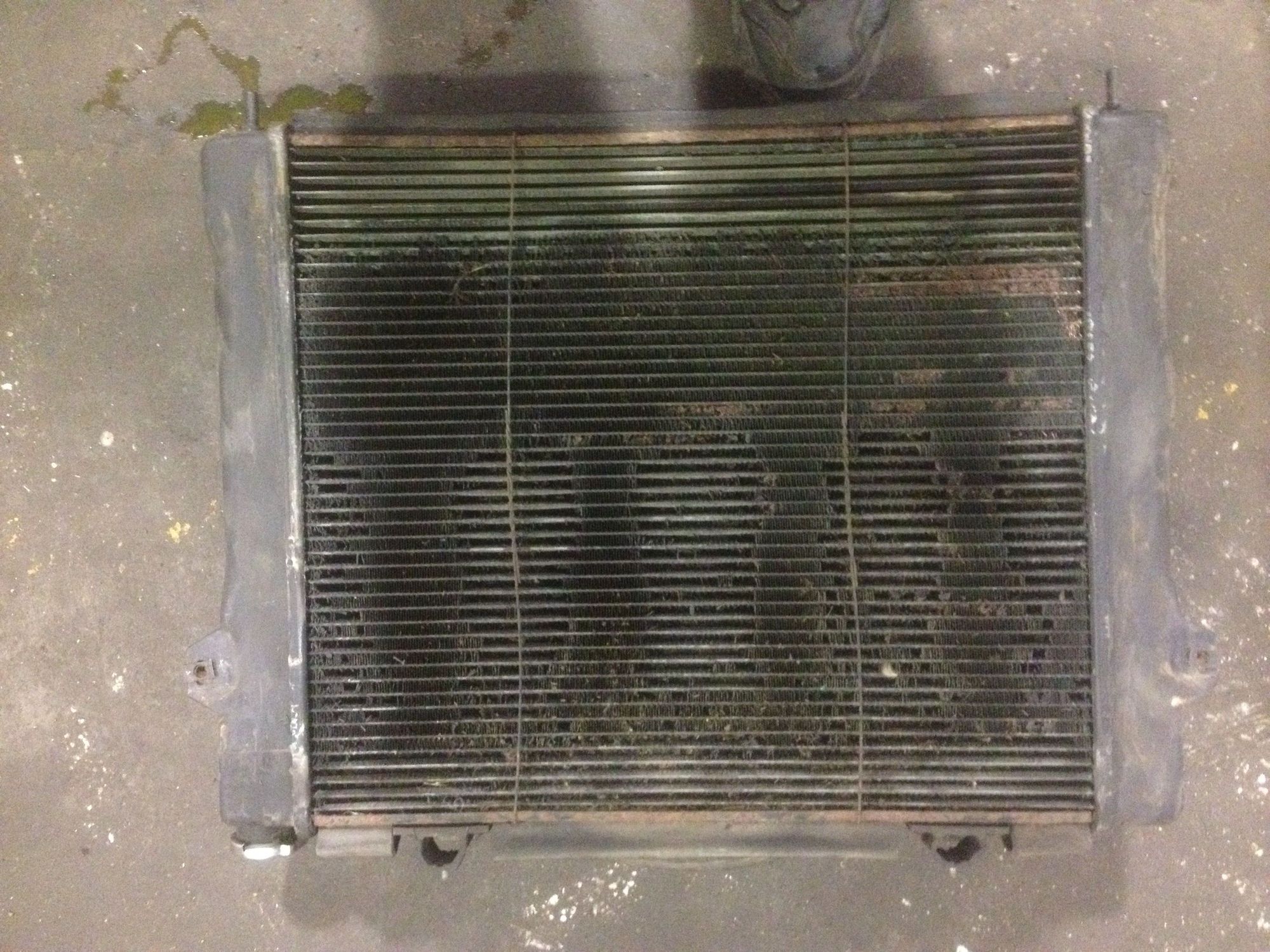

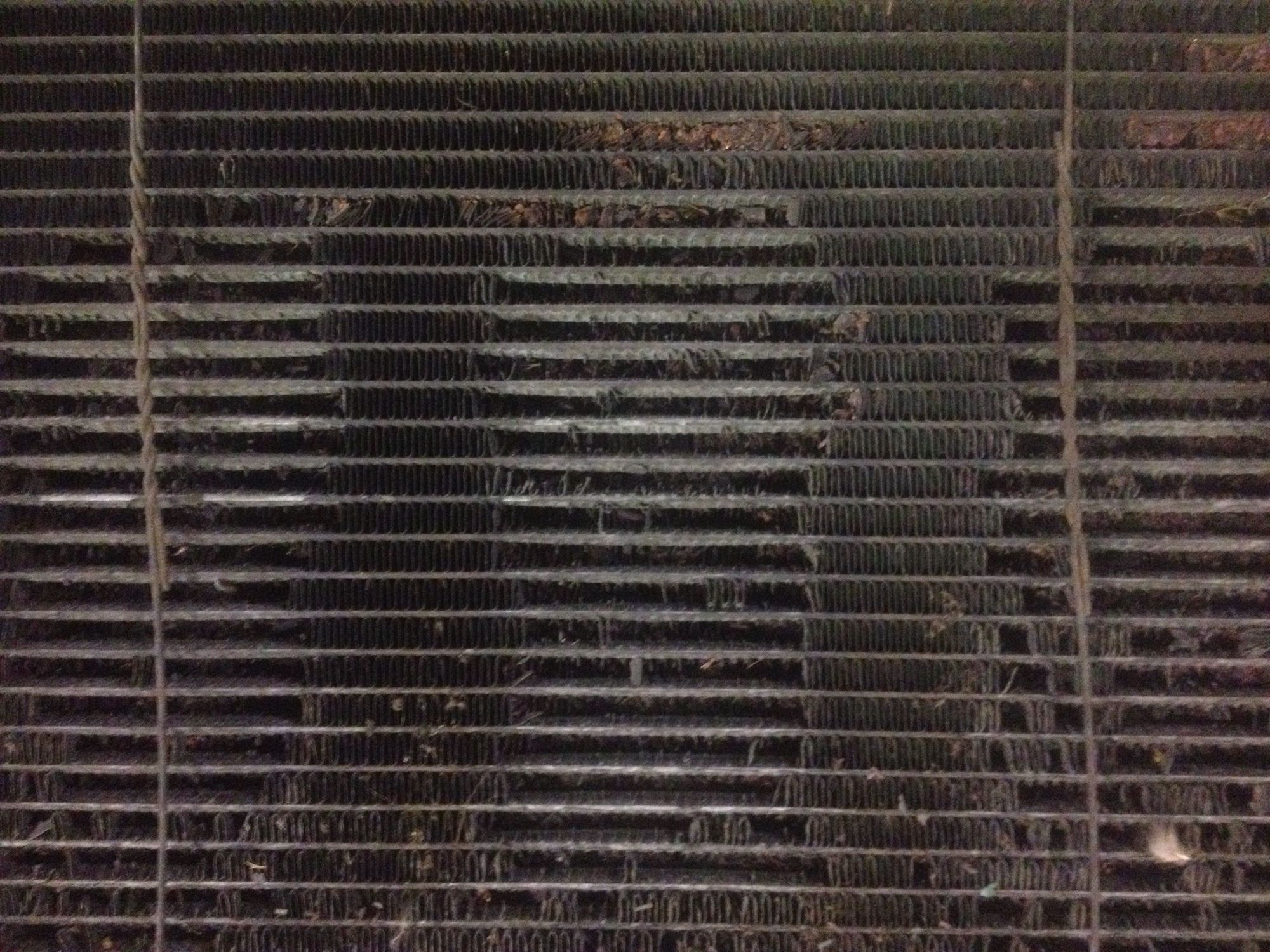

Didn't see any of this till I started striping it out. The air conditioning condenser in the front and the fan and fan shroud in the back hid it pretty well...I think my first gander at my problem was when I took the body metal off the top of the radiator.
JimmyBo1313 is offline
Reply With Quote
Old 05-29-2018, 08:16 AM
  #13
Member

IStoleIt's Avatar

Join Date: Feb 2016
Location: Columbus Ohio
Posts: 222
Year: 1998
Model: Grand Cherokee
Engine: 5.9L 360 ci
Default

Originally Posted by JimmyBo1313 View Post

Didn't see any of this till I started striping it out. The air conditioning condenser in the front and the fan and fan shroud in the back hid it pretty well...I think my first gander at my problem was when I took the body metal off the top of the radiator.
Well... aint that a sight! While bent fins are not helping the cooling, it should still work. That dirt that fell onto the cardboard is impressive. If only all of our cooling issues could be as simple as a blocked RAD.
IStoleIt is offline
Reply With Quote
Old 05-29-2018, 10:43 AM
  #14
Junior Member

Join Date: Apr 2015
Location: God's Country, The Confederacy
Posts: 34
Year: 1996
Model: Grand Cherokee
Engine: 4.0
Default

That's not just a blocked rad, that dust IS the rad! Look close and you might find a glimmer of my tactical flash light trying to come through.
