Advice on engine temperature
#1
Member
Thread Starter
Join Date: Dec 2011
Location: Chunky, MS.
Posts: 101
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0
Advice on engine temperature
Attached is a photo that I've borrowed from another post on the forum. I have circled with blue the line that my Cherokee runs at normal running. It runs exactly at the thinner white line between the 100 degree line and the 210 line. Is this around 180 or lower?
It runs great. Should I be concerned? Isn't it running cooler than it should? I have no idea what degree thermostat is in there. Previous owner replaced radiator, so I don't know what else could have been done to the cooling system.
It runs great. Should I be concerned? Isn't it running cooler than it should? I have no idea what degree thermostat is in there. Previous owner replaced radiator, so I don't know what else could have been done to the cooling system.
#2
CF Veteran
Join Date: Mar 2009
Location: Watha,NC
Posts: 1,208
Likes: 0
Received 1 Like
on
1 Post
Year: Jeepless at the moment
You should buy a point-n-shoot thermometer, to verify the gauge is correct, the sender for the gauge could be covered with gunk, or more likely the sender is not working correctly.
#4
Member
Join Date: Dec 2011
Location: California
Posts: 113
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 l6
If it runs good I wouldnt worry to much about it man... only reasons I could say that it might not be reading the " correct " temp is that the gauge sensor is not giving a high enuff ohm signal due to any reason really... the sensor works off resistance and as the temp rises the resistance rises and gives you a reading. I have delt with this exact problem with a truck I have... nothing to worry about just check the temp sender some day when you have time and if its crusty and cruddy just change it and see what it reads after that...
#6
Member
Thread Starter
Join Date: Dec 2011
Location: Chunky, MS.
Posts: 101
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0
Is it possible it has a 160 degree thermostat in it?
If not the thermostat, then you're saying the engine coolant temperature sensor could be bad?
Heat works just fine. Engine runs good, even at near freezing mornings at startup.
If not the thermostat, then you're saying the engine coolant temperature sensor could be bad?
Heat works just fine. Engine runs good, even at near freezing mornings at startup.
Trending Topics
#10
Member
Thread Starter
Join Date: Dec 2011
Location: Chunky, MS.
Posts: 101
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0
Guys, thanks for your help. I just THOUGHT the heat worked fine. Today was the first cold day since I got the Jeep 4 days ago. I had to run the heat full blast all morning and it never did blow hot air, just warm air.
So, tomorow I'm picking up a 195 thermostat and doing a swap. I'll post back with the results. I'm betting the previous owner put a 160 in there.
So, tomorow I'm picking up a 195 thermostat and doing a swap. I'll post back with the results. I'm betting the previous owner put a 160 in there.
#13
Member
Thread Starter
Join Date: Dec 2011
Location: Chunky, MS.
Posts: 101
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1996
Model: Cherokee(XJ)
Engine: 4.0

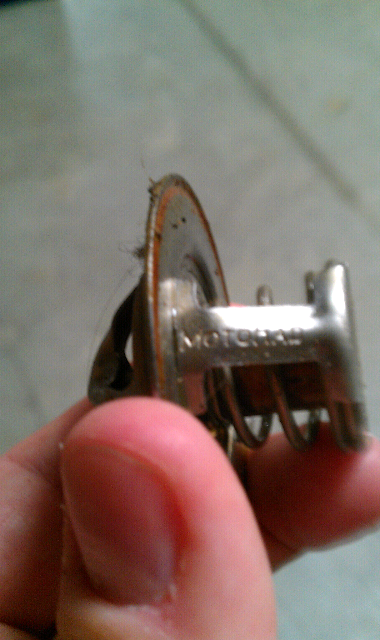

Picked up a NAPA 195 degree thermostat stamped as made by Stant in the USA. My Cherokee had a 180 degree thermostat in it stamped "MotoRad" (see attached image). I have never heard of that brand.
After installation, the thermostat opened when it should and now everything is perfect. Thank you so much!
After installation, the thermostat opened when it should and now everything is perfect. Thank you so much!
#14
CF Veteran
Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,006
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Wagoneer
Engine: Renix 4.0
you should see an increase in MPGs as well. i had the same problem in my renix, put a 195 in, and blamo... 16 mpg and thats with a day of wheeling (as opposed to the 9 i was getting before)
