Transmission id
#1
Junior Member
Thread Starter
Join Date: Feb 2010
Location: ventura, ca.
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0l
Transmission id
Ok, so I just got this donor jeep to convert to mine to 4wd, I checked the vin and found out it was a 2.5 auto originally. It's a 4.0 manual now. How can I ID the trans and transfer case so I can get the right parts? It's part time 4wd. I thinks it's an ax15 but want to be sure.
#2
CF Veteran
Join Date: Oct 2011
Location: Seal Beach, CA
Posts: 4,440
Likes: 0
Received 2 Likes
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0 HO Straight Six

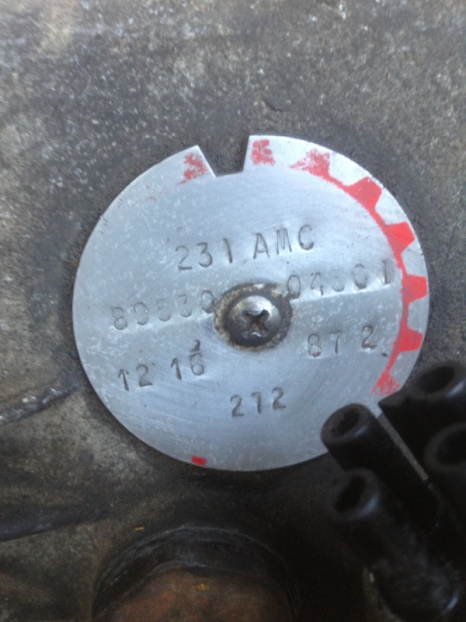

That tag on the rear of the transfer case (that aluminum circular thing) will tell you what TC it is. Clean it off and have a look
Judging by the tailcone, it looks like a 242 though
Judging by the tailcone, it looks like a 242 though
#6
Herp Derp Jerp
Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Likes: 0
Received 12 Likes
on
11 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Let's see a closeup of that plate in the middle of the transmission. The AX-5 and AX-15 looks almost identical, save for a cast iron midplate. AX-15s are all aluminum. (http://www.novak-adapt.com/knowledge/ax5.htm)
Most 2.5Ls came with AX-5s. Bolt pattern is different. It's very possible whoever at that parts yard mislabelled the transmission.
Most 2.5Ls came with AX-5s. Bolt pattern is different. It's very possible whoever at that parts yard mislabelled the transmission.
Trending Topics
#8
Senior Member
Join Date: Jan 2011
Location: Russellville, Arkansas
Posts: 957
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 I-6
I sure hope that you didn't pay $850 for that tranny and T/C. If it was junkyard, I wouldn't pay $850 for the whole Jeep. When my last XJ got totaled, the insurance company sold me the whole thing for $150 (what they said they were going to get for scrap) and they delivered it to my house.
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#11
CF Veteran
#12
Junior Member
Thread Starter
Join Date: Feb 2010
Location: ventura, ca.
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0l
haha, no I got the whole jeep for $300 and got a few goodies with it. 3" lift, short arm kit, adjustable trackbar, swaybar discos, rock sliders. no jeepingdan, looks like a standard front/back split w/ a center plate, non-magnetic so I think it must be the ax15 going by salad's reply. according to the vin, the 4.0 and tran were swaped into the jeep at some point. stock was a 2.5l automatic.
#13
CF Veteran
Join Date: Aug 2012
Location: oregon
Posts: 1,592
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0 ho 99 intake ps pump 1" tb spacer 62mm bored tb eletric fans and more
wow $850 is way to high of cost for that hope you didnt pay that
