89 MJ 2x4 to 4x4 swap help

Old 09-25-2015, 10:05 AM
  #1
Member
Thread Starter

Join Date: Feb 2011
Location: Central Iowa
Posts: 243
Year: 1996
Model: Cherokee
Engine: 4.0L High Output
Default 89 MJ 2x4 to 4x4 swap help

Ok so I have done some reading on this and have everything but the manual transmission from my 99 parts xj cause it's an automatic. Does it matter what year of ax15 transmission I use?
wader218 is offline
Old 09-25-2015, 10:23 AM
  #2
CF Veteran

Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default

You need one from a similar year as the output shaft on the transmission changed at one point from 21 spline to 23 spline.
toasterknight is offline
Old 09-25-2015, 08:47 PM
  #3
Member
Thread Starter

Join Date: Feb 2011
Location: Central Iowa
Posts: 243
Year: 1996
Model: Cherokee
Engine: 4.0L High Output
Default

I thought that was only if you are dealing with the Peugeot compared to the ax15?
wader218 is offline
Old 09-26-2015, 05:28 AM
  #4
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,922
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Default

Early ax15 had 21 spline . Just avoid 91 and down count splines can go wrong. Try to year match to transfer case.
freegdr is offline
Old 09-26-2015, 07:08 AM
  #5
Member
Thread Starter

Join Date: Feb 2011
Location: Central Iowa
Posts: 243
Year: 1996
Model: Cherokee
Engine: 4.0L High Output
Default

Ok I called the local yard and they have a 95 trans. Might get that one if I can't find a cheaper one to go with the 99 t-case. They want $400. Seems high for something that old but that might just be me.
wader218 is offline
Old 10-01-2015, 12:27 AM
  #6
CF Veteran

Join Date: Oct 2008
Location: Hell, CA
Posts: 2,127
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Default

IF that 95 AX-15 is complete with the external slave bellhousing.. worth it!
Metmknice is offline
Old 10-02-2015, 03:10 PM
  #7
CF Veteran

88whitecomanche's Avatar

Join Date: Oct 2013
Location: Miami, fl
Posts: 7,374
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by wader218 View Post
Ok I called the local yard and they have a 95 trans. Might get that one if I can't find a cheaper one to go with the 99 t-case. They want $400. Seems high for something that old but that might just be me.
$400 is a fair price considering craigslist wants $600+ for an ax15....
Lkq is about $200 but you have to pull the trans yourself
If your patient enough you might even find a Cherokee for $500 to do your whole 4x4 swap...
88whitecomanche is offline
Old 10-02-2015, 03:45 PM
  #8
Member
Thread Starter

Join Date: Feb 2011
Location: Central Iowa
Posts: 243
Year: 1996
Model: Cherokee
Engine: 4.0L High Output
Default

Yeah that's my problem I bought a 99 doner and am using most of it but it's a automatic. The one out of a 95 is out of a wrangler. Anyone know if that is clocked the same as the Cherokee? I read somewhere that they are clocked different which could cause the t case to hit the body
wader218 is offline
Old 10-02-2015, 04:35 PM
  #9
CF Veteran

88whitecomanche's Avatar

Join Date: Oct 2013
Location: Miami, fl
Posts: 7,374
Year: 1998
Model: Cherokee
Engine: 4.0
Default

No it's not the same but a wrangler clocking is better than a Cherokee clocking...,
If your going to do rock crawling it's better up than down....

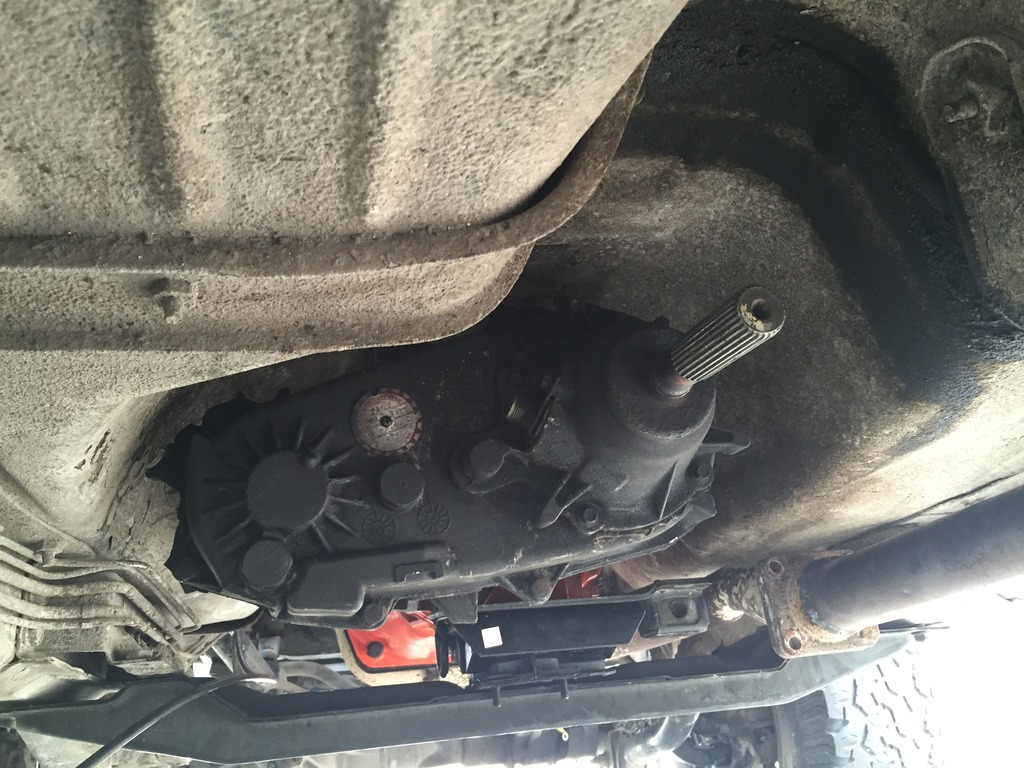

Here's mine with a 93 ax15 with a 96 tcase with the wrangler clocking...it is best with the ax15 crossmember with the 1" drop...

Name:  7F8041B4-7A2A-4E14-9B28-8851EDCAA0BF_zpsve5xvqkd.jpg
Views: 1304
Size:  243.4 KB

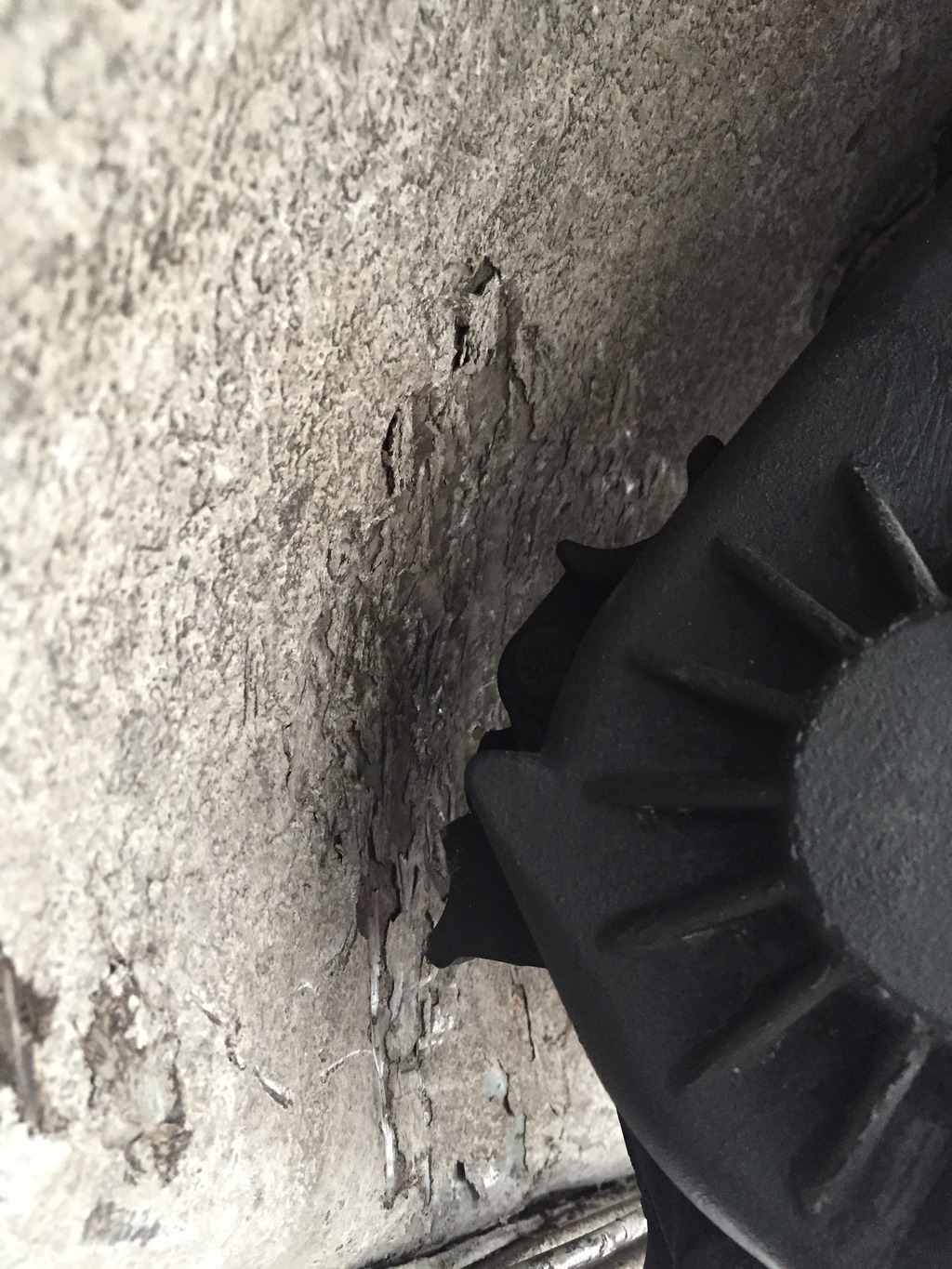

I did have to bang the trans tunnel a bit to make the tcase bit but I got about a little over 1/2" clearance....the pic doesn't show it because of camera angle

Name:  6C6E3F60-47D9-4891-95A4-35B9F1C43520_zps2pjc5pjl.jpg
Views: 1292
Size:  386.5 KB
88whitecomanche is offline
Old 10-03-2015, 09:35 AM
  #10
Member
Thread Starter

Join Date: Feb 2011
Location: Central Iowa
Posts: 243
Year: 1996
Model: Cherokee
Engine: 4.0L High Output
Default

Yeah I'm gonna have a 4.5 inch lift on it but no off-roading for this one. I've been looking for a nice Comanche for 6 years and finally found one. Don't really want to beat on the tunnel. How far did you beat it in?
wader218 is offline
Old 10-03-2015, 04:32 PM
  #11
CF Veteran

Join Date: Oct 2008
Location: Hell, CA
Posts: 2,127
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Default

Honestly, just a few taps should do the trick. You should probably hit the underside of your heep with some kind of coating to keep rust away anyways. You won't even notice it.
Metmknice is offline
Old 10-03-2015, 08:22 PM
  #12
CF Veteran

88whitecomanche's Avatar

Join Date: Oct 2013
Location: Miami, fl
Posts: 7,374
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Not much...just enough to have enough clearance for movement...
