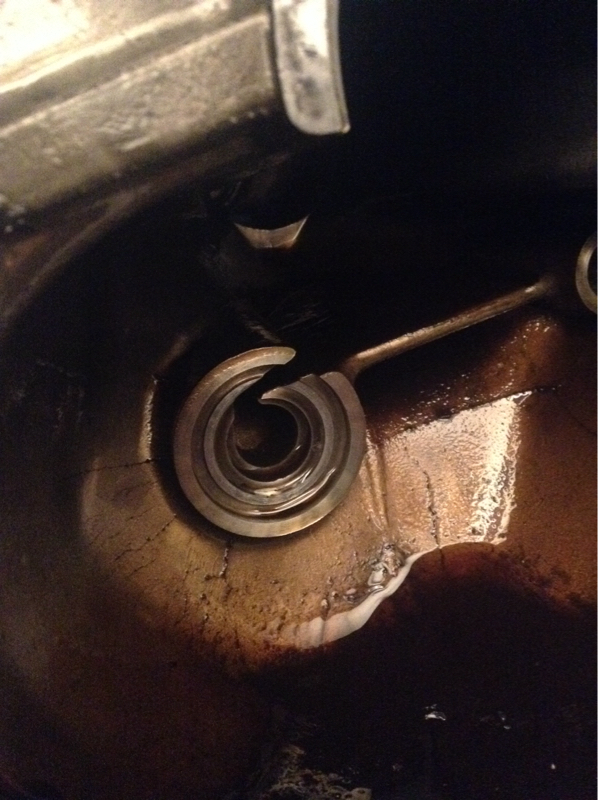

Im not sure if this is the right section or not, mods move as needed. I know this isn't a hotrod forum Lol but maybe somebody here can help me. I don't want to create an account on another forum just to ask this question. My dad got t5 tranny out of a 78ish camaro. He bought an s10 tail shaft off eBay to do the tail shaft conversion. I was doing the install tonight and ran into an issue with the a bearing seat around where the oil flinger sits. The old tail shaft and new tail shaft have are different than each other. Anybody know what I need to do here? The news tail shaft The old tail shaft
#2
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
T5 Transmission
What exactly is it that you are trying to install this gearbox into? If it's a Jeep, yes, Jeep used a T5 as well but it was a little different.
#4
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
Got it. Now for next question. (Sorry but I like to gather as much info as possible due to the fact that I myself am known to "Frankenstein" some things. It makes helping you guys out easier.) But what was the need for the tail cone conversion? Was it length concern or yoke compatibility?
#5
CF Veteran
Thread Starter
Join Date: Feb 2015
Location: North Carolina
Posts: 1,528
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Got it. Now for next question. (Sorry but I like to gather as much info as possible due to the fact that I myself am known to "Frankenstein" some things. It makes helping you guys out easier.) But what was the need for the tail cone conversion? Was it length concern or yoke compatibility?
#6
CF Veteran
Thread Starter
Join Date: Feb 2015
Location: North Carolina
Posts: 1,528
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0

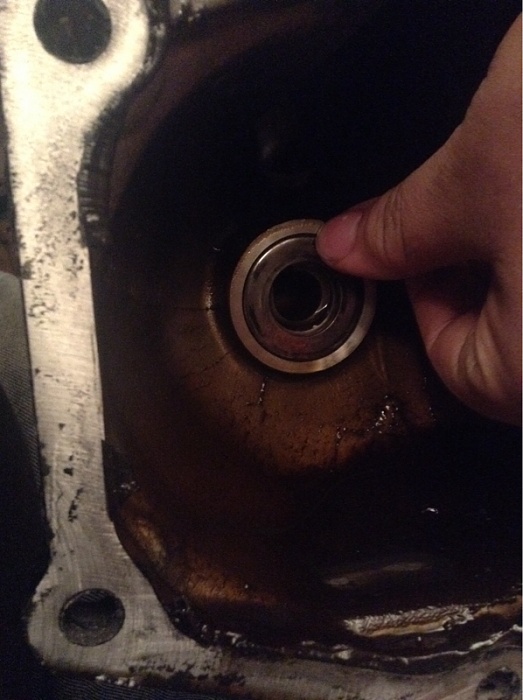

The bearing will sit flush in the grove for the original tailshaft housing but not for the s10 tail shaft housing.
Trending Topics
#8
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
T5 Transmission
Yup, just as I thought. I hate to tell you this but the output shafts are slightly different based on model vehicle the T5 was used in. Your best bets are either take both tail housings to a machine shop to show them what you want, swap the output shaft for a S-10 model or just find a whole S-10 model T-5.
#9
CF Veteran
Thread Starter
Join Date: Feb 2015
Location: North Carolina
Posts: 1,528
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Yup, just as I thought. I hate to tell you this but the output shafts are slightly different based on model vehicle the T5 was used in. Your best bets are either take both tail housings to a machine shop to show them what you want, swap the output shaft for a S-10 model or just find a while S-10 model T-5.
#12
CF Veteran
Thread Starter
Join Date: Feb 2015
Location: North Carolina
Posts: 1,528
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Alright I figured a few things out. Apparently this is a non world class T5 and I have a World class S10 tail shaft. The two won't mix and match. From what I read online. A world class T5 tranny will mount to a non world class tail shaft, but no the other way around. So I'm just gonna get a non world class tail shaft to match the non world class tranny.
#13
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
Alright I figured a few things out. Apparently this is a non world class T5 and I have a World class S10 tail shaft. The two won't mix and match. From what I read online. A world class T5 tranny will mount to a non world class tail shaft, but no the other way around. So I'm just gonna get a non world class tail shaft to match the non world class tranny.
