Which Rear Axle do I have?
#1
Newbie
Thread Starter
Join Date: Feb 2017
Posts: 2
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L I6
Which Rear Axle do I have?
Hi All,

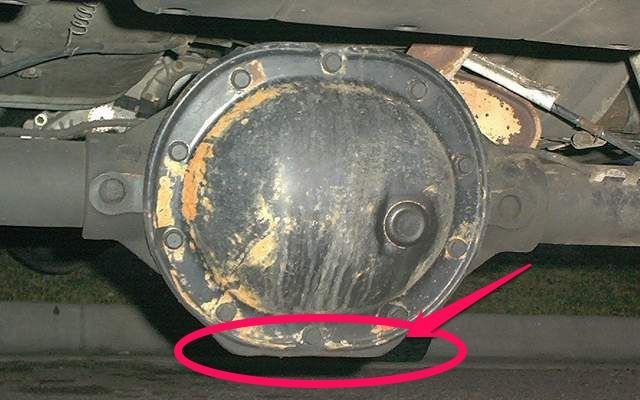

This is my first time to the forums, and after countless hours on here and google searches I must say I am stuck. I have a 2001 Cherokee Sport and I was nearly positive I had a Dana 35 axle, as the diff cover had the Dana Emblem on it and a little steel tag between one of the bolts that I believe I can make out a 35 on. This all lead me to believe that I had the D35, but then I was about to order new U-bolts for a budget lift, and had concerns. Everywhere I look online says that the D35 has a U bolt with an inner diameter of 2.64" and the Chrystler has a 3" U bolt and tubing on the axle. I of course wanted to make sure I was ordering the right sized u bolts so I went and measured the diameter and u-bolt dimensions, and sure enough 3". In addition to that the diff cover has the iconic flat bottom instead of the round one as the D35 has.
I haven't seen anything like this anywhere on the forums, or the answer on google. Any help would be greatly appreciated. Thanks.
This is my first time to the forums, and after countless hours on here and google searches I must say I am stuck. I have a 2001 Cherokee Sport and I was nearly positive I had a Dana 35 axle, as the diff cover had the Dana Emblem on it and a little steel tag between one of the bolts that I believe I can make out a 35 on. This all lead me to believe that I had the D35, but then I was about to order new U-bolts for a budget lift, and had concerns. Everywhere I look online says that the D35 has a U bolt with an inner diameter of 2.64" and the Chrystler has a 3" U bolt and tubing on the axle. I of course wanted to make sure I was ordering the right sized u bolts so I went and measured the diameter and u-bolt dimensions, and sure enough 3". In addition to that the diff cover has the iconic flat bottom instead of the round one as the D35 has.
I haven't seen anything like this anywhere on the forums, or the answer on google. Any help would be greatly appreciated. Thanks.
#3
Seasoned Member
Join Date: Nov 2015
Location: North Louisiana
Posts: 373
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0 HO
My 8.25 had a dana rubber plug in the diff cover.
Dana marks their axles well.
Should be some more indicators stamped into the diff cover.
If you Google Image search for chrysler 8.25 it should become obvious to you whether or not you have one.
Dana marks their axles well.
Should be some more indicators stamped into the diff cover.
If you Google Image search for chrysler 8.25 it should become obvious to you whether or not you have one.
#4
Senior Member
Join Date: Jan 2017
Location: usa
Posts: 799
Likes: 0
Received 4 Likes
on
4 Posts
Year: 2000
Model: Cherokee
Engine: 6 cylinder
My Chrysler also has the rubber plug. When the lift kit was installed i ordered the wrong U bolts by mistake. They were for the Dana 35 and wouldn't fit around the axle housing in addition to being too short.
From what you described, you've got a 8.25.
From what you described, you've got a 8.25.
