Default gear pattern
Is this a useable pattern? If not please give a suggestion.
Backlash is at 006".

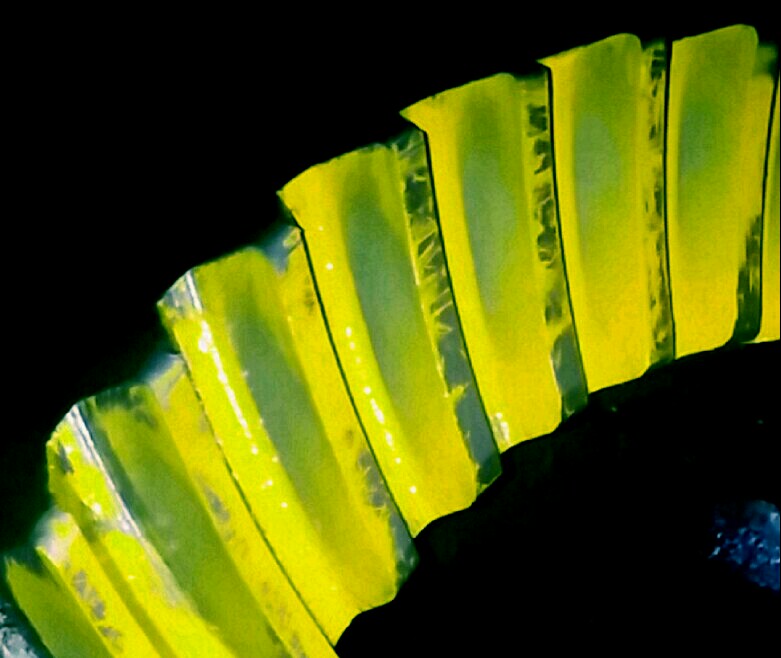

gear pattern-0901141905-1.jpg

gear pattern-img_20140901_201022.jpg
rompnXJ is offline
Reply Like
Old 09-02-2014, 08:22 AM
  #2
CF Veteran

SeriousOffroad's Avatar

Join Date: Apr 2008
Posts: 13,952
Likes: 0
Received 15 Likes on 13 Posts
Model: Cherokee
Default
Nope. Pinion is way too deep.
SeriousOffroad is offline
Reply Like
Old 09-02-2014, 11:14 AM
  #3
CF Veteran

94XjSport94's Avatar

Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like on 1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default
Yep. Also post the axle you are working on.
94XjSport94 is offline
Reply Like
Old 09-06-2014, 05:24 PM
  #4
Seasoned Member
Thread Starter

rompnXJ's Avatar

Join Date: May 2011
Posts: 367
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default
It's a C8.25" with 4.88's & a lunchbox. I pulled the pinion back a little bit, and ran it with .006" backlash again.


Suggestions?

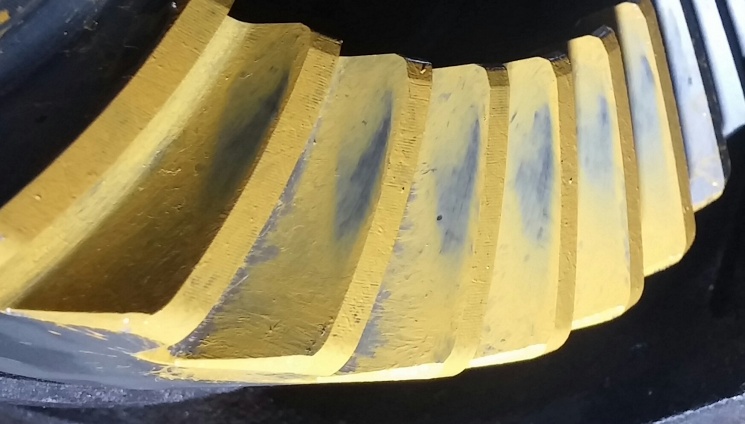

gear pattern-coast.jpg

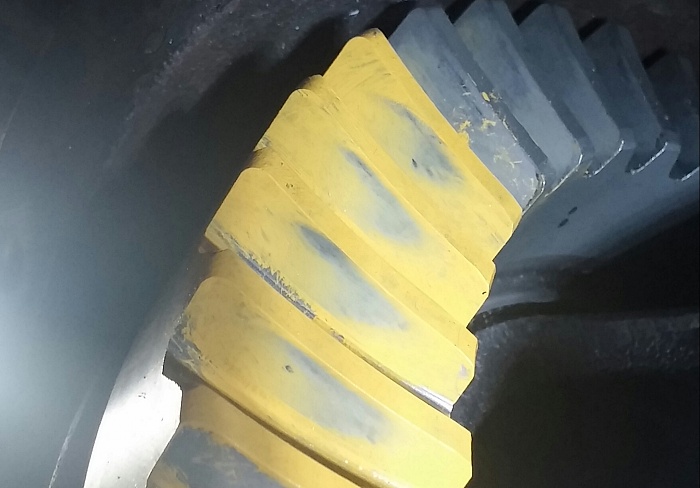

gear pattern-drive.jpg
rompnXJ is offline
Reply Like
Old 09-06-2014, 05:37 PM
  #5
CF Veteran

SeriousOffroad's Avatar

Join Date: Apr 2008
Posts: 13,952
Likes: 0
Received 15 Likes on 13 Posts
Model: Cherokee
Default
Run another pattern.

Wrap a rag around the yoke and twist it a couple times to keep tension on the pinion.
SeriousOffroad is offline
Reply Like
Old 09-06-2014, 06:16 PM
  #6
CF Veteran

884x4's Avatar

Join Date: Feb 2013
Location: Justin, TEXAS
Posts: 1,802
Likes: 0
Received 2 Likes on 2 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Default
This is what your wanting to be at.

Name: ForumRunner_20140906_181510.png Views: 119 Size: 335.6 KB

Took me probably 70 or so tries and different combinations to get that pattern in my 8.8
884x4 is offline
Reply Like
Old 09-06-2014, 09:32 PM
  #7
Seasoned Member
Thread Starter

rompnXJ's Avatar

Join Date: May 2011
Posts: 367
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default
Ok, I brought the pinion in .001" and opened the backlash to .008"




















How's this...

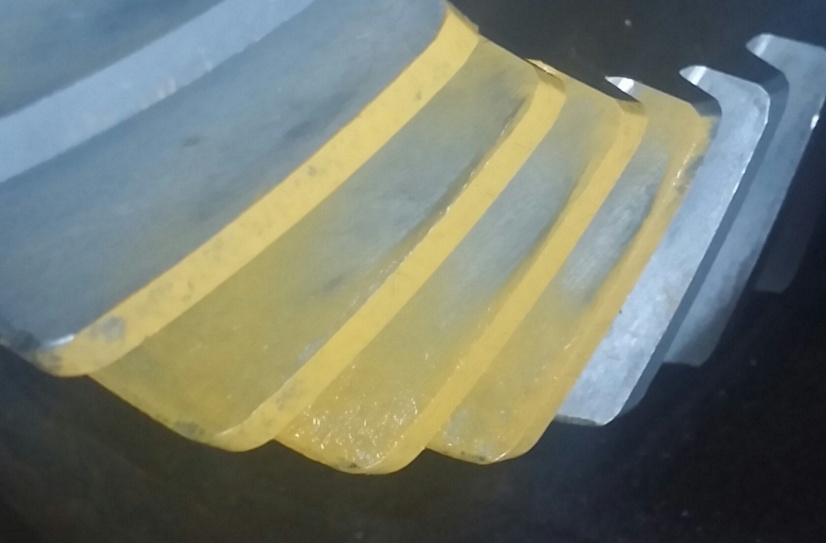

gear pattern-coast-2.jpg

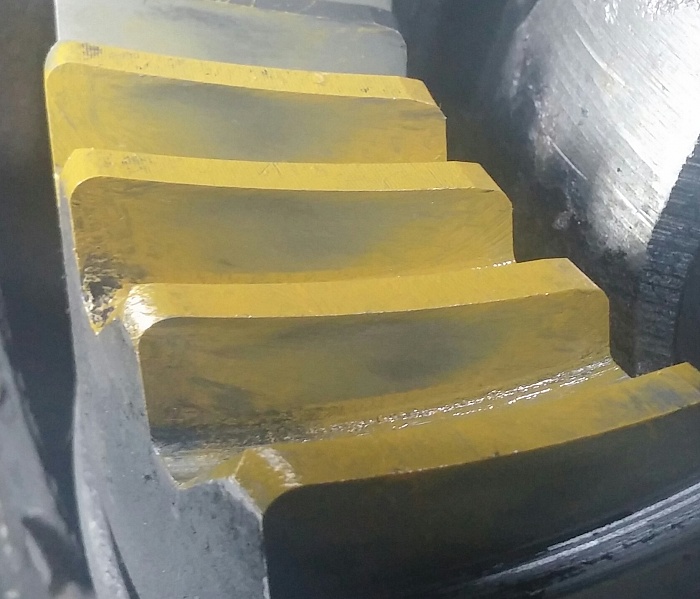

gear pattern-drive-2.jpg
rompnXJ is offline
Reply Like
