Front Drive Shaft Length
I've had some trouble with vibrations since I did a front axle swap. I immediately concluded that it was my front drive shaft but the actual problem eluded me for a long time, until 10 mins ago while I was working under my jeep. My front DS is too short, it seems.
According to this site my collapsed length should be 28.620". First of all, what exactly does the collapsed length refer to? Is it from cap to cap when it's fully collapsed? On my rig, sitting on level ground and normal ride height, I measured roughly 33.5" from cap to cap (which is the problem.) I'm going to replace my current DS with one out of a ZJ, but I don't know which. The previous link has a measurement table for all ZJs but I'm not sure which one would be appropriate. Should I go for the 33.5", the 33", the 32.875", etc?
According to this site my collapsed length should be 28.620". First of all, what exactly does the collapsed length refer to? Is it from cap to cap when it's fully collapsed? On my rig, sitting on level ground and normal ride height, I measured roughly 33.5" from cap to cap (which is the problem.) I'm going to replace my current DS with one out of a ZJ, but I don't know which. The previous link has a measurement table for all ZJs but I'm not sure which one would be appropriate. Should I go for the 33.5", the 33", the 32.875", etc?
Last edited by KingsColor; 02-07-2015 at 01:10 PM.
#2
Seasoned Member
since you are lifted you should measure the distance from tc yoke to axle yoke, whatever that length is ideally you want a ds that fits that when the ds is in the center of its travel. give or take a 1/2 " . since you usually need more travel for drop than compression, more travel out is better than in. can you dig it.
#4
Member
Thread Starter
Join Date: Nov 2013
Location: Spring Hill, Kansas
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
since you are lifted you should measure the distance from tc yoke to axle yoke, whatever that length is ideally you want a ds that fits that when the ds is in the center of its travel. give or take a 1/2 " . since you usually need more travel for drop than compression, more travel out is better than in. can you dig it.
It's the same model axle, D30. I went from stock 99 HP D30 to a 97 HP D30 that I built. But for some reason, it's given me lota of problems that I can't explain. It was the same model and same lift so why did I have to get longer shocks? Idk.
#5
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
96/98 5.2, 5.9 31.250 w/ 249 & Model 30 52098379
96/97 4.0 Automatic 31.250 52098850

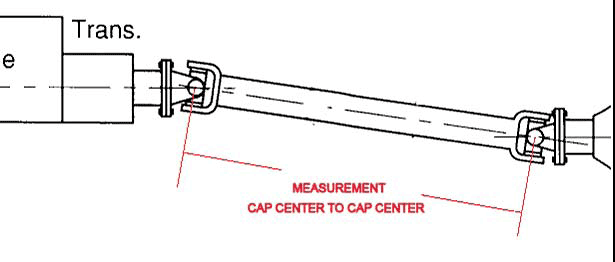

Measurements are center to center on u joint .....
96/97 4.0 Automatic 31.250 52098850
Measurements are center to center on u joint .....
Last edited by freegdr; 02-08-2015 at 08:31 AM.
#6
Beach Bum
Yea, I measured the 33.5" from cap to cap while the driveshaft was still connected (albeit barely). So you suggest I go for the 33" one?
It's the same model axle, D30. I went from stock 99 HP D30 to a 97 HP D30 that I built. But for some reason, it's given me lota of problems that I can't explain. It was the same model and same lift so why did I have to get longer shocks? Idk.
It's the same model axle, D30. I went from stock 99 HP D30 to a 97 HP D30 that I built. But for some reason, it's given me lota of problems that I can't explain. It was the same model and same lift so why did I have to get longer shocks? Idk.
Longer shocks? Did the other axle have Bar Pin Eliminators?
Control Arm Drop systems push the axle forward also.
#7
Seasoned Member
Yea, I measured the 33.5" from cap to cap while the driveshaft was still connected (albeit barely). So you suggest I go for the 33" one?
It's the same model axle, D30. I went from stock 99 HP D30 to a 97 HP D30 that I built. But for some reason, it's given me lota of problems that I can't explain. It was the same model and same lift so why did I have to get longer shocks? Idk.
It's the same model axle, D30. I went from stock 99 HP D30 to a 97 HP D30 that I built. But for some reason, it's given me lota of problems that I can't explain. It was the same model and same lift so why did I have to get longer shocks? Idk.
Trending Topics
#8
Member
Thread Starter
Join Date: Nov 2013
Location: Spring Hill, Kansas
Posts: 136
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
I've not heard of any HP D30 models having a short pinion, but if that's true, I think you might be right. Old axle didn't have BPEs, but I added them to the new axle because why the hell not! CAD brackets do push the axle forward, but I had the same brackets and control arms on the old axle as well.
Thanks for all of the response guys, I think I going to go with the 33" one when I get a chance. I've got to finish my high steer and sort out problems with my track bar first though.
#9
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
Thanks for all of the response guys, I think I going to go with the 33" one when I get a chance. I've got to finish my high steer and sort out problems with my track bar first though.
Gonna be to long will bottom out on compression....
