Cooling fan wiring issue
Background: I have my cooling fan (within a year old mind you) connected to a toggle switch via the spliced PCM method. My switch ground has a diode soldered in the middle so a CEL isn't thrown (it would without it). Two wheeling trips ago, a CEL was thrown with the switch on but the fan still worked. Last wheeling trip, no cel and the fan worked... until it didn't.

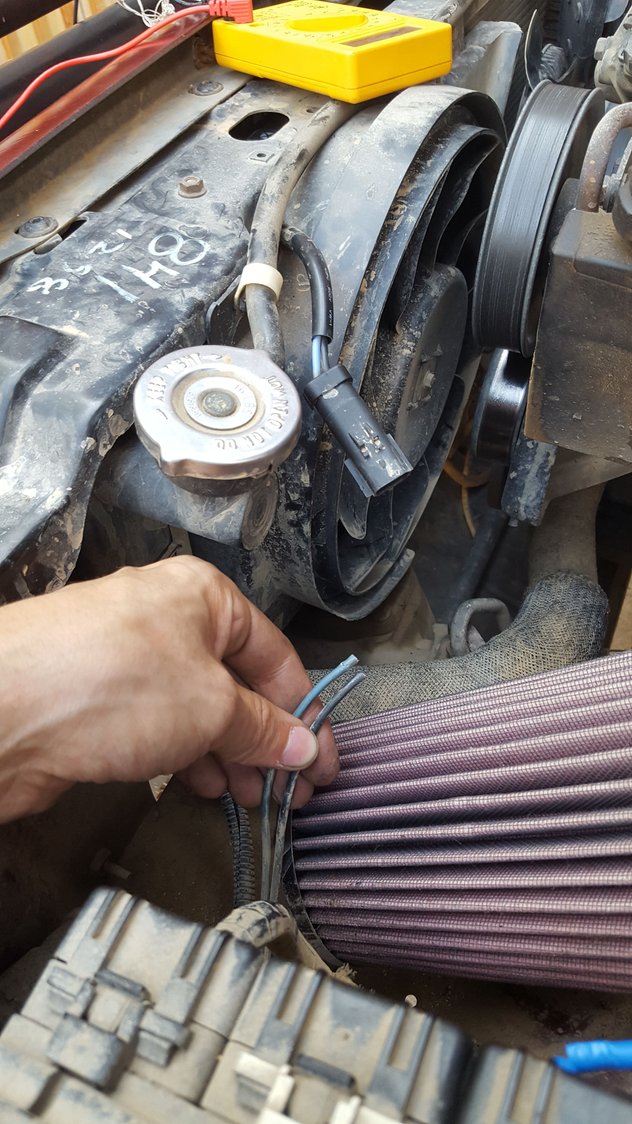

The connector for the fan appears "burnt" (see picture) and the ground wire leading to the fan appears darkened too.
Could I have fried this? Also, my big question is, if everything is in working order, should I read power from the other wire when the ignition and auxiliary fan switch are on? I should, right? My test light is showing nothing.
I still have testing to do, mainly to my switch ground wire, but I think I may just hardwire the fan to a toggle switch and bypass the PCM's control of it all together. Thoughts on doing that safely?
The connector for the fan appears "burnt" (see picture) and the ground wire leading to the fan appears darkened too.
Could I have fried this? Also, my big question is, if everything is in working order, should I read power from the other wire when the ignition and auxiliary fan switch are on? I should, right? My test light is showing nothing.
I still have testing to do, mainly to my switch ground wire, but I think I may just hardwire the fan to a toggle switch and bypass the PCM's control of it all together. Thoughts on doing that safely?
#2
CF Veteran
Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,097
Likes: 0
Received 8 Likes
on
7 Posts
Year: '98
Engine: 4.0 I6
If you are going to bypass the PCM, just use a simple 30 amp relay and wire it directly to the battery (on a switched relay of course).
Have you checked the fan relay? I think you can use a paperclip to jumper the relay to kick the e-fan on for testing
Have you checked the fan relay? I think you can use a paperclip to jumper the relay to kick the e-fan on for testing
#5
CF Veteran
Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes
on
767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
If you are going to install a switch, read this:
https://www.cherokeeforum.com/f51/ri...-e-fan-212243/
Last edited by BlueRidgeMark; 07-08-2016 at 07:57 PM.
