Modified XJ Cherokee Tech XJ (84-01)
All modified tech questions. If it modifies your XJ beyond stock parts ask it here.

Coil Spring hitting guide tower

Old 02-03-2019, 12:17 PM
  #1
Newbie
Thread Starter

Join Date: Jan 2019
Posts: 1
Model: Cherokee (XJ)
Default Coil Spring hitting guide tower

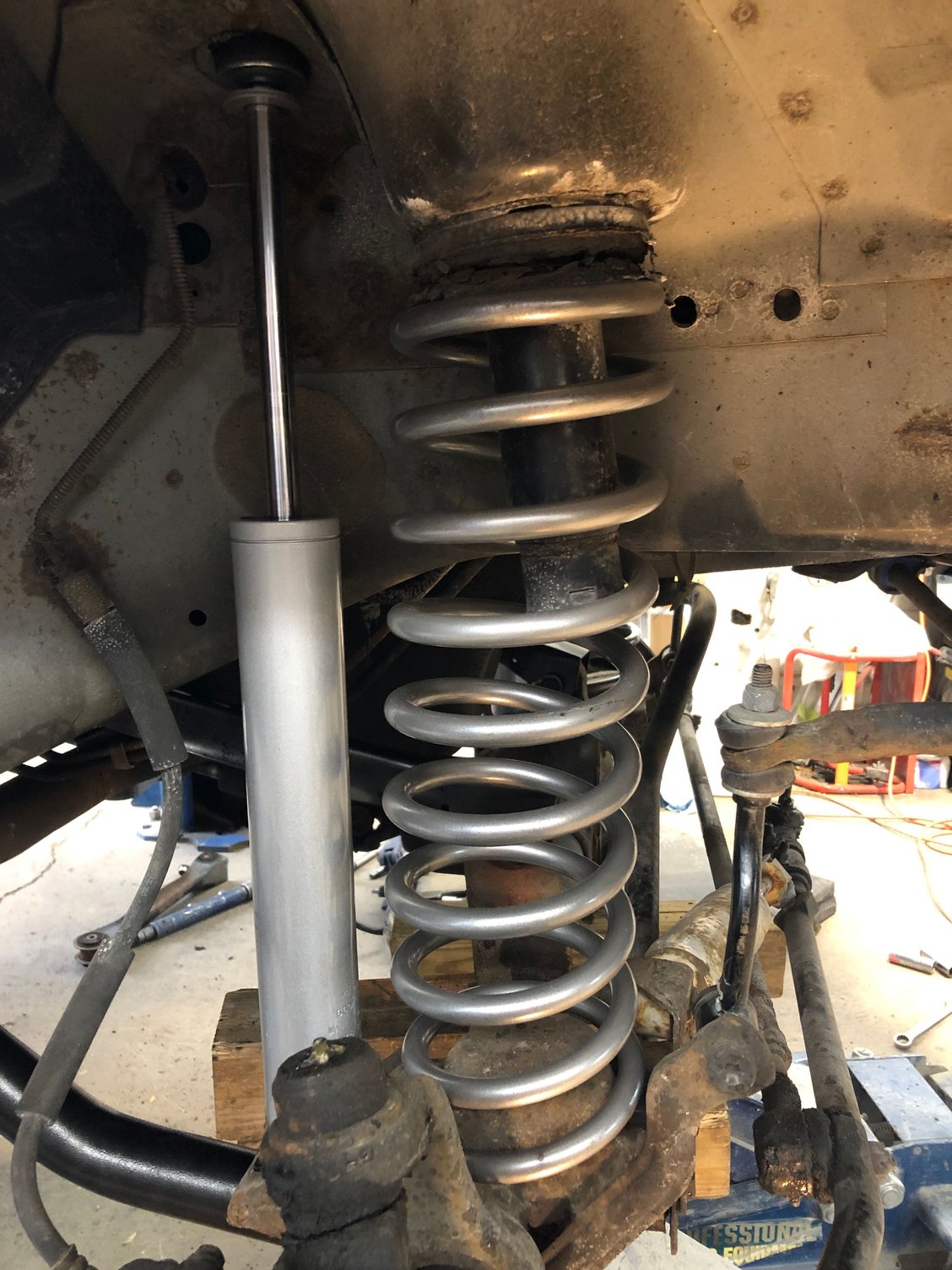

In the process of installing RC 3Ē lift with LCA. After installing the coil springs and lowering off the lift, I noticed the spring was laying against the tower. The springs are seated properly at the top and bottom. Any suggestions?
Williams007 is offline
Old 02-03-2019, 12:33 PM
  #2
CF Veteran

4.3L XJ's Avatar

Join Date: Aug 2008
Location: Chico, CA
Posts: 4,443
Year: 1986
Model: Cherokee
Engine: 4.3L with headers and full 3" exhaust system
Default

You need longer links and less camber
4.3L XJ is offline
Old 02-03-2019, 01:57 PM
  #3
Seasoned Member

Join Date: Feb 2017
Location: Pampa, Texas
Posts: 327
Year: 1986
Model: Cherokee
Engine: 2.5 liter
Default

My Rough Country springs did the exact same thing.

Here's what I did. 1) Get your axle centered under the vehicle by adjusting your track bar. My XJ was about 7/8" offset toward the passenger side. If you got an adjustable track bar when you bought the lift kit this is fairly simple, just a little time consuming. 2) Once centered, with the jeep on the ground setting on it own weight, loosen off all the control arm bolts both sides. Get in and start the XJ, and gently rock the truck back and forth with very light brake pressure. I was aiming to mock the suspension settling into normal operating position. 3) With the vehicle weight still on the suspension, get under the jeep and torque all the control arm bolts back to specifications.

Worked for me. I had torqued all my bolts with the axle off the ground thus preloading the axle and it did not want to settle into the correct position and axle offset had the tower offset closer to the spring causing it to touch.

I don't know if it will work for you but....don't cost anything to try. What 4.3LXJ said is correct and the process I used simulates both, hopefully without throwing new parts at it.

Happy Jeepin'
TexasTaz38

Let us know if this works out.
texastaz38 is offline
Old 02-03-2019, 06:35 PM
  #4
Member

Join Date: Jul 2010
Location: Freeburg, IL
Posts: 124
Year: 94
Model: Cherokee
Engine: 4.0
Default

Once you get the Jeep back on the ground with the weight on it you will be fine.
94XJCherokee is offline
