All Lift & Tire questions go here!!!

Thread Tools

Search this Thread

Old Mar 13, 2013 | 08:19 PM
  #15196
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by ta2tony

Yeah, I know that. Was more looking for a agreed upon general starting point...assuming the general consensus is not that its impossible to fit 32" tires under a 3" lift without trimming the wheel wells/removing the flares...

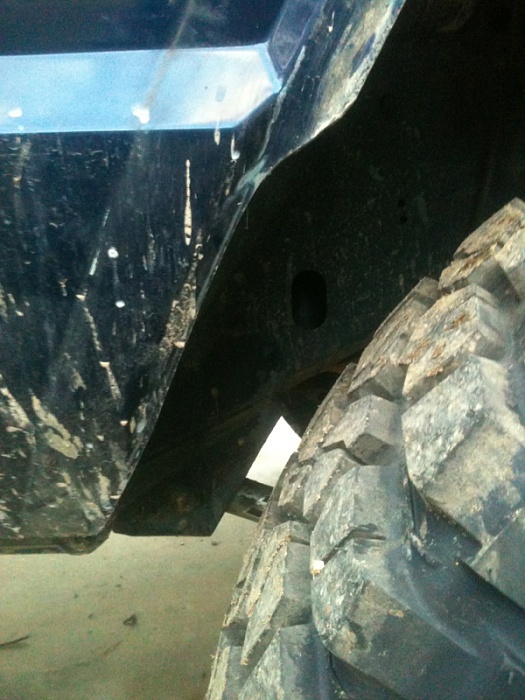

I'd say its impossible, my 10.5 inch wide 33s rubbed the back bottom part of the front fenders when turning I'm sure an 11.5 inch wide 32 tire would too. I only HAD to trim a little, but it would look dumb to just trim a little.
Attached Thumbnails All Lift & Tire questions go here!!!-image-1760400738.jpg
Reply
Old Mar 13, 2013 | 08:30 PM
  #15197
xj_maniac_newb's Avatar
CF Veteran

Joined: Sep 2009
Posts: 6,322
Likes: 6
From: Summerville, Ga
Year: 1995
Model: Cherokee
Engine: 2.5 4 cyl.
Default

You'd have to trim ALOT of the flare off. My flares were already trimmed a good bit when i test fitted my 32's on my 3" lift with the stock flares in place. The back would have worked, however the front fender and flare would probably need to be cut below the headlight bezel.
Reply
Old Mar 13, 2013 | 08:32 PM
  #15198
ta2tony's Avatar
Senior Member

Joined: Feb 2013
Posts: 812
Likes: 0
From: Kansas City, MO
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by bhennessee1
I'd say its impossible, my 10.5 inch wide 33s rubbed the back bottom part of the front fenders when turning I'm sure an 11.5 inch wide 32 tire would too. I only HAD to trim a little, but it would look dumb to just trim a little.
Was that the inside or outside of the tire that rubbed...and at full turn? If it was the inside of the tire the width would be a non-factor, assuming BS is equal (I plan on 3.75" BS). The outside would still be an issue, but the smaller diameter may negate it...

Would adjustable control arms allow you to position the axle slightly more forward to clear the back of the fender?

I apologize for the dumb questions...but I'm an engineer so I'm prone to convincing myself I can make bad ideas work, haha!
Reply
Old Mar 13, 2013 | 08:36 PM
  #15199
ta2tony's Avatar
Senior Member

Joined: Feb 2013
Posts: 812
Likes: 0
From: Kansas City, MO
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by xj_maniac_newb
You'd have to trim ALOT of the flare off. My flares were already trimmed a good bit when i test fitted my 32's on my 3" lift with the stock flares in place. The back would have worked, however the front fender and flare would probably need to be cut below the headlight bezel.
I wouldn't mind doing that, cutting the flare and fender flat-even with the bottom of the header panel and removing bumper end caps. Its the pre-97 fenders so they go down behind the end-caps.

I just don't want to remove the whole flare. I don't mind cutting it so its essentially the same shape as the 97+ flares...instead of wrapping under into the air damn...
Reply
Old Mar 13, 2013 | 08:39 PM
  #15200
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by ta2tony

Was that the inside or outside of the tire that rubbed...and at full turn? If it was the inside of the tire the width would be a non-factor, assuming BS is equal (I plan on 3.75" BS). The outside would still be an issue, but the smaller diameter may negate it...

Would adjustable control arms allow you to position the axle slightly more forward to clear the back of the fender?

I apologize for the dumb questions...but I'm an engineer so I'm prone to convincing myself I can make bad ideas work, haha!
Adjustable arms might help, I've never had bumper caps, so I don't know if there would be problems in the front of the wheel wells. Mine are on 3.75 inch bs.
Reply
Old Mar 13, 2013 | 09:44 PM
  #15201
anywhere & everywhere's Avatar
Senior Member

Joined: Dec 2012
Posts: 561
Likes: 1
From: Southern California
Year: 1988
Model: Cherokee
Engine: straight 6
Default

What would happen if I put 4.5 inch shocks on a 3 inch lift?
Reply
Old Mar 13, 2013 | 09:47 PM
  #15202
xj_maniac_newb's Avatar
CF Veteran

Joined: Sep 2009
Posts: 6,322
Likes: 6
From: Summerville, Ga
Year: 1995
Model: Cherokee
Engine: 2.5 4 cyl.
Default

Originally Posted by ta2tony
I wouldn't mind doing that, cutting the flare and fender flat-even with the bottom of the header panel and removing bumper end caps. Its the pre-97 fenders so they go down behind the end-caps.

I just don't want to remove the whole flare. I don't mind cutting it so its essentially the same shape as the 97+ flares...instead of wrapping under into the air damn...
The best thing to do would to be to find a set of 32's to try on and see what touches.
Reply
Old Mar 13, 2013 | 09:47 PM
  #15203
xj_maniac_newb's Avatar
CF Veteran

Joined: Sep 2009
Posts: 6,322
Likes: 6
From: Summerville, Ga
Year: 1995
Model: Cherokee
Engine: 2.5 4 cyl.
Default

Originally Posted by anywhere & everywhere
What would happen if I put 4.5 inch shocks on a 3 inch lift?
Your jeep would explode.
Reply
Old Mar 13, 2013 | 10:14 PM
  #15204
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by anywhere & everywhere
What would happen if I put 4.5 inch shocks on a 3 inch lift?
Depends on the tire size and your bumpstops, if you run enough bumpstop, you will be alright, I can run6 inch lift shocks on a 3.5 inch lift with my bumpstop setup.
Reply
Old Mar 13, 2013 | 10:23 PM
  #15205
anywhere & everywhere's Avatar
Senior Member

Joined: Dec 2012
Posts: 561
Likes: 1
From: Southern California
Year: 1988
Model: Cherokee
Engine: straight 6
Default

Originally Posted by bhennessee1

Depends on the tire size and your bumpstops, if you run enough bumpstop, you will be alright, I can run6 inch lift shocks on a 3.5 inch lift with my bumpstop setup.
Ok thank you. I'm running 31s.
Reply
Old Mar 13, 2013 | 10:23 PM
  #15206
anywhere & everywhere's Avatar
Senior Member

Joined: Dec 2012
Posts: 561
Likes: 1
From: Southern California
Year: 1988
Model: Cherokee
Engine: straight 6
Default

Originally Posted by xj_maniac_newb

Your jeep would explode.
I guess it's a good thing I asked first.
Reply
Old Mar 13, 2013 | 10:28 PM
  #15207
bhennessee1's Avatar
CF Veteran
10 Year Member

Joined: Apr 2011
Posts: 3,493
Likes: 0
From: Chickamauga Ga.
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by anywhere & everywhere

Ok thank you. I'm running 31s.
How about bump stops? You will **** the shocks up if you don't limit the up travel so that the shock doesn't act as a bumpstop. Id put the shocks on, flex until they are 3/4 of an inch from fully compressed, and measure for bumpstops, the 3/4 inch will allow for the little bit of squish when the bumpstop hits whatever you use as a spacer. I used hockey pucks, cheap and easy.
Reply
Old Mar 13, 2013 | 10:38 PM
  #15208
anywhere & everywhere's Avatar
Senior Member

Joined: Dec 2012
Posts: 561
Likes: 1
From: Southern California
Year: 1988
Model: Cherokee
Engine: straight 6
Default

Originally Posted by bhennessee1

How about bump stops? You will **** the shocks up if you don't limit the up travel so that the shock doesn't act as a bumpstop. Id put the shocks on, flex until they are 3/4 of an inch from fully compressed, and measure for bumpstops, the 3/4 inch will allow for the little bit of squish when the bumpstop hits whatever you use as a spacer. I used hockey pucks, cheap and easy.
Haha nice!
Reply
Old Mar 13, 2013 | 11:03 PM
  #15209
94XjSport94's Avatar
CF Veteran

Joined: Apr 2011
Posts: 14,553
Likes: 1
From: Carrollton, GA
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
Default

Originally Posted by anywhere & everywhere

Haha nice!
I'll sell you some
Reply
Old Mar 13, 2013 | 11:09 PM
  #15210
anywhere & everywhere's Avatar
Senior Member

Joined: Dec 2012
Posts: 561
Likes: 1
From: Southern California
Year: 1988
Model: Cherokee
Engine: straight 6
Default

Originally Posted by 94XjSport94

I'll sell you some
4.5 our 3? How much? Shipped to corona ca?
Reply
