3 Way Rocker Switch Help Needed
#1
Senior Member
Thread Starter
Join Date: Apr 2010
Location: Marshall, WI
Posts: 720
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0L i6
3 Way Rocker Switch Help Needed
Need help wiring a 3 way, 6 prong, rocker switch. Following a video I found on youtube ( www.youtube.com/watch?v=wp6bhGLpJIg ) for auxiliary lights with back up lights, and almost have a complete understanding of it besides how the rocker switch should be hooked up.
Set up:
Position 1: Auxiliary lights on, with key off, no reverse lights.
Position 2: Auxiliary lights off, back up lights on when put into reverse.
Position 3: Auxiliary lights and back up lights on when put into reverse.
Based on the below diagram, how should the rocker switch be hooked up?
Feel free to update and repost the diagram or simply tell me which post (letter) should be hooked up to the fuse block and or relay number.
Thank you!!
Edit: Removed picture to avoid confusion, see below for final diagram
Set up:
Position 1: Auxiliary lights on, with key off, no reverse lights.
Position 2: Auxiliary lights off, back up lights on when put into reverse.
Position 3: Auxiliary lights and back up lights on when put into reverse.
Based on the below diagram, how should the rocker switch be hooked up?
Feel free to update and repost the diagram or simply tell me which post (letter) should be hooked up to the fuse block and or relay number.
Thank you!!
Edit: Removed picture to avoid confusion, see below for final diagram
Last edited by kissthis66; 12-02-2013 at 03:58 PM.
#2
CF Veteran
Join Date: Apr 2011
Location: Carrollton, GA
Posts: 14,553
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: Inline 6 4.0L High Output
That switch will have a set of contacts for the 3 positions. A hot leg and a output to the relay.
For position one, run a wire from the battery to one side of the switch and run the output to the aux lights.
For the second, run a wire from your reverse light to the same side of the switch under the constant 12v from your battery. Then run the output to a relay for your back up lights.
For the third, run a wire from your fuse block to the power side of your switch, then the putout to the two relays you want to power.
For position one, run a wire from the battery to one side of the switch and run the output to the aux lights.
For the second, run a wire from your reverse light to the same side of the switch under the constant 12v from your battery. Then run the output to a relay for your back up lights.
For the third, run a wire from your fuse block to the power side of your switch, then the putout to the two relays you want to power.
#3
Senior Member
Thread Starter
Join Date: Apr 2010
Location: Marshall, WI
Posts: 720
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0L i6
Thanks, I think we got it... check this out, seem correct to you? Position 2 will not be used as it will just be the normal back up lights. So no need to connect anything to it correct?
Edit: Removed picture to avoid confusion, see below for final diagram
Edit: Removed picture to avoid confusion, see below for final diagram
Last edited by kissthis66; 12-02-2013 at 03:58 PM.
#5
Senior Member
Join Date: Oct 2011
Location: St. Albert
Posts: 731
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
I think youve got this covered in your latest diagram, but to the last poster, if he occupies position 2 as well, what will be off? I always thought those dp/dt switches only had two "power" positions.
#6
CF Veteran
Join Date: Jul 2009
Location: London Ontario Canada
Posts: 1,254
Likes: 0
Received 10 Likes
on
10 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Same here. Top =on circuit 1
middle =off both circuits
bottom =on circuit 2
Unless it's an actual 3 pole 3 throw switch. Haven't seen one of those but it doesn't mean there not out there
Last edited by Jamie57; 11-30-2013 at 12:17 PM.
#7
Senior Member
Join Date: Mar 2012
Location: FL.
Posts: 615
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee

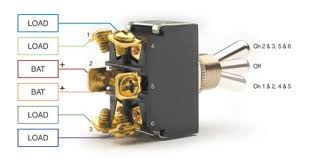

IT is not going to work, on a DPDT switch the center is the common.As per your diagram
when you put it in pos # 1 C is going to feed A and in position #3 is going to feed E, on the other side of the switch D in pos # 1 is going to feed B and i pos #3 is going to feed F.
There is not continuity between A and B and E and F.
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Apr 2010
Location: Marshall, WI
Posts: 720
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0L i6
thanks for the replies everyone, prcherokee should it look like this? if so I could just go with a 3 prong switch vs a 6 prong correct?
Last edited by kissthis66; 11-30-2013 at 05:57 PM.
#9
Senior Member
Thread Starter
Join Date: Apr 2010
Location: Marshall, WI
Posts: 720
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0L i6
Pos 1, Aux lights on, even with key off, reverse lights will work like normal and only turn on when reverse is engaged.
Pos 2, Aux lights off, nothing being done by switch. Reverse lights will work like normal and only turn on when reverse is engaged.
Pos 3, Aux lights and reverse lights on only when reverse is engaged.
Last edited by kissthis66; 11-30-2013 at 06:02 PM.
