1990 XJ bendix(ABS) removal question
#1
Junior Member
Thread Starter
Join Date: Aug 2009
Location: My Playground is New Mexico
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0L
1990 XJ bendix(ABS) removal question
I have recently acquired a 90 xj with abs. I here nothing but bad things and when i got it the master cylinder was out and still is. I would like to remove the system and change it for either a new abs system or get rid of abs. I havent found a clear cut answer on which is the easiest thing to do. I saw some info about maybe putting a 95-96 system on. My question is what all do i need to remove and replace. And from what years can i find the best parts to do so.
Thanks in advance
Thanks in advance
#4
Junior Member
Thread Starter
Join Date: Aug 2009
Location: My Playground is New Mexico
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0L
thanks for the info. does the donor jeep need to have abs? im not very proficient in brakes so im not sure what im looking for in a donor.
is a same year none abs system a quick bolt on or do i need to remove/replace more things than just the mas cyl/booster?
is a same year none abs system a quick bolt on or do i need to remove/replace more things than just the mas cyl/booster?
#5
Junior Member
Thread Starter
Join Date: Aug 2009
Location: My Playground is New Mexico
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0L
ok so on doing some looking around at my new jeep i noticed that the brake system looks nothing like the removed parts from the swap write ups ive been seeing. maybe you guys can help me identify the system and or problems. one problem is that when you pump the pedal enough it will lose pressure and the pump will continue to run and take a long time to build pressure.

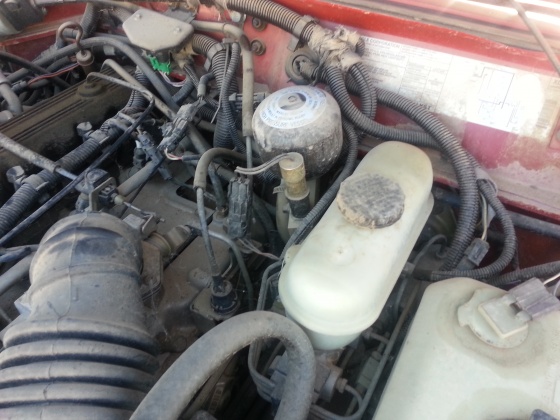

Master Cylinder

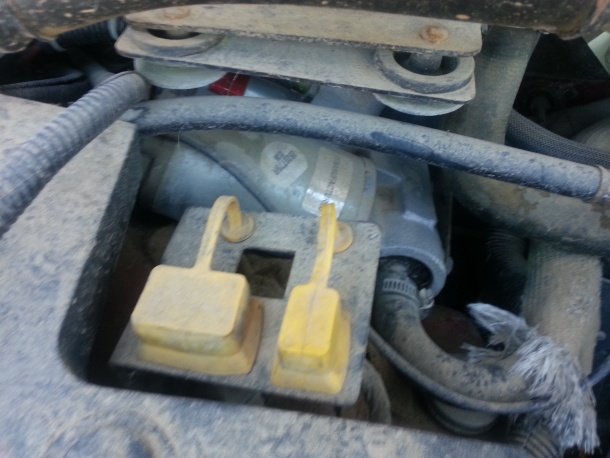

Pump
Master Cylinder
Pump
Last edited by C2TheJ; 10-17-2013 at 02:30 PM.
#6
CF Veteran
Join Date: Sep 2011
Location: new mexico
Posts: 1,874
Likes: 0
Received 1 Like
on
1 Post
Year: 88
Engine: 4.0
What you can do is remove all that whole system swap in the 95 and up booster and master I don't know if the proportion valve is different but it might be.
I also have the whole abs system off my parts jeep still pump and everything if I remember right if you want to attempt to fix it.
I also have the whole abs system off my parts jeep still pump and everything if I remember right if you want to attempt to fix it.
Last edited by hbracing13; 10-17-2013 at 03:17 PM.
#7
Newbie
Join Date: Jun 2012
Location: Greensboro, NC
Posts: 20
Likes: 0
Received 2 Likes
on
1 Post
Year: 1991
Model: Cherokee
Engine: 4.0 Litre HO I6
Most likely you're seeing writeups for upgrading brakes to a dual diaphram system. Once you remove the abs pump and master cylinder its pretty much the same procedure. Just make sure you get a proportioning valve from a donor that was non-abs. Also keep the fittings from the donor system that connect to the mc and proportioning valve. The abs system fittings are different. I just did the abs removal mod and that advice was great. Once u get the master cylinder out, you should have three lines...one for each front wheel and one for the rear. Plump everything, bleed well and you should be in business. I found a lot of good info using google as well as the forum for the abs delete mid on these jeeps.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Aug 2009
Location: My Playground is New Mexico
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0L
Thanks for all the replies. So the alternator was bad and upon changing i have solid pressure in the brake system. not for if it was a lack of proper power to the system or what but ill probably just drive the thing until it fails and then consider a swap.
Thanks again. i can always count on the xj community for help!!!!
Thanks again. i can always count on the xj community for help!!!!
