Default Tranny cooler

What size tranny cooler is needed?
Reply
Old Aug 2, 2016 | 10:41 PM
  #2
dmill89's Avatar
Senior Member

Joined: Nov 2012
Posts: 918
Likes: 6
From: Harrisburg, Pennsylvania
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Default

Originally Posted by DirtyKurty
What size tranny cooler is needed?
What are you using your Jeep for?


Coolers in the 10k-15k btu range such as the B&M 70268 (13k btu) and 70264 (14.4k btu) are usually recommended for serious off-roading and towing (there are several "junkyard" options as well, many Ford SUVs/Trucks have Dana (Long) plate-and-fin coolers virtually identical to the B&Ms (Dana builds the coolers for B&M), with the exception of brackets and fittings.

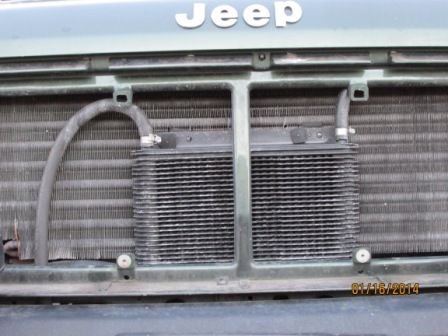

I have a B&M 70264 in my XJ:
Reply
Old Aug 3, 2016 | 05:16 AM
  #3
DirtyKurty's Avatar
Thread Starter
Senior Member

Joined: Jun 2015
Posts: 551
Likes: 3
From: Michigan
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by dmill89
What are you using your Jeep for? Coolers in the 10k-15k btu range such as the B&M 70268 (13k btu) and 70264 (14.4k btu) are usually recommended for serious off-roading and towing (there are several "junkyard" options as well, many Ford SUVs/Trucks have Dana (Long) plate-and-fin coolers virtually identical to the B&Ms (Dana builds the coolers for B&M), with the exception of brackets and fittings. I have a B&M 70264 in my XJ:
ok thanks... Not much towing will be done and I do off-road but only on the weekends... I will look into those options
Reply
Old Aug 3, 2016 | 05:18 AM
  #4
DirtyKurty's Avatar
Thread Starter
Senior Member

Joined: Jun 2015
Posts: 551
Likes: 3
From: Michigan
Year: 2000
Model: Cherokee
Engine: 4.0
Default

I was thinking about getting one like this

Tranny cooler-image-3140629225.jpg
Reply
Old Aug 3, 2016 | 06:50 PM
  #5
dmill89's Avatar
Senior Member

Joined: Nov 2012
Posts: 918
Likes: 6
From: Harrisburg, Pennsylvania
Year: 1995
Model: Cherokee
Engine: 4.0L HO
Default

Originally Posted by DirtyKurty
I was thinking about getting one like this

Attachment 292489
That one is ok, but the "plate and fin" style coolers (like the B&M and others) are generally better (cool better and more resistant to damage) than the "tube-and fin" style (like the one in your pic). Unless you are getting a tube and fin for a significantly lower price plate and fin is they way to go.
Reply
Old Aug 4, 2016 | 11:07 AM
  #6
Fred/N0AZZ's Avatar
CF Veteran

Joined: Jul 2013
Posts: 7,554
Likes: 17
From: Monett, MO.
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Yes go with the "Plate and Fin unit" works much better and added protection for off road use a little from branches.
Reply
Old Aug 4, 2016 | 11:34 AM
  #7
DirtyKurty's Avatar
Thread Starter
Senior Member

Joined: Jun 2015
Posts: 551
Likes: 3
From: Michigan
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Fred/N0AZZ
Yes go with the "Plate and Fin unit" works much better and added protection for off road use a little from branches.
i ended up getting s better one... I will add pic later
Reply
Old Aug 4, 2016 | 11:36 AM
  #8
DirtyKurty's Avatar
Thread Starter
Senior Member

Joined: Jun 2015
Posts: 551
Likes: 3
From: Michigan
Year: 2000
Model: Cherokee
Engine: 4.0
Default

And do I have to plug the hoses that I do not use from the radiator? Could I just cut them as close as I can the the radiator so they r not dangling below
