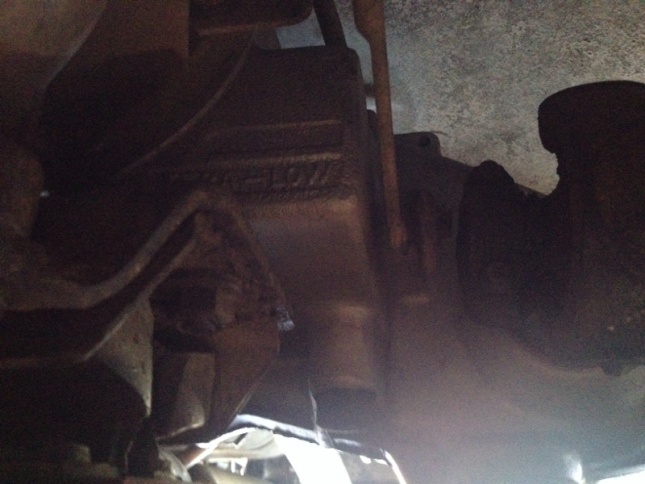

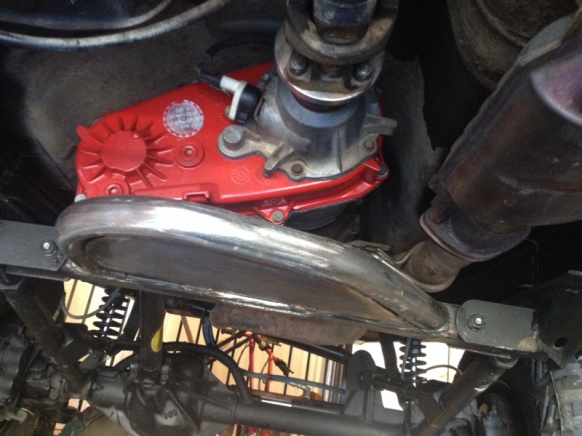

Just finished installing my teralow 4:1, also added custom made skid plate



those bolts holding your xmember look tiny



Camera angle, they take a 3/4



Is that just a regear for a NP231? Is it cheaper than a Rubicon 4:1 swap?



Yes I paid $925 new



eh. I think I'd still want quadruple shear with it mounted like that

nice shiny tcase though



Maybe I can add a nut and bolt on each side



can't hurt. with it set up like that, clearly almost none of the load is being applied directly to the bottom of the frame rail like most cross members. I'd be nervous about bouncing hard off the middle section and having it want to bend your outside mounts slightly.. over time

unlikely. but I like the peace of mind



Not done still needs a lil reinforcement, don't know if I will finish it may just do a 5.3 swap one day



You won't be able to use the 4:1 if you do a 5.3L swap with an automatic tranny.



Why is that?



Output shaft on a 4l60/65e is massive, 27 splines to be exact. The Teralow is a 23.

I've been down this road a time or two.



Well that's not good, what about the ax-15 that's what I have



Yep, here's some light reading for ya...
http://www.novak-adapt.com/knowledge/xj_swap.htm



If your going v8 swap np205 or dana 300 would be better,Both you can do a ton to from doublers or get the lowmax gears for.
