Default Stumped did everyhing and still a miss

Had a blown head gasket got that replace got the engine cut ,new spark plugs,cap,rotor,ignition coil ,oil change and filter,new radiator,new hoses,new sensors,and the 2 cylinders that were misfiring the fuel injectors for those were replaced,fuel rail was cleaned and intake.after all that same two cylinders #2 and #4 still misfire... Anyone ? Have any suggestions??
Old 12-20-2013, 08:38 PM
  #2
Banned
Thread Starter

Mikeythrash's Avatar

Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
Default

Head cut I ment*
Old 12-20-2013, 08:58 PM
  #3
CF Veteran

95Cherokee's Avatar

Join Date: Feb 2009
Location: Houston Tx.
Posts: 2,203
Likes: 0
Received 3 Likes on 3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

Start by checking the fuel pressure at the rail with a gauge.
Old 12-20-2013, 09:02 PM
  #4
CF Veteran

95Cherokee's Avatar

Join Date: Feb 2009
Location: Houston Tx.
Posts: 2,203
Likes: 0
Received 3 Likes on 3 Posts
Year: 1995
Model: Cherokee
Engine: 4.0
Default

How old are your plug wires? Wouldn't hurt to get a new set, faulty wire can cause misfire.
Old 12-20-2013, 09:16 PM
  #5
CF Veteran

holycaveman's Avatar

Join Date: Dec 2011
Posts: 3,643
Likes: 0
Received 1 Like on 1 Post
Default

Originally Posted by Mikeythrash
Had a blown head gasket got that replace got the engine cut ,new spark plugs,cap,rotor,ignition coil ,oil change and filter,new radiator,new hoses,new sensors,and the 2 cylinders that were misfiring the fuel injectors for those were replaced,fuel rail was cleaned and intake.after all that same two cylinders #2 and #4 still misfire... Anyone ? Have any suggestions??
Did you have your head tested and shaved? Head gaskets just don't "blow"

compression check?
Old 12-20-2013, 09:17 PM
  #6
Banned
Thread Starter

Mikeythrash's Avatar

Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
Default

Actually yes new champion plugs and new wires.but I did some research and the new wires on there are Bosch platinum wires and I read that can cause misfires ?
Old 12-20-2013, 09:18 PM
  #7
Banned
Thread Starter

Mikeythrash's Avatar

Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
Default

Yea that was all done before all this head gasket was cut and tested all came out good everything has basically be replaced.
Old 12-20-2013, 09:19 PM
  #8
Banned
Thread Starter

Mikeythrash's Avatar

Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
Default

And there was a fuel pressure test and injector test done but not compression.
Old 12-20-2013, 09:20 PM
  #9
Banned
Thread Starter

Mikeythrash's Avatar

Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
Default

I ment head gasket was replaced all new bolts and head was cut. About 1/1000 of an Inch
Old 12-20-2013, 09:22 PM
  #10
Banned
Thread Starter

Mikeythrash's Avatar

Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
Default

Switched the plugs around to test and see if that would change misfire and it still did the same thing but they are bosh so maybe change them to something different ?
Old 12-20-2013, 09:39 PM
  #11
Member

Platime's Avatar

Join Date: Dec 2009
Posts: 106
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

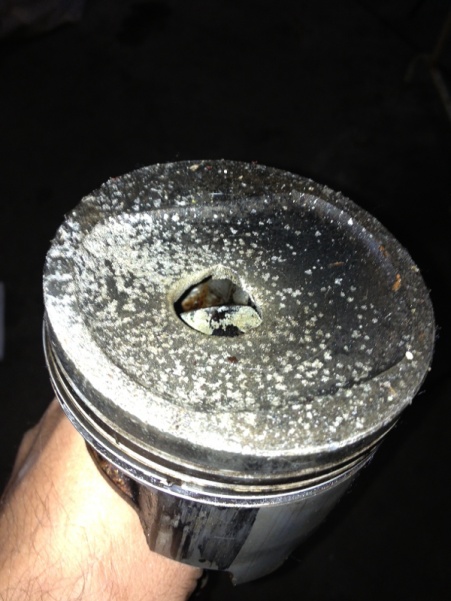

Last time i had a misfire this happened....
Attached Thumbnails Stumped did everyhing and still a miss-image-3721817929.jpg
Old 12-20-2013, 11:09 PM
  #12
Banned
Thread Starter

Mikeythrash's Avatar

Join Date: Nov 2013
Location: Philadelphia
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 high output
Default

Originally Posted by Platime
Last time i had a misfire this happened....
and what exactly is that ??? I'm not familiar with a lot of the mechanic side.
Old 12-21-2013, 11:34 PM
  #13
Member

Platime's Avatar

Join Date: Dec 2009
Posts: 106
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

That would be a hole in the top of my piston. You need to do a compression test
