Steering Wheel Slop and Tracking Wanders!
The steering on the my XJ has been crap since I bought it in July. Lots of slop in the steering wheel, it wanders all over the place. Wasn't a big deal, but now I want to start road tripping in the thing and after a 4 hour trip this weekend, the steering/wandering is:
A) a PITA
B) exhausting and
C) flat out dangerous
Finally got underneath and checked it out while my son turned the wheel this morning. All the bushings are solid, the track bar and drag link bar are parallel, the drop pitman arm is working correctly.
What I found is that if you play the slop in the steering wheel, the steering shaft rotates but the wheels don't budge. Once you get through the wheel slop, everything works fine.
I found these two videos on youtube that perfectly show my problem:
After trolling the threads, i found two possible solutions, either it is a steering box problem (if so, could tightening the box fix it, or I am I looking at replacing it?) or a shaft problem (though I'm not sure about this one, as the steering wheel seems to be sending the output all the way down the shaft, but there seems to be a problem with the steering shaft inputting to the box).
Would love advice/opinions -
fyi - 2001 XJ, 190K miles, lifted 6", rolling 35's, custom over-sized tie rod, drop pitman arm.
A) a PITA
B) exhausting and
C) flat out dangerous
Finally got underneath and checked it out while my son turned the wheel this morning. All the bushings are solid, the track bar and drag link bar are parallel, the drop pitman arm is working correctly.
What I found is that if you play the slop in the steering wheel, the steering shaft rotates but the wheels don't budge. Once you get through the wheel slop, everything works fine.
I found these two videos on youtube that perfectly show my problem:
After trolling the threads, i found two possible solutions, either it is a steering box problem (if so, could tightening the box fix it, or I am I looking at replacing it?) or a shaft problem (though I'm not sure about this one, as the steering wheel seems to be sending the output all the way down the shaft, but there seems to be a problem with the steering shaft inputting to the box).
Would love advice/opinions -
fyi - 2001 XJ, 190K miles, lifted 6", rolling 35's, custom over-sized tie rod, drop pitman arm.
#2
Junior Member
Join Date: Jan 2012
Location: South Jersey
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
You're on the right track. I found tightening the steering boxes doesn't really do much and it's an indication that the box is on its way out. Be careful with those remanufactured steering boxes from auto stores too, I've had several that were just as loose as the one I tried replacing.
Pay close attention to the little u joints on the steering shaft while someone moves the steering wheel back and forth. Doesn't take much play there to cause big dead spots at the steering wheel.
Pay close attention to the little u joints on the steering shaft while someone moves the steering wheel back and forth. Doesn't take much play there to cause big dead spots at the steering wheel.
#3
Seasoned Member
Join Date: Apr 2009
Location: Nokomis FLA.
Posts: 330
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992 2dr Sport 2wd & 1992 4dr Laredo 4x4
Model: Cherokee
Engine: 4.0 liter H.O.
Look at the rag joint. Or at 6" of lift if it's not done right things can get squirrelly.
Last edited by patnok; 12-01-2014 at 08:53 PM.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,932
Received 1,534 Likes
on
1,244 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Have someone turn the wheel back and forth while you noggin poke.
#6
Beach Bum

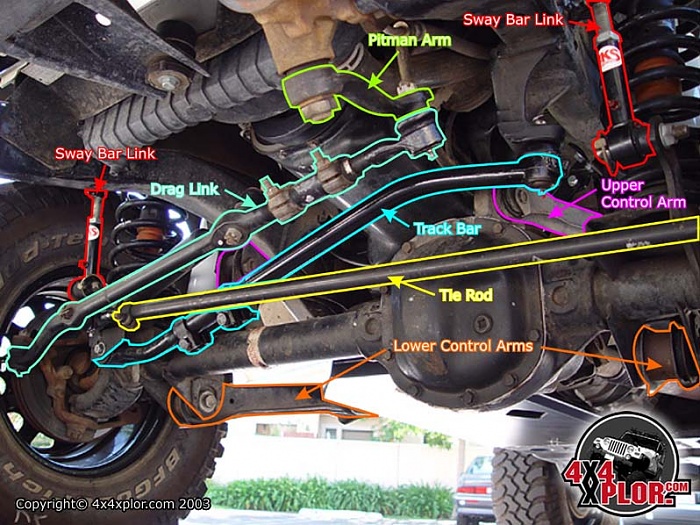

Contributing factors;
Short arms at 6" of lift is going to wander due to the extreme upward angle of control arms.
Stock steering at 6" of lift will cause steering issues on its own.
Caster lower than 5 degrees can cause wandering.
Short arms at 6" of lift is going to wander due to the extreme upward angle of control arms.
Stock steering at 6" of lift will cause steering issues on its own.
Caster lower than 5 degrees can cause wandering.
#7
Seasoned Member
Thread Starter
Join Date: Jul 2014
Location: Albuquerque
Posts: 389
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L Inline 6
Steve, all good points -
I am running short arms, but with drop brackets, so that brings the LCA's back to just about level, so I had already discounted that.
I had the steering box out a couple months ago when I installed a new bumper, no cracks in the frame or the spacer so I knew that wasn't the issue.
I just adjusted my caster two weeks ago, figuring that was the problem initially (brought it from 0 to about 6) but it actually made it worse! (I'm sure having proper caster is now helping to make the problem go away, though!)
Thanks again, everyone!
Trending Topics
#8
Beach Bum
^I see..
The toe-in changes when caster changes, adjust it last.
I have done the steering box adjustment also, but all the steering box experts/rebuilders warn against it.
The toe-in changes when caster changes, adjust it last.
I have done the steering box adjustment also, but all the steering box experts/rebuilders warn against it.
#9
Seasoned Member
Thread Starter
Join Date: Jul 2014
Location: Albuquerque
Posts: 389
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L Inline 6
I have also heard mixed reviews about adjusting with the screw, but I'm taking the thing to Baja in two weeks and didn't want to try to order and install a box in that time frame (wasn't going to bother w/crap from auto parts store, was going to order a RedHead, instead). Yeah, the box is probably on it's way out, but I figure this should get me at least 1000+ miles, at which point I'll be home. And since I'm doing an axle swap once we get back, a couple days here or there for a steering box is no big deal then.
Thanks for your help!
