Electrical help?

OK, so when I turn off my jeep and remove the key I still have power going to fan and radio hense draining my battery. Also seems to be cranking longer before it starts. Ignition switch or key switch? Both? Help?

Reply Like

02-17-2014, 01:06 PM

ThatDude114

Seasoned Member

Join Date: Oct 2013

Location: Idaho

Posts: 376

Likes: 0

Received 4 Likes on 3 Posts

Year: 1991

Model: Cherokee

Engine: 4.0 Liter

Presumably, the fan and radio being on is because when you're turning it off youre turning it back one click more and its in the ACC position. If your battery keeps draining because of this it can cause your battery to go bad and provide longer cranking times. If you're absolutely sure that the key is in the off position and the radio still doesn't turn off then your switch could need adjusting or it could be bad

Reply Like

02-17-2014, 01:37 PM

pstrman

Member

Thread Starter

Join Date: Oct 2013

Location: Scottsdale

Posts: 118

Likes: 0

Received 0 Likes on 0 Posts

Year: 1989

Model: Cherokee

Engine: 4.0L

The key is in the locked position and key is removed, engine is shut off but the rest is still on. How do you adjust these?

Reply Like

02-17-2014, 02:43 PM

cruiser54

::CF Moderator::

Join Date: Aug 2011

Location: Prescott, Az

Posts: 43,867

Likes: 1,927

Received 1,525 Likes on 1,237 Posts

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

The "switch" on top of the column is adjustable.

Do you have tilt wheel and is it loose and floppy?

Attached Thumbnails

Electrical help?-ignition-switch-location.jpg

Reply Like

02-18-2014, 01:41 AM

pstrman

Member

Thread Starter

Join Date: Oct 2013

Location: Scottsdale

Posts: 118

Likes: 0

Received 0 Likes on 0 Posts

Year: 1989

Model: Cherokee

Engine: 4.0L

Yes to tilt wheel and no it is not sloppy. I think its the key switch. I will replace that and maybe even the ignition switch.

Reply Like

02-21-2014, 10:28 AM

cjbanshee

Newbie

Join Date: Feb 2014

Location: vancouver,wa

Posts: 12

Likes: 0

Received 0 Likes on 0 Posts

Year: 1990

Model: Cherokee

Engine: renix

I have the same problems but opposite when my XJ is running and key in start position I have no assecories such as wipers, turn signal, stereo and blower motor doesnt work already replaced to cylinder lock and was gonna replace the switch today does any have info on replacing the switch

Reply Like

02-21-2014, 01:29 PM

cruiser54

::CF Moderator::

Join Date: Aug 2011

Location: Prescott, Az

Posts: 43,867

Likes: 1,927

Received 1,525 Likes on 1,237 Posts

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

Quote:

Originally Posted by cjbanshee

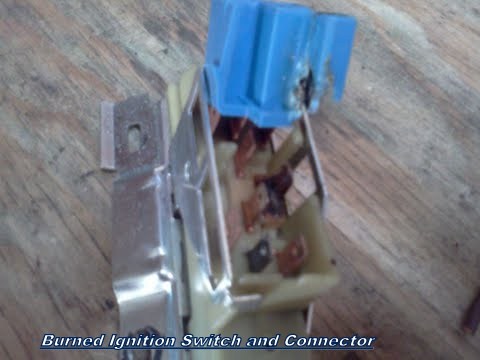

Good idea. Be prepared to see this on the plug that holds the brown wire....

Attached Images

Reply Like

Trending Topics

What do you love about your XJ?

9

496
1992 XJ long start, then high idle

7

601
Waterpump ( bearing?)

5

247
What did you do to your Cherokee today?

95.2k

8.1M
98 ZJ 4.0 4wd automatic. First Jeep chronicles.

4

157

03-01-2014, 02:30 AM

casaintsfan

Newbie

Join Date: Jun 2013

Posts: 8

Likes: 0

Received 0 Likes on 0 Posts

Model: Cherokee

Quote:

Originally Posted by cruiser54

Good idea. Be prepared to see this on the plug that holds the brown wire....

Just pulled my ignition switch last night and my brown wire looks like that. What's the best fix?

Reply Like

03-01-2014, 06:03 AM

cruiser54

::CF Moderator::

Join Date: Aug 2011

Location: Prescott, Az

Posts: 43,867

Likes: 1,927

Received 1,525 Likes on 1,237 Posts

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

New switch.

Clean up that terminal on the brown wire, squeeze it so it grabs the switch more tightly.

Reply Like

03-07-2014, 10:44 AM

#10

pstrman

Member

Thread Starter

Join Date: Oct 2013

Location: Scottsdale

Posts: 118

Likes: 0

Received 0 Likes on 0 Posts

Year: 1989

Model: Cherokee

Engine: 4.0L

Do I need to drop the column in order to get to the ignition switch?

Reply Like

03-07-2014, 04:27 PM

#11

cruiser54

::CF Moderator::

Join Date: Aug 2011

Location: Prescott, Az

Posts: 43,867

Likes: 1,927

Received 1,525 Likes on 1,237 Posts

Year: 1990

Model: Cherokee (XJ)

Engine: 4.0

Quote:

Originally Posted by pstrman

Do I need to drop the column in order to get to the ignition switch?

It's easier.

Reply Like

03-07-2014, 06:20 PM

#12

pstrman

Member

Thread Starter

Join Date: Oct 2013

Location: Scottsdale

Posts: 118

Likes: 0

Received 0 Likes on 0 Posts

Year: 1989

Model: Cherokee

Engine: 4.0L

Thanks

Reply Like

03-08-2014, 11:11 PM

#13

casaintsfan

Newbie

Join Date: Jun 2013

Posts: 8

Likes: 0

Received 0 Likes on 0 Posts

Model: Cherokee

Quote:

Originally Posted by cruiser54

New switch.

Clean up that terminal on the brown wire, squeeze it so it grabs the switch more tightly.

Cleaned up the connection, installed a new ignition switch, and a new turn signal switch, and new lock cylinder and it works a lot better than before. You can feel the key spring backwards after the jeep starts, before I had to turn the key back myself.
Thanks for the help
