Coolant sensor thread pitch
#1
Junior Member
Thread Starter
Join Date: Oct 2016
Location: Surrey, BC
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 6.0 LS
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Driver's side of the back of the head? Pipe thread.
#3
Junior Member
Thread Starter
Join Date: Oct 2016
Location: Surrey, BC
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 6.0 LS
Thanks for the reply.

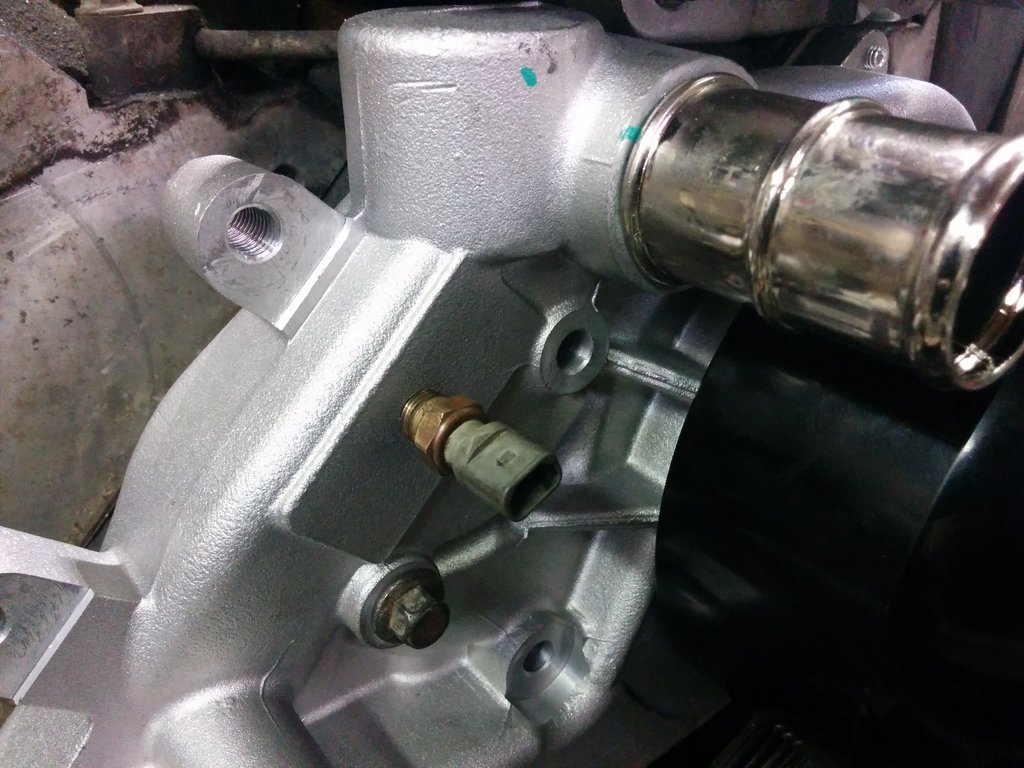

This is the sensor from the back of the head. Straight thread, not pipe thread. Single wire.
The sensor at the front of the engine, thermostat housing, 2 wire and pipe thread. This is for the PCM and the AUX fan, right?
This is the sensor from the back of the head. Straight thread, not pipe thread. Single wire.
The sensor at the front of the engine, thermostat housing, 2 wire and pipe thread. This is for the PCM and the AUX fan, right?
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#5
Junior Member
Thread Starter
Join Date: Oct 2016
Location: Surrey, BC
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 6.0 LS
I just need the sensor that sends the signal to the temp gauge on the dash. The temp sensor for the PCM is already on the engine I'm swapping in.
I've read so many forum posts on the net as to which sensor does what!!
The wiring diagram refers to "Engine Temperature Sending Unit" & "Engine Temperature Sensor".
The "Engine Temperature Sensor", 2 wires, goes to the PCM, not the dash.
The "Engine Temperature Sending Unit", 1 wire, goes to the instrument cluster. I presumed that this was the sensor I needed.
I'm confused
I've read so many forum posts on the net as to which sensor does what!!
The wiring diagram refers to "Engine Temperature Sending Unit" & "Engine Temperature Sensor".
The "Engine Temperature Sensor", 2 wires, goes to the PCM, not the dash.
The "Engine Temperature Sending Unit", 1 wire, goes to the instrument cluster. I presumed that this was the sensor I needed.
I'm confused
#6
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
The Sender for the gauge is at the back of the head. It is pipe thread.
The Sensor for the PCM is in the thermostat housing.
In later years, the one in the thermostat housing performed both functions.
The Sensor for the PCM is in the thermostat housing.
In later years, the one in the thermostat housing performed both functions.
#7
Junior Member
Thread Starter
Join Date: Oct 2016
Location: Surrey, BC
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 6.0 LS
So, back to my original question: does anybody know the thread pitch of the small sensor at the back of the head, the one I posted the photo of?
Thanks
Thanks
Trending Topics
#8
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#9
Junior Member
Thread Starter
Join Date: Oct 2016
Location: Surrey, BC
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 6.0 LS
Thank you for your reply.

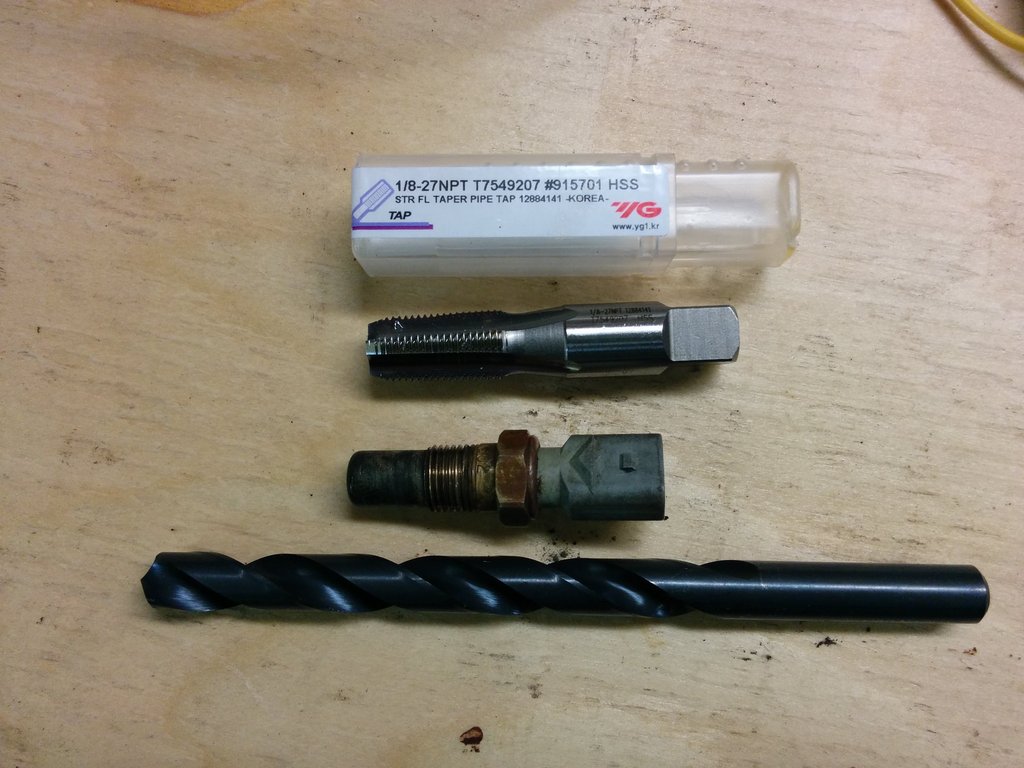

The thread diameter of the sensor in the photo, the one I removed from the back of the head, is 10mm, straight thread, not a pipe thread.
