Looks good man! I'd say those welds look good, especially for not having done 'em in a while.
Basslicks is offline   Reply With Quote
Old 05-03-2017, 09:46 AM   #2222
Senior Member

kickice24's Avatar

Join Date: Jan 2012
Location: Port Richey, FL
Posts: 645

View kickice24's Photo Album My Photos
Model: Cherokee
Engine: 4.0
Default

Do the safety chain hooks go through the square tube? If not, I would be worried that they would snap right off in the event they had to actually "catch" the trailer during a failure.


Quote:
Originally Posted by Beal View Post
In the process of building a hitch for my grand Cherokee. 4in square tube, 1/4in thick. Brackets 1/4in. Saftey chain hooks 1/2in.

This is the first time I did any stick welding in a long while so teh welds arnt as pretty as they could have been, but I dont think its going to come apart any time soon.

If I was smarter, I would have done the safety chain hooks different, as they are they kinda interfere with putting the pin in... they there now!

Youll notice there is 4 holes on one side, and 3 on the other.. I mis-measured and had to fill in and redrill.
kickice24 is offline   Reply With Quote
Old 05-03-2017, 11:01 AM   #2223
Newbie

Beal's Avatar

Join Date: Feb 2017
Location: Central PA
Posts: 18

View Beal's Photo Album My Photos
Year: 96
Model: Cherokee
Engine: 4.0
Default

Yeah, they go the whole way through the tube. I used a big drill bit to bevel the holes slightly, and then ground a notch in the hooks so Id get some good penetration through it all.

Only thing Im stuck on is the mounting hardware. This requires 4 nuts, and 2 bolts. I have the nuts, but no bolts... the studs hanging down are a metric course thread, I figured the bolts would be the same but no. Any ideas?
Beal is offline   Reply With Quote
Old 05-03-2017, 11:04 AM   #2224
CF Veteran

LACK's Avatar

Join Date: Oct 2016
Location: CA
Posts: 1,524

View LACK's Photo Album My Photos
Model: Cherokee
Default

Quote:
Originally Posted by Beal View Post
Yeah, they go the whole way through the tube. I used a big drill bit to bevel the holes slightly, and then ground a notch in the hooks so Id get some good penetration through it all.

Only thing Im stuck on is the mounting hardware. This requires 4 nuts, and 2 bolts. I have the nuts, but no bolts... the studs hanging down are a metric course thread, I figured the bolts would be the same but no. Any ideas?
Get some nut strips for inside the unibody rail and put the bolts through the bottom.
LACK is offline   Reply With Quote
Old 05-04-2017, 01:51 AM   #2225
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 10,110

View Basslicks's Photo Album My Photos
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

Quote:
Originally Posted by LACK View Post
Get some nut strips for inside the unibody rail and put the bolts through the bottom.
It's a grand cherokee... can't do nutstrips 'cause they have a weird insert for the bumper that goes into the frame rail.

Basslicks is offline   Reply With Quote
Old 05-04-2017, 03:00 AM   #2226
CF Veteran

LACK's Avatar

Join Date: Oct 2016
Location: CA
Posts: 1,524

View LACK's Photo Album My Photos
Model: Cherokee
Default

Quote:
Originally Posted by Basslicks View Post
It's a grand cherokee... can't do nutstrips 'cause they have a weird insert for the bumper that goes into the frame rail.

]
Whoops, missed the part about it being a grand cherokee.
LACK is offline   Reply With Quote
Old 05-04-2017, 03:13 AM   #2227
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 10,110

View Basslicks's Photo Album My Photos
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

Yeah, I figured
Basslicks is offline   Reply With Quote
Old 05-10-2017, 09:26 AM   #2228
CF Admin

Outlaw Star's Avatar

Join Date: Sep 2010
Location: Lantana, Fl
Posts: 32,001

View Outlaw Star's Photo Album My Photos
Year: 1987
Model: Comanche
Engine: 2.9L Stroker
Default

Feel free to hate on my weld or give advice. Just an old 90A HF flux core welder with .035 Lincoln wire. Was making a bracket to strap my Jerry can to the bed of the MJ.

Outlaw Star is offline   Reply With Quote
Old 05-11-2017, 03:39 PM   #2229
Great White Jeep

5-Speed's Avatar

Join Date: Dec 2016
Location: SoCal
Posts: 1,343

View 5-Speed's Photo Album My Photos
Year: 1999
Model: Cherokee(XJ)
Engine: Still runs
Default

For being flux core, I am surprised there isnt more splatter everywhere. Every time I have used flux wire, it splattered everywhere! For what you are doing with the bracket, I think it will be perfectly fine with those welds!
5-Speed is offline   Reply With Quote
Old 05-12-2017, 10:31 PM   #2230
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 10,110

View Basslicks's Photo Album My Photos
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

LMAO!!!! Quit trollin' Lee! That ground clamp, the lack of spatter, and the color of that bead say that's NOT a HF flux welder.
Basslicks is offline   Reply With Quote
Old 05-16-2017, 10:59 AM   #2231
Newbie

Beal's Avatar

Join Date: Feb 2017
Location: Central PA
Posts: 18

View Beal's Photo Album My Photos
Year: 96
Model: Cherokee
Engine: 4.0
Default

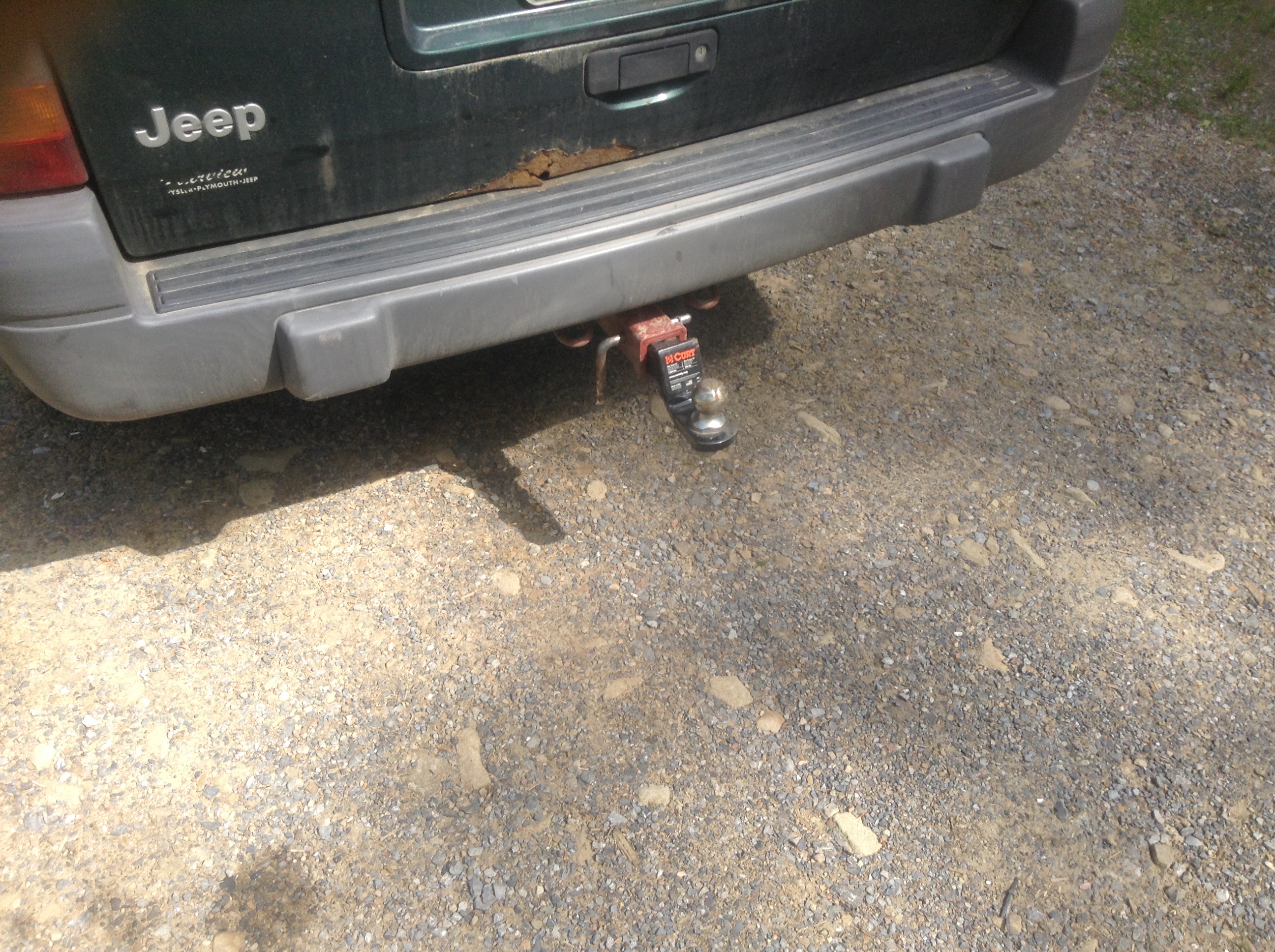

Finally bolted my hitch up with no clearance issues. Still need those lousy bolts, and maybe some black paint. Looks like it will work.

Pretty slick bumper in that video! If I ever build bumpers for this Ill have to remember that.

Thanks fellas.

Ignore my sorry looking tailgate... lol
Attached Thumbnails
Welding thread!!!!-img_3881.jpg

Last edited by Beal; 05-16-2017 at 11:01 AM.
Beal is offline   Reply With Quote
Old 05-16-2017, 11:50 AM   #2232
CF Admin

Outlaw Star's Avatar

Join Date: Sep 2010
Location: Lantana, Fl
Posts: 32,001

View Outlaw Star's Photo Album My Photos
Year: 1987
Model: Comanche
Engine: 2.9L Stroker
Default

Quote:
Originally Posted by Basslicks View Post
LMAO!!!! Quit trollin' Lee! That ground clamp, the lack of spatter, and the color of that bead say that's NOT a HF flux welder.
It is HF, and I stand corrected, it's the 180A/240V unit. (Ooops!!) I cut that damn Honda jumper cable end off a while ago. Lol. Found that a good ground and quality wire made a BIG difference

Last edited by Outlaw Star; 05-16-2017 at 12:53 PM.
Outlaw Star is offline   Reply With Quote
Old 05-19-2017, 11:10 PM   #2233
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 10,110

View Basslicks's Photo Album My Photos
Year: 1992
Model: Cherokee
Engine: 4.0 HO
Default

Quote:
Originally Posted by Beal View Post
Finally bolted my hitch up with no clearance issues. Still need those lousy bolts, and maybe some black paint. Looks like it will work.

Pretty slick bumper in that video! If I ever build bumpers for this Ill have to remember that.

Thanks fellas.

Ignore my sorry looking tailgate... lol
Good job, man!

Quote:
Originally Posted by Outlaw Star View Post
It is HF, and I stand corrected, it's the 180A/240V unit. (Ooops!!) I cut that damn Honda jumper cable end off a while ago. Lol. Found that a good ground and quality wire made a BIG difference
Ah... yeah I run my 90 w/ lincoln multi-pass flux wire. Makes a difference in and of itself. I haven't changed the ground clamp but I really really need to. I know there are a couple other mods I can do to it like adding a couple of capacitors and a bridge rectifier to get it to weld DCEN like it's supposed to, but with all the work involved, I may as well just buy a new welder.... I want a better one anyway.
Basslicks is offline   Reply With Quote
Old 05-20-2017, 06:45 PM   #2234
TIME TO GET SCHWIFTY

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 12,038

View roninofako's Photo Album My Photos
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Running quality wire and having a good ground are paramount. HF machines get a bad rap, but understandably so, they're cheaply made. Good grounds, decent wire, it makes a huge difference, especially with FC wire. If you upgrade this stuff on a HF machine, you'll be much better off.

I still use my HF machine, but only for around-the-house type stuff. It is a 220 unit set up for flux core only. I use my Miller 211 for any mig stuff, and have an old school Lincoln tombstone for any arc jobs.
roninofako is offline   Reply With Quote
Old 05-21-2017, 09:19 PM   #2235
Seasoned Member

T1XJ's Avatar

Join Date: Apr 2009
Posts: 299

View T1XJ's Photo Album My Photos
Year: 1998, 1999
Model: Cherokee
Engine: 4.0 I6
Default

I've never stick welded before, but got the opportunity to try it out with an acquaintances machine. I kind of like it. Most were done with 6013 rod at 145A if I remember correctly. The weave looking one and the super wide (around an inch, done with 7018 I think?) were just me screwing around. The one weld by itself shows my improvement I think, I was going too fast, but slowed down and it got better in my opinion. These are obviously not my worst welds.

Stick weld pros, critique me if you want. I like to learn. are these good? bad? average? I have no feelings so let me have it. I was told the weave weld is only good if there is a "regular" pass underneath it. Agree?

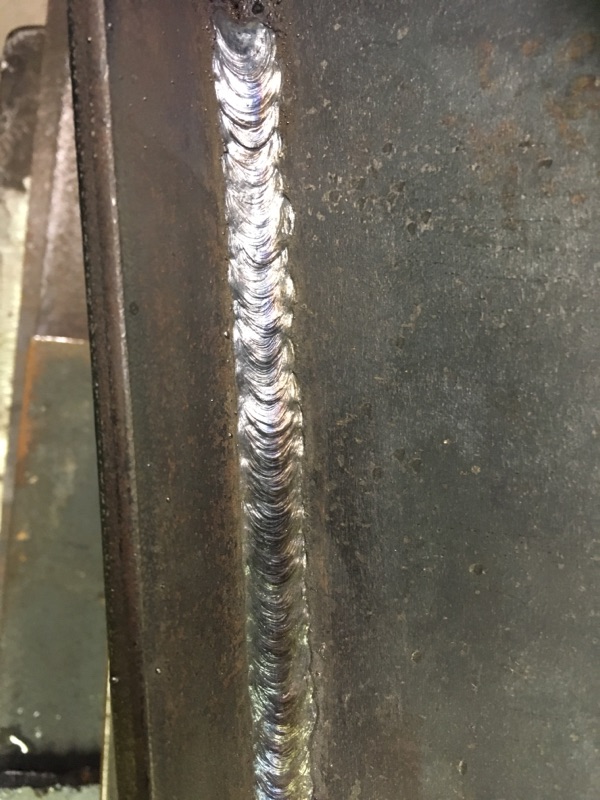

toofast slow down
Name:  IMG_2167_zpsnnubf0fc.jpg
Views: 25
Size:  136.5 KB

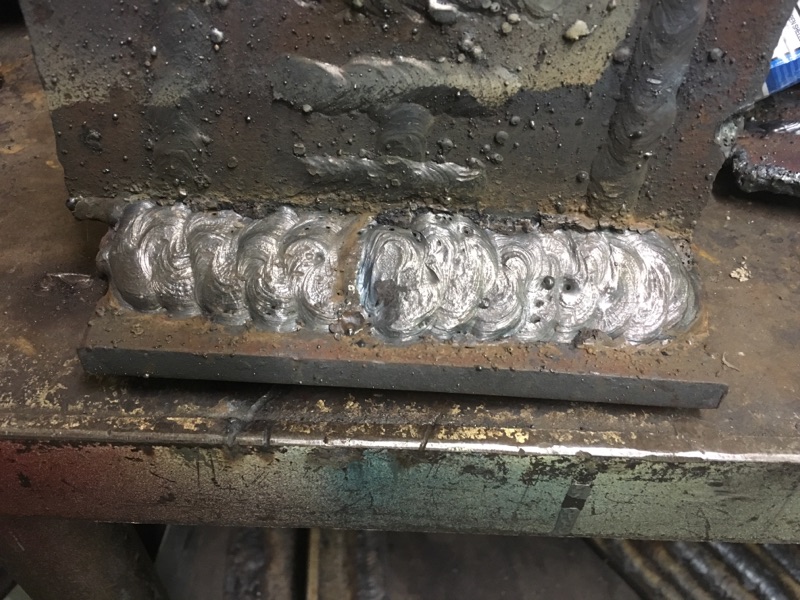

wide weld just for fun
Name:  IMG_1958_zpsdgyc9a8b.jpg
Views: 26
Size:  177.0 KB

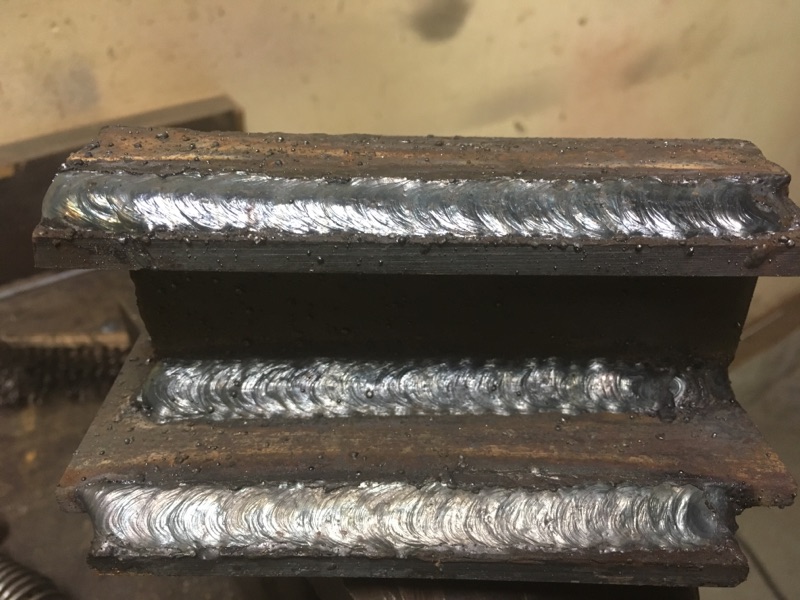

Name:  IMG_2182_zpsv9avojgf.jpg
Views: 27
Size:  128.8 KB

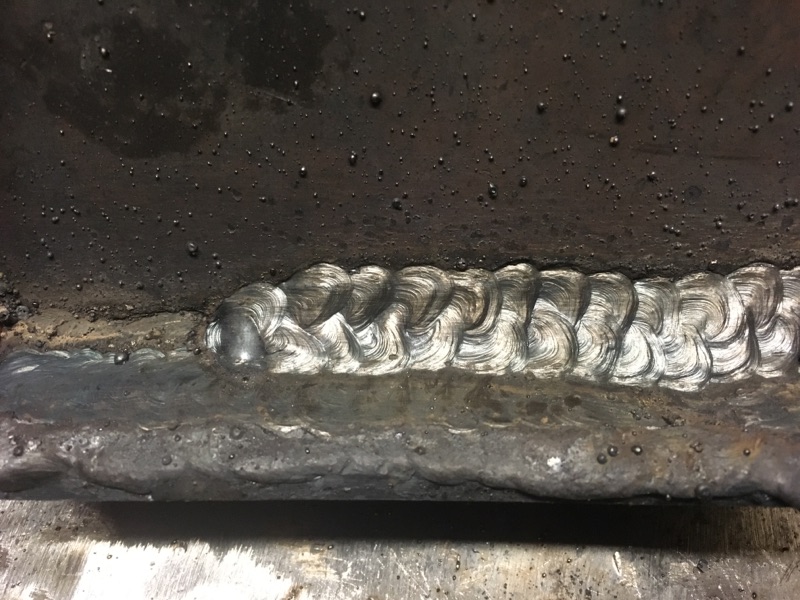

stick weave just for fun
Name:  IMG_2120_zpsx8azmcvs.jpg
Views: 27
Size:  152.2 KB

Last edited by T1XJ; 05-21-2017 at 09:34 PM.
T1XJ is offline   Reply With Quote
