Welding thread!!!!
#2071
Senior Member
Join Date: Jul 2015
Location: Southern Maryland
Posts: 563
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Engine: 4.0

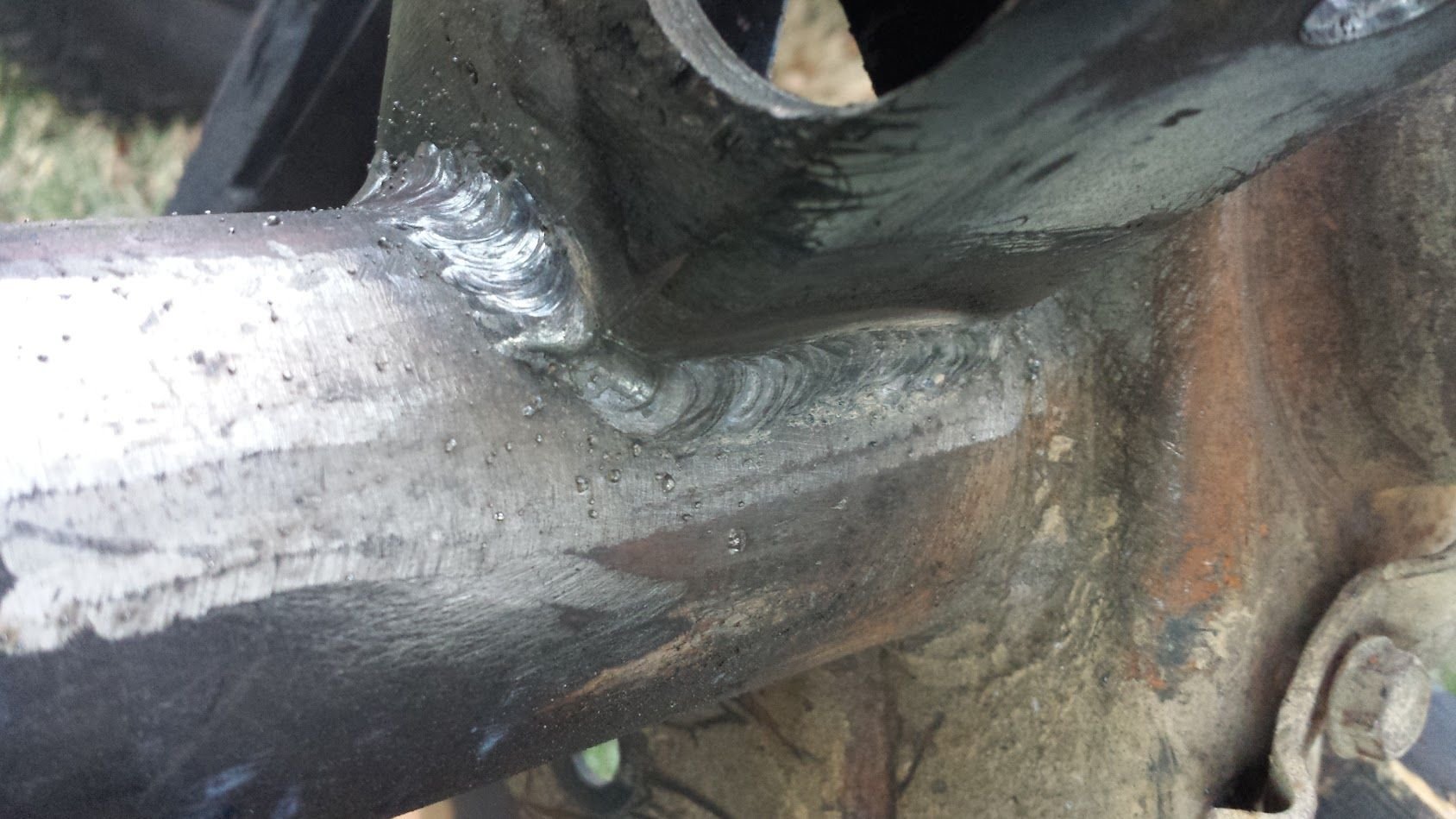

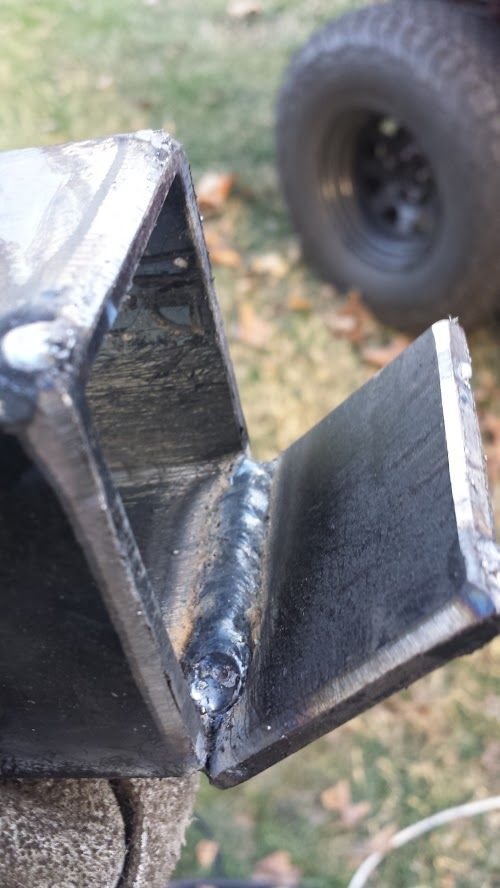

Since everyone else is doing it, here's a few welds from a track bar mount I made out of a 2" ID hitch adapter, Eastwood 135 .035 flux core wire, I got the welder about 8 months ago, only thing I'm unhappy about is I feel like I go through tips like crazy, if anyone has any advice feel free to give it.
Also sorry if the pics are huge
Also sorry if the pics are huge
#2072
CF Veteran
Join Date: Oct 2016
Location: CA
Posts: 1,535
Likes: 0
Received 7 Likes
on
4 Posts
Year: 1994
Model: Cherokee (XJ)
Since everyone else is doing it, here's a few welds from a track bar mount I made out of a 2" ID hitch adapter, Eastwood 135 .035 flux core wire, I got the welder about 8 months ago, only thing I'm unhappy about is I feel like I go through tips like crazy, if anyone has any advice feel free to give it.
Also sorry if the pics are huge
Also sorry if the pics are huge
Use some nozzle gel, helps with spatter sticking to the nozzle/tip. Makes them last a little longer, also get a flux core specific nozzle. Flux core is notorious for killing contact tips/nozzles.
#2075
Member
Join Date: Dec 2016
Location: West Florida
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Grand Cherokee
Engine: I6 - 4.0
Those welds look fine. No reason to hide them.
But why are the pics so damned Big? <g>
PHM
------
But why are the pics so damned Big? <g>
PHM
------
Since everyone else is doing it, here's a few welds from a track bar mount I made out of a 2" ID hitch adapter, Eastwood 135 .035 flux core wire, I got the welder about 8 months ago, only thing I'm unhappy about is I feel like I go through tips like crazy, if anyone has any advice feel free to give it.
Also sorry if the pics are huge
Also sorry if the pics are huge
#2076
CF Veteran
Join Date: Jan 2013
Location: west chester, pa
Posts: 19,216
Likes: 0
Received 39 Likes
on
35 Posts
Year: 1999
Engine: 4.0
Originally Posted by Poodle Head Mikey
Those welds look fine. No reason to hide them.
But why are the pics so damned Big? <g>
PHM
------
But why are the pics so damned Big? <g>
PHM
------
#2077
No, I don't lick fish.
Since everyone else is doing it, here's a few welds from a track bar mount I made out of a 2" ID hitch adapter, Eastwood 135 .035 flux core wire, I got the welder about 8 months ago, only thing I'm unhappy about is I feel like I go through tips like crazy, if anyone has any advice feel free to give it.
Also sorry if the pics are huge
Also sorry if the pics are huge
#2078
Senior Member
Join Date: Jul 2015
Location: Southern Maryland
Posts: 563
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Engine: 4.0
It does pretty good, when I first got it there was an issue with the drive roller motor, but they warrantied it however the part took about a month to come because it was back ordered. Other than that no issues, it isn't good on anything really thin but that's probably due to the Flux core. I haven't got the chance to run solid wire yet but the welder comes with some solid wire and a gas regulator, I just don't have a bottle. It's my first welder and the only machine I've ever used so I don't have much to compare to but I like it, especially for the price.
#2079
No, I don't lick fish.
It does pretty good, when I first got it there was an issue with the drive roller motor, but they warrantied it however the part took about a month to come because it was back ordered. Other than that no issues, it isn't good on anything really thin but that's probably due to the Flux core. I haven't got the chance to run solid wire yet but the welder comes with some solid wire and a gas regulator, I just don't have a bottle. It's my first welder and the only machine I've ever used so I don't have much to compare to but I like it, especially for the price.
Good to hear about the welder. Sucks that the part took so long though.
Last edited by Basslicks; 02-14-2017 at 09:01 AM.
#2081
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Yeah, flux core is really hard to do sheet metal with without blowing through it. Not only have I been told that by just about every welder I've encountered, but also experienced it first hand. Just can't get the heat down low enough. Now, a seasoned pro or journeyman might have enough finesse to be able to work the torch so that he doesn't blow through the sheet metal, but a beginner or novice, not so much.
Anyone ever do any oxyfuel welding? I was actually pretty darn good at welding aluminum plate with an oxy torch. Talk about a small window for error. Once you see that puddle form you best get your *** moving and feeding rod in or you'll blow a big ol hole in your material. Unfortunately I don't have any pics so you'll have to take my word on it
#2082
No, I don't lick fish.
I muchhhhhhhhhh rather TIG sheet metal versus MIG just for that reason.
Anyone ever do any oxyfuel welding? I was actually pretty darn good at welding aluminum plate with an oxy torch. Talk about a small window for error. Once you see that puddle form you best get your *** moving and feeding rod in or you'll blow a big ol hole in your material. Unfortunately I don't have any pics so you'll have to take my word on it
Anyone ever do any oxyfuel welding? I was actually pretty darn good at welding aluminum plate with an oxy torch. Talk about a small window for error. Once you see that puddle form you best get your *** moving and feeding rod in or you'll blow a big ol hole in your material. Unfortunately I don't have any pics so you'll have to take my word on it
#2083
CF Veteran
Join Date: Jan 2012
Location: Ocean County, NJ
Posts: 2,208
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Working with a torch is definitely an art. I honestly love using an oxy torch. I'm pretty surgical with it. My signature move would be cutting the outside pipe off the inside pipe without damaging the inner on exhausts
#2084
CF Veteran

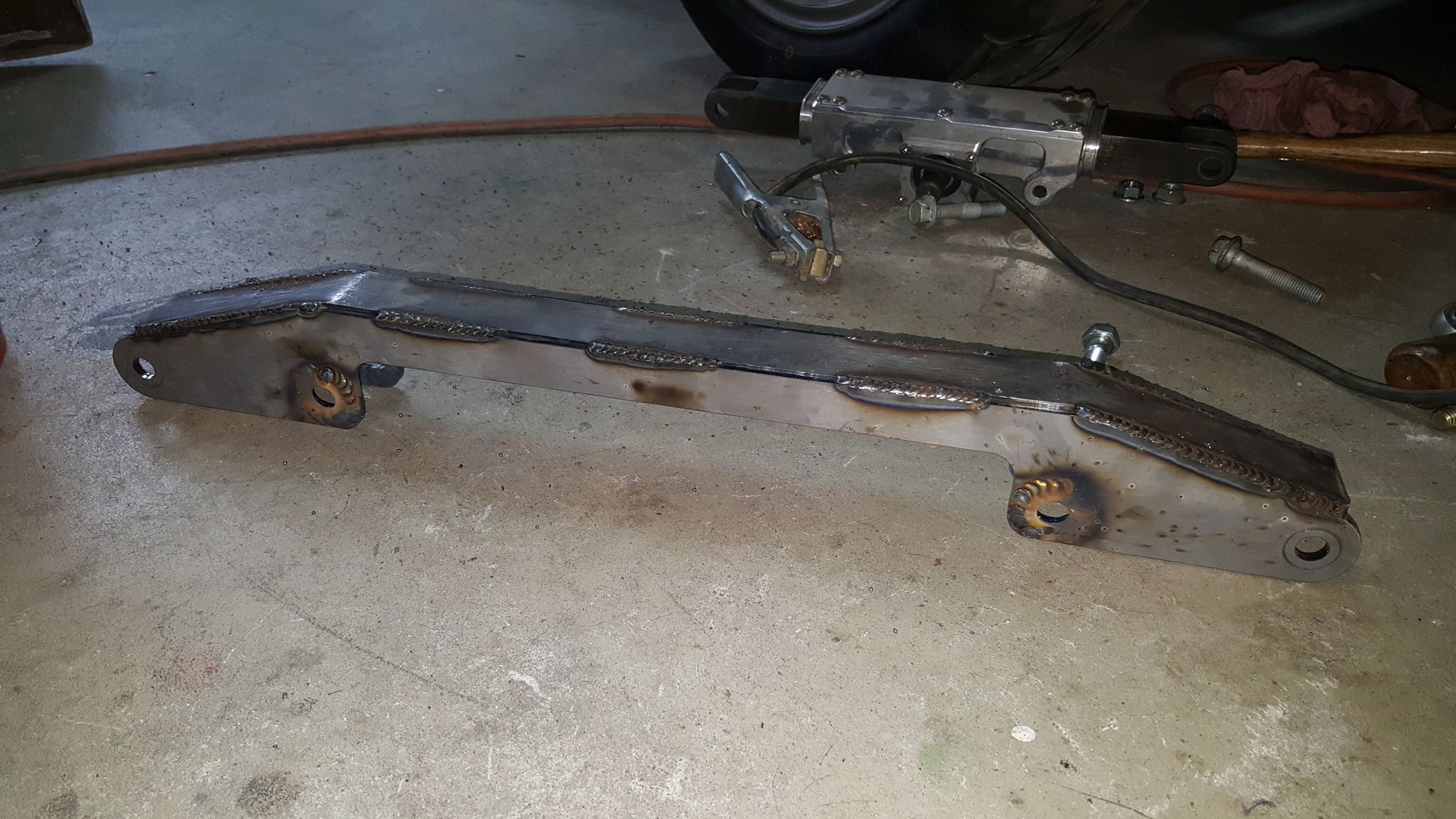

My turn for some pictures! For all the TIG stuff, I use a Miller 250 syncrowave. Made these arms for the Bug.
For all the MIG stuff, I just have a little Lincoln 125. Anything over 3/16" gets the TIG.
Making a header
I will have to see if I have any pictures on this computer of some of the aluminum I welded recently. I love welding aluminum!
For all the MIG stuff, I just have a little Lincoln 125. Anything over 3/16" gets the TIG.
Making a header
I will have to see if I have any pictures on this computer of some of the aluminum I welded recently. I love welding aluminum!
Last edited by 5-Speed; 02-14-2017 at 03:17 PM. Reason: MORE PICTURES!!!!
#2085
Member
Join Date: Dec 2016
Location: West Florida
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Grand Cherokee
Engine: I6 - 4.0
To gas weld aluminum - first light your torch way too rich and use it to soot up what you want to weld.
Remember: soot burns at just about the same temperature that aluminum melts. (repeat this to yourself like a mantra)
Then, after the pre-sooting, when you are looking for the puddle - Watch The Soot. And when it glows -THAT is your moment. Aluminum is 'quick' - it has almost no plastic-range. One second it's there; solid - and the next second it's gone; liquid.
Watch the Soot. <g>
PHM
-------
Remember: soot burns at just about the same temperature that aluminum melts. (repeat this to yourself like a mantra)
Then, after the pre-sooting, when you are looking for the puddle - Watch The Soot. And when it glows -THAT is your moment. Aluminum is 'quick' - it has almost no plastic-range. One second it's there; solid - and the next second it's gone; liquid.
Watch the Soot. <g>
PHM
-------
