Stubby winch bumper build

Old 11-18-2013, 07:57 PM
  #1
Senior Member
Thread Starter

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default Stubby winch bumper build

Picked up some steel today after I threw down a few practice beads. Haven't touched a welder in a few years. Will post pictures in the morning.
Got 70lbs worth for 10$
Michael952 is offline
Old 11-18-2013, 08:30 PM
  #2
CF Veteran

wiggles's Avatar

Join Date: Dec 2010
Location: shawnee,ks
Posts: 9,897
Year: 1993
Model: Cherokee
Engine: 4.0
Default

Nice, get to it!
wiggles is offline
Old 11-18-2013, 10:41 PM
  #3
Senior Member
Thread Starter

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by wiggles View Post
Nice, get to it!
Bright and early tomorrow, I'll be sure to take as many pictures as I can
Michael952 is offline
Old 11-19-2013, 11:10 AM
  #4
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

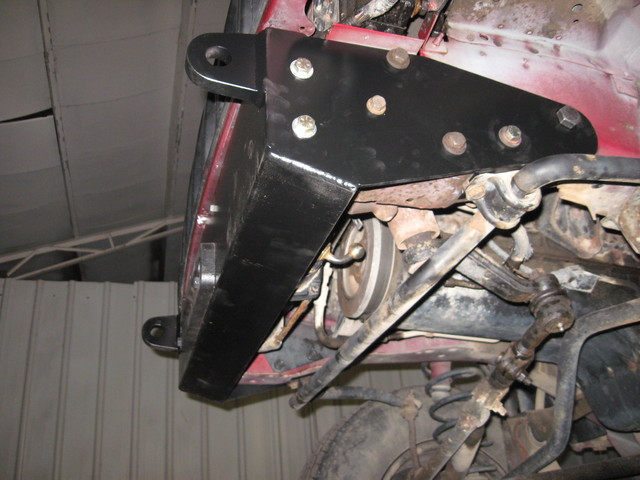

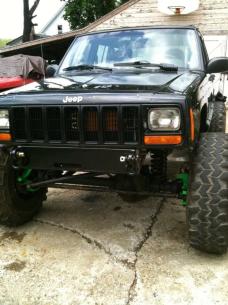

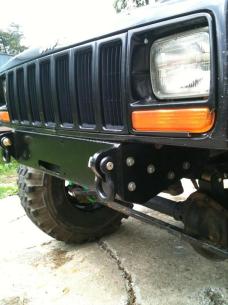

cool im fixing to make a stubby also im watching.im diggin ors stubby but im extending it out about 1 1/2 ".

Stubby winch bumper build-57734923711289972714010.jpg



Stubby winch bumper build-img6429c.jpg



Stubby winch bumper build-57940023711277306048610.jpg
HS00XJ is offline
Old 11-19-2013, 03:21 PM
  #5
Senior Member
Thread Starter

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by HS00XJ View Post
cool im fixing to make a stubby also im watching.im diggin ors stubby but im extending it out about 1 1/2 ".

Attachment 220612



Attachment 220613



Attachment 220615
oh man thats cool, i ran out of cutting wheels and didnt feel like busting out the torch so I'll be back at it tomorrow lol, I might do something like that but a bit farther out, I guess the crossmember gots to go
Michael952 is offline
Old 11-19-2013, 03:28 PM
  #6
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

yeah it gets notched out google ORS stubby bumper
HS00XJ is offline
Old 11-19-2013, 04:25 PM
  #7
Senior Member
Thread Starter

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by HS00XJ View Post
yeah it gets notched out google ORS stubby bumper
i guess i wouldnt mind doing mine like that, im gonna change my plans a bit
Michael952 is offline
Old 11-19-2013, 06:00 PM
  #8
Seasoned Member

superbee1970440's Avatar

Join Date: Sep 2013
Location: Albuquerque New Mexico
Posts: 372
Year: 2000
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Michael952 View Post
Got 70lbs worth for 10$
Where'd you find a deal like that?
superbee1970440 is offline
Old 11-19-2013, 06:20 PM
  #9
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default

Originally Posted by Michael952 View Post

i guess i wouldnt mind doing mine like that, im gonna change my plans a bit
and you could always add on fender protection later..
HS00XJ is offline
Old 11-19-2013, 06:49 PM
  #10
Senior Member
Thread Starter

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by superbee1970440 View Post
Where'd you find a deal like that?
Local scrap yard, got some good sheets for a steal
Michael952 is offline
Old 11-19-2013, 06:51 PM
  #11
Senior Member
Thread Starter

Michael952's Avatar

Join Date: Dec 2011
Location: WV
Posts: 930
Year: 98
Model: Cherokee
Engine: 4.0 i6
Default

Originally Posted by HS00XJ View Post
and you could always add on fender protection later..
yeah i'll do that when i do my rear
Michael952 is offline
Old 11-19-2013, 06:54 PM
  #12
CF Veteran

93XJLI's Avatar

Join Date: Jan 2008
Location: LI, NY
Posts: 3,671
Year: 1998
Model: Cherokee
Engine: 4.0, bolt ons for days...
Default

i cut my front crossmember completely out.



the center is 2x6 1/4" box tube, cut the center out for a winch. its currently half way through the winch install, i just got lazy/ran out of thick wire. do side protection sooner than later, i told myself i'd just be careful and ended up ripping my header panel off and splitting it in half.
93XJLI is offline
Old 11-19-2013, 06:54 PM
  #13
CF Veteran

N20jeep's Avatar

Join Date: Mar 2010
Location: Jacksonville, FL
Posts: 6,685
Year: 92
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Michael952 View Post

oh man thats cool, i ran out of cutting wheels and didnt feel like busting out the torch so I'll be back at it tomorrow lol, I might do something like that but a bit farther out, I guess the crossmember gots to go
Cut it out, you won't even know it's gone with the new bumper on
N20jeep is offline
Old 11-19-2013, 07:07 PM
  #14
Junior Member

Join Date: Oct 2013
Posts: 46
Model: Cherokee
Default

how much space around the winch got pics of the back side ? how did you mount he winch
blazedealh91 is offline
Old 11-19-2013, 07:12 PM
  #15
CF Veteran

N20jeep's Avatar

Join Date: Mar 2010
Location: Jacksonville, FL
Posts: 6,685
Year: 92
Model: Cherokee
Engine: 4.0
Default

N20jeep is offline
