Rear Captains Chairs
So I have wanted to install Rear Captains Chairs For a while but couldn't find a Write-up on it, So I thought I would try to do it y self and was quite successful.
Parts List
2 Captains Chairs $25 each out of a junkyard
(mine are out of a 2002 Chevy Cavalier)
1 10 foot 2x2 $5
4 5 inch 3/8 in Mushroom head Carriage bolts $4
4 3/8 wingnuts $2
6 2 inch 1/2 bolts $5
2 3 inch L brackets $4
Total $70
Parts List
2 Captains Chairs $25 each out of a junkyard
(mine are out of a 2002 Chevy Cavalier)
1 10 foot 2x2 $5
4 5 inch 3/8 in Mushroom head Carriage bolts $4
4 3/8 wingnuts $2
6 2 inch 1/2 bolts $5
2 3 inch L brackets $4
Total $70
#2
Seasoned Member
Thread Starter
Join Date: Dec 2010
Location: Castle Rock
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 high output

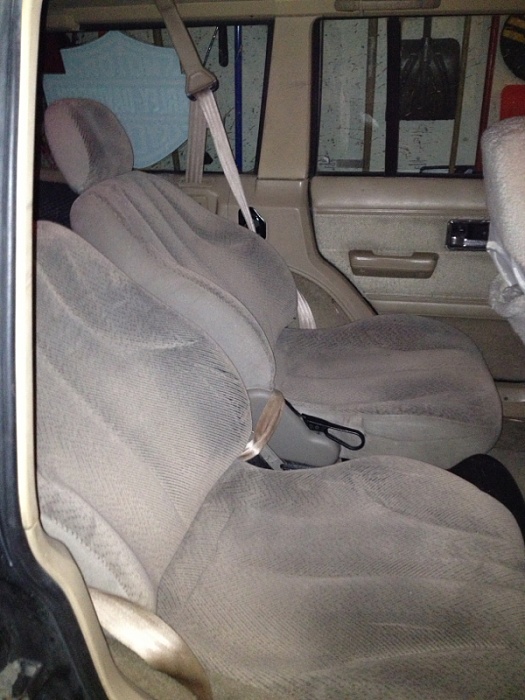

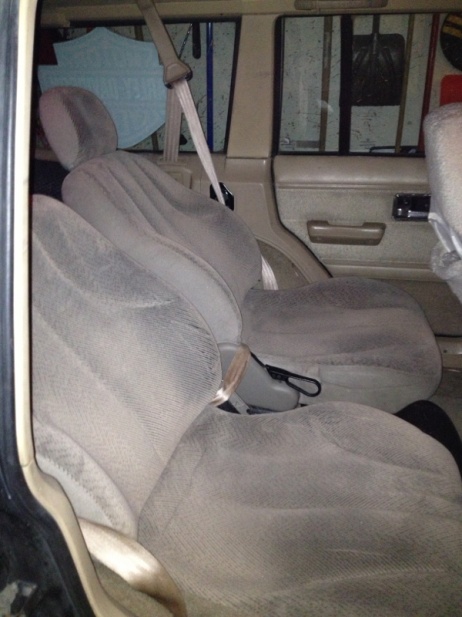

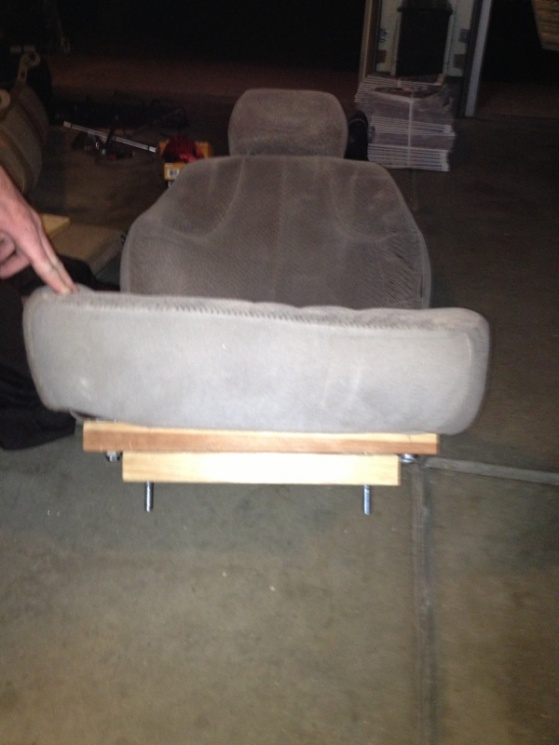

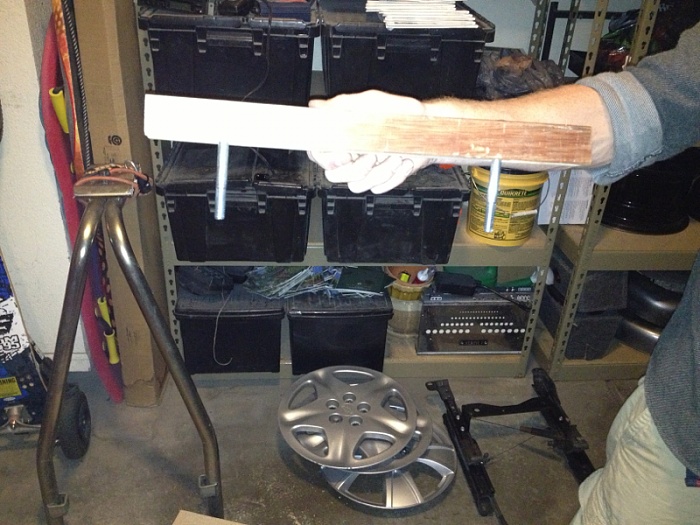

Cut the 2x2 to the following length for cavalier seats
2 16inch cuts
2 10inch cuts
Drill holes 12 inches apart centered in 16 inch pieces
Drill holes 8 inches apart centered in 10 inch pieces
Drill holes 8 inches aparts in 16inch piece as well to connect the two pieces

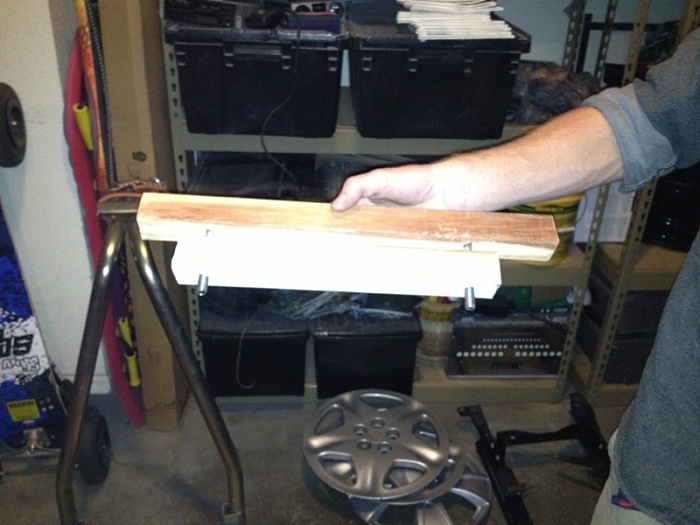

push carriage bolts though the 8 inch apart holes to connect the two pieces
(PHOTOS ARE HAVING TROUBLE UPLOADING FROM MY COMPUTER WILL POST FROM MY PHONE SOON)
2 16inch cuts
2 10inch cuts
Drill holes 12 inches apart centered in 16 inch pieces
Drill holes 8 inches apart centered in 10 inch pieces
Drill holes 8 inches aparts in 16inch piece as well to connect the two pieces
push carriage bolts though the 8 inch apart holes to connect the two pieces
(PHOTOS ARE HAVING TROUBLE UPLOADING FROM MY COMPUTER WILL POST FROM MY PHONE SOON)
#4
Seasoned Member
Thread Starter
Join Date: Dec 2010
Location: Castle Rock
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 high output
Next Step Connect Brackets to bottom of chair, and install front

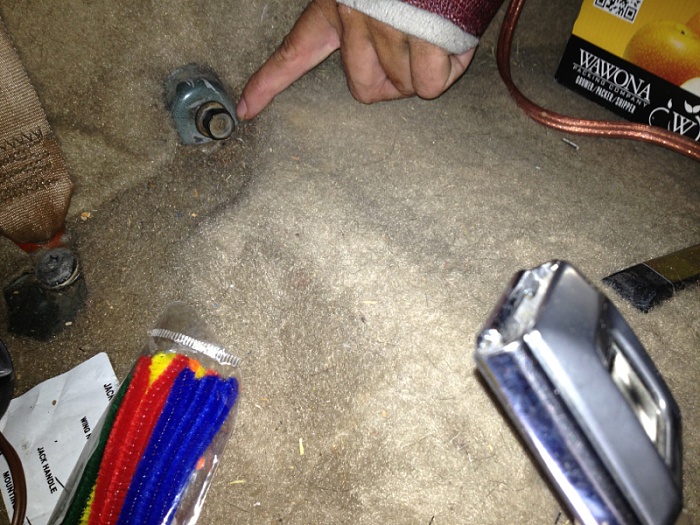

so after removing your rear bench completely slightly lift up carpet there should be two opening in which your bolts from the bracket will slide into (CHECK YOUR MEASUREMENTS DONT USE MINE THINGS CAN BE DIFFERENT) Attach wing nuts to bottom of bolts and you should be set for the front.
so after removing your rear bench completely slightly lift up carpet there should be two opening in which your bolts from the bracket will slide into (CHECK YOUR MEASUREMENTS DONT USE MINE THINGS CAN BE DIFFERENT) Attach wing nuts to bottom of bolts and you should be set for the front.
#7
Seasoned Member
Thread Starter
Join Date: Dec 2010
Location: Castle Rock
Posts: 275
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0 high output

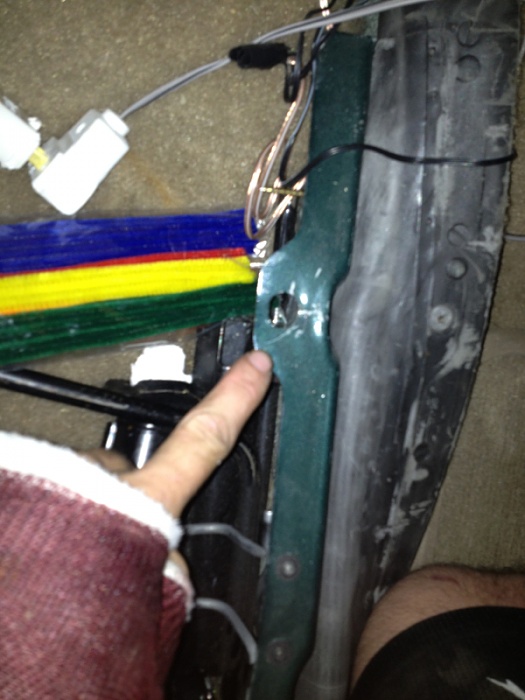

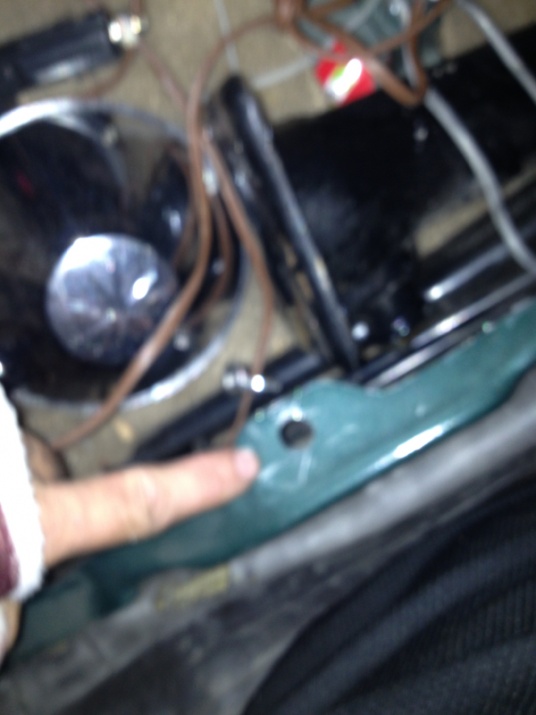

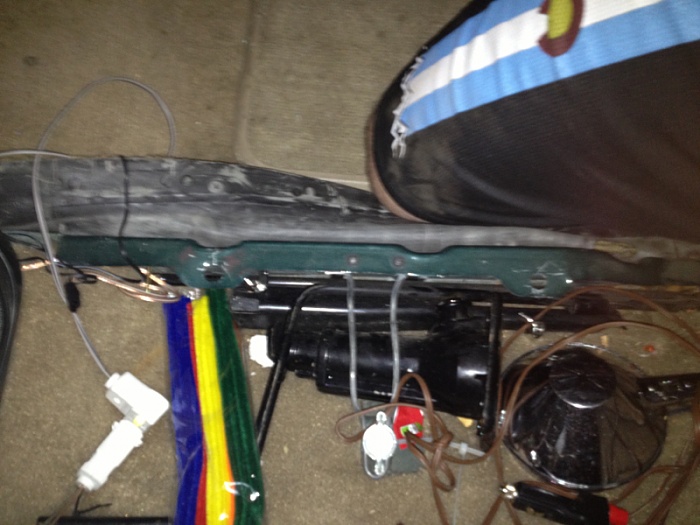

Finally Create an L bracket to secure the rear of the seat, I havent completed this step, but i will post some pictures when i have completed this step, but the idea is to secure it to the point in the picture below.

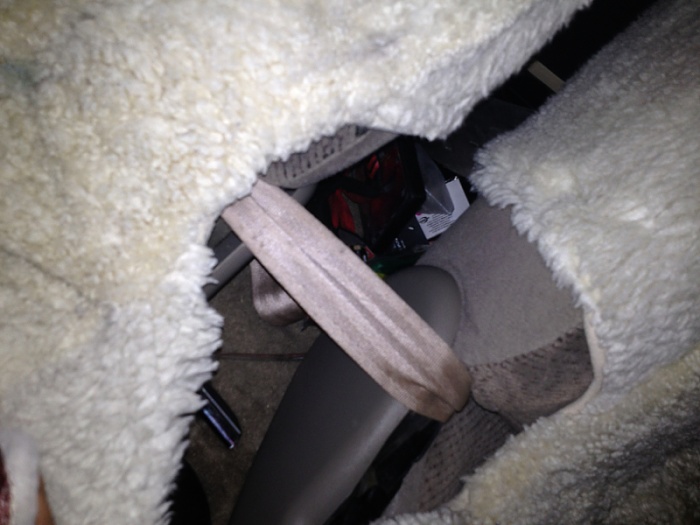

Finally take your middle belt and run it through the bottom of the seats and fasten it and tighten it, Yes i know this is not the most secure but it is better than nothing till I figure a better solution. Open for suggestions
Finally take your middle belt and run it through the bottom of the seats and fasten it and tighten it, Yes i know this is not the most secure but it is better than nothing till I figure a better solution. Open for suggestions
