HD Over the knuckle build

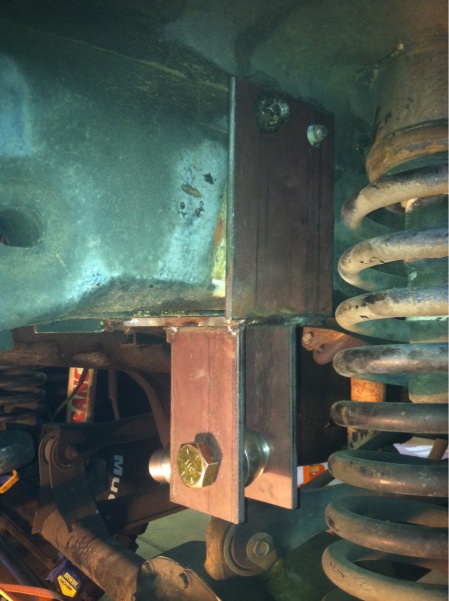

I got all the parts together for my steering and made a bit of progress this afternoon. I have 1.5" 1/4 wall DOM, 6 3/4" heims, and bunch of other fun stuff. I bought the frame end trackbar bracket from ballistic fab and am going to make my own axle side bracket tomorrow, and finish trackbar. Then hopefully Thursday finish draglink and drive on Friday. Then wheeling it Sunday. The wooden form was made so I can do 4 safety plug welds around the tube in addition to the main weld.
