Exoskeleton for a 2 door
09-08-2011, 08:19 PM
#1
Seasoned Member
Thread Starter
Join Date: Jul 2010
Location: Mahaffey, PA
Posts: 378
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Exoskeleton for a 2 door
Decided since I'm going to keep the blue 2 door, I might as well put a full exo on it. I sketched out what I think will work. If you spot anything on it that may need revised, give me a heads up. This is the first of these I've built.
09-08-2011, 09:07 PM
#2
Member
Join Date: Jul 2011
Location: AK
Posts: 152
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
I can't tell from the picture, but is there a tube running from the A-pillar at the bottom of the windshield to the bottom of the rocker panel?
What size DOM tubing you looking to run? I would suggest 1.5-1.75" and at least .125 wall
What size DOM tubing you looking to run? I would suggest 1.5-1.75" and at least .125 wall
Last edited by Rollin N Mud; 09-08-2011 at 09:39 PM.
09-08-2011, 09:32 PM
#3
Seasoned Member
Thread Starter
Join Date: Jul 2010
Location: Mahaffey, PA
Posts: 378
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Yes there is a tube coming down The A pillar. I was planning 1.75 DOM .125 tubing. I was looking at some other exos and that was what they used. Figured it would work good for this.
09-08-2011, 09:48 PM
#5
Seasoned Member
Thread Starter
Join Date: Jul 2010
Location: Mahaffey, PA
Posts: 378
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
173 feet if I did it correctly. I have to call the local steel supplier in the morning for price and availabilty of the tubing.
Trending Topics
09-09-2011, 05:17 PM
#9
Senior Member
Join Date: Mar 2011
Location: Las Vegas
Posts: 522
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.oL H.O. 784 injectors, EV6 to EV1 connectors, APN header, Dynomax exhaust
09-09-2011, 05:25 PM
#10
Senior Member
Join Date: Mar 2011
Location: Las Vegas
Posts: 522
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1992
Model: Cherokee
Engine: 4.oL H.O. 784 injectors, EV6 to EV1 connectors, APN header, Dynomax exhaust

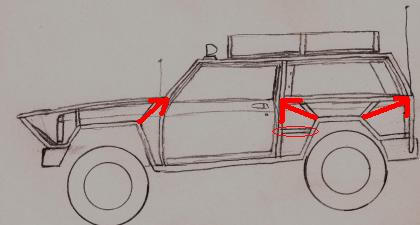

Would probably be better to triangulate the bracing to better distribute loading forces. I don't think the circled brace is going to help much if you went turtle.
09-09-2011, 08:54 PM
#11
Member
Join Date: May 2010
Location: Concord, NH
Posts: 182
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
the rear most correction would cover the gas door... or be DAMN close to doing so... other than that I'd agree with corrections
09-10-2011, 07:38 AM
#14
Member
Join Date: May 2010
Location: Concord, NH
Posts: 182
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
09-10-2011, 08:31 AM
#15
CF Veteran
Join Date: Jan 2011
Location: Littleton, CO
Posts: 2,765
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: 2001 4.0L
they have no crack, metal prices are up right now. thats how it is everywhere.
you should use .120 wall instead of the .125. that may be where your huge price is coming from. most build with .120 wall......its a way more common tube size.
also another idea would to be to use DOM only for your main hoops and supports.....then do all of your fillers and triangulation with HREW. good way to build a strong cage and save some duckets.
Last edited by MallCrawlXJ; 09-10-2011 at 08:33 AM.
