custom 8"speaker boxes

Old 06-07-2015, 02:27 PM
  #1
Member
Thread Starter

Join Date: May 2012
Location: Th Cloud
Posts: 215
Likes: 0
Received 0 Likes on 0 Posts
Year: 90'
Model: Cherokee
Engine: 4.0
Default custom 8"speaker boxes

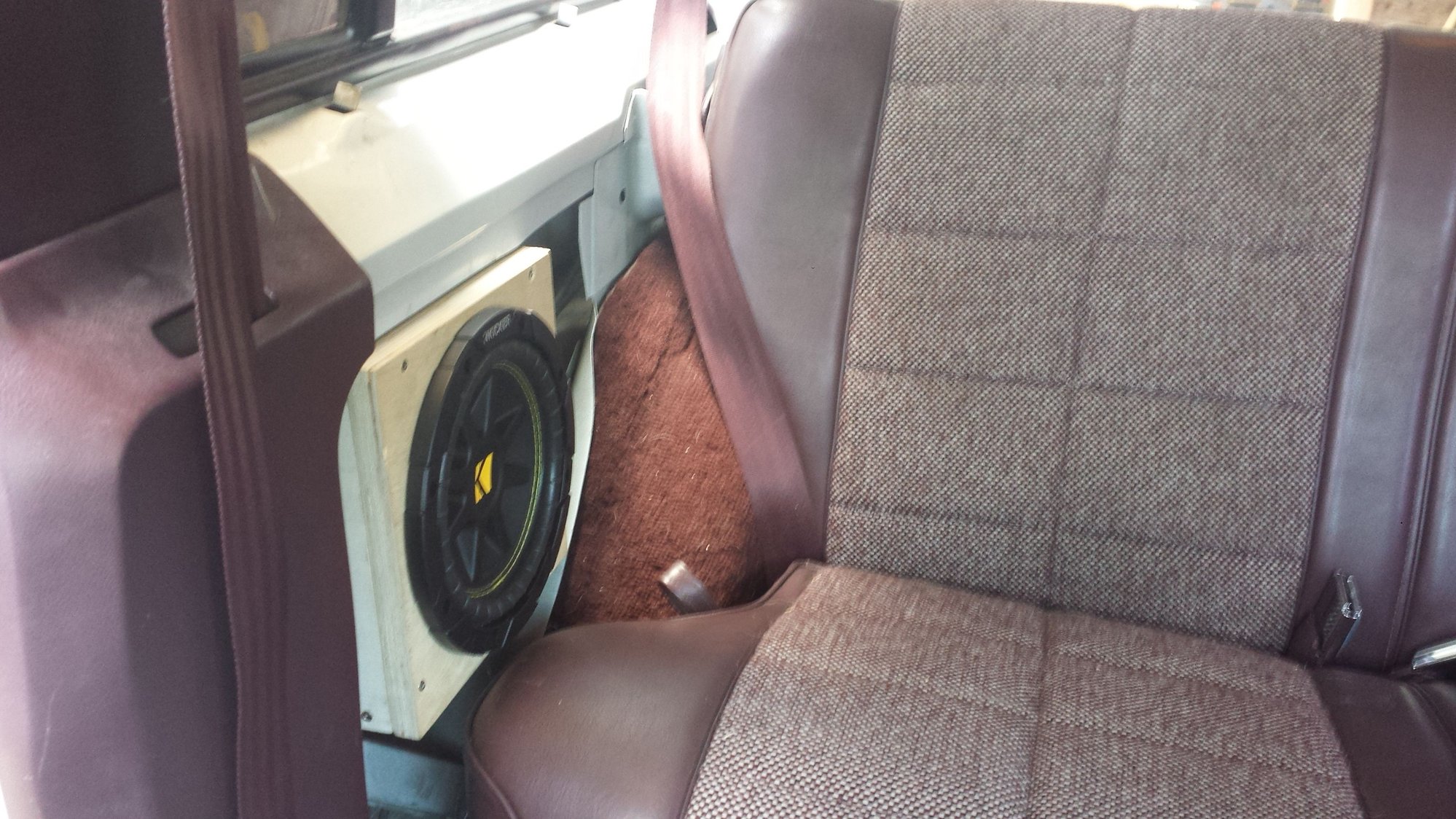

So I've had plenty of time to think about this and decided to go with two 8" subs in the side walls behind the driver/pass seats. Tis a 90 two door. I saw someone from these forums place speakers in the same spot but I think they left in the plastic trim, which I'll probably put back, but obviously with a portion cut out and fiberglass to fill voids. Working on the brackets to hold in place right now.
Salden Hund is offline
Old 06-07-2015, 02:33 PM
  #2
Member
Thread Starter

Join Date: May 2012
Location: Th Cloud
Posts: 215
Likes: 0
Received 0 Likes on 0 Posts
Year: 90'
Model: Cherokee
Engine: 4.0
Default

Salden Hund is offline
Old 06-07-2015, 05:56 PM
  #3
Newbie

Join Date: Jan 2014
Location: Jasper, Ga
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0L
Default

Ive never seen anyone put subs there! Interested in seeing how this turns out! Ive always wanted to put a 10" kicker in the cubby hole in the back but my finances say no hahaha
98 xjlaredo is offline
Old 06-07-2015, 08:09 PM
  #4
Member
Thread Starter

Join Date: May 2012
Location: Th Cloud
Posts: 215
Likes: 0
Received 0 Likes on 0 Posts
Year: 90'
Model: Cherokee
Engine: 4.0
Default

The 8" subs are the biggest you can fit in the space I chose. A ten in the pass cubby could work. The box I made was a tight squeeze, however I believe it could extend to the rear slightly. Pm me if you want a detailed explanation on how I made mine.
Salden Hund is offline
Old 06-10-2015, 09:27 PM
  #5
Member
Thread Starter

Join Date: May 2012
Location: Th Cloud
Posts: 215
Likes: 0
Received 0 Likes on 0 Posts
Year: 90'
Model: Cherokee
Engine: 4.0
Default

It worked out PERfectly. I added s/s tabs on the box to work like mounting brackets to mount two the frame with rubber gasket material as dampening. I'll try to snag a video and post a link of it bolted.
Salden Hund is offline
Old 06-11-2015, 10:44 AM
  #6
CF Veteran

investinwaffles's Avatar

Join Date: Oct 2013
Location: Tarpon Springs, FL / Denver, CO
Posts: 2,086
Likes: 0
Received 1 Like on 1 Post
Year: '98
Engine: 4.0 I6
Default

Very clean!

Yes, post finished pics - I would love to see them.
investinwaffles is offline
Old 06-12-2015, 06:55 AM
  #7
Member
Thread Starter

Join Date: May 2012
Location: Th Cloud
Posts: 215
Likes: 0
Received 0 Likes on 0 Posts
Year: 90'
Model: Cherokee
Engine: 4.0
Default

Ask and you shall receive.
Salden Hund is offline
Old 06-12-2015, 07:00 AM
  #8
Member
Thread Starter

Join Date: May 2012
Location: Th Cloud
Posts: 215
Likes: 0
Received 0 Likes on 0 Posts
Year: 90'
Model: Cherokee
Engine: 4.0
Default

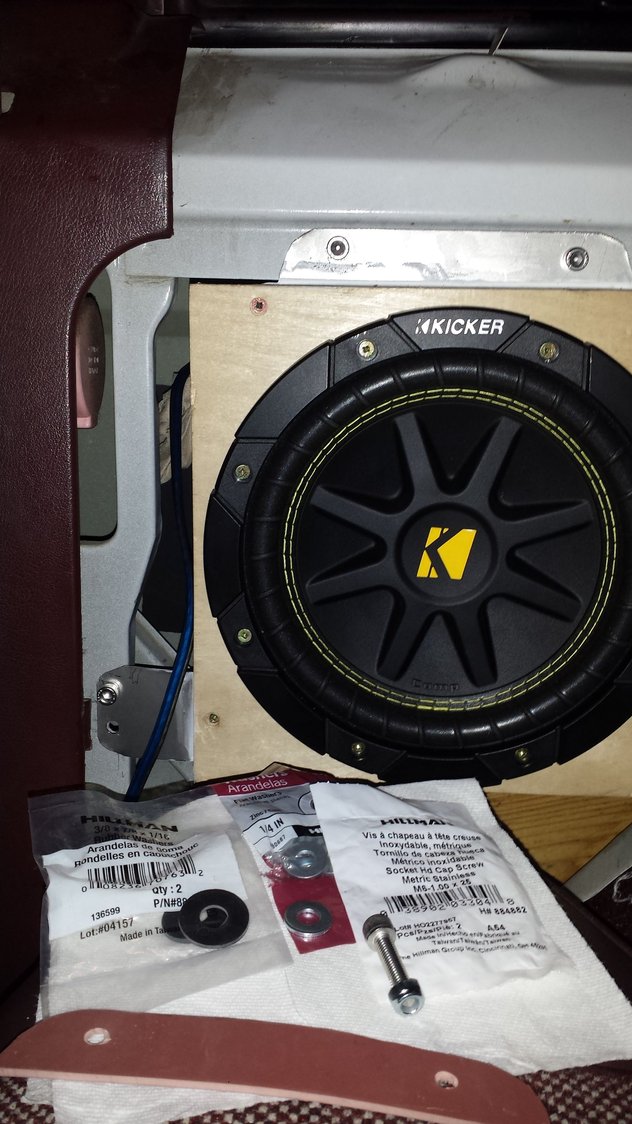

Rubber gasket bxetween ss tabs and frame, rubber washers for the backside then a metal washer to keep everything nice and dampened. Fyi! The bottom left edge and top/rear edges of the box need a rubber edge as well. I didnt think about that touching but didnt test the system to see if it would rattle. ALSO.

A second 8" is going into the other cubby S well ladies and germs >
Salden Hund is offline
Old 06-12-2015, 07:44 AM
  #9
Beach Bum

SteveMongr's Avatar

Join Date: Jul 2011
Location: Cape Hatteras, North Carolina
Posts: 6,111
Likes: 0
Received 1 Like on 1 Post
Year: 2000 WJ
Model: Grand Cherokee
Engine: 4.0
Default

Great idea, I'm a fan of making use of cavities behind interior panels.
For us 4-door folk, a box like this may fit under front seats. Area is about 13" x 14" x 5"
SteveMongr is offline
Old 06-12-2015, 04:37 PM
  #10
Member
Thread Starter

Join Date: May 2012
Location: Th Cloud
Posts: 215
Likes: 0
Received 0 Likes on 0 Posts
Year: 90'
Model: Cherokee
Engine: 4.0
Default

Most 8 " subs, at least my kicker was, 4 1/2" +- deep so it fit great in my box which was 9.71 x 9.71 x 5.71. The hardwood sheet I used was .71" thick.
Salden Hund is offline
