Jeep Cherokee Forum

Fabrication & builders section. All fabrication posts go here.
XJ/MJ/ZJ/WJ Only projects go here. Questions belong in modified tech.

Another Rear Bumper

Thread Tools

Search this Thread

Old 04-02-2014, 11:58 AM
  #1
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default Another Rear Bumper

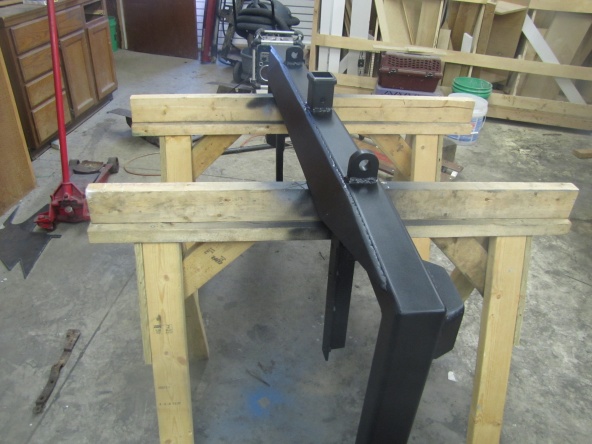

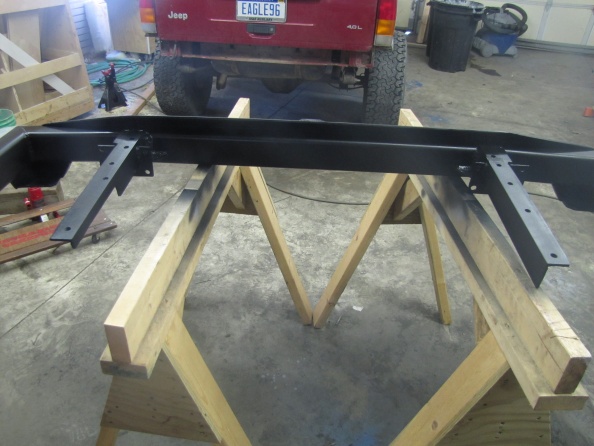

Finished my wrap-around rear bumper the other day. The bumper is 2.5 X 3.5" .25" wall tube. The mounts are 2.5 X 2.5" .25" wall angle and .25" stock. The D-shackle tabs are .75" stock. All the other misc parts are also .25" stock. It will be held on by eight, 10mm bolts for the stock mounting and an additional nine, 1/2" grade 8 bolts through the frame rail. The design of this bumper was largely inspired by HS00XJ's rear bumper. At this point it is primed and painted and should be going on later tonight or tomorrow.
Another Rear Bumper-001.jpg
Another Rear Bumper-002.jpg
Another Rear Bumper-004.jpg
Another Rear Bumper-005.jpg
Another Rear Bumper-006.jpg
EagleXJ is offline
Reply Like
The following users liked this post:
Sandcast (02-23-2022)
Old 04-02-2014, 12:25 PM
  #2
CF Veteran

PocketsEmpty's Avatar

Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes on 6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Default
Very nice! Looks awesome and well made. Looks pretty darn solid as well.
PocketsEmpty is offline
Reply Like
Old 04-02-2014, 12:51 PM
  #3
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Likes: 0
Received 2 Likes on 2 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default
Originally Posted by EagleXJ
Finished my wrap-around rear bumper the other day. The bumper is 2.5 X 3.5" .25" wall tube. The mounts are 2.5 X 2.5" .25" wall angle and .25" stock. The D-shackle tabs are .75" stock. All the other misc parts are also .25" stock. It will be held on by eight, 10mm bolts for the stock mounting and an additional nine, 1/2" grade 8 bolts through the frame rail. The design of this bumper was largely inspired by HS00XJ's rear bumper. At this point it is primed and painted and should be going on later tonight or tomorrow.
Attachment 237297
Attachment 237298
Attachment 237299
Attachment 237300
Attachment 237301
very nice bro ! Cant wait to see it on there.
HS00XJ is offline
Reply Like
Old 04-02-2014, 02:49 PM
  #4
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by PocketsEmpty
Very nice! Looks awesome and well made. Looks pretty darn solid as well.
Originally Posted by HS00XJ
very nice bro ! Cant wait to see it on there.
Thanks guys, can't wait to get it on either!
EagleXJ is offline
Reply Like
Old 04-02-2014, 09:21 PM
  #5
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Got it installed. Didn't have the camera with me so I just have this cell pic. I'll take some better ones tomorrow.
Another Rear Bumper-0402141749a.jpg
EagleXJ is offline
Reply Like
Old 04-02-2014, 09:26 PM
  #6
CF Veteran

Flowpro's Avatar

Join Date: Mar 2011
Location: Waterloo, Iowa
Posts: 1,102
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Default
That looks great! I like the piece you added on the bottom. Kinda unique.
Flowpro is offline
Reply Like
Old 04-03-2014, 08:30 AM
  #7
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by Flowpro
That looks great! I like the piece you added on the bottom. Kinda unique.
Thanks
EagleXJ is offline
Reply Like

Trending Topics

Old 04-03-2014, 08:32 AM
  #8
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default

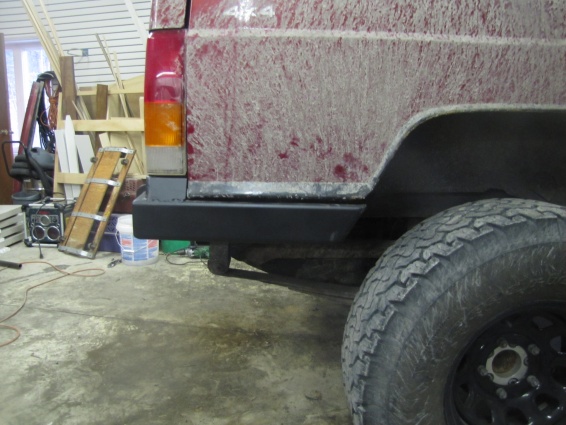

Here's some better pics
Another Rear Bumper-002.jpg
Another Rear Bumper-003.jpg
Another Rear Bumper-005.jpg
EagleXJ is offline
Reply Like
Old 04-03-2014, 08:34 AM
  #9
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Another Rear Bumper-006.jpg
Another Rear Bumper-001.jpg
Another Rear Bumper-004.jpg
EagleXJ is offline
Reply Like
Old 04-03-2014, 01:11 PM
  #10
Seasoned Member

ColdWarrior's Avatar

Join Date: Jul 2011
Location: Interior of Alaska
Posts: 291
Received 0 Likes on 0 Posts
Year: 1991
Model: Cherokee
Engine: 4.0 HO
Default
That, my friend, is beautiful.
ColdWarrior is offline
Reply Like
Old 04-03-2014, 02:32 PM
  #11
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by ColdWarrior
That, my friend, is beautiful.
Haha Thanks! Probably won't be pretty for long...
EagleXJ is offline
Reply Like
Old 04-03-2014, 04:05 PM
  #12
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Likes: 0
Received 2 Likes on 2 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default
Did you gusset the angles and under the skirt?i landed on my skirt hard one day and i feel the gussets helped it hold up.
HS00XJ is offline
Reply Like
Old 04-03-2014, 09:42 PM
  #13
CF Veteran
Thread Starter

EagleXJ's Avatar

Join Date: Feb 2013
Location: Colorado
Posts: 1,185
Likes: 0
Received 1 Like on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0L
Default
Originally Posted by HS00XJ
Did you gusset the angles and under the skirt?i landed on my skirt hard one day and i feel the gussets helped it hold up.
I only gusseted the mounts. Didn't on the skirt. We'll see what happens. Easy to fix if it bends
EagleXJ is offline
Reply Like
Old 04-04-2014, 06:33 AM
  #14
CF Veteran

HS00XJ's Avatar

Join Date: Apr 2012
Location: Ross Vegas, Ga
Posts: 1,843
Likes: 0
Received 2 Likes on 2 Posts
Year: 2000
Model: Cherokee
Engine: 4.0 w/ tupy head
Default
Originally Posted by EagleXJ
I only gusseted the mounts. Didn't on the skirt. We'll see what happens. Easy to fix if it bends
What paint did you use? I used rustoleum self etching primer and hammered finish black and mines chipping up pretty bad ill just recoat with some black. looks good bro.
HS00XJ is offline
Reply Like
Old 04-04-2014, 08:05 AM
  #15
CF Veteran

Tony_SS's Avatar

Join Date: May 2013
Location: Washington, MO
Posts: 1,056
Likes: 0
Received 1 Like on 1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
Default
Nice work! You should go into production with those..
Tony_SS is offline
Reply Like



Advanced Search
Quick Reply: Another Rear Bumper


Reply Closed Thread Share

All times are GMT -5. The time now is 02:37 PM.
