Sami axle Straightening

Old 01-07-2015, 07:54 PM
  #1
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Year: 1997
Model: Cherokee
Engine: 4.0
Default Sami axle Straightening

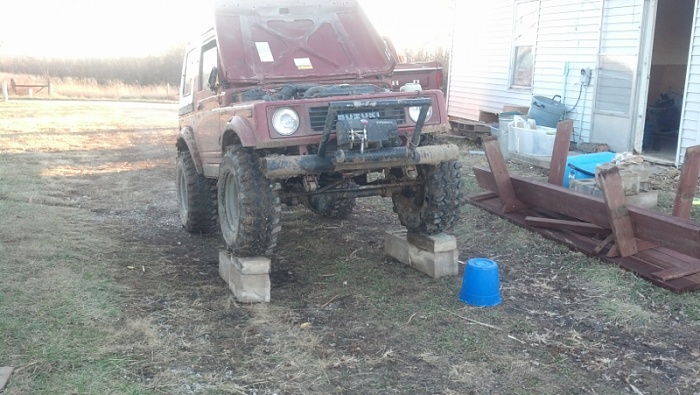

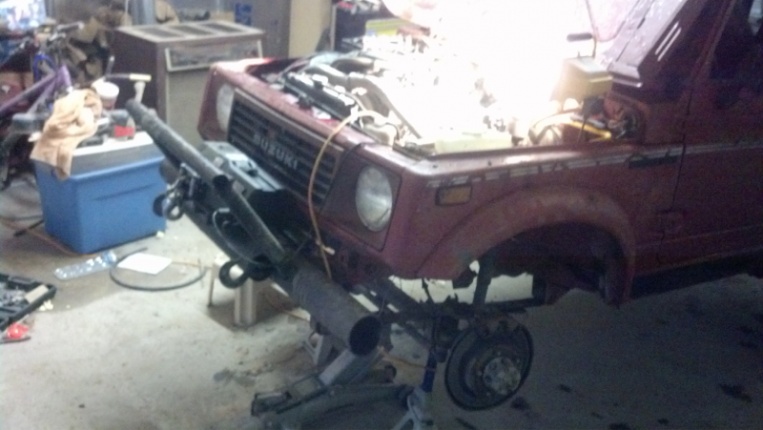

I had a Sami come in the shop lately. Someone jumped it and bent the drivers side tube.
Attached Thumbnails Sami axle Straightening-image-3377181977.jpg   Sami axle Straightening-image-1223213622.jpg
poorboy is offline
Old 01-07-2015, 07:58 PM
  #2
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Year: 1997
Model: Cherokee
Engine: 4.0
Default

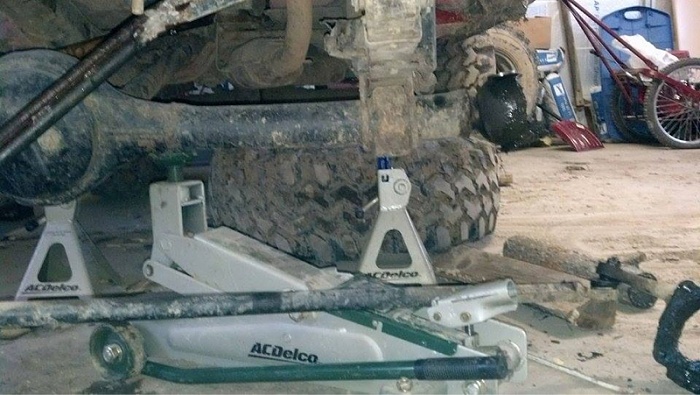

Can you see the bend? It was about 1" out of center.
Attached Thumbnails Sami axle Straightening-image-4172854157.jpg

Last edited by poorboy; 01-07-2015 at 08:09 PM.
poorboy is offline
Old 01-07-2015, 08:03 PM
  #3
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Year: 1997
Model: Cherokee
Engine: 4.0
Default

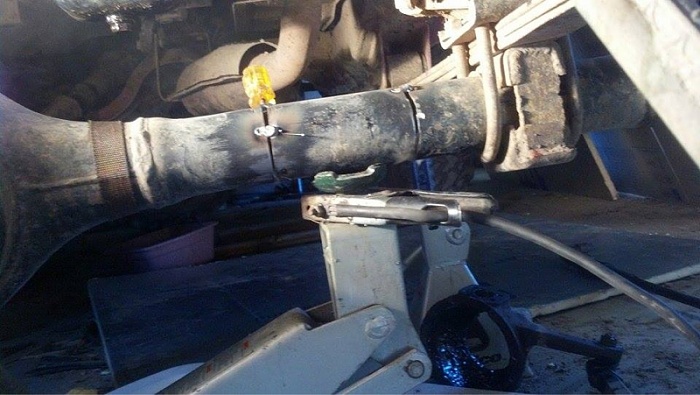

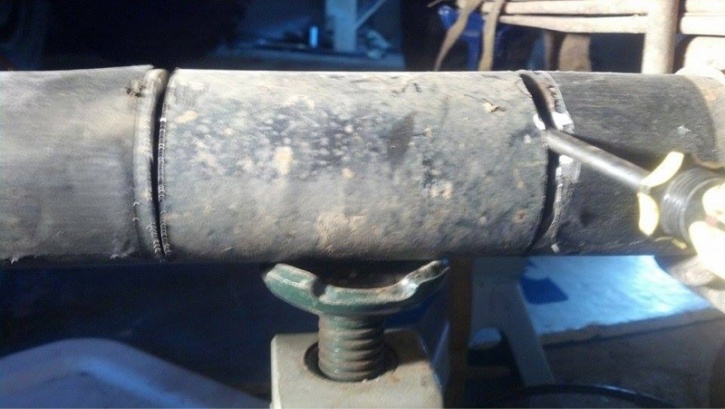

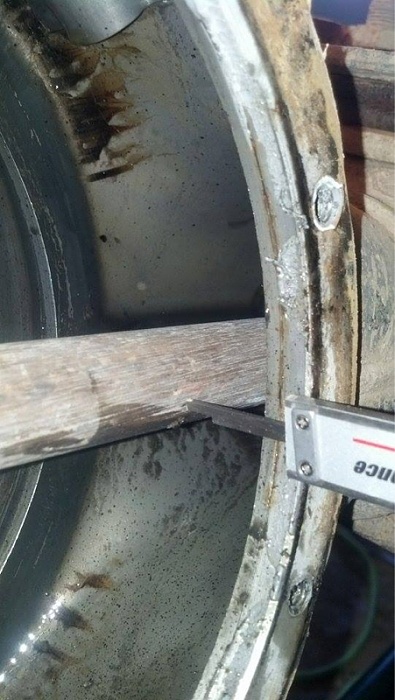

Using a cut off wheel I made two slices to make the bending easier. I used a straight dowel for my measurements. Using a jack and some ratchet straps I got the axle were I wanted with in +\- 1/8 inch. Tacked it up and rechecked. Note the tube was not cut off. There was 1-2" on the bottom holding it together.
Attached Thumbnails Sami axle Straightening-image-2379011842.jpg   Sami axle Straightening-image-1514340637.jpg   Sami axle Straightening-image-6904259.jpg

Last edited by poorboy; 01-07-2015 at 08:09 PM.
poorboy is offline
Old 01-07-2015, 08:05 PM
  #4
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Year: 1997
Model: Cherokee
Engine: 4.0
Default

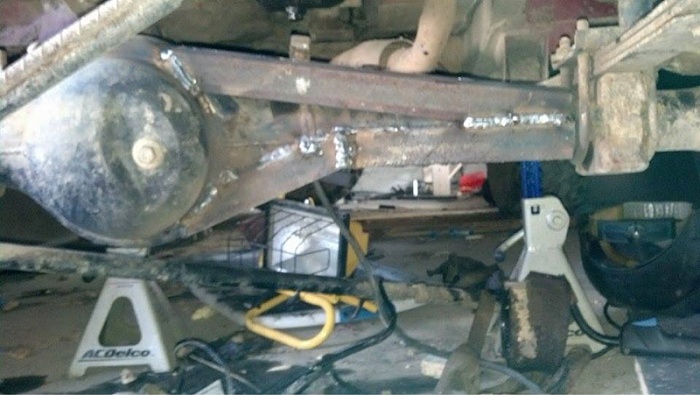

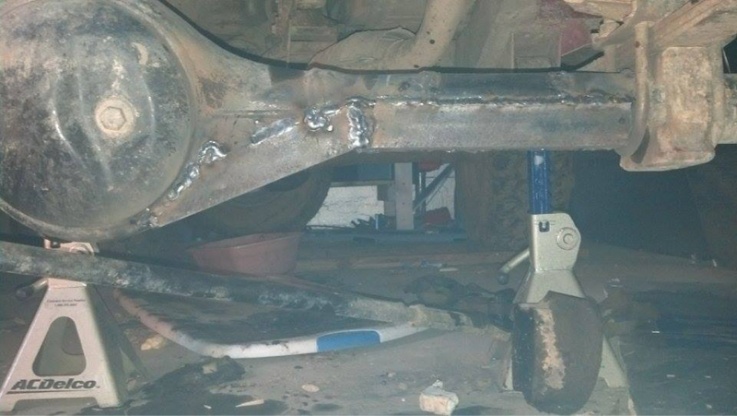

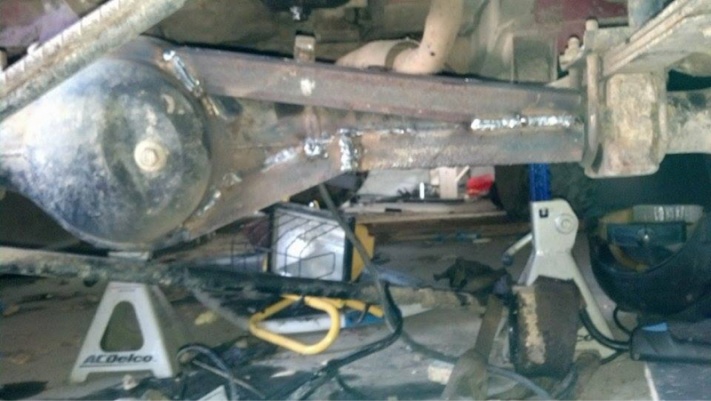

Yes I did split a weakened tube so I added some much needed bracing!
Attached Thumbnails Sami axle Straightening-image-1984923673.jpg   Sami axle Straightening-image-3766729658.jpg
poorboy is offline
Old 01-07-2015, 08:07 PM
  #5
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Year: 1997
Model: Cherokee
Engine: 4.0
Default

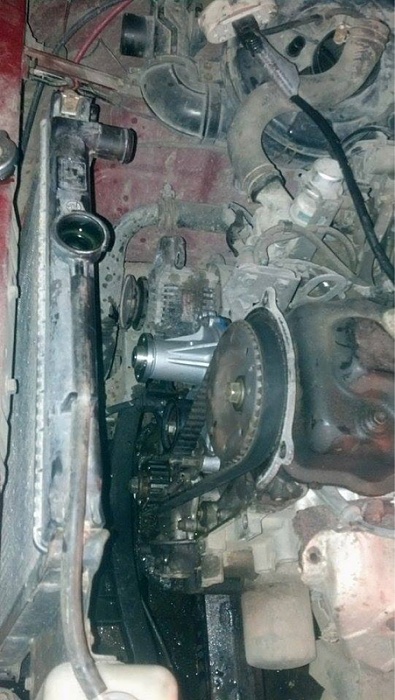

After a new water pump the Sami was back into action! Up next is a 70 year old jeep!
Attached Thumbnails Sami axle Straightening-image-296117471.jpg   Sami axle Straightening-image-2111497355.jpg
poorboy is offline
Old 01-14-2015, 03:29 PM
  #6
Member

Join Date: Dec 2014
Location: Sheridan, IL
Posts: 145
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by poorboy View Post
After a new water pump the Sami was back into action! Up next is a 70 year old jeep!
Good luck with the jeep. My grandpa and dad had one they used in Wisconsin for plowing and pulling up stumps. Original engine blew, and they ended up putting an old VW engine in. Still pulling up stumps to this day as far as I know. Hopefully yours fairs a little better haha.
Rcrivolio is offline
Old 03-29-2015, 07:04 PM
  #7
Member
Thread Starter

poorboy's Avatar

Join Date: Oct 2009
Location: near Columbia mo
Posts: 105
Year: 1997
Model: Cherokee
Engine: 4.0
Default

I finally found one of the pics. That's why the axle was bent
Attached Thumbnails Sami axle Straightening-image-2226065883.jpg
