Wj Wheel & tires question
#1
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Ocean county Nj
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Grand Cherokee(WJ)
Engine: 4.0
Wj Wheel & tires question
I have an 02 wj my question is can I fit 245/70R16 tires or 255/70R16 with cragar soft 8 rims or should in go with 235/70R15. now is there anything that I should worry when buying cragar soft 8 wheels I was told that the caliper will rub. Also remember I'm on stock suspension no lift kit.
Last edited by towman79; 01-03-2017 at 03:43 PM.
#2
Member
Join Date: Aug 2014
Location: LAS VEGAS, NV
Posts: 159
Likes: 0
Received 1 Like
on
1 Post
Year: 2004
Model: Grand Cherokee (WJ)
Engine: 4.0 I6
On my 04 I had 245/75/16, with out a lift, but they were stock wheels. shouldn't rub on calipers. I don't know if with your soft eights the tires will rub on the inner fenders. Depends on backspacing. I currently have a 2.5 lift, running 265/75/16, 4.25 inches back spacing, and sometimes rub the inner fender when I turn tight to the right.
Last edited by GUARDIAN; 01-03-2017 at 10:43 PM.
#3
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Ocean county Nj
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Grand Cherokee(WJ)
Engine: 4.0
On my 04 I had 245/75/16, with out a lift, but they were stock wheels. shouldn't rub on calipers. I don't know if with your soft eights the tires will rub on the inner fenders. Depends on backspacing. I currently have a 2.5 lift, running 265/75/16, 4.25 inches back spacing, and sometimes rub the inner fender when I turn tight to the right.
#4
Old fart with a wrench
Yes, but with an 8" wide rim, a 4" backspace makes the tire centered over the mounting flange. A 6" backspacing will put the tire back over the hub too much, limiting your turning angle and may interfere with the steering arms. I just had my wheels off today for a brake job. I wish I had measured my stock backspacing. I have 16X7.0 Timberline aluminum wheels with 245/70R16s on them. The only time they rub is downhill braking in a tight turn.
#6
Old fart with a wrench
As I said, the only time I had them rub was on a hard downhill cutback turn that I hit too fast for my own good. How many times are you going to do that? That means the outboard spring was compressed more than usual.
Last edited by dave1123; 01-04-2017 at 08:28 PM.
#7
Senior Member
Join Date: Feb 2012
Location: Baltimore
Posts: 793
Likes: 0
Received 27 Likes
on
25 Posts
Year: 2002
Model: Grand Cherokee
Engine: 4.0L (AMC) Straight Six
The WJ's OEM tires and rims are either P225/75R16 or P245/75R16 (for the Laredo), so going down to 15"'s won't make it any better. I'd stay with 16"'s or else bump it up a size to 17"'s.
Trending Topics
#8
Old fart with a wrench
Actually, you've got that wrong. Standard tire size for the WJ is 225 /75R16. Optional size is 245/70R16. That makes both sizes around 29.5" in diameter.
#9
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Ocean county Nj
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Grand Cherokee(WJ)
Engine: 4.0

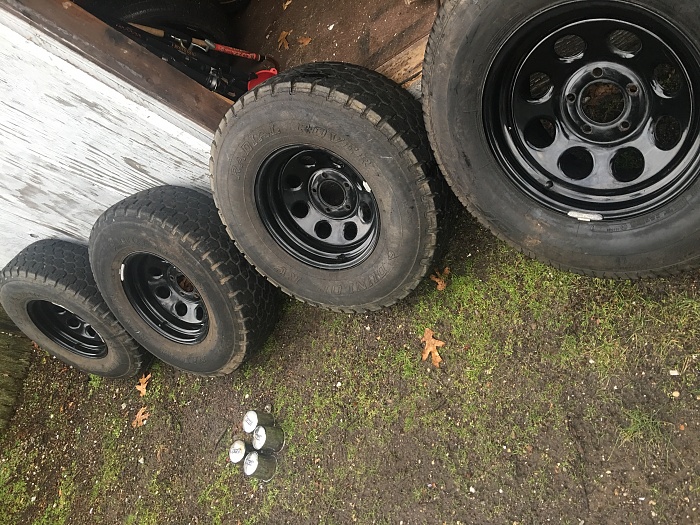

The Picture that I posted on my post above I change those tires because they were too big so I went with 235/75R15 the rims are 15 x 8 so I installed them the wheels do rub on the caliper a little bit nothing crazy so maybe I'm thinking shaving the caliper or would it work if I get a wheel spacers or should I go with the bigger size rims 16 inch
#10
Old fart with a wrench
Rubbing on the calipers interferes with braking action and wear on the pads. I wouldn't shave the calipers either! Wheel spacers will work, but I prefer not to use them. Get the 16's! JMHO.
#11
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Ocean county Nj
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Grand Cherokee(WJ)
Engine: 4.0
#12
Old fart with a wrench
Make sure they're good quality forged steel and mounted correctly, clean surfaces.
#13
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Ocean county Nj
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Grand Cherokee(WJ)
Engine: 4.0
#14
CF Veteran
Join Date: Oct 2010
Location: Ontario, Canada
Posts: 2,150
Likes: 0
Received 12 Likes
on
9 Posts
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 L 6 Renix
Spaced Out??

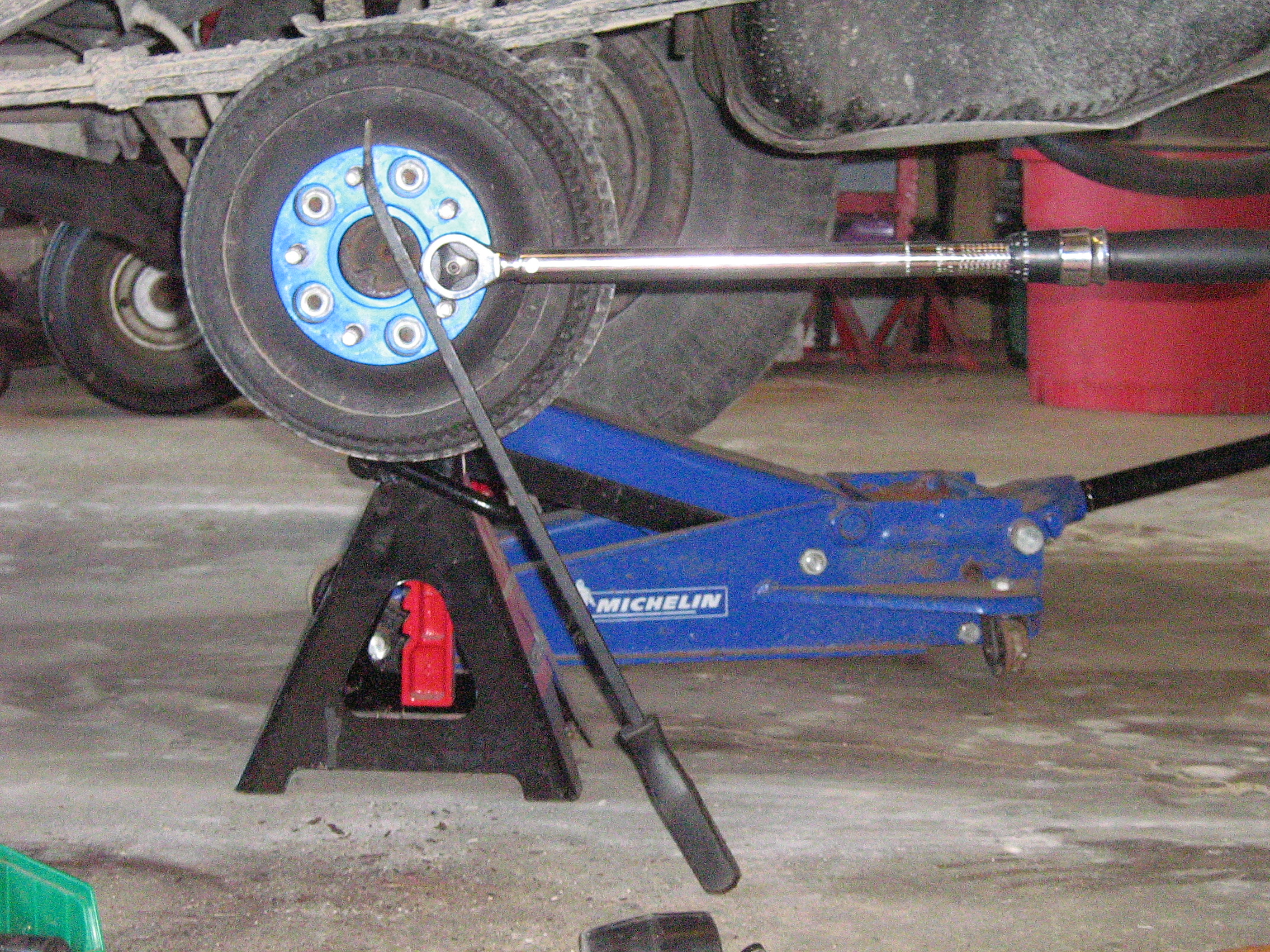

16" rims best selection, if spacing out, 1.25 or 1.5 in max, Spyertrax spacers working great for me for years on the XJ, how much is a little rub?
If you shave say 0.030" off the outer dia of the caliper it could carry on fine, if you have to shave more than that, I would look at other alternatives.
With too much backspacing on the rim you could rub the tire on the lower control arm at full turn (why I added the spacers).
Torque your spacers on, then torque your tire on. (I suggest 100 ft lb on both)
If you shave say 0.030" off the outer dia of the caliper it could carry on fine, if you have to shave more than that, I would look at other alternatives.
With too much backspacing on the rim you could rub the tire on the lower control arm at full turn (why I added the spacers).
Torque your spacers on, then torque your tire on. (I suggest 100 ft lb on both)
#15
Junior Member
Thread Starter
Join Date: Nov 2016
Location: Ocean county Nj
Posts: 31
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Grand Cherokee(WJ)
Engine: 4.0
16" rims best selection, if spacing out, 1.25 or 1.5 in max, Spyertrax spacers working great for me for years on the XJ, how much is a little rub?
If you shave say 0.030" off the outer dia of the caliper it could carry on fine, if you have to shave more than that, I would look at other alternatives.
With too much backspacing on the rim you could rub the tire on the lower control arm at full turn (why I added the spacers).
Torque your spacers on, then torque your tire on. (I suggest 100 ft lb on both)
If you shave say 0.030" off the outer dia of the caliper it could carry on fine, if you have to shave more than that, I would look at other alternatives.
With too much backspacing on the rim you could rub the tire on the lower control arm at full turn (why I added the spacers).
Torque your spacers on, then torque your tire on. (I suggest 100 ft lb on both)
