pwb

I'm cleaning the space arround the valve lifters with a vacuum sucker, but how many holes should it be that the oil drain back to pan? Its a GC 1993 4.0L, some picture or drawings of the block from the top where i can se the holes?

ol"blue

These are the best I could find.

From the top:

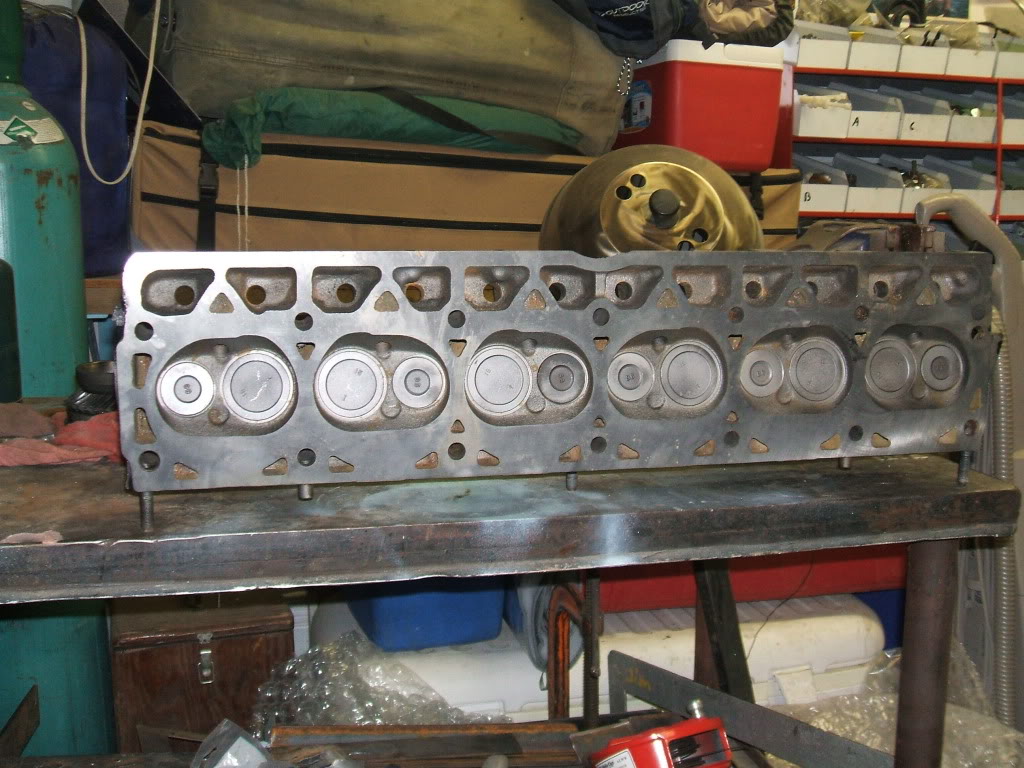

From the bottom:

pwb

Thanx ol''blue, but i need from the block down to pan :-) I have tried to clean up all the sludge between the valve lifters, but i cant find hole between all the lifters, some have it but i need to know if there shoul be drain back hole between every lifters. Its look like its a large drain hole in front and back and one or maybe two holes in the middle? but then some of the lifters would been soaked in oil all the time if there isnt drain hole at every lifter, is that correct?

freegdr

oil drains back thru push tube hole looking at those picks

pwb

yes, but that is the head and not the block. I need to know how many holes there are in the block arround the lifters that drain oil back to pan, the block, not the head ;-)

ol"blue

I'm trying to add a block picture now.

pwb

hope you fix it :-) i did find this, but it dont show all.

http://image.jpmagazine.com/f/931107...ler_190_hp.jpg

ol"blue

I'm trying to add a pic.

ol"blue

That's the top of the 4.0L block. The cut out area is where the push rods go through, on the passenger side. That's where the oil drains back through the block.

pwb

Thanx, but i need to see down to the lifters. There are small holes between the lifters where the oil return to pan. But between some of my lifters there are so much hard sludge that i dont want to push a screwdriver to see if i find the hole, if there is hole there i could push the sludge down and i dont want that. If there should be drain holes between all the lifters i will buy a good vacuum cleaner to get the sludge out. I have used a normal houshold vacuum cleaner but that didnt get the sludge out. But if there shouldnt be drain holes between all the lifters then i can let it be there.

If i push the sludge down the holes, will it go directly down to the pan and then to the filter?

ol"blue

If if falls through it can plug up the oil pump screen/pick-up, causing serious issues later. Maybe you should just pull the oil pan off and use a degreaser and get all the sludge cleaned out of there and let it run out of the bottom into a big tray/pan. Then you don't have to worry about something getting clogged up later.

Donnie Jacobs

i had sever sludge in my 91 and ended up finding 3 towrads back and 1 at very front for total of 4. Im concerned as well that there should be more than tbat. But cant seem to find anymore.

dave1123

If the top of the engine has that much sludge, you can bet the pan has just as much. Pull the pan and do it right. JMHO.
