Default Roni's Rogue4x4 Build...finally!

Ok. I have been on here a good long time, but never started a build thread. Until now. Probably shoulda started this when I did the stroker, and may add pics of all that later. But for now, I'll start it off where I'm currently at. The fun stuff started with the stroker...and now it's continuing.

So, some of you know, I've been hoarding parts for a bit since the stroker build. Been gathering stuff for more than a year. Haven't been able to take the old jeep offline though, as it is my daily. Well, my old man retired, and offered me his car, whilst I rebuild. So, in the words of Wayne and Garth, GAME ON!

This will be a pic heavy thread. There will be a lot of work going on here, that I haven't seen much posted on. I will do my best to document all I can, to help others out in the future...or for anyone to avoid my mistakes, LOL

So here's where I'm at currently...this will be the fourth suspension revamp on this rig, that I know of...PO did a **** job of it, and I assume it went from stock to what he did, then on to me. When I got it, it had blocks on the back springs, and several leafs were split. Got rid of that junk. Built some bastard packs, did some 150 coils, with spacers (already on) and some RC adjustable control arms (complete garbage, but have lived with them, until now)...

So, on to the fun stuff...how it sat as of today.

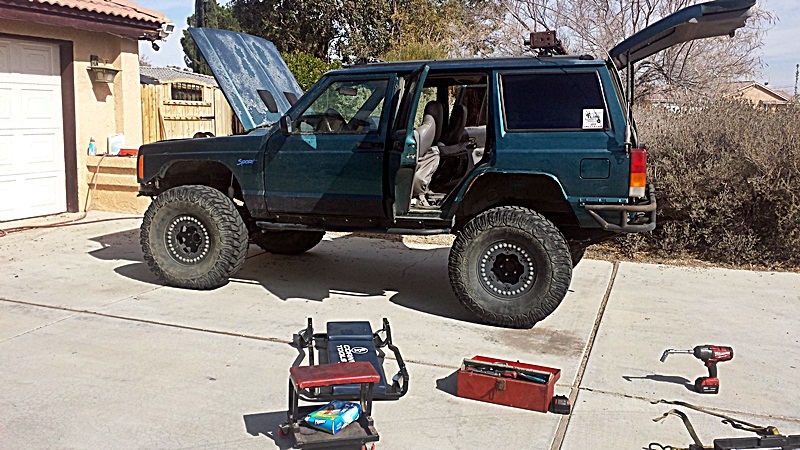

Right before teardown.
Roni's Rogue4x4 Build...finally!-20160228_102252.jpg

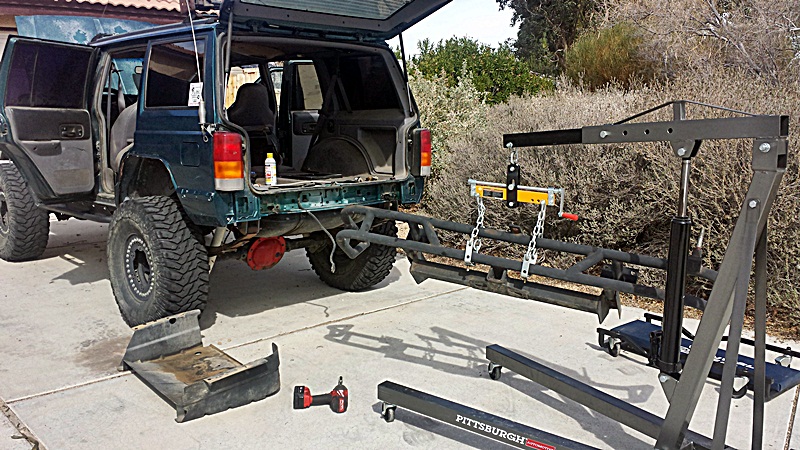

Rear bumper off...notice the use of the engine hoist, they're good for more than just engines, folks! LOL
Roni's Rogue4x4 Build...finally!-20160228_104052.jpg

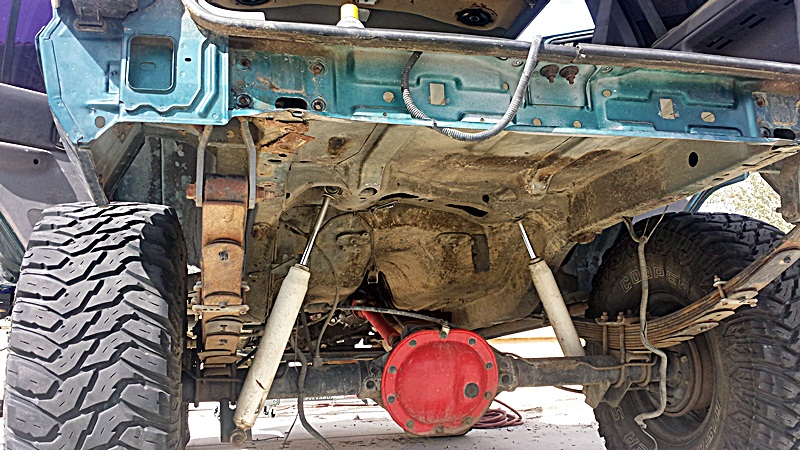

Gas tank out...
Roni's Rogue4x4 Build...finally!-20160228_112319.jpg

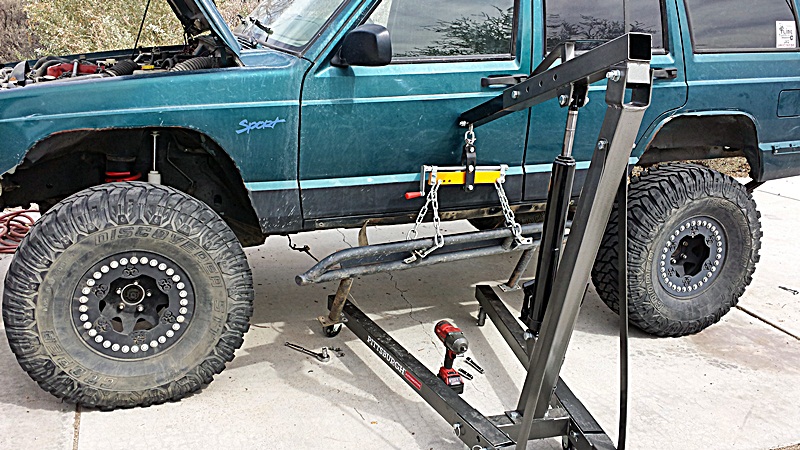

Removing sliders..
Roni's Rogue4x4 Build...finally!-20160228_115401.jpg

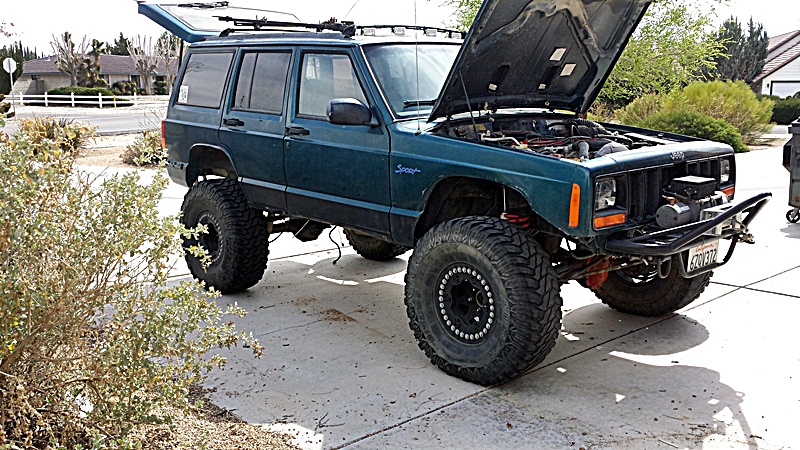

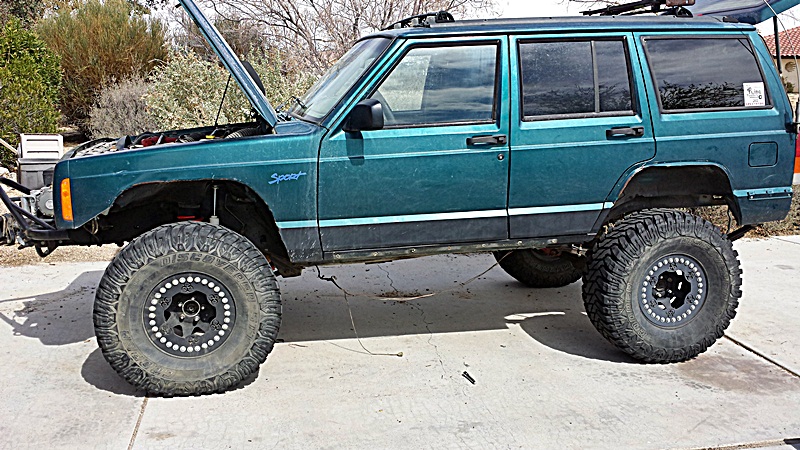

Sliders out!
Roni's Rogue4x4 Build...finally!-20160228_121717.jpg

Roni's Rogue4x4 Build...finally!-20160228_121736.jpg

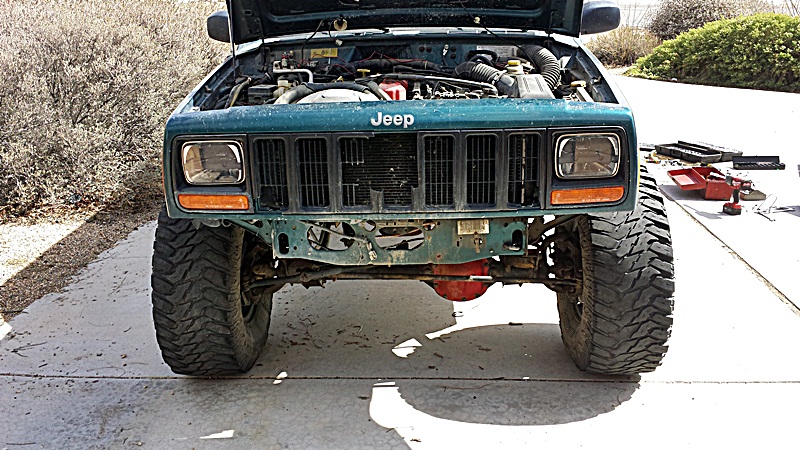

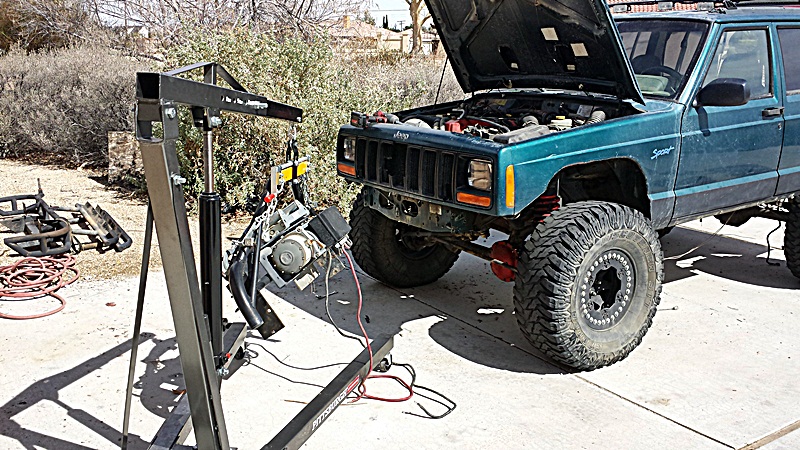

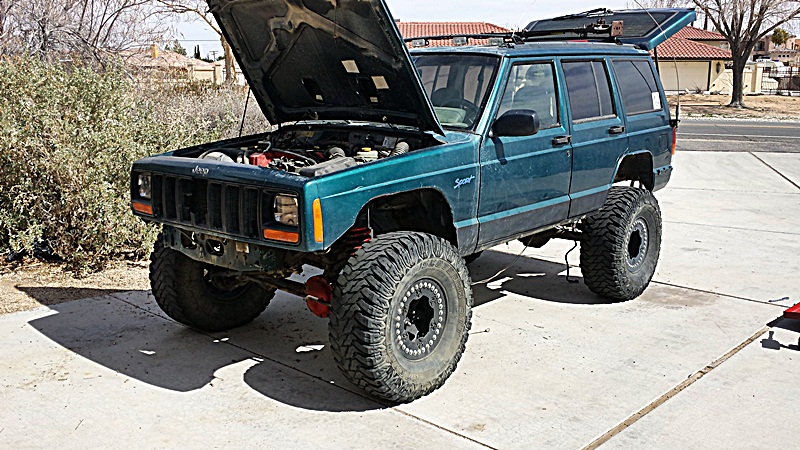

Front bumper/winch removed..
Roni's Rogue4x4 Build...finally!-20160228_123210.jpg

Roni's Rogue4x4 Build...finally!-20160228_123541.jpg

Roni's Rogue4x4 Build...finally!-20160228_123553.jpg

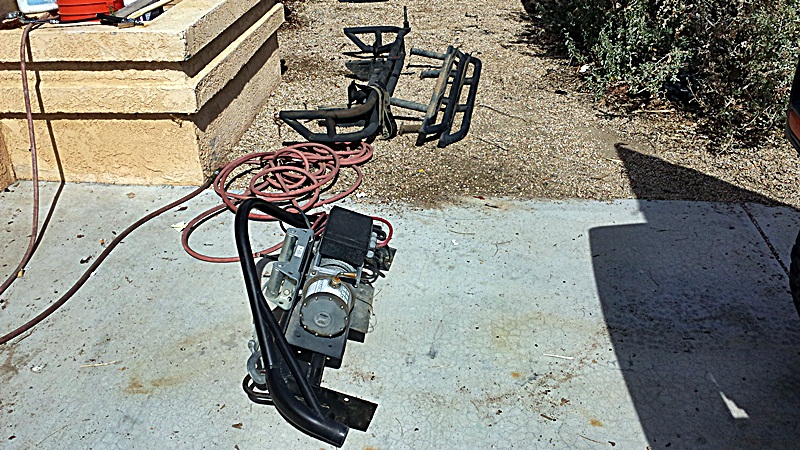

All armor/recovery on the ground...
Roni's Rogue4x4 Build...finally!-20160228_123633.jpg

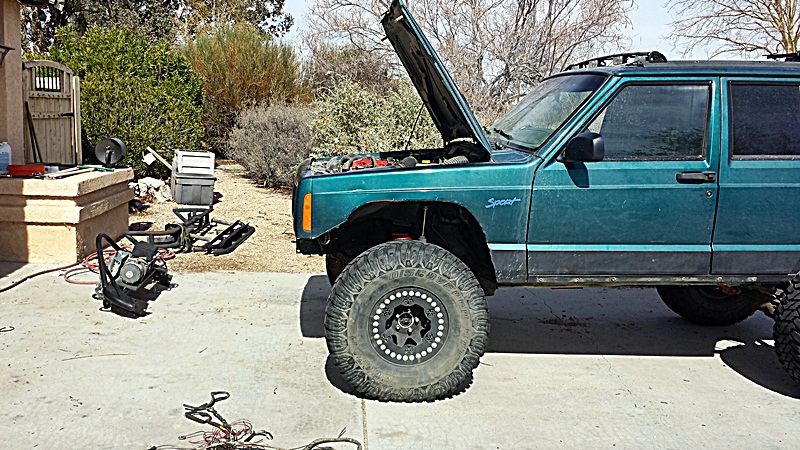

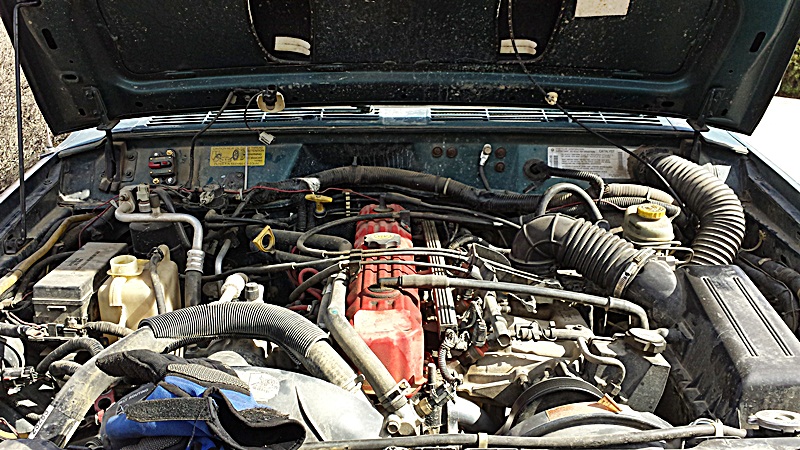

Took the time to remove the LED rock light setup I had on there...never used it, but a couple of times, and the wires were junking up the engine bay. Never did get around to cleaning it up. So it went buh-bye...Salad, you'll appreciate this...as you gave me crap (deservedly so) during my stroker build...besides, I ran all the wires through the frame rails, and they would've burned up or melted during future work...
Roni's Rogue4x4 Build...finally!-20160228_132743.jpg

Roni's Rogue4x4 Build...finally!-20160228_132813.jpg

Look better, Ross? LMAO
Roni's Rogue4x4 Build...finally!-20160228_134017.jpg

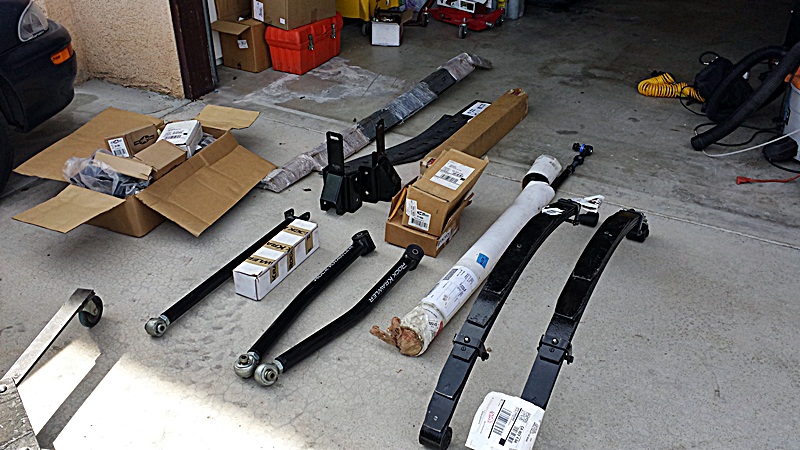

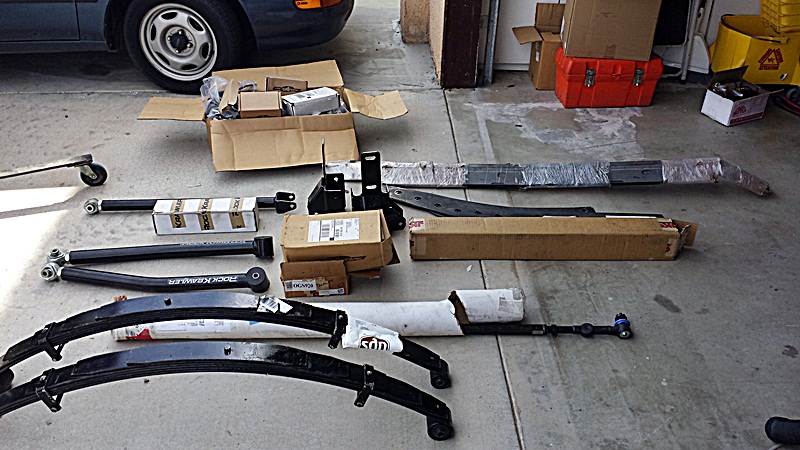

Then I took the opportunity to pull all my new parts together...hadn't been done until today...cooler pics of this ahead...
Roni's Rogue4x4 Build...finally!-20160228_140702.jpg

Roni's Rogue4x4 Build...finally!-20160228_140720.jpg

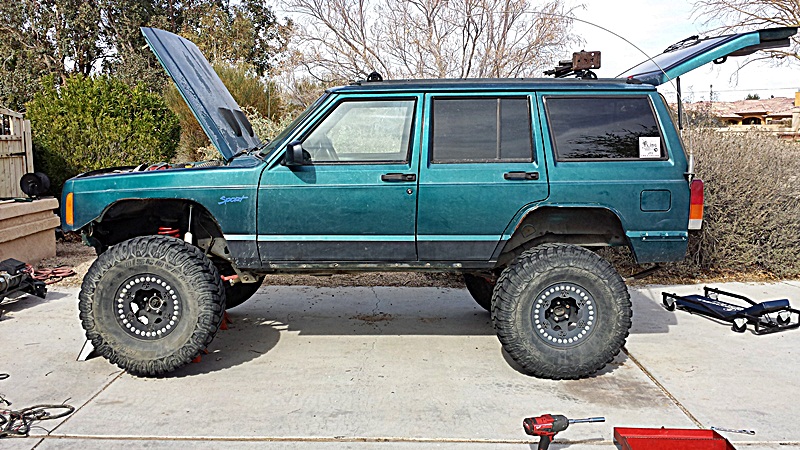

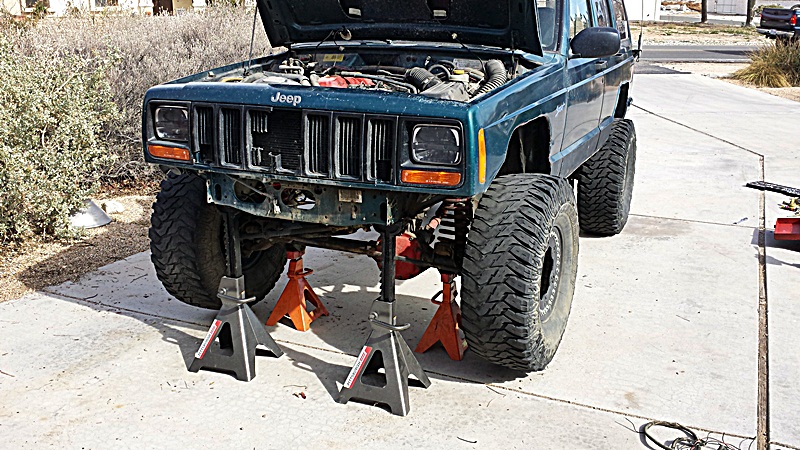

Got it jacked up, and put the stands under it...the ones under the axle will be removed for future work...
Roni's Rogue4x4 Build...finally!-20160228_142109.jpg

Roni's Rogue4x4 Build...finally!-20160228_142136.jpg

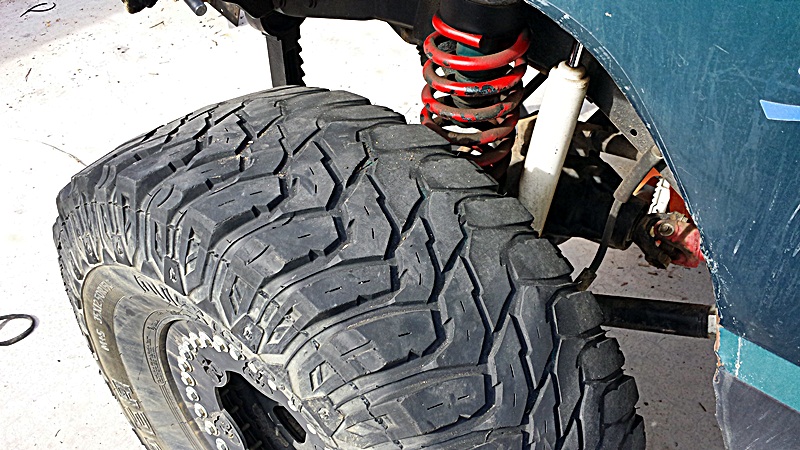

So...yeah, the suspension, ball joints,hubs and u joints WILL be getting replaced, LMAO
Roni's Rogue4x4 Build...finally!-20160228_142222.jpg

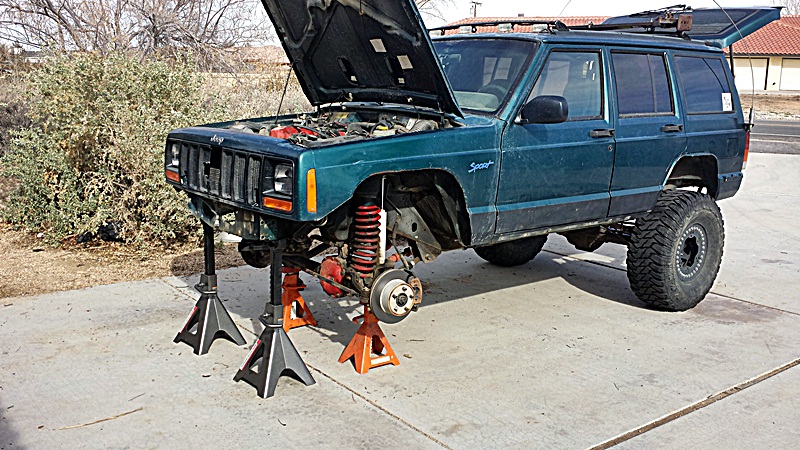

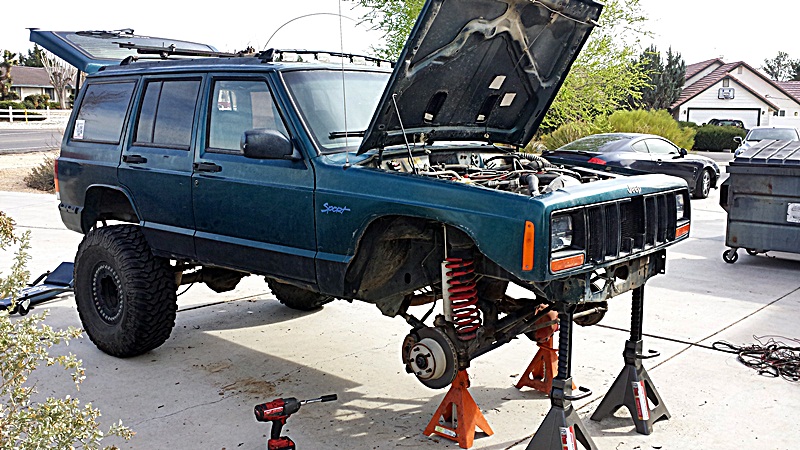

A couple of pics on the stands...okay it was a beer break.
Roni's Rogue4x4 Build...finally!-20160228_144347.jpg

Roni's Rogue4x4 Build...finally!-20160228_144404.jpg

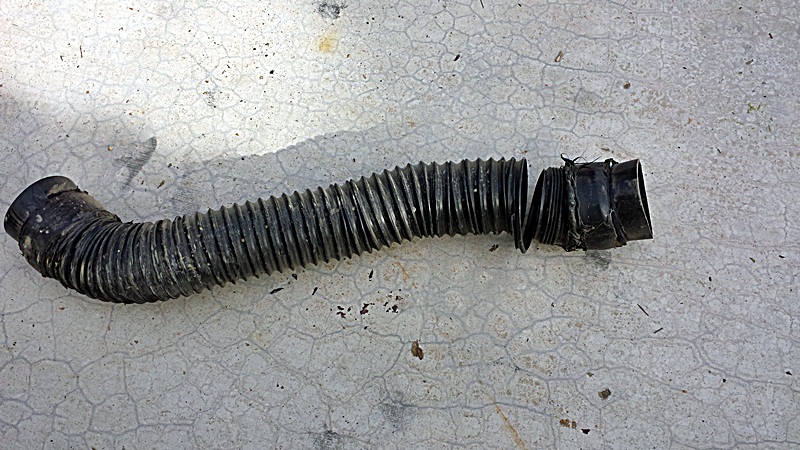

Guess I'm replacing my sleeper snorkel intake hose...
Roni's Rogue4x4 Build...finally!-20160228_144917.jpg

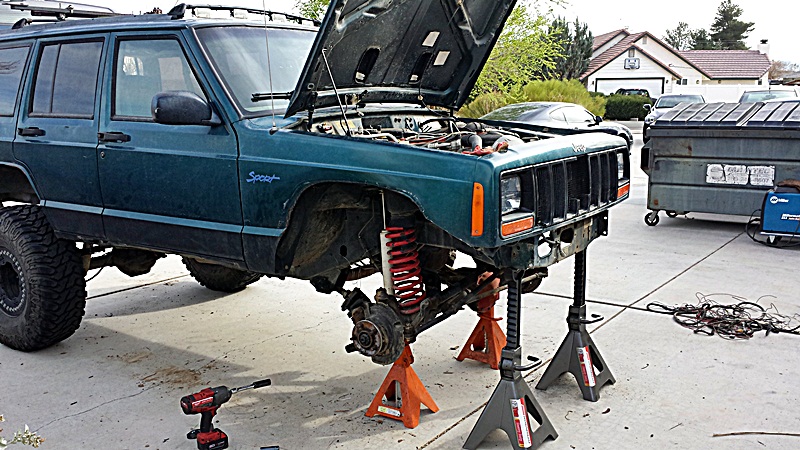

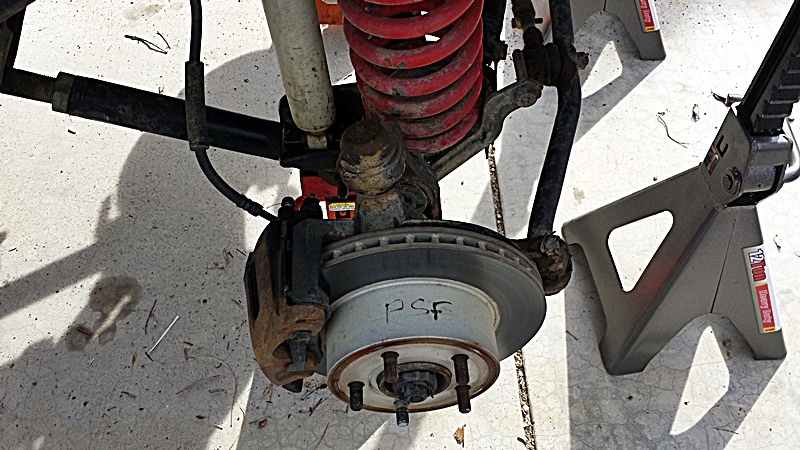

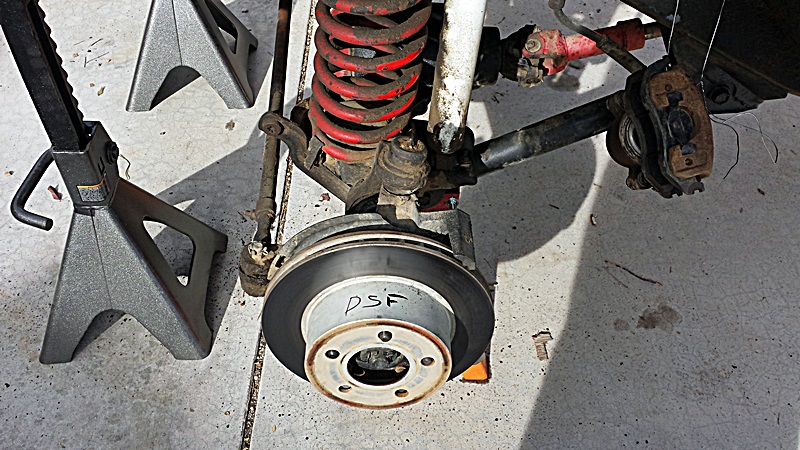

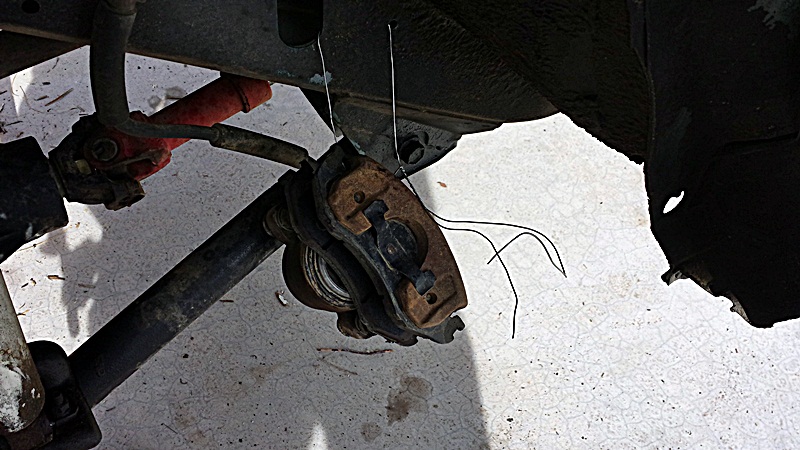

Gettin' the calipers/rotors off....safety wire pliers are your friend...
Roni's Rogue4x4 Build...finally!-20160228_145919.jpg

Roni's Rogue4x4 Build...finally!-20160228_145924.jpg

Roni's Rogue4x4 Build...finally!-20160228_145935.jpg

Roni's Rogue4x4 Build...finally!-20160228_151154.jpg

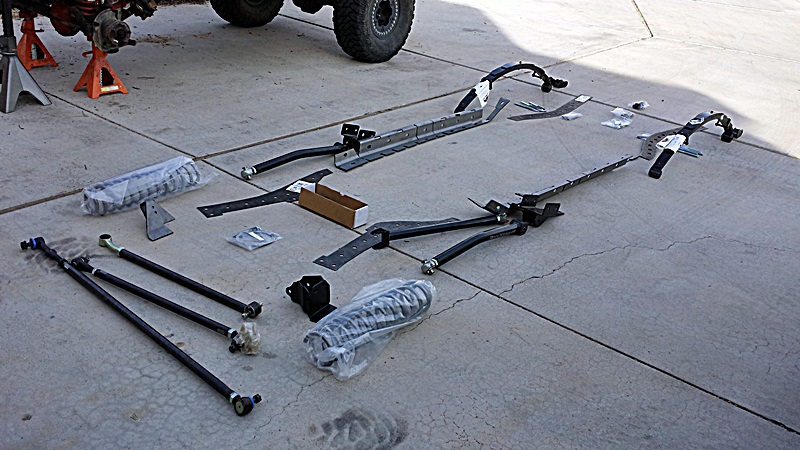

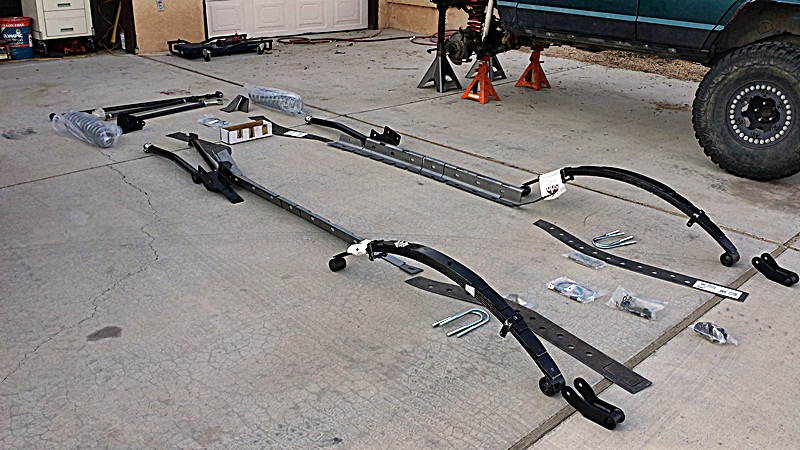

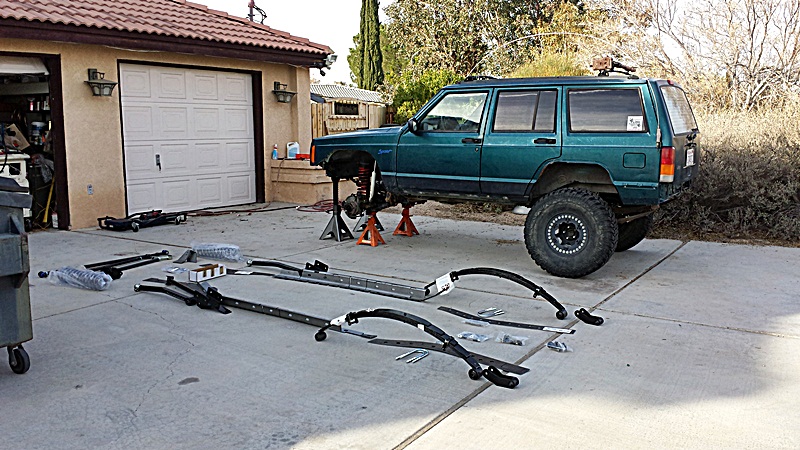

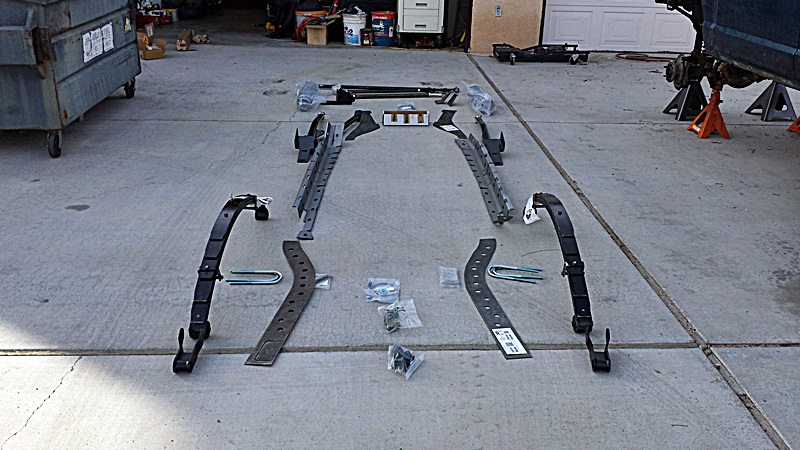

Then I laid out all the new parts going in, in an exploded view, on the driveway...way cool IMHO, and an indicator of how much work is actually ahead of me, HAHA!!!
Roni's Rogue4x4 Build...finally!-20160228_155925.jpg

Roni's Rogue4x4 Build...finally!-20160228_155940.jpg

Roni's Rogue4x4 Build...finally!-20160228_155949.jpg

Roni's Rogue4x4 Build...finally!-20160228_160018.jpg

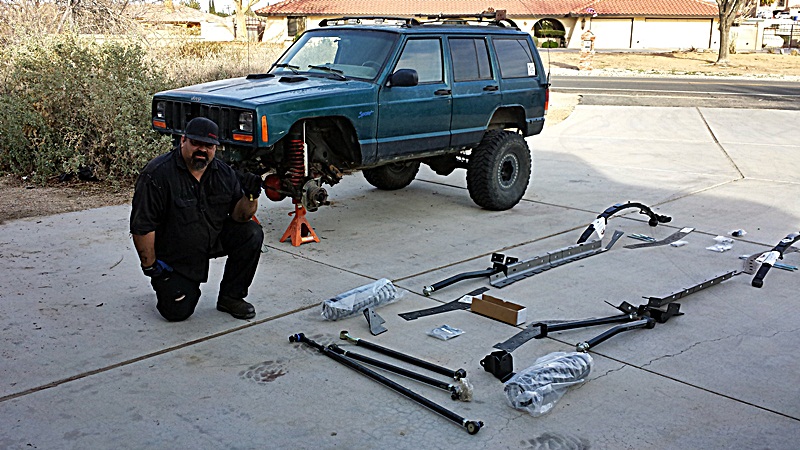

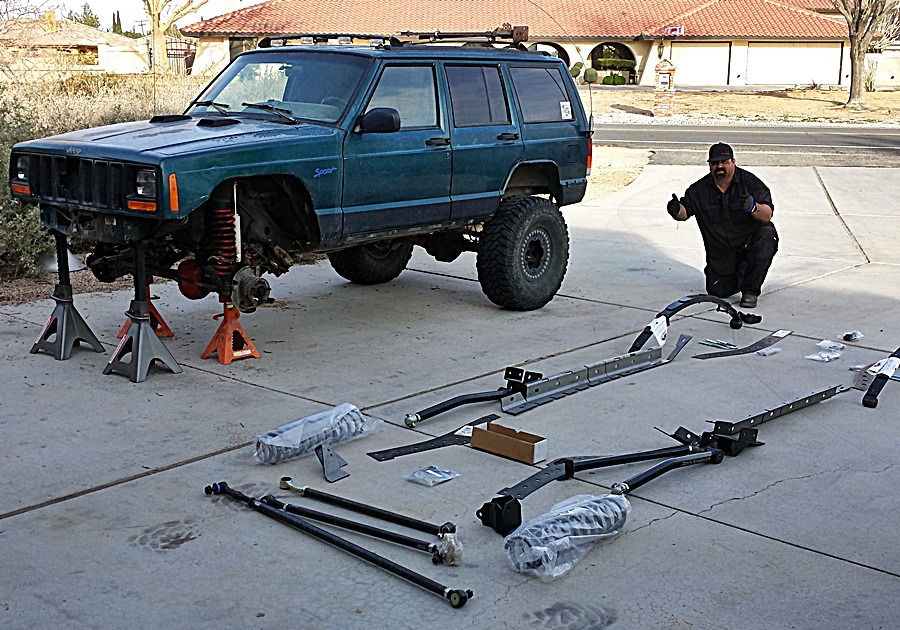

Just 'lil ole me hanging with my ride...
Roni's Rogue4x4 Build...finally!-20160228_160341.jpg

Roni's Rogue4x4 Build...finally!-20160228_160401.jpg

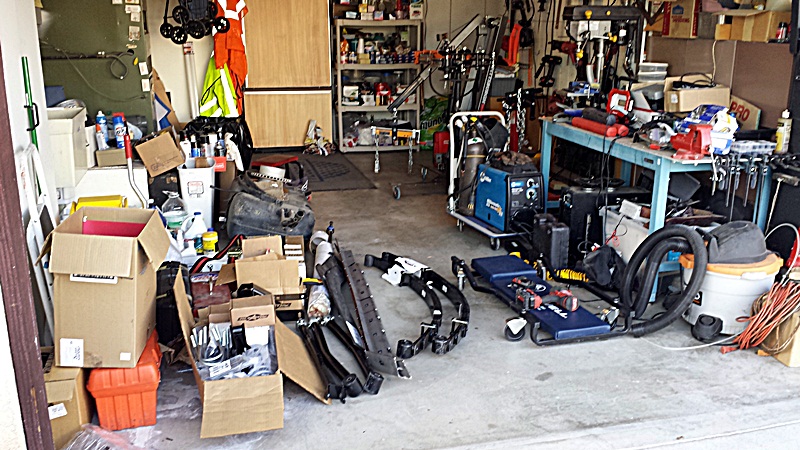

...and so much for a clean garage, LMFAO!!!
Roni's Rogue4x4 Build...finally!-20160228_161934.jpg

Anywho, that's it for now. Stay tuned for the next exciting episode!
roninofako is offline
Old 02-29-2016, 12:22 AM
  #2
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Name-dropped twice in one post, I feel honoured! lol

Also I need new pants now. This is gonna be sweet.
salad is offline
Old 02-29-2016, 06:37 AM
  #3
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,073
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Subscribed so I can find things to make fun of. Well. Not really but I ll try! Ha good start so far.
XJwonders is offline
Old 02-29-2016, 07:06 AM
  #4
Member

westran2002's Avatar

Join Date: Sep 2015
Location: Cape Coral, FL
Posts: 297
Year: 1999
Model: Cherokee
Engine: 4.0
Default

Subbed. Can't wait to see your progress. What steering setup is that?
westran2002 is offline
Old 02-29-2016, 07:11 AM
  #5
Senior Member

JandDGreens's Avatar

Join Date: Jan 2013
Location: Colorado
Posts: 934
Year: 1991 2-Door
Model: Cherokee
Engine: 4.0 liter
Default

subbed, nice XJ!
JandDGreens is offline
Old 02-29-2016, 08:30 AM
  #6
TIME TO GET SCHWIFTY
Thread Starter

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 13,072
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Originally Posted by salad View Post
Name-dropped twice in one post, I feel honoured! lol

Also I need new pants now. This is gonna be sweet.

Originally Posted by XJwonders View Post
Subscribed so I can find things to make fun of. Well. Not really but I ll try! Ha good start so far.
I'm sure there will be one or two things for you to rib me about, LOL
Originally Posted by westran2002 View Post
Subbed. Can't wait to see your progress. What steering setup is that?
Serious 1 ton OTK...
Originally Posted by JandDGreens View Post
subbed, nice XJ!
Thanks!
roninofako is offline
Old 02-29-2016, 08:39 AM
  #7
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

HEEEEYYYYYYY!!!! Look who's FINALLY got a build thread!
Basslicks is offline
Old 02-29-2016, 08:45 AM
  #8
TIME TO GET SCHWIFTY
Thread Starter

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 13,072
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Guess I should list what all is going in, huh?

Roni's Rogue4x4 Build...finally!-20160228_155925.jpg
So, from front to back...
Serious 1 ton OTK steering
JKS OTK trackbar with weld on axle side bracket, and RE frame side bracket
(not pictured, RE front bumpstops, and RE BPE's)
Teraflex extended SS front brake lines
RE 5.5 lift coils
DBO front frame stiffeners
RS mids
RockKrawler 3 link
DBO rear frame stiffeners
RE degree shims
RE centering pins
Teraflex extended SS rear brake line
RE 4.5 rear leafs, with all new mount h/w from RE
RE boomerang shackles

What I haven't gotten yet-ball joints, u joints and hubs for the front, I'll get those when needed, shocks (thinking Bilstein 7100's), and seriously considering doing the disc brake swap when I do the rear...might as well whilst I have it all out anyways, right?
roninofako is offline
Old 02-29-2016, 09:23 AM
  #9
CF Veteran

rcguymike's Avatar

Join Date: Aug 2015
Location: Laurium, MI
Posts: 1,193
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0L
Default

Looks almost exactly like what what I have planned! Subbed!
rcguymike is offline
Old 02-29-2016, 11:23 AM
  #10
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

100% disc brake swap. Doo eet!

Not that you're bored or anything lol
salad is offline
Old 02-29-2016, 11:41 AM
  #11
HUH? WHAT?

XJwonders's Avatar

Join Date: Jan 2013
Location: west chester, pa
Posts: 19,073
Year: 1999
Model: Cherokee(XJ)
Engine: 4.0
Default

Why bother with disc swap doe. Juz do axle swap!
XJwonders is offline
Old 02-29-2016, 11:47 AM
  #12
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 18,251
Year: 1999
Model: Cherokee
Engine: 4.0L OBD-II
Default

Yeah, he'd be silly to put in the 14 bolt without disc brakes.
salad is offline
Old 02-29-2016, 12:49 PM
  #13
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

Originally Posted by XJwonders View Post
Why bother with disc swap doe. Juz do axle swap!
One of the biggest reasons why I haven't done a rear disc swap. No point in spending money on a D35 when I don't plan on keeping it.
Basslicks is offline
Old 03-04-2016, 10:14 PM
  #14
TIME TO GET SCHWIFTY
Thread Starter

roninofako's Avatar

Join Date: Feb 2011
Location: Apple Valley, CA
Posts: 13,072
Year: 97
Model: Cherokee
Engine: 4.6 stroker
Default

Been itching all week to do work. Brought some stuff home from work, again, to assist in getting it done. Bad news is they are predicting rain this weekend. Good news is it's supposed to be overnight, LOL

Plan for tomorrow is get the front end out. Then any interior that needs to come out for welding the stiffies. With any luck, I hope to be prepping metal for the stiffeners by Sunday. Stay tuned.
roninofako is offline
Old 03-05-2016, 03:21 PM
  #15
Someone stole my badge!

Basslicks's Avatar

Join Date: Mar 2011
Location: Ocala, FL
Posts: 11,137
Year: 1992
Engine: 4.0 HO
Default

lol... welding stiffies

BEAT THAT VIAGRA!!!
Basslicks is offline
