Default Project bye bye money..

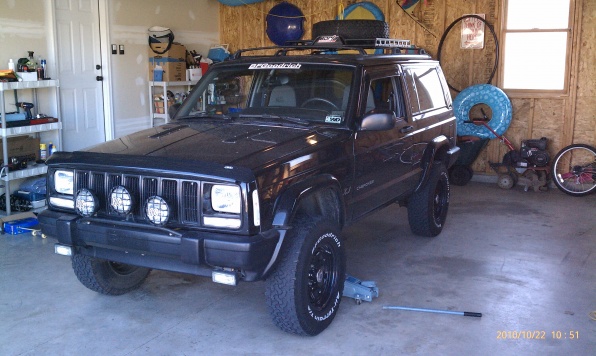

Heres my jeep the day i bought it i didnt like it because i was a 2in buget boost and didnt really make to much sense to leave it there.. so im putting a 4-5in lift on
Project bye bye money..-imag0072.jpg

now comes the lift i have longer then i thought ome nitrochargers already on which saves alot of time and money. i put shackles in the back to pump it up alil. took out the rear sway bar. did a skyjacker tcase drop. adj control arms and track bar from rc. sb links from zone offroad. and springs from a buddy.
Attached Thumbnails Project bye bye money..-shackles-going-.jpg   Project bye bye money..-imag0079.jpg
shadowlm15 is offline
Old 10-24-2010, 08:07 AM
  #2
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

heres the 2in height in the rear and now hears the lift with 30in tires.. from center of my hub to fender was 23 inches which correlates to 5 inches rite?
Project bye bye money..-2in-height.jpg
lifttt!
Project bye bye money..-lift-height.jpg
i like it!
shadowlm15 is offline
Old 10-24-2010, 08:12 AM
  #3
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

havent really had any problems at all yet. till i got to the tcase drop. i was told to loosen the motor mounts a half turn so i did. took the stock cross member bolts out lowered it about 2 inches and squeezed the blocks in. one side went in great. the other not so much. it was off so i had to force it and i didnt like that. but i got it all in and now got stuck on how the bracket is going to fit.

tcase drop
Project bye bye money..-tcase-drop.jpg

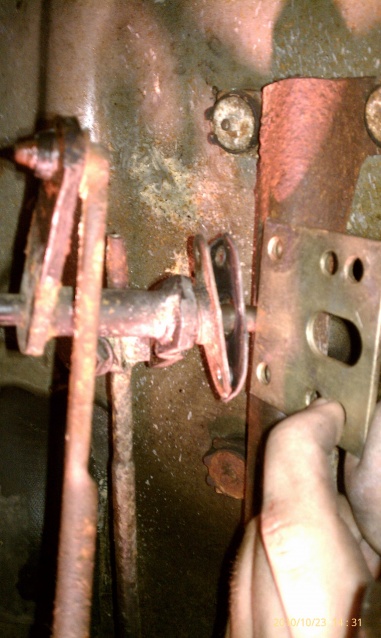

linkage bracket.. the rod that goes from one side to the other doesnt move so idont know how to get the bracket between everything..
Project bye bye money..-imag0088.jpg
shadowlm15 is offline
Old 10-24-2010, 08:15 AM
  #4
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

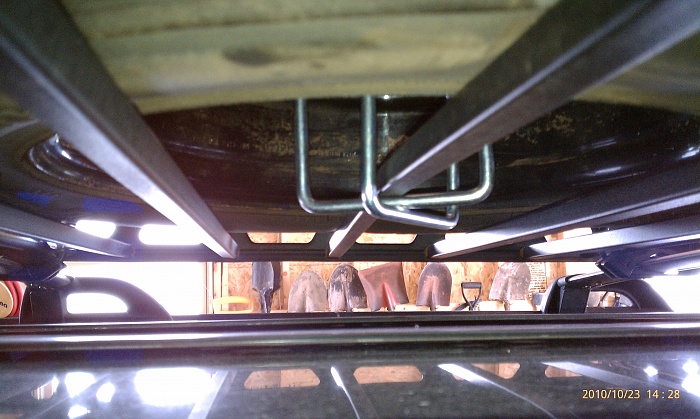

haha off topic threw my tire up top. just used some 4 inch ubolts and its solid.Project bye bye money..-ubolts.jpg
Project bye bye money..-roof-rack-mount.jpg
shadowlm15 is offline
Old 10-24-2010, 08:28 AM
  #5
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

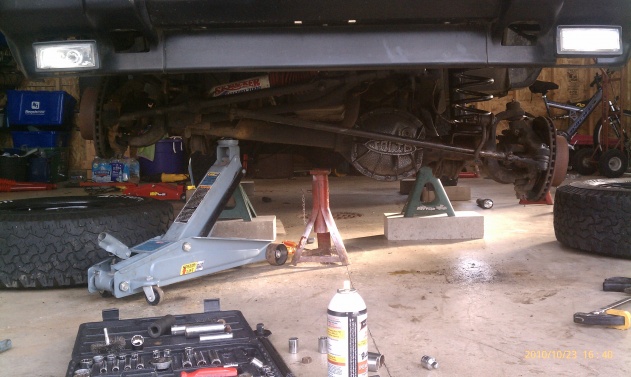

on to the front were im having all my problems.. first took out the front sway bar and links for now had to heat up the drivers side link but it came rite out with my impact. unbolted the shocks. and tried lowering the axle all the way down so i could put out the springs. nothing the springs decompressed and wont even budge. so that is were i sit with that i may be stoping by work to borrow a spring compressor. track bar isnt coming out.. the cotterpin on the unibody is so rusty that it breaks off.. and we cant fit a box wrench around it. wont come off the axle either.. pb blaster(we named it please be faster) heat and impact arnt doing anything. i let it sit overnite so maybe hopefully the pb penetrates the bolts. but im stuck. heres some pics ill give an update soon. hopefully im done by tonite.

old nasty links
Project bye bye money..-imag0091.jpg
sway bar out for now. and need a gear puller or something to push the bolt through
Project bye bye money..-need-gear-puller.jpg
annoying track bar. axle side
Project bye bye money..-track-bar-bolt.jpg

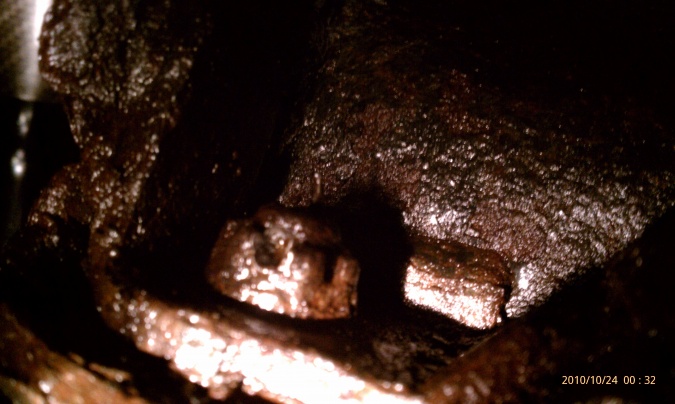

and the rustyy castle nut and cotterpin for the unibody side.
Project bye bye money..-rusty-ball-joint-bolt.jpg
Attached Thumbnails Project bye bye money..-imag0093.jpg
shadowlm15 is offline
Old 10-24-2010, 08:29 AM
  #6
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

now its time to work!
shadowlm15 is offline
Old 10-24-2010, 08:40 AM
  #7
Seasoned Member

kellan_musseau's Avatar

Join Date: Nov 2009
Posts: 331
Year: 1997 2 door
Model: Cherokee
Engine: 4.0
Default

Throw some wingnuts on the ubolt tire holder to make it easier on yourself.. nice jeep
kellan_musseau is offline
Old 10-29-2010, 09:25 AM
  #8
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

Well im finally done! Track Bar came off with and IR 8000rpm impact so after that it was smooth moving! Heres the Track Bar..

Bottom bolt we had to break.. but when i went to get a new one no one has a metric hardened bolt long enough so i had to go with standard and it just isnt going to do it.. sorta loose....
Project bye bye money..-bolt-broke.jpg

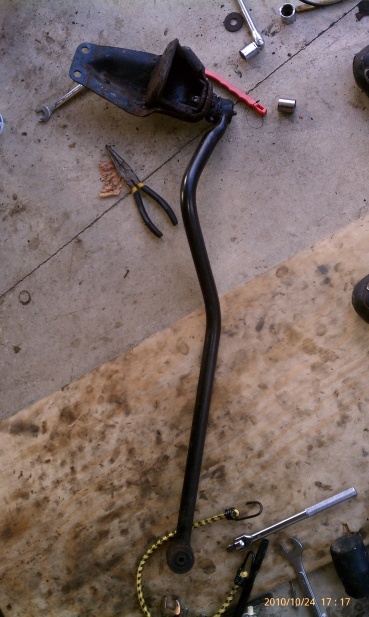

my impact wasnt enough to take of the bracket so the IR was nice to borrow..
Project bye bye money..-bracket-off.jpg
after that we used an air chisel and tried cutting the bolt.. it only spread it open and allowed us to slowly spin it off with a air hammer and punch. this is how bad it was....
Project bye bye money..-rusty-nuts.jpg

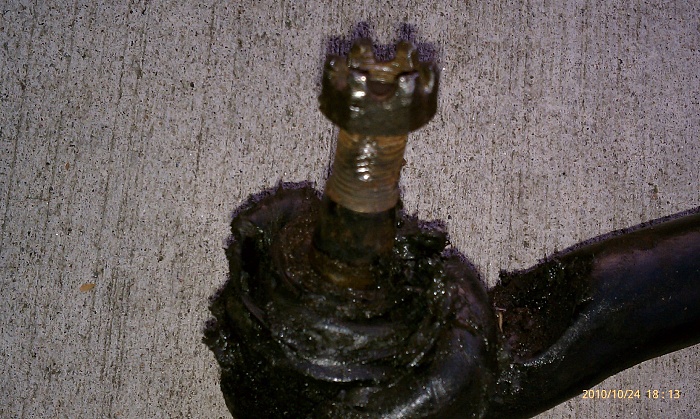

the left overs..
Attached Thumbnails Project bye bye money..-bad...jpg
shadowlm15 is offline
Old 10-29-2010, 09:32 AM
  #9
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

the springs were a pain. the guy that i bought mine off of yanked my chain gave me the wrong springs. so i went to bds suspension and 3 days later i had 4.5 in lift coils with a 5/8 dia. wire there like 30 pounds a peice..
Project bye bye money..-new-springs.jpg
these things are sorta scary.. i would advise people when using these to be extra careful. but made the job very easy
Project bye bye money..-imag0123.jpg
springs in pretty much done. just a feel things to bolt in
Project bye bye money..-almost-done.jpg
shadowlm15 is offline
Old 10-29-2010, 09:38 AM
  #10
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

well since then its all just been minor stuff. still need to get that tcase bracket in and someone said lower the tcase and try to slide the tcase sideways till the bracket goes in. but im done for the week im tried of driving a kia sorento everywere that has a necklace and an Eeyore in the window.. doesnt look to good.

before.. ill try to get a new pic in this spot
Project bye bye money..-imag0072.jpg

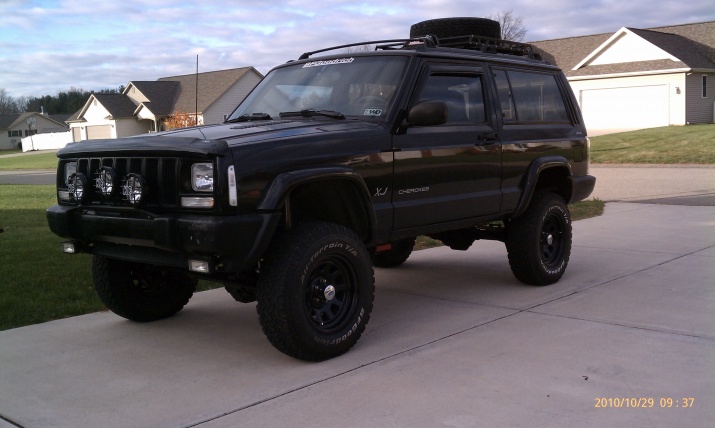

after
Project bye bye money..-lift-done.jpg
baby tires look funny..
Project bye bye money..-imag0140.jpg
shadowlm15 is offline
Old 10-29-2010, 09:41 AM
  #11
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

next on my list is to make some quick disconnets. was gonna just drill through the bolt. but i mite go to tsc and get there hitch pins and put those in there. probably a better idea not to drill the bolt. anyone know a place to get a metric hardened bolt for the axle side of the track bar???
shadowlm15 is offline
Old 10-29-2010, 09:51 AM
  #12
Senior Member

jonjon99xj's Avatar

Join Date: Jan 2009
Location: Columbia, SC
Posts: 770
Year: 1999
Model: Cherokee
Engine: I6
Default

where did you get the info how the length between center hug and top of flare for lift results?
jonjon99xj is offline
Old 10-29-2010, 09:58 AM
  #13
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

well heres a thread.. i mite have to try the other techniques too and see what i come up with.
https://www.cherokeeforum.com/f2/how...my-lift-58578/https://www.cherokeeforum.com/f2/how...my-lift-58578/
shadowlm15 is offline
Old 10-29-2010, 12:15 PM
  #14
Senior Member

Join Date: Jan 2009
Posts: 545
Year: 1994
Model: Cherokee
Engine: 4.0L Air Intake and TB Spacer
Default

Originally Posted by shadowlm15 View Post
lifttt!
Attachment 28423
i like it!

Did you ever fix this shackle angle? Because this is horrible
94xjstud is offline
Old 10-29-2010, 09:06 PM
  #15
Member
Thread Starter

shadowlm15's Avatar

Join Date: May 2010
Location: Kalamazoo, MI
Posts: 149
Default

Wont the springs be flatter then
