Little Blue Jeep build: Abridged.
Update: 5/16/16; All relevant build updates up until 6/6/16 are in this first post. Any after 6/6/16 will be continued on page 2 and forward. Thanks!
So this is the first Jeep I've actually built myself, I haven't exactly documented the entire thing so this is more of what I've done/plan to do with some pictures! From now on the more I do I'll be more detailed with photos and add as I go.
Here is what I started with, purchased in July 2014 from second owner(?) for $1500
1989 Cherokee Pioneer
158k
BA 10/5
1" Coil spacers
Bastard pack/AAL (PO was unsure)
31x10.50x15r mix match.
All manual options
Picture was taken around November 2014
Left her like that for a long time with plans in the back of my head but being 22, working a part time job at minimum wage and paying student loans and an apartment simple upkeep was the main focus.
February 2015: I moved to South Carolina for a job as a lab tech at a plant that manufactures HDPE fittings for gas and water lines.
Now September, I started ordering parts for her. First I purchased IRO 4" coils, fixed UCAs and LCAs, double shear adjustable track bar, HD tie rod, 1" T-case drop, shocks.
I didn't order rear leaves because I was hoping the 4" front would level me out with the rear (picture to come).
If you've been following the news in October 2015 SC was hit by Joaquin and many areas flooded and a lot of people lost their homes and businesses. Unfortunately I lost my house due to flood waters (my house is also a beach house on stilts and it was completely under) so I moved in with my Aunt. Every one has was of coping so I started throwing money at my Jeep haha.
Ordered some new wheels and went home and test fitted them when they came in.
Before:
During:
(Aunt came outside, didn't know I was doing it that day lol)
After:
I immediately ordered rear shackles and some much needed sway bar links.
After installing those I had to save up a little more money to buy some much needed tires, so here's my dog, Fred.
And theeeeeeeeeeeeen:
I stuck with 31x10.50s because, well they were available and I needed tires like really soon. They are Goodyear Wrangler Authorities and so far I'm pretty happy with them.
Then I got my wheels and new tires mounted and this is how she sat the day after.
Added a new sticker to remind these South Carolinians that I'm VA proud
12/9/15 was my birthday and I turned 23, when I got home there were two boxes on my aunts porch for me. My mom ordered me a steering box brace, spacer and some extended stainless brake lines (still waiting on the brake lines). Happy birthday to me! Thanks mom!
This past weekend 12/12/15 I got a wild hair up my *** and decided to remove my body trim and bedline the rockers and rear quarters and put my new bumper on (shown in last picture) while I was house sitting for my boss. Still not sure if I like the bumper or not but I went heavy on clear coat to prevent rusting and kept the raw metal look to somewhat match the rear chrome bumper.
Before:
During:
And after:
As of today 12/14/15 that's how she sits.
I really don't have a set in stone plan for this because I'm always changing my mind, but the only thing that is set is once I buy another daily I'll start beating on her, right now I guess it's just prep for that. Eventually I'll get rid of the T-case drop and do an SYE, I just don't need it now. I want to swap out the BA 10/5 and attempt the 6 speed swap. Go larger on the tires once these wear out. So I think for now I'm going to focus on the interior, which is in great shape. I just don't know how to not mess with things.
The steering brace, spacer, along with a Durango gear box, a new pump and pulley will be going in over my vacation from work during Christmas break so I'll add some more pictures and what not once I do that. If anyone has any comments, questions, pointers or CONSTRUCTIVE criticism feel free to do so. Thanks guys!
Current:
4" IRO coil springs
IRO double shear adjustable track bar
IRO HD Tie Rod
IRO Shocks
IRO T-case drop
Rough Country 2" drop shackles
Rough Country quick disconnects
Dirtbound Offroad Stubby Recovery bumper
American Racing Outlaw 1's 15x10 -38 offset
31x10.50x15 Goodyear Wrangler Authority
Waiting to go on:
M.O.R.E Steering box brace
RE stainless braided brake lines
Durango gear box
PS Pump & pulley.
Update: 12/21/15

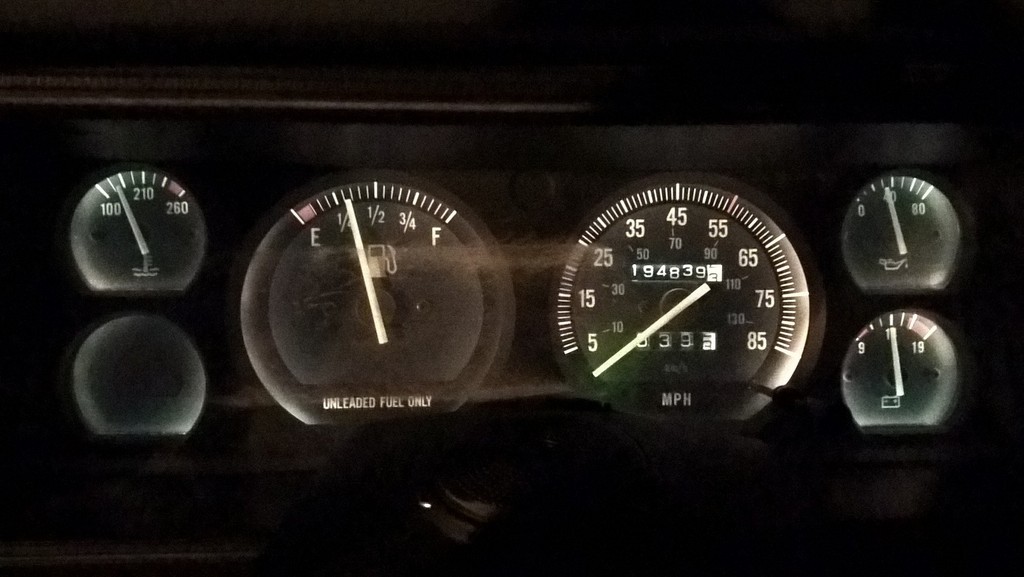

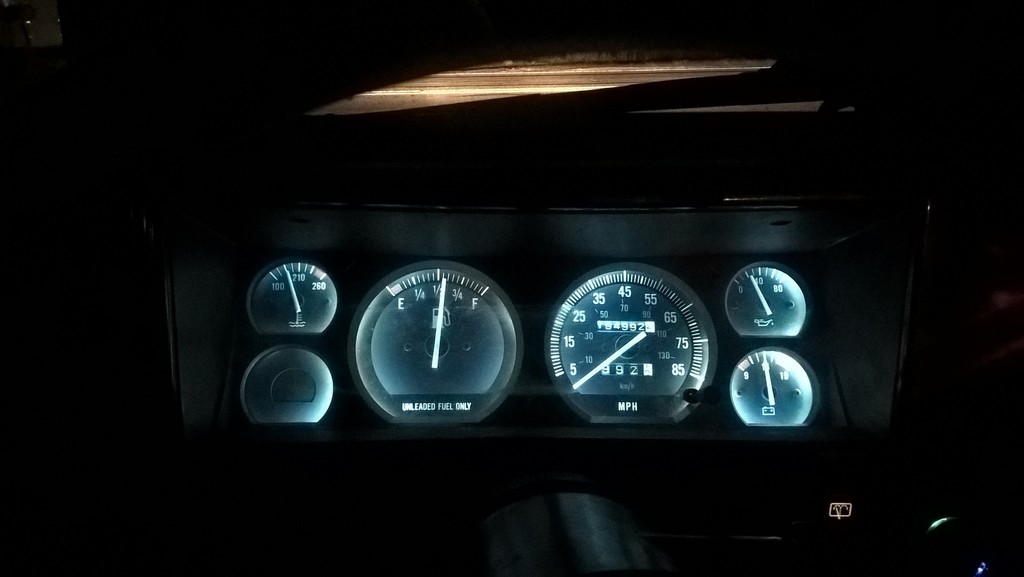

Added some LED cluster lights this weekend
Before:
After:

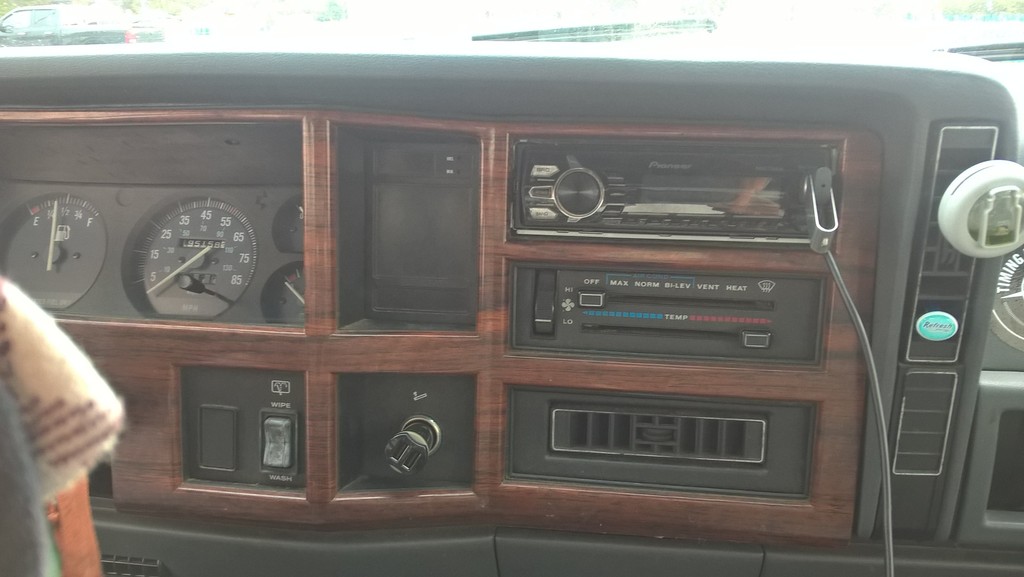

Also found a wood grain dash trim at the junkyard so I pulled that and installed it.
Update: 1/6/16
Went up to VA for vacation to visit my mom and some friends between Christmas and New Years. While I was up there I installed the Durango box, no pictures though because I had some time constraints. While I was up there the slave decided to go. Now, I have never pulled a transmission by myself and neither had my friend Mike so we decided to jump in head first and just go to town(everyone starts somewhere).
Yeah, maybe we shouldn't have done that because we fought the trans the whole time. Once it was out Mike (right) wanted to take a obligatory douchebag victory picture, I was completely okay with it.
I would've done the AX15 swap but I couldn't locate one near by and it was nearing the end of my vacation so the BA 10/5 had to go back in. Luckily I've found a external slave AX15 that needs new synchros near me in SC that I will probably pick up this weekend and start getting that whole swap ready so I don't have to deal with the internal slave again.
Almost immediately after we bled the clutch and did a short test drive I went somewhat Roadkill style and took her on a 2.5 hour trip to the Outer Banks and hit the beach with some friends. Here are two of the pictures, I will post more as they are given to me
Update: 1/11/16
Well, last night I went ahead and picked this up........
Compared to what I had been finding these for WITHOUT the transfer case, I had to jump on this. I need to convert it to an external slave set up but I'm in no real rush. While they're both out I'm going to take the time to open them up and see if anything looks fishy and at the very least put new synchros in the transmission. I've also been thinking about building a np231/np231 doubler while it's out to? Thoughts on that anyone? Feel free to chime in.
Also before I picked that up I installed my other G.E.A.R seat cover, forgive the dark pic.
